complexType AbstractCoordinateOperationType

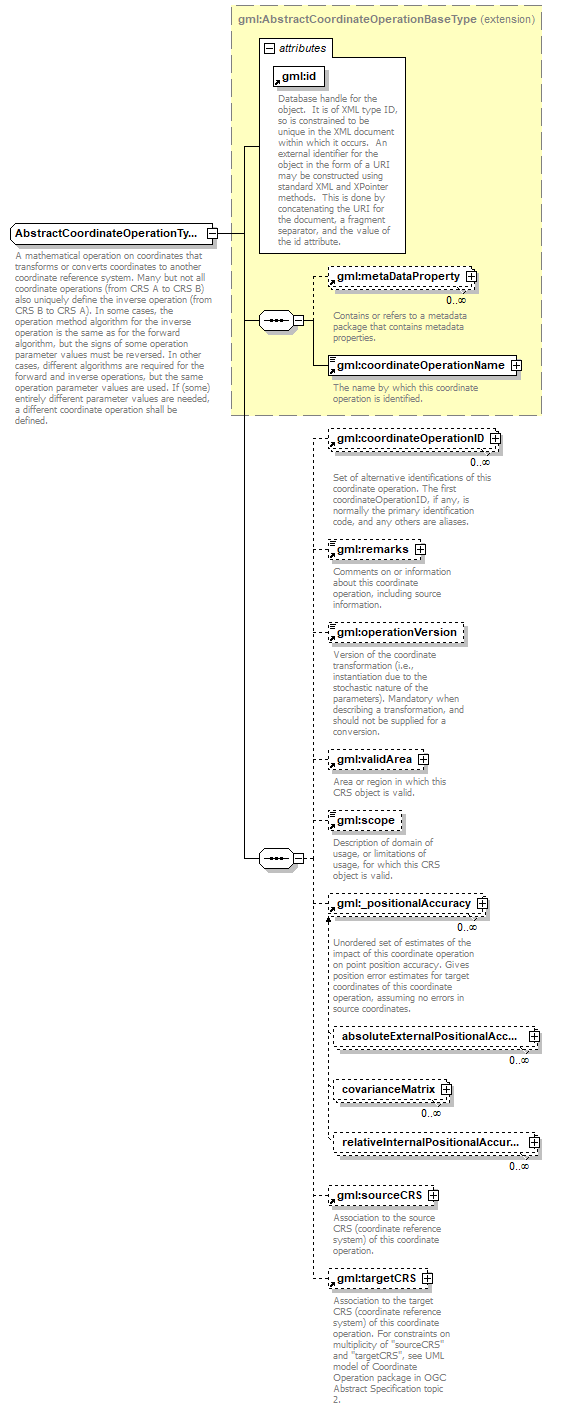

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractCoordinateOperationBaseType
properties	base  gml:AbstractCoordinateOperationBaseType abstract  true
children	gml:metaDataProperty gml:coordinateOperationName gml:coordinateOperationID gml:remarks gml:operationVersion gml:validArea gml:scope gml:_positionalAccuracy gml:sourceCRS gml:targetCRS
used by	elements  _CoordinateOperation _Operation _SingleOperation complexTypes  AbstractGeneralConversionType AbstractGeneralTransformationType ConcatenatedOperationType PassThroughOperationType
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation A mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. Many but not all coordinate operations (from CRS A to CRS B) also uniquely define the inverse operation (from CRS B to CRS A). In some cases, the operation method algorithm for the inverse operation is the same as for the forward algorithm, but the signs of some operation parameter values must be reversed. In other cases, different algorithms are required for the forward and inverse operations, but the same operation parameter values are used. If (some) entirely different parameter values are needed, a different coordinate operation shall be defined.
source	<xs:complexType name="AbstractCoordinateOperationType" abstract="true">   <xs:annotation>     <xs:documentation>A mathematical operation on coordinates that transforms or converts coordinates to another coordinate reference system. Many but not all coordinate operations (from CRS A to CRS B) also uniquely define the inverse operation (from CRS B to CRS A). In some cases, the operation method algorithm for the inverse operation is the same as for the forward algorithm, but the signs of some operation parameter values must be reversed. In other cases, different algorithms are required for the forward and inverse operations, but the same operation parameter values are used. If (some) entirely different parameter values are needed, a different coordinate operation shall be defined.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractCoordinateOperationBaseType">       <xs:sequence>         <xs:element ref="gml:coordinateOperationID" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Set of alternative identifications of this coordinate operation. The first coordinateOperationID, if any, is normally the primary identification code, and any others are aliases. </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element ref="gml:remarks" minOccurs="0">           <xs:annotation>             <xs:documentation>Comments on or information about this coordinate operation, including source information. </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element ref="gml:operationVersion" minOccurs="0"/>         <xs:element ref="gml:validArea" minOccurs="0"/>         <xs:element ref="gml:scope" minOccurs="0"/>         <xs:element ref="gml:_positionalAccuracy" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Unordered set of estimates of the impact of this coordinate operation on point position accuracy. Gives position error estimates for target coordinates of this coordinate operation, assuming no errors in source coordinates. </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element ref="gml:sourceCRS" minOccurs="0"/>         <xs:element ref="gml:targetCRS" minOccurs="0"/>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>
