complexType ConcatenatedOperationType

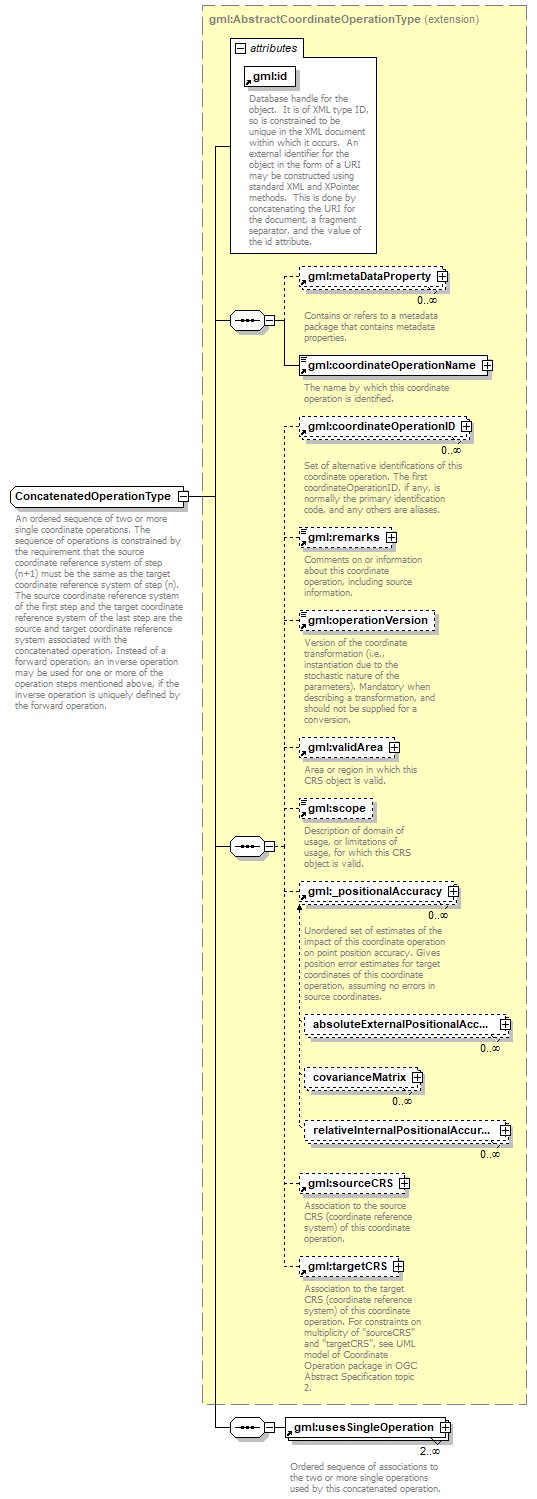

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractCoordinateOperationType
properties	base  gml:AbstractCoordinateOperationType
children	gml:metaDataProperty gml:coordinateOperationName gml:coordinateOperationID gml:remarks gml:operationVersion gml:validArea gml:scope gml:_positionalAccuracy gml:sourceCRS gml:targetCRS gml:usesSingleOperation
used by	element  ConcatenatedOperation
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation An ordered sequence of two or more single coordinate operations. The sequence of operations is constrained by the requirement that the source coordinate reference system of step (n+1) must be the same as the target coordinate reference system of step (n). The source coordinate reference system of the first step and the target coordinate reference system of the last step are the source and target coordinate reference system associated with the concatenated operation. Instead of a forward operation, an inverse operation may be used for one or more of the operation steps mentioned above, if the inverse operation is uniquely defined by the forward operation.
source	<xs:complexType name="ConcatenatedOperationType">   <xs:annotation>     <xs:documentation>An ordered sequence of two or more single coordinate operations. The sequence of operations is constrained by the requirement that the source coordinate reference system of step (n+1) must be the same as the target coordinate reference system of step (n). The source coordinate reference system of the first step and the target coordinate reference system of the last step are the source and target coordinate reference system associated with the concatenated operation. Instead of a forward operation, an inverse operation may be used for one or more of the operation steps mentioned above, if the inverse operation is uniquely defined by the forward operation.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractCoordinateOperationType">       <xs:sequence>         <xs:element ref="gml:usesSingleOperation" minOccurs="2" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Ordered sequence of associations to the two or more single operations used by this concatenated operation. </xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>
