complexType NodeType

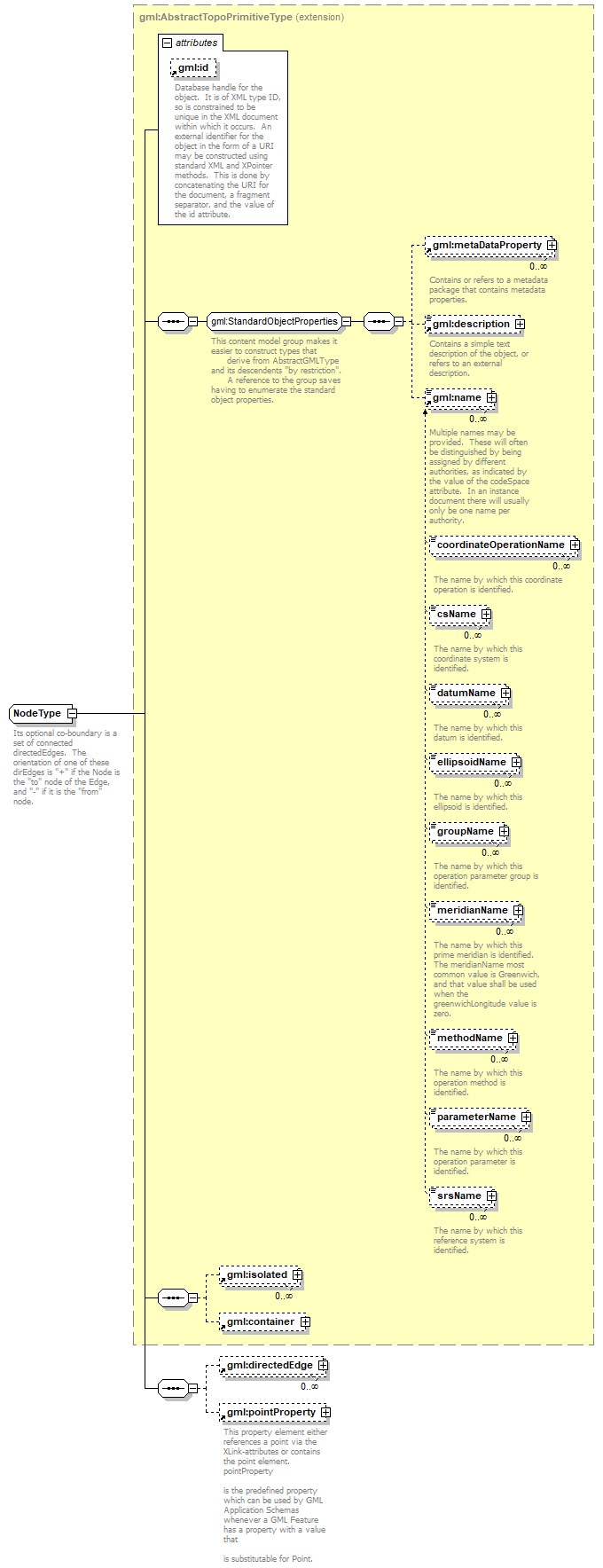

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractTopoPrimitiveType
properties	base  gml:AbstractTopoPrimitiveType
children	gml:metaDataProperty gml:description gml:name gml:isolated gml:container gml:directedEdge gml:pointProperty
used by	element  Node
attributes	Name   Type   Use   Default   Fixed   annotation id optional         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation Its optional co-boundary is a set of connected directedEdges.  The orientation of one of these dirEdges is "+" if the Node is the "to" node of the Edge, and "-" if it is the "from" node.
source	<xs:complexType name="NodeType">   <xs:annotation>     <xs:documentation>Its optional co-boundary is a set of connected directedEdges.  The orientation of one of these dirEdges is "+" if the Node is the "to" node of the Edge, and "-" if it is the "from" node.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractTopoPrimitiveType">       <xs:sequence>         <xs:element ref="gml:directedEdge" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="gml:pointProperty" minOccurs="0"/>         <!-- <element name="geometry" type="gml:PointPropertyType" minOccurs="0"/> -->       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>
