complexType OperationMethodType

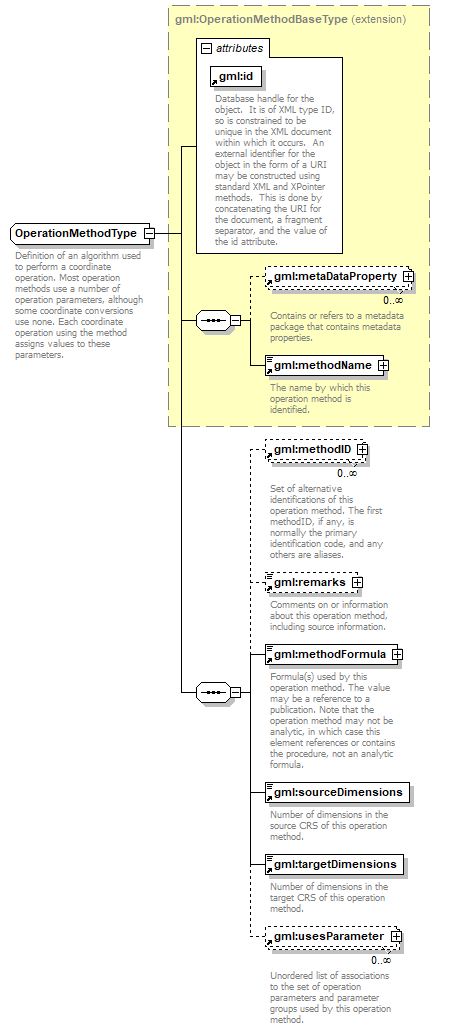

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:OperationMethodBaseType
properties	base  gml:OperationMethodBaseType
children	gml:metaDataProperty gml:methodName gml:methodID gml:remarks gml:methodFormula gml:sourceDimensions gml:targetDimensions gml:usesParameter
used by	element  OperationMethod
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation Definition of an algorithm used to perform a coordinate operation. Most operation methods use a number of operation parameters, although some coordinate conversions use none. Each coordinate operation using the method assigns values to these parameters.
source	<xs:complexType name="OperationMethodType">   <xs:annotation>     <xs:documentation>Definition of an algorithm used to perform a coordinate operation. Most operation methods use a number of operation parameters, although some coordinate conversions use none. Each coordinate operation using the method assigns values to these parameters. </xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:OperationMethodBaseType">       <xs:sequence>         <xs:element ref="gml:methodID" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Set of alternative identifications of this operation method. The first methodID, if any, is normally the primary identification code, and any others are aliases. </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element ref="gml:remarks" minOccurs="0">           <xs:annotation>             <xs:documentation>Comments on or information about this operation method, including source information.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element ref="gml:methodFormula"/>         <xs:element ref="gml:sourceDimensions"/>         <xs:element ref="gml:targetDimensions"/>         <xs:element ref="gml:usesParameter" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Unordered list of associations to the set of operation parameters and parameter groups used by this operation method. </xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>
