complexType CoordinatesType

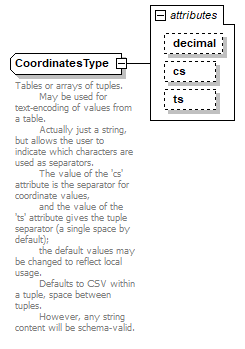

diagram
namespace	http://www.opengis.net/gml
type	extension of xs:string
properties	base  string
used by	elements  coordinates tupleList
attributes	Name   Type   Use   Default   Fixed   annotation decimal xs:string    .      cs xs:string    ,      ts xs:string
annotation	documentation Tables or arrays of tuples.          May be used for text-encoding of values from a table.          Actually just a string, but allows the user to indicate which characters are used as separators.          The value of the 'cs' attribute is the separator for coordinate values,         and the value of the 'ts' attribute gives the tuple separator (a single space by default);         the default values may be changed to reflect local usage.         Defaults to CSV within a tuple, space between tuples.          However, any string content will be schema-valid.
source	<xs:complexType name="CoordinatesType">   <xs:annotation>     <xs:documentation>Tables or arrays of tuples.          May be used for text-encoding of values from a table.          Actually just a string, but allows the user to indicate which characters are used as separators.          The value of the 'cs' attribute is the separator for coordinate values,         and the value of the 'ts' attribute gives the tuple separator (a single space by default);         the default values may be changed to reflect local usage.         Defaults to CSV within a tuple, space between tuples.          However, any string content will be schema-valid.  </xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="string">       <xs:attribute name="decimal" type="string" default="."/>       <xs:attribute name="cs" type="string" default=","/>       <xs:attribute name="ts" type="string" default="&#x20;"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute CoordinatesType/@decimal

type	xs:string
properties	isRef  0 default  .
source	<xs:attribute name="decimal" type="string" default="."/>

attribute CoordinatesType/@cs

type	xs:string
properties	isRef  0 default  ,
source	<xs:attribute name="cs" type="string" default=","/>

attribute CoordinatesType/@ts

type	xs:string
properties	isRef  0 default
source	<xs:attribute name="ts" type="string" default="&#x20;"/>
