element directedEdge

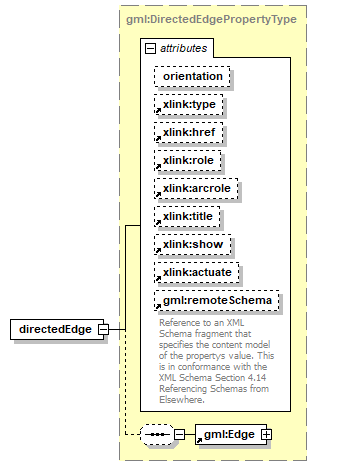

diagram index_p557.png
namespace http://www.opengis.net/gml
type gml:DirectedEdgePropertyType
properties
content complex
children gml:Edge
used by
complexTypes FaceType NodeType TopoCurveType
attributes
Name  Type  Use  Default  Fixed  annotation
orientationgml:SignType  +
type    simple
href
role
arcrole
title
show
actuate
remoteSchemaoptional
documentation
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
annotation
appinfo
<sch:pattern name="refAndContent co-occurence prohibited">
<sch:rule context="gml:directedEdge">
<sch:extends rule="hrefOrContent"/>
</sch:rule>
</sch:pattern>
source <xs:element name="directedEdge" type="gml:DirectedEdgePropertyType">
  <xs:annotation>
    <xs:appinfo>
      <sch:pattern name="refAndContent co-occurence prohibited">
        <sch:rule context="gml:directedEdge">
          <sch:extends rule="hrefOrContent"/>
        </sch:rule>
      </sch:pattern>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
