Schema documentation for xlink.xsd

Imported schema xlink.xsd

Namespace

http://www.w3.org/1999/xlink

Annotations

This schema document provides attribute declarations and
attribute group, complex type and simple type definitions which can be used in
the construction of user schemas to define the structure of particular linking
constructs, e.g.<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
           xmlns:xl="http://www.w3.org/1999/xlink">

 <xs:import namespace="http://www.w3.org/1999/xlink"
            location="http://www.w3.org/1999/xlink.xsd">

 <xs:element name="mySimple">
  <xs:complexType>
   ...
   <xs:attributeGroup ref="xl:simpleAttrs"/>
   ...
  </xs:complexType>
 </xs:element>
 ...
</xs:schema>

Properties

attribute form default	unqualified
element form default	unqualified

Element xlink:title

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xlink:titleEltType

Properties

content	complex
abstract	true
mixed	true

Used by

Element Groups

xlink:arcModel, xlink:extendedModel, xlink:locatorModel

Model

ANY element from ANY namespace

Attributes

QName

Type

Fixed

Use

Annotation

xlink:type

xlink:typeType

title

required

xml:lang

union of(xs:language, restriction of xs:string)

optional

Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.

Source

<xs:element name="title" type="xlink:titleEltType" abstract="true"/>

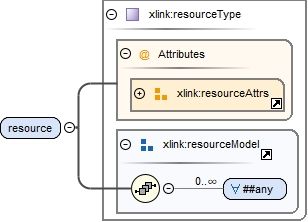

Element xlink:resource

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xlink:resourceType

Properties

content	complex
abstract	true
mixed	true

Used by

Element Group

xlink:extendedModel

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Use
xlink:label	xlink:labelType		optional
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	resource	required

Source

<xs:element name="resource" type="xlink:resourceType" abstract="true"/>

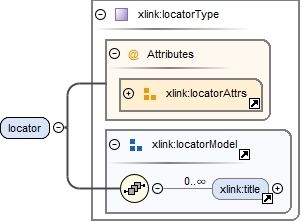

Element xlink:locator

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xlink:locatorType

Properties

content	complex
abstract	true

Used by

Element Group

xlink:extendedModel

Model

xlink:title*

Children

xlink:title

Instance

<xlink:locator xlink:href="" xlink:label="" xlink:role="" xlink:title="" xlink:type="locator" xmlns:xlink="http://www.w3.org/1999/xlink">
  <xlink:title xml:lang="" xlink:type="title">{0,unbounded}</xlink:title>
</xlink:locator>

Attributes

QName	Type	Fixed	Use
xlink:href	xlink:hrefType		required
xlink:label	xlink:labelType		optional
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	locator	required

Source

<xs:element name="locator" type="xlink:locatorType" abstract="true"/>

Element xlink:arc

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xlink:arcType

Properties

content	complex
abstract	true

Used by

Element Group

xlink:extendedModel

Model

xlink:title*

Children

xlink:title

Instance

<xlink:arc xlink:actuate="" xlink:arcrole="" xlink:from="" xlink:show="" xlink:title="" xlink:to="" xlink:type="arc" xmlns:xlink="http://www.w3.org/1999/xlink">
  <xlink:title xml:lang="" xlink:type="title">{0,unbounded}</xlink:title>
</xlink:arc>

Attributes

QName	Type	Fixed	Use
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:from	xlink:fromType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:to	xlink:toType		optional
xlink:type	xlink:typeType	arc	required

Source

<xs:element name="arc" type="xlink:arcType" abstract="true"/>

Simple Type xlink:typeType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

restriction of xs:token

Facets

enumeration	simple
enumeration	extended
enumeration	title
enumeration	resource
enumeration	locator
enumeration	arc

Used by

Attribute

@xlink:type

Source

<xs:simpleType name="typeType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="simple"/>
    <xs:enumeration value="extended"/>
    <xs:enumeration value="title"/>
    <xs:enumeration value="resource"/>
    <xs:enumeration value="locator"/>
    <xs:enumeration value="arc"/>
  </xs:restriction>
</xs:simpleType>

Simple Type xlink:hrefType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xs:anyURI

Used by

Attribute

@xlink:href

Source

<xs:simpleType name="hrefType">
  <xs:restriction base="xs:anyURI"/>
</xs:simpleType>

Simple Type xlink:roleType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

restriction of xs:anyURI

Facets

minLength

Used by

Attribute

@xlink:role

Source

<xs:simpleType name="roleType">
  <xs:restriction base="xs:anyURI">
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>

Simple Type xlink:arcroleType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

restriction of xs:anyURI

Facets

minLength

Used by

Attribute

@xlink:arcrole

Source

<xs:simpleType name="arcroleType">
  <xs:restriction base="xs:anyURI">
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>

Simple Type xlink:titleAttrType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xs:string

Used by

Attribute

@xlink:title

Source

<xs:simpleType name="titleAttrType">
  <xs:restriction base="xs:string"/>
</xs:simpleType>

Simple Type xlink:showType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

restriction of xs:token

Facets

enumeration	new
enumeration	replace
enumeration	embed
enumeration	other
enumeration	none

Used by

Attribute

@xlink:show

Source

<xs:simpleType name="showType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="new"/>
    <xs:enumeration value="replace"/>
    <xs:enumeration value="embed"/>
    <xs:enumeration value="other"/>
    <xs:enumeration value="none"/>
  </xs:restriction>
</xs:simpleType>

Simple Type xlink:actuateType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

restriction of xs:token

Facets

enumeration	onLoad
enumeration	onRequest
enumeration	other
enumeration	none

Used by

Attribute

@xlink:actuate

Source

<xs:simpleType name="actuateType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="onLoad"/>
    <xs:enumeration value="onRequest"/>
    <xs:enumeration value="other"/>
    <xs:enumeration value="none"/>
  </xs:restriction>
</xs:simpleType>

Simple Type xlink:labelType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xs:NCName

Used by

Attribute

@xlink:label

Source

<xs:simpleType name="labelType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>

Simple Type xlink:fromType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xs:NCName

Used by

Attribute

@xlink:from

Source

<xs:simpleType name="fromType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>

Simple Type xlink:toType

Namespace

http://www.w3.org/1999/xlink

Diagram

Type

xs:NCName

Used by

Attribute

@xlink:to

Source

<xs:simpleType name="toType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>

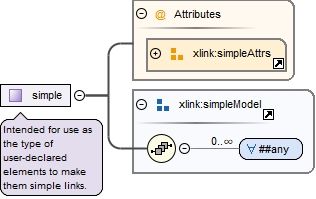

Complex Type xlink:simple

Namespace

http://www.w3.org/1999/xlink

Annotations

Intended for use as the type of user-declared elements to make them
simple links.

Diagram

Properties

mixed

true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Use
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:href	xlink:hrefType		optional
xlink:role	xlink:roleType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	simple	optional

Source

<xs:complexType mixed="true" name="simple">
  <xs:annotation>
    <xs:documentation>Intended for use as the type of user-declared elements to make them simple links.</xs:documentation>
  </xs:annotation>
  <xs:group ref="xlink:simpleModel"/>
  <xs:attributeGroup ref="xlink:simpleAttrs"/>
</xs:complexType>

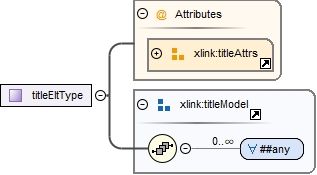

Complex Type xlink:titleEltType

Namespace

http://www.w3.org/1999/xlink

Diagram

Properties

mixed

true

Used by

Element

xlink:title

Model

ANY element from ANY namespace

Attributes

QName

Type

Fixed

Use

Annotation

xlink:type

xlink:typeType

title

required

xml:lang

union of(xs:language, restriction of xs:string)

optional

Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.

Source

<xs:complexType mixed="true" name="titleEltType">
  <xs:group ref="xlink:titleModel"/>
  <xs:attributeGroup ref="xlink:titleAttrs"/>
</xs:complexType>

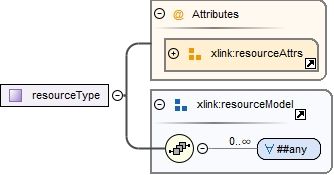

Complex Type xlink:resourceType

Namespace

http://www.w3.org/1999/xlink

Diagram

Properties

mixed

true

Used by

Element

xlink:resource

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Use
xlink:label	xlink:labelType		optional
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	resource	required

Source

<xs:complexType mixed="true" name="resourceType">
  <xs:group ref="xlink:resourceModel"/>
  <xs:attributeGroup ref="xlink:resourceAttrs"/>
</xs:complexType>

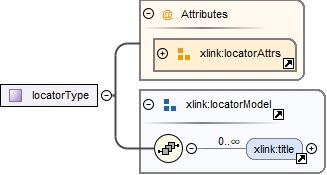

Complex Type xlink:locatorType

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Element

xlink:locator

Model

xlink:title*

Children

xlink:title

Attributes

QName	Type	Fixed	Use
xlink:href	xlink:hrefType		required
xlink:label	xlink:labelType		optional
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	locator	required

Source

<xs:complexType name="locatorType">
  <xs:group ref="xlink:locatorModel"/>
  <xs:attributeGroup ref="xlink:locatorAttrs"/>
</xs:complexType>

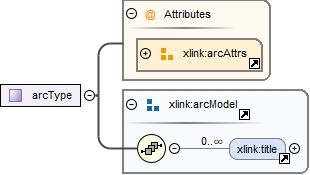

Complex Type xlink:arcType

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Element

xlink:arc

Model

xlink:title*

Children

xlink:title

Attributes

QName	Type	Fixed	Use
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:from	xlink:fromType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:to	xlink:toType		optional
xlink:type	xlink:typeType	arc	required

Source

<xs:complexType name="arcType">
  <xs:group ref="xlink:arcModel"/>
  <xs:attributeGroup ref="xlink:arcAttrs"/>
</xs:complexType>

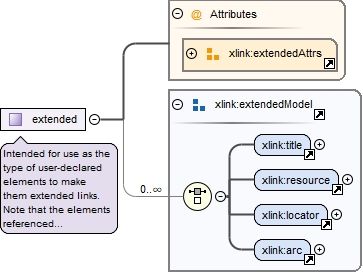

Complex Type xlink:extended

Namespace

http://www.w3.org/1999/xlink

Annotations

Intended for use as the type of user-declared elements to make them
extended links.
Note that the elements referenced in the content model are all abstract.
The intention is that by simply declaring elements with these as their
substitutionGroup, all the right things will happen.

Diagram

Model

xlink:title | xlink:resource | xlink:locator | xlink:arc

Children

xlink:arc, xlink:locator, xlink:resource, xlink:title

Attributes

QName	Type	Fixed	Use
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	extended	required

Source

<xs:complexType name="extended">
  <xs:annotation>
    <xs:documentation>Intended for use as the type of user-declared elements to make them extended links. Note that the elements referenced in the content model are all abstract. The intention is that by simply declaring elements with these as their substitutionGroup, all the right things will happen.</xs:documentation>
  </xs:annotation>
  <xs:group ref="xlink:extendedModel" minOccurs="0" maxOccurs="unbounded"/>
  <xs:attributeGroup ref="xlink:extendedAttrs"/>
</xs:complexType>

Attribute @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

xlink:typeType

Properties

content

simple

Facets

enumeration	simple
enumeration	extended
enumeration	title
enumeration	resource
enumeration	locator
enumeration	arc

Used by

Attribute Groups

xlink:arcAttrs, xlink:extendedAttrs, xlink:locatorAttrs, xlink:resourceAttrs, xlink:simpleAttrs, xlink:titleAttrs

Source

<xs:attribute name="type" type="xlink:typeType"/>

Attribute @xlink:href

Namespace

http://www.w3.org/1999/xlink

Type

xlink:hrefType

Properties

content

simple

Used by

Attribute Groups

xlink:locatorAttrs, xlink:simpleAttrs

Source

<xs:attribute name="href" type="xlink:hrefType"/>

Attribute @xlink:role

Namespace

http://www.w3.org/1999/xlink

Type

xlink:roleType

Properties

content

simple

Facets

minLength

Used by

Attribute Groups

xlink:extendedAttrs, xlink:locatorAttrs, xlink:resourceAttrs, xlink:simpleAttrs

Source

<xs:attribute name="role" type="xlink:roleType"/>

Attribute @xlink:arcrole

Namespace

http://www.w3.org/1999/xlink

Type

xlink:arcroleType

Properties

content

simple

Facets

minLength

Used by

Attribute Groups

xlink:arcAttrs, xlink:simpleAttrs

Source

<xs:attribute name="arcrole" type="xlink:arcroleType"/>

Attribute @xlink:title

Namespace

http://www.w3.org/1999/xlink

Type

xlink:titleAttrType

Properties

content

simple

Used by

Attribute Groups

xlink:arcAttrs, xlink:extendedAttrs, xlink:locatorAttrs, xlink:resourceAttrs, xlink:simpleAttrs

Source

<xs:attribute name="title" type="xlink:titleAttrType"/>

Attribute @xlink:show

Namespace

http://www.w3.org/1999/xlink

Type

xlink:showType

Properties

content

simple

Facets

enumeration	new
enumeration	replace
enumeration	embed
enumeration	other
enumeration	none

Used by

Attribute Groups

xlink:arcAttrs, xlink:simpleAttrs

Source

<xs:attribute name="show" type="xlink:showType"/>

Attribute @xlink:actuate

Namespace

http://www.w3.org/1999/xlink

Type

xlink:actuateType

Properties

content

simple

Facets

enumeration	onLoad
enumeration	onRequest
enumeration	other
enumeration	none

Used by

Attribute Groups

xlink:arcAttrs, xlink:simpleAttrs

Source

<xs:attribute name="actuate" type="xlink:actuateType"/>

Attribute @xlink:label

Namespace

http://www.w3.org/1999/xlink

Type

xlink:labelType

Properties

content

simple

Used by

Attribute Groups

xlink:locatorAttrs, xlink:resourceAttrs

Source

<xs:attribute name="label" type="xlink:labelType"/>

Attribute @xlink:from

Namespace

http://www.w3.org/1999/xlink

Type

xlink:fromType

Properties

content

simple

Used by

Attribute Group

xlink:arcAttrs

Source

<xs:attribute name="from" type="xlink:fromType"/>

Attribute @xlink:to

Namespace

http://www.w3.org/1999/xlink

Type

xlink:toType

Properties

content

simple

Used by

Attribute Group

xlink:arcAttrs

Source

<xs:attribute name="to" type="xlink:toType"/>

Element Group xlink:simpleModel

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:simple

Model

ANY element from ANY namespace

Source

<xs:group name="simpleModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>

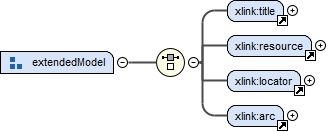

Element Group xlink:extendedModel

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:extended

Model

xlink:title | xlink:resource | xlink:locator | xlink:arc

Children

xlink:arc, xlink:locator, xlink:resource, xlink:title

Source

<xs:group name="extendedModel">
  <xs:choice>
    <xs:element ref="xlink:title"/>
    <xs:element ref="xlink:resource"/>
    <xs:element ref="xlink:locator"/>
    <xs:element ref="xlink:arc"/>
  </xs:choice>
</xs:group>

Element Group xlink:titleModel

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:titleEltType

Model

ANY element from ANY namespace

Source

<xs:group name="titleModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>

Element Group xlink:resourceModel

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:resourceType

Model

ANY element from ANY namespace

Source

<xs:group name="resourceModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>

Element Group xlink:locatorModel

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:locatorType

Model

xlink:title*

Children

xlink:title

Source

<xs:group name="locatorModel">
  <xs:sequence>
    <xs:element ref="xlink:title" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>

Element Group xlink:arcModel

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:arcType

Model

xlink:title*

Children

xlink:title

Source

<xs:group name="arcModel">
  <xs:sequence>
    <xs:element ref="xlink:title" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>

Attribute Group xlink:simpleAttrs

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Attribute Groups	gco:ObjectReference, gml:AssociationAttributeGroup
Complex Types	gco:RecordType_Type, xlink:simple

Attributes

QName	Type	Fixed	Use
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:href	xlink:hrefType		optional
xlink:role	xlink:roleType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	simple	optional

Source

<xs:attributeGroup name="simpleAttrs">
  <xs:attribute ref="xlink:type" fixed="simple"/>
  <xs:attribute ref="xlink:href"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:arcrole"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:show"/>
  <xs:attribute ref="xlink:actuate"/>
</xs:attributeGroup>

Attribute Group xlink:extendedAttrs

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:extended

Attributes

QName	Type	Fixed	Use
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	extended	required

Source

<xs:attributeGroup name="extendedAttrs">
  <xs:attribute ref="xlink:type" fixed="extended" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
</xs:attributeGroup>

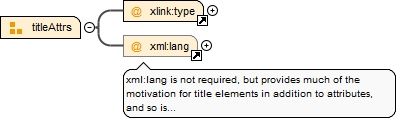

Attribute Group xlink:titleAttrs

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:titleEltType

Attributes

QName

Type

Fixed

Use

Annotation

xlink:type

xlink:typeType

title

required

xml:lang

union of(xs:language, restriction of xs:string)

optional

Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.

Source

<xs:attributeGroup name="titleAttrs">
  <xs:attribute ref="xlink:type" fixed="title" use="required"/>
  <xs:attribute ref="xml:lang">
    <xs:annotation>
      <xs:documentation>xml:lang is not required, but provides much of the motivation for title elements in addition to attributes, and so is provided here for convenience.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>

Attribute Group xlink:resourceAttrs

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:resourceType

Attributes

QName	Type	Fixed	Use
xlink:label	xlink:labelType		optional
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	resource	required

Source

<xs:attributeGroup name="resourceAttrs">
  <xs:attribute ref="xlink:type" fixed="resource" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:label"/>
</xs:attributeGroup>

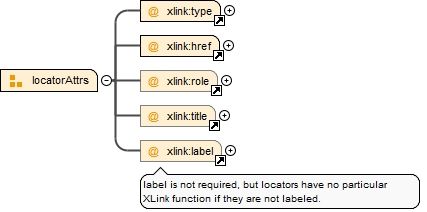

Attribute Group xlink:locatorAttrs

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:locatorType

Attributes

QName	Type	Fixed	Use
xlink:href	xlink:hrefType		required
xlink:label	xlink:labelType		optional
xlink:role	xlink:roleType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	locator	required

Source

<xs:attributeGroup name="locatorAttrs">
  <xs:attribute ref="xlink:type" fixed="locator" use="required"/>
  <xs:attribute ref="xlink:href" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:label">
    <xs:annotation>
      <xs:documentation>label is not required, but locators have no particular XLink function if they are not labeled.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>

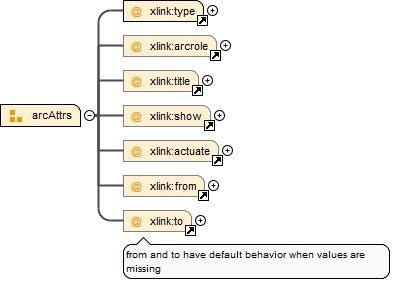

Attribute Group xlink:arcAttrs

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

xlink:arcType

Attributes

QName	Type	Fixed	Use
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:from	xlink:fromType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:to	xlink:toType		optional
xlink:type	xlink:typeType	arc	required

Source

<xs:attributeGroup name="arcAttrs">
  <xs:attribute ref="xlink:type" fixed="arc" use="required"/>
  <xs:attribute ref="xlink:arcrole"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:show"/>
  <xs:attribute ref="xlink:actuate"/>
  <xs:attribute ref="xlink:from"/>
  <xs:attribute ref="xlink:to">
    <xs:annotation>
      <xs:documentation>from and to have default behavior when values are missing</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
