Schema documentation for spatialReferencing.xsd

Showing:

Annotations

Attributes

Diagrams

Model

Properties

Source

Used by

Included schema spatialReferencing.xsd

Namespace

http://www.isotc211.org/2005/gsr

Annotations

Geographic Spatial Referencing (GSR) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GSR includes all the definitions of http://www.isotc211.org/2005/gsr namespace. The root document of this namespace is the file gsr.xsd. This spatialReferencing.xsd schema contains the implementation of SC_CRS. The encoding of this class is mapped to an ISO 19136 XML type.

Properties

attribute form default	unqualified
element form default	qualified
version	2012-07-13

Complex Type gsr:SC_CRS_PropertyType

Namespace

http://www.isotc211.org/2005/gsr

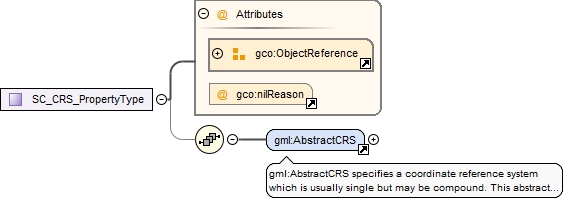

Diagram

Used by

Element

gmd:EX_VerticalExtent_Type/gmd:verticalCRS

Model

gml:AbstractCRS

Children

gml:AbstractCRS

Attributes

QName	Type	Fixed	Use
gco:nilReason	gml:NilReasonType		optional
uuidref	xs:string		optional
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:href	xlink:hrefType		optional
xlink:role	xlink:roleType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	simple	optional

Source

<xs:complexType name="SC_CRS_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gml:AbstractCRS"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
