Included schema gcoBase.xsd
Namespace http://www.isotc211.org/2005/gco
Annotations

Geographic COmmon (GCO) extensible markup language is a component of the XML Schema Implementation of Geographic
Information Metadata documented in ISO/TS 19139:2007. GCO includes all the definitions of http://www.isotc211.org/2005/gco namespace. The root document of this namespace is the file gco.xsd. This gcoBase.xsd schema provides:
		1.  tools to handle specific objects like "code lists" and "record";
		2. Some XML types representing that do not follow the general encoding rules.
Properties
attribute form default unqualified
element form default qualified
version 2012-07-13

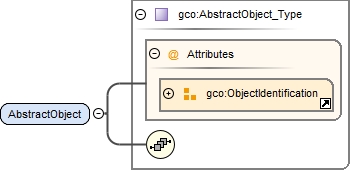

Element gco:AbstractObject
Namespace http://www.isotc211.org/2005/gco
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_Type
Type gco:AbstractObject_Type
Properties
content complex
abstract true
Model
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="AbstractObject" type="gco:AbstractObject_Type" abstract="true"/>

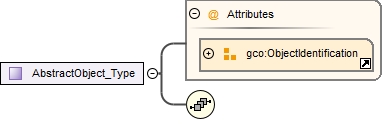

Complex Type gco:AbstractObject_Type
Namespace http://www.isotc211.org/2005/gco
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentification
Properties
abstract true
Used by
Complex Types gco:MemberName_Type, gco:MultiplicityRange_Type, gco:Multiplicity_Type, gco:TypeName_Type, gmd:AbstractDQ_Element_Type, gmd:AbstractDQ_Result_Type, gmd:AbstractDS_Aggregate_Type, gmd:AbstractEX_GeographicExtent_Type, gmd:AbstractMD_ContentInformation_Type, gmd:AbstractMD_Identification_Type, gmd:AbstractMD_SpatialRepresentation_Type, gmd:AbstractRS_ReferenceSystem_Type, gmd:CI_Address_Type, gmd:CI_Citation_Type, gmd:CI_Contact_Type, gmd:CI_Date_Type, gmd:CI_OnlineResource_Type, gmd:CI_ResponsibleParty_Type, gmd:CI_Series_Type, gmd:CI_Telephone_Type, gmd:DQ_DataQuality_Type, gmd:DQ_Scope_Type, gmd:DS_Association_Type, gmd:DS_DataSet_Type, gmd:EX_Extent_Type, gmd:EX_TemporalExtent_Type, gmd:EX_VerticalExtent_Type, gmd:LI_Lineage_Type, gmd:LI_ProcessStep_Type, gmd:LI_Source_Type, gmd:MD_AggregateInformation_Type, gmd:MD_ApplicationSchemaInformation_Type, gmd:MD_BrowseGraphic_Type, gmd:MD_Constraints_Type, gmd:MD_DigitalTransferOptions_Type, gmd:MD_Dimension_Type, gmd:MD_Distribution_Type, gmd:MD_Distributor_Type, gmd:MD_ExtendedElementInformation_Type, gmd:MD_Format_Type, gmd:MD_GeometricObjects_Type, gmd:MD_Identifier_Type, gmd:MD_Keywords_Type, gmd:MD_MaintenanceInformation_Type, gmd:MD_Medium_Type, gmd:MD_MetadataExtensionInformation_Type, gmd:MD_Metadata_Type, gmd:MD_PortrayalCatalogueReference_Type, gmd:MD_RangeDimension_Type, gmd:MD_ReferenceSystem_Type, gmd:MD_RepresentativeFraction_Type, gmd:MD_StandardOrderProcess_Type, gmd:MD_Usage_Type, gmd:PT_FreeText_Type, gmd:PT_Locale_Type
Element gco:AbstractObject
Model
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="AbstractObject_Type" abstract="true">
  <xs:sequence/>
  <xs:attributeGroup ref="gco:ObjectIdentification"/>
</xs:complexType>

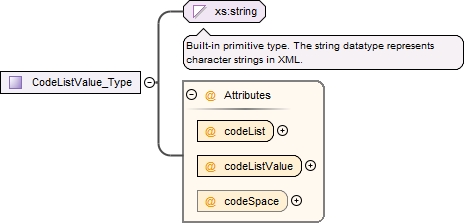

Complex Type gco:CodeListValue_Type
Namespace http://www.isotc211.org/2005/gco
Diagram
DiagramgcoBase_xsd.tmp#CodeListValue_Type_codeListgcoBase_xsd.tmp#CodeListValue_Type_codeListValuegcoBase_xsd.tmp#CodeListValue_Type_codeSpace
Type extension of xs:string
Used by
Attributes
QName Type Use
codeList xs:anyURI required
codeListValue xs:anyURI required
codeSpace xs:anyURI optional
Source

<xs:complexType name="CodeListValue_Type">
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attribute name="codeList" type="xs:anyURI" use="required"/>
      <xs:attribute name="codeListValue" type="xs:anyURI" use="required"/>
      <xs:attribute name="codeSpace" type="xs:anyURI"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

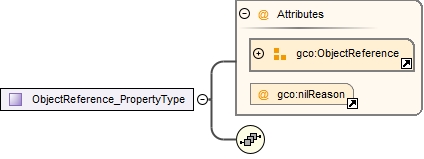

Complex Type gco:ObjectReference_PropertyType
Namespace http://www.isotc211.org/2005/gco
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReason
Used by
Model
Attributes
Source

<xs:complexType name="ObjectReference_PropertyType">
  <xs:sequence/>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Attribute gco:ObjectIdentification / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Attribute Group gco:ObjectIdentification
Source

<xs:attribute name="id" type="xs:ID"/>
Attribute gco:ObjectIdentification / @uuid
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Attribute Group gco:ObjectIdentification
Source

<xs:attribute name="uuid" type="xs:string"/>
Attribute @gco:nilReason
Namespace http://www.isotc211.org/2005/gco
Type gml:NilReasonType
Properties
content simple
Used by
Complex Types gco:Angle_PropertyType, gco:Binary_PropertyType, gco:Boolean_PropertyType, gco:CharacterString_PropertyType, gco:DateTime_PropertyType, gco:Date_PropertyType, gco:Decimal_PropertyType, gco:Distance_PropertyType, gco:GenericName_PropertyType, gco:Integer_PropertyType, gco:Length_PropertyType, gco:LocalName_PropertyType, gco:Measure_PropertyType, gco:MemberName_PropertyType, gco:MultiplicityRange_PropertyType, gco:Multiplicity_PropertyType, gco:Number_PropertyType, gco:ObjectReference_PropertyType, gco:Real_PropertyType, gco:RecordType_PropertyType, gco:Record_PropertyType, gco:Scale_PropertyType, gco:ScopedName_PropertyType, gco:TypeName_PropertyType, gco:UnitOfMeasure_PropertyType, gco:UnlimitedInteger_PropertyType, gco:UomAngle_PropertyType, gco:UomArea_PropertyType, gco:UomLength_PropertyType, gco:UomScale_PropertyType, gco:UomTime_PropertyType, gco:UomVelocity_PropertyType, gco:UomVolume_PropertyType, gmd:CI_Address_PropertyType, gmd:CI_Citation_PropertyType, gmd:CI_Contact_PropertyType, gmd:CI_DateTypeCode_PropertyType, gmd:CI_Date_PropertyType, gmd:CI_OnLineFunctionCode_PropertyType, gmd:CI_OnlineResource_PropertyType, gmd:CI_PresentationFormCode_PropertyType, gmd:CI_ResponsibleParty_PropertyType, gmd:CI_RoleCode_PropertyType, gmd:CI_Series_PropertyType, gmd:CI_Telephone_PropertyType, gmd:Country_PropertyType, gmd:DQ_AbsoluteExternalPositionalAccuracy_PropertyType, gmd:DQ_AccuracyOfATimeMeasurement_PropertyType, gmd:DQ_CompletenessCommission_PropertyType, gmd:DQ_CompletenessOmission_PropertyType, gmd:DQ_Completeness_PropertyType, gmd:DQ_ConceptualConsistency_PropertyType, gmd:DQ_ConformanceResult_PropertyType, gmd:DQ_DataQuality_PropertyType, gmd:DQ_DomainConsistency_PropertyType, gmd:DQ_Element_PropertyType, gmd:DQ_EvaluationMethodTypeCode_PropertyType, gmd:DQ_FormatConsistency_PropertyType, gmd:DQ_GriddedDataPositionalAccuracy_PropertyType, gmd:DQ_LogicalConsistency_PropertyType, gmd:DQ_NonQuantitativeAttributeAccuracy_PropertyType, gmd:DQ_PositionalAccuracy_PropertyType, gmd:DQ_QuantitativeAttributeAccuracy_PropertyType, gmd:DQ_QuantitativeResult_PropertyType, gmd:DQ_RelativeInternalPositionalAccuracy_PropertyType, gmd:DQ_Result_PropertyType, gmd:DQ_Scope_PropertyType, gmd:DQ_TemporalAccuracy_PropertyType, gmd:DQ_TemporalConsistency_PropertyType, gmd:DQ_TemporalValidity_PropertyType, gmd:DQ_ThematicAccuracy_PropertyType, gmd:DQ_ThematicClassificationCorrectness_PropertyType, gmd:DQ_TopologicalConsistency_PropertyType, gmd:DS_Aggregate_PropertyType, gmd:DS_AssociationTypeCode_PropertyType, gmd:DS_Association_PropertyType, gmd:DS_DataSet_PropertyType, gmd:DS_InitiativeTypeCode_PropertyType, gmd:DS_Initiative_PropertyType, gmd:DS_OtherAggregate_PropertyType, gmd:DS_Platform_PropertyType, gmd:DS_ProductionSeries_PropertyType, gmd:DS_Sensor_PropertyType, gmd:DS_Series_PropertyType, gmd:DS_StereoMate_PropertyType, gmd:EX_BoundingPolygon_PropertyType, gmd:EX_Extent_PropertyType, gmd:EX_GeographicBoundingBox_PropertyType, gmd:EX_GeographicDescription_PropertyType, gmd:EX_GeographicExtent_PropertyType, gmd:EX_SpatialTemporalExtent_PropertyType, gmd:EX_TemporalExtent_PropertyType, gmd:EX_VerticalExtent_PropertyType, gmd:LI_Lineage_PropertyType, gmd:LI_ProcessStep_PropertyType, gmd:LI_Source_PropertyType, gmd:LanguageCode_PropertyType, gmd:MD_AggregateInformation_PropertyType, gmd:MD_ApplicationSchemaInformation_PropertyType, gmd:MD_Band_PropertyType, gmd:MD_BrowseGraphic_PropertyType, gmd:MD_CellGeometryCode_PropertyType, gmd:MD_CharacterSetCode_PropertyType, gmd:MD_ClassificationCode_PropertyType, gmd:MD_Constraints_PropertyType, gmd:MD_ContentInformation_PropertyType, gmd:MD_CoverageContentTypeCode_PropertyType, gmd:MD_CoverageDescription_PropertyType, gmd:MD_DataIdentification_PropertyType, gmd:MD_DatatypeCode_PropertyType, gmd:MD_DigitalTransferOptions_PropertyType, gmd:MD_DimensionNameTypeCode_PropertyType, gmd:MD_Dimension_PropertyType, gmd:MD_DistributionUnits_PropertyType, gmd:MD_Distribution_PropertyType, gmd:MD_Distributor_PropertyType, gmd:MD_ExtendedElementInformation_PropertyType, gmd:MD_FeatureCatalogueDescription_PropertyType, gmd:MD_Format_PropertyType, gmd:MD_GeometricObjectTypeCode_PropertyType, gmd:MD_GeometricObjects_PropertyType, gmd:MD_Georectified_PropertyType, gmd:MD_Georeferenceable_PropertyType, gmd:MD_GridSpatialRepresentation_PropertyType, gmd:MD_Identification_PropertyType, gmd:MD_Identifier_PropertyType, gmd:MD_ImageDescription_PropertyType, gmd:MD_ImagingConditionCode_PropertyType, gmd:MD_KeywordTypeCode_PropertyType, gmd:MD_Keywords_PropertyType, gmd:MD_LegalConstraints_PropertyType, gmd:MD_MaintenanceFrequencyCode_PropertyType, gmd:MD_MaintenanceInformation_PropertyType, gmd:MD_MediumFormatCode_PropertyType, gmd:MD_MediumNameCode_PropertyType, gmd:MD_Medium_PropertyType, gmd:MD_MetadataExtensionInformation_PropertyType, gmd:MD_Metadata_PropertyType, gmd:MD_ObligationCode_PropertyType, gmd:MD_PixelOrientationCode_PropertyType, gmd:MD_PortrayalCatalogueReference_PropertyType, gmd:MD_ProgressCode_PropertyType, gmd:MD_RangeDimension_PropertyType, gmd:MD_ReferenceSystem_PropertyType, gmd:MD_RepresentativeFraction_PropertyType, gmd:MD_Resolution_PropertyType, gmd:MD_RestrictionCode_PropertyType, gmd:MD_ScopeCode_PropertyType, gmd:MD_ScopeDescription_PropertyType, gmd:MD_SecurityConstraints_PropertyType, gmd:MD_ServiceIdentification_PropertyType, gmd:MD_SpatialRepresentationTypeCode_PropertyType, gmd:MD_SpatialRepresentation_PropertyType, gmd:MD_StandardOrderProcess_PropertyType, gmd:MD_TopicCategoryCode_PropertyType, gmd:MD_TopologyLevelCode_PropertyType, gmd:MD_Usage_PropertyType, gmd:MD_VectorSpatialRepresentation_PropertyType, gmd:PT_LocaleContainer_PropertyType, gmd:PT_Locale_PropertyType, gmd:RS_Identifier_PropertyType, gmd:RS_ReferenceSystem_PropertyType, gmd:URL_PropertyType, gsr:SC_CRS_PropertyType, gss:GM_Object_PropertyType, gss:GM_Point_PropertyType, gts:TM_PeriodDuration_PropertyType, gts:TM_Primitive_PropertyType
Source

<xs:attribute name="nilReason" type="gml:NilReasonType"/>
Attribute gco:ObjectReference / @uuidref
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Attribute Group gco:ObjectReference
Source

<xs:attribute name="uuidref" type="xs:string"/>
Attribute gco:CodeListValue_Type / @codeList
Namespace No namespace
Type xs:anyURI
Properties
use required
Used by
Complex Type gco:CodeListValue_Type
Source

<xs:attribute name="codeList" type="xs:anyURI" use="required"/>
Attribute gco:CodeListValue_Type / @codeListValue
Namespace No namespace
Type xs:anyURI
Properties
use required
Used by
Complex Type gco:CodeListValue_Type
Source

<xs:attribute name="codeListValue" type="xs:anyURI" use="required"/>
Attribute gco:CodeListValue_Type / @codeSpace
Namespace No namespace
Type xs:anyURI
Properties
content simple
Used by
Complex Type gco:CodeListValue_Type
Source

<xs:attribute name="codeSpace" type="xs:anyURI"/>
Attribute @gco:isoType
Namespace http://www.isotc211.org/2005/gco
Type xs:string
Properties
content simple
Source

<xs:attribute name="isoType" type="xs:string"/>
Attribute Group gco:ObjectIdentification
Namespace http://www.isotc211.org/2005/gco
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentification_idgcoBase_xsd.tmp#ObjectIdentification_uuid
Used by
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:attributeGroup name="ObjectIdentification">
  <xs:attribute name="id" type="xs:ID"/>
  <xs:attribute name="uuid" type="xs:string"/>
</xs:attributeGroup>

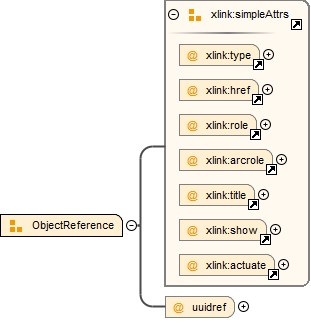

Attribute Group gco:ObjectReference
Namespace http://www.isotc211.org/2005/gco
Diagram
Diagramxlink_xsd.tmp#typexlink_xsd.tmp#hrefxlink_xsd.tmp#rolexlink_xsd.tmp#arcrolexlink_xsd.tmp#titlexlink_xsd.tmp#showxlink_xsd.tmp#actuatexlink_xsd.tmp#simpleAttrsgcoBase_xsd.tmp#ObjectReference_uuidref
Used by
Complex Types gco:MemberName_PropertyType, gco:MultiplicityRange_PropertyType, gco:Multiplicity_PropertyType, gco:ObjectReference_PropertyType, gco:Record_PropertyType, gco:TypeName_PropertyType, gco:UnitOfMeasure_PropertyType, gco:UomAngle_PropertyType, gco:UomArea_PropertyType, gco:UomLength_PropertyType, gco:UomScale_PropertyType, gco:UomTime_PropertyType, gco:UomVelocity_PropertyType, gco:UomVolume_PropertyType, gmd:CI_Address_PropertyType, gmd:CI_Citation_PropertyType, gmd:CI_Contact_PropertyType, gmd:CI_Date_PropertyType, gmd:CI_OnlineResource_PropertyType, gmd:CI_ResponsibleParty_PropertyType, gmd:CI_Series_PropertyType, gmd:CI_Telephone_PropertyType, gmd:DQ_AbsoluteExternalPositionalAccuracy_PropertyType, gmd:DQ_AccuracyOfATimeMeasurement_PropertyType, gmd:DQ_CompletenessCommission_PropertyType, gmd:DQ_CompletenessOmission_PropertyType, gmd:DQ_Completeness_PropertyType, gmd:DQ_ConceptualConsistency_PropertyType, gmd:DQ_ConformanceResult_PropertyType, gmd:DQ_DataQuality_PropertyType, gmd:DQ_DomainConsistency_PropertyType, gmd:DQ_Element_PropertyType, gmd:DQ_FormatConsistency_PropertyType, gmd:DQ_GriddedDataPositionalAccuracy_PropertyType, gmd:DQ_LogicalConsistency_PropertyType, gmd:DQ_NonQuantitativeAttributeAccuracy_PropertyType, gmd:DQ_PositionalAccuracy_PropertyType, gmd:DQ_QuantitativeAttributeAccuracy_PropertyType, gmd:DQ_QuantitativeResult_PropertyType, gmd:DQ_RelativeInternalPositionalAccuracy_PropertyType, gmd:DQ_Result_PropertyType, gmd:DQ_Scope_PropertyType, gmd:DQ_TemporalAccuracy_PropertyType, gmd:DQ_TemporalConsistency_PropertyType, gmd:DQ_TemporalValidity_PropertyType, gmd:DQ_ThematicAccuracy_PropertyType, gmd:DQ_ThematicClassificationCorrectness_PropertyType, gmd:DQ_TopologicalConsistency_PropertyType, gmd:DS_Aggregate_PropertyType, gmd:DS_Association_PropertyType, gmd:DS_DataSet_PropertyType, gmd:DS_Initiative_PropertyType, gmd:DS_OtherAggregate_PropertyType, gmd:DS_Platform_PropertyType, gmd:DS_ProductionSeries_PropertyType, gmd:DS_Sensor_PropertyType, gmd:DS_Series_PropertyType, gmd:DS_StereoMate_PropertyType, gmd:EX_BoundingPolygon_PropertyType, gmd:EX_Extent_PropertyType, gmd:EX_GeographicBoundingBox_PropertyType, gmd:EX_GeographicDescription_PropertyType, gmd:EX_GeographicExtent_PropertyType, gmd:EX_SpatialTemporalExtent_PropertyType, gmd:EX_TemporalExtent_PropertyType, gmd:EX_VerticalExtent_PropertyType, gmd:LI_Lineage_PropertyType, gmd:LI_ProcessStep_PropertyType, gmd:LI_Source_PropertyType, gmd:MD_AggregateInformation_PropertyType, gmd:MD_ApplicationSchemaInformation_PropertyType, gmd:MD_Band_PropertyType, gmd:MD_BrowseGraphic_PropertyType, gmd:MD_Constraints_PropertyType, gmd:MD_ContentInformation_PropertyType, gmd:MD_CoverageDescription_PropertyType, gmd:MD_DataIdentification_PropertyType, gmd:MD_DigitalTransferOptions_PropertyType, gmd:MD_Dimension_PropertyType, gmd:MD_Distribution_PropertyType, gmd:MD_Distributor_PropertyType, gmd:MD_ExtendedElementInformation_PropertyType, gmd:MD_FeatureCatalogueDescription_PropertyType, gmd:MD_Format_PropertyType, gmd:MD_GeometricObjects_PropertyType, gmd:MD_Georectified_PropertyType, gmd:MD_Georeferenceable_PropertyType, gmd:MD_GridSpatialRepresentation_PropertyType, gmd:MD_Identification_PropertyType, gmd:MD_Identifier_PropertyType, gmd:MD_ImageDescription_PropertyType, gmd:MD_Keywords_PropertyType, gmd:MD_LegalConstraints_PropertyType, gmd:MD_MaintenanceInformation_PropertyType, gmd:MD_Medium_PropertyType, gmd:MD_MetadataExtensionInformation_PropertyType, gmd:MD_Metadata_PropertyType, gmd:MD_PortrayalCatalogueReference_PropertyType, gmd:MD_RangeDimension_PropertyType, gmd:MD_ReferenceSystem_PropertyType, gmd:MD_RepresentativeFraction_PropertyType, gmd:MD_SecurityConstraints_PropertyType, gmd:MD_ServiceIdentification_PropertyType, gmd:MD_SpatialRepresentation_PropertyType, gmd:MD_StandardOrderProcess_PropertyType, gmd:MD_Usage_PropertyType, gmd:MD_VectorSpatialRepresentation_PropertyType, gmd:PT_LocaleContainer_PropertyType, gmd:PT_Locale_PropertyType, gmd:RS_Identifier_PropertyType, gmd:RS_ReferenceSystem_PropertyType, gsr:SC_CRS_PropertyType, gss:GM_Object_PropertyType, gss:GM_Point_PropertyType, gts:TM_Primitive_PropertyType
Attributes
Source

<xs:attributeGroup name="ObjectReference">
  <xs:attributeGroup ref="xlink:simpleAttrs"/>
  <xs:attribute name="uuidref" type="xs:string"/>
</xs:attributeGroup>
