Included schema metadataEntity.xsd
Namespace http://www.isotc211.org/2005/gmd
Annotations

Geographic MetaData (GMD) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GMD includes all the definitions of http://www.isotc211.org/2005/gmd namespace. The root document of this namespace is the file gmd.xsd. This metadataEntity.xsd schema implements the UML conceptual schema defined in A.2.1 of ISO 19115:2003. It contains the implementation of the class MD_Metadata.
Properties
attribute form default unqualified
element form default qualified
version 2012-07-13

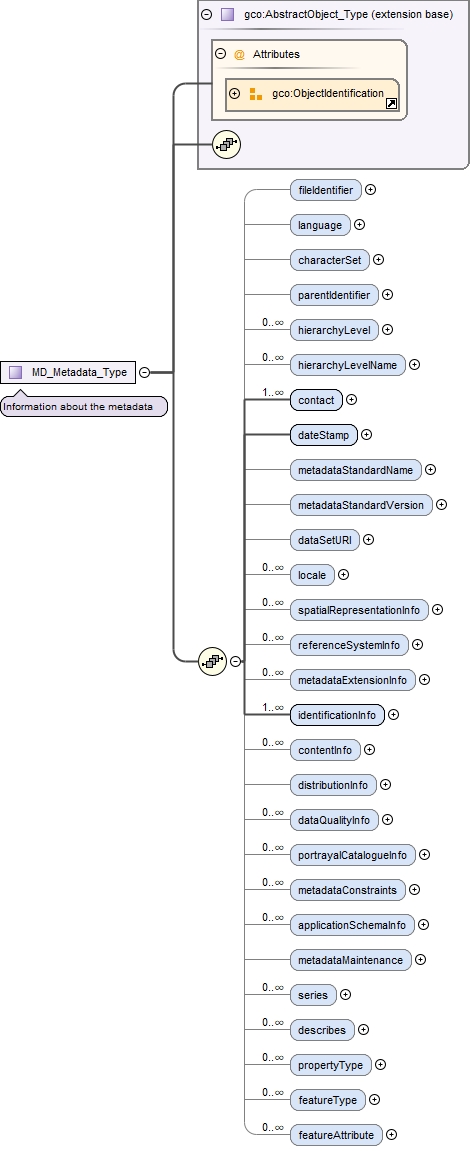

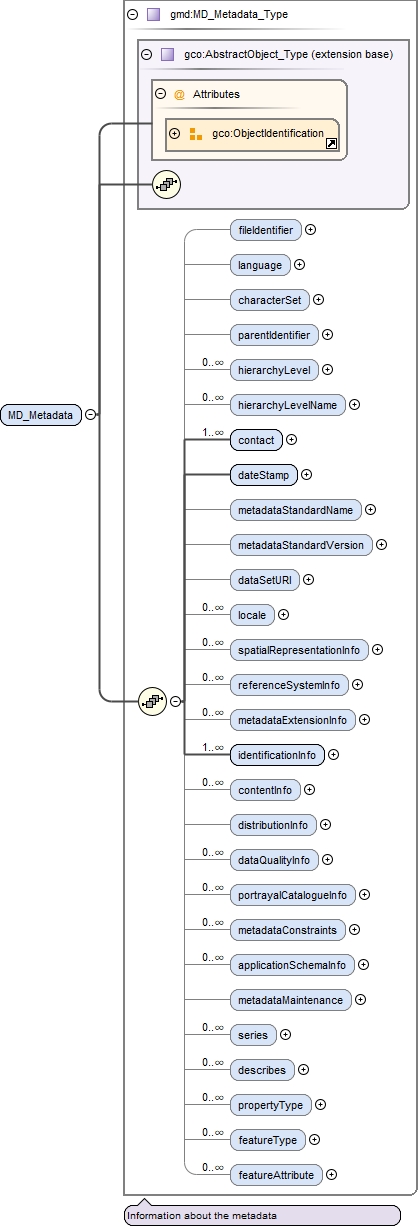

Element gmd:MD_Metadata
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataEntity_xsd.tmp#MD_Metadata_Type_fileIdentifiermetadataEntity_xsd.tmp#MD_Metadata_Type_languagemetadataEntity_xsd.tmp#MD_Metadata_Type_characterSetmetadataEntity_xsd.tmp#MD_Metadata_Type_parentIdentifiermetadataEntity_xsd.tmp#MD_Metadata_Type_hierarchyLevelmetadataEntity_xsd.tmp#MD_Metadata_Type_hierarchyLevelNamemetadataEntity_xsd.tmp#MD_Metadata_Type_contactmetadataEntity_xsd.tmp#MD_Metadata_Type_dateStampmetadataEntity_xsd.tmp#MD_Metadata_Type_metadataStandardNamemetadataEntity_xsd.tmp#MD_Metadata_Type_metadataStandardVersionmetadataEntity_xsd.tmp#MD_Metadata_Type_dataSetURImetadataEntity_xsd.tmp#MD_Metadata_Type_localemetadataEntity_xsd.tmp#MD_Metadata_Type_spatialRepresentationInfometadataEntity_xsd.tmp#MD_Metadata_Type_referenceSystemInfometadataEntity_xsd.tmp#MD_Metadata_Type_metadataExtensionInfometadataEntity_xsd.tmp#MD_Metadata_Type_identificationInfometadataEntity_xsd.tmp#MD_Metadata_Type_contentInfometadataEntity_xsd.tmp#MD_Metadata_Type_distributionInfometadataEntity_xsd.tmp#MD_Metadata_Type_dataQualityInfometadataEntity_xsd.tmp#MD_Metadata_Type_portrayalCatalogueInfometadataEntity_xsd.tmp#MD_Metadata_Type_metadataConstraintsmetadataEntity_xsd.tmp#MD_Metadata_Type_applicationSchemaInfometadataEntity_xsd.tmp#MD_Metadata_Type_metadataMaintenancemetadataEntity_xsd.tmp#MD_Metadata_Type_seriesmetadataEntity_xsd.tmp#MD_Metadata_Type_describesmetadataEntity_xsd.tmp#MD_Metadata_Type_propertyTypemetadataEntity_xsd.tmp#MD_Metadata_Type_featureTypemetadataEntity_xsd.tmp#MD_Metadata_Type_featureAttributemetadataEntity_xsd.tmp#MD_Metadata_Type
Type gmd:MD_Metadata_Type
Type hierarchy
Properties
content complex
Used by
Model
Children gmd:applicationSchemaInfo, gmd:characterSet, gmd:contact, gmd:contentInfo, gmd:dataQualityInfo, gmd:dataSetURI, gmd:dateStamp, gmd:describes, gmd:distributionInfo, gmd:featureAttribute, gmd:featureType, gmd:fileIdentifier, gmd:hierarchyLevel, gmd:hierarchyLevelName, gmd:identificationInfo, gmd:language, gmd:locale, gmd:metadataConstraints, gmd:metadataExtensionInfo, gmd:metadataMaintenance, gmd:metadataStandardName, gmd:metadataStandardVersion, gmd:parentIdentifier, gmd:portrayalCatalogueInfo, gmd:propertyType, gmd:referenceSystemInfo, gmd:series, gmd:spatialRepresentationInfo
Instance

<gmd:MD_Metadata id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:fileIdentifier gco:nilReason="">{0,1}</gmd:fileIdentifier>
  <gmd:language gco:nilReason="">{0,1}</gmd:language>
  <gmd:characterSet gco:nilReason="">{0,1}</gmd:characterSet>
  <gmd:parentIdentifier gco:nilReason="">{0,1}</gmd:parentIdentifier>
  <gmd:hierarchyLevel gco:nilReason="">{0,unbounded}</gmd:hierarchyLevel>
  <gmd:hierarchyLevelName gco:nilReason="">{0,unbounded}</gmd:hierarchyLevelName>
  <gmd:contact xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:contact>
  <gmd:dateStamp gco:nilReason="">{1,1}</gmd:dateStamp>
  <gmd:metadataStandardName gco:nilReason="">{0,1}</gmd:metadataStandardName>
  <gmd:metadataStandardVersion gco:nilReason="">{0,1}</gmd:metadataStandardVersion>
  <gmd:dataSetURI gco:nilReason="">{0,1}</gmd:dataSetURI>
  <gmd:locale xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:locale>
  <gmd:spatialRepresentationInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:spatialRepresentationInfo>
  <gmd:referenceSystemInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:referenceSystemInfo>
  <gmd:metadataExtensionInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:metadataExtensionInfo>
  <gmd:identificationInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:identificationInfo>
  <gmd:contentInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:contentInfo>
  <gmd:distributionInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,1}</gmd:distributionInfo>
  <gmd:dataQualityInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:dataQualityInfo>
  <gmd:portrayalCatalogueInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:portrayalCatalogueInfo>
  <gmd:metadataConstraints xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:metadataConstraints>
  <gmd:applicationSchemaInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:applicationSchemaInfo>
  <gmd:metadataMaintenance xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,1}</gmd:metadataMaintenance>
  <gmd:series xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:series>
  <gmd:describes xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:describes>
  <gmd:propertyType xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:propertyType>
  <gmd:featureType xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:featureType>
  <gmd:featureAttribute xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:featureAttribute>
</gmd:MD_Metadata>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="MD_Metadata" type="gmd:MD_Metadata_Type"/>

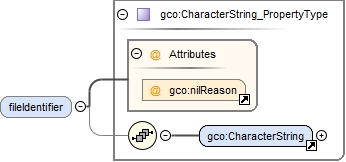

Element gmd:MD_Metadata_Type / gmd:fileIdentifier
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:fileIdentifier gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:fileIdentifier>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="fileIdentifier" type="gco:CharacterString_PropertyType" minOccurs="0"/>

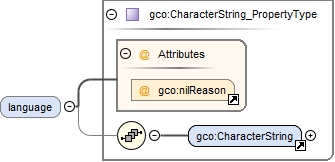

Element gmd:MD_Metadata_Type / gmd:language
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:language gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:language>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="language" type="gco:CharacterString_PropertyType" minOccurs="0"/>

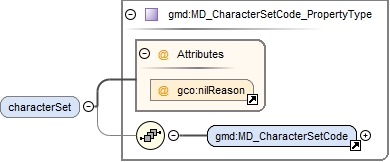

Element gmd:MD_Metadata_Type / gmd:characterSet
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonidentification_xsd.tmp#MD_CharacterSetCodeidentification_xsd.tmp#MD_CharacterSetCode_PropertyType
Type gmd:MD_CharacterSetCode_PropertyType
Properties
content complex
minOccurs 0
Model
Children gmd:MD_CharacterSetCode
Instance

<gmd:characterSet gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_CharacterSetCode codeList="" codeListValue="" codeSpace="">{1,1}</gmd:MD_CharacterSetCode>
</gmd:characterSet>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="characterSet" type="gmd:MD_CharacterSetCode_PropertyType" minOccurs="0"/>

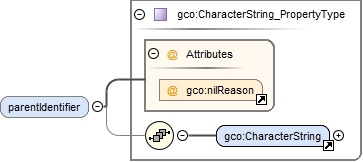

Element gmd:MD_Metadata_Type / gmd:parentIdentifier
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:parentIdentifier gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:parentIdentifier>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="parentIdentifier" type="gco:CharacterString_PropertyType" minOccurs="0"/>

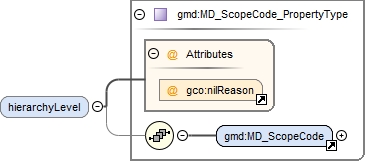

Element gmd:MD_Metadata_Type / gmd:hierarchyLevel
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonmaintenance_xsd.tmp#MD_ScopeCodemaintenance_xsd.tmp#MD_ScopeCode_PropertyType
Type gmd:MD_ScopeCode_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:MD_ScopeCode
Instance

<gmd:hierarchyLevel gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_ScopeCode codeList="" codeListValue="" codeSpace="">{1,1}</gmd:MD_ScopeCode>
</gmd:hierarchyLevel>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="hierarchyLevel" type="gmd:MD_ScopeCode_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

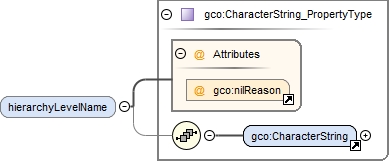

Element gmd:MD_Metadata_Type / gmd:hierarchyLevelName
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gco:CharacterString
Instance

<gmd:hierarchyLevelName gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:hierarchyLevelName>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="hierarchyLevelName" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

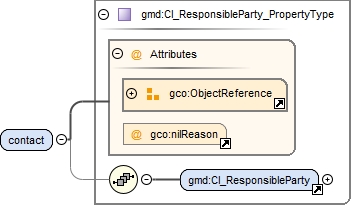

Element gmd:MD_Metadata_Type / gmd:contact
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasoncitation_xsd.tmp#CI_ResponsiblePartycitation_xsd.tmp#CI_ResponsibleParty_PropertyType
Type gmd:CI_ResponsibleParty_PropertyType
Properties
content complex
maxOccurs unbounded
Model
Children gmd:CI_ResponsibleParty
Instance

<gmd:contact xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:CI_ResponsibleParty id="" uuid="">{1,1}</gmd:CI_ResponsibleParty>
</gmd:contact>
Attributes
Source

<xs:element name="contact" type="gmd:CI_ResponsibleParty_PropertyType" maxOccurs="unbounded"/>

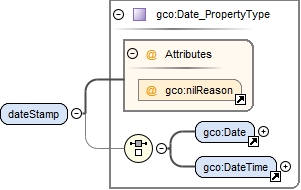

Element gmd:MD_Metadata_Type / gmd:dateStamp
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#DatebasicTypes_xsd_1.tmp#DateTimebasicTypes_xsd_1.tmp#Date_PropertyType
Type gco:Date_PropertyType
Properties
content complex
Model
Children gco:Date, gco:DateTime
Instance

<gmd:dateStamp gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:Date>{1,1}</gco:Date>
  <gco:DateTime>{1,1}</gco:DateTime>
</gmd:dateStamp>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="dateStamp" type="gco:Date_PropertyType"/>

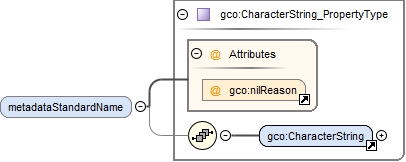

Element gmd:MD_Metadata_Type / gmd:metadataStandardName
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:metadataStandardName gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:metadataStandardName>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="metadataStandardName" type="gco:CharacterString_PropertyType" minOccurs="0"/>

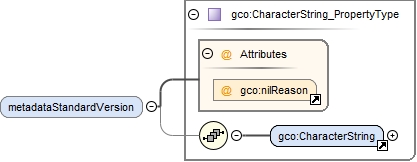

Element gmd:MD_Metadata_Type / gmd:metadataStandardVersion
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:metadataStandardVersion gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:metadataStandardVersion>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="metadataStandardVersion" type="gco:CharacterString_PropertyType" minOccurs="0"/>
Element gmd:MD_Metadata_Type / gmd:dataSetURI
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:dataSetURI gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:dataSetURI>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="dataSetURI" type="gco:CharacterString_PropertyType" minOccurs="0"/>
Element gmd:MD_Metadata_Type / gmd:locale
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#PT_LocalefreeText_xsd.tmp#PT_Locale_PropertyType
Type gmd:PT_Locale_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:PT_Locale
Instance

<gmd:locale xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:PT_Locale id="" uuid="">{1,1}</gmd:PT_Locale>
</gmd:locale>
Attributes
Source

<xs:element name="locale" type="gmd:PT_Locale_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

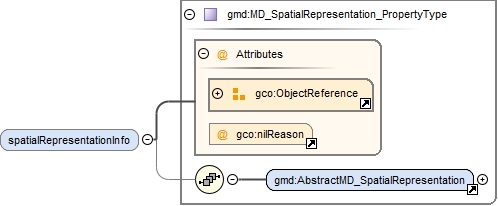

Element gmd:MD_Metadata_Type / gmd:spatialRepresentationInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonspatialRepresentation_xsd.tmp#AbstractMD_SpatialRepresentationspatialRepresentation_xsd.tmp#MD_SpatialRepresentation_PropertyType
Type gmd:MD_SpatialRepresentation_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:AbstractMD_SpatialRepresentation
Instance

<gmd:spatialRepresentationInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:AbstractMD_SpatialRepresentation id="" uuid="">{1,1}</gmd:AbstractMD_SpatialRepresentation>
</gmd:spatialRepresentationInfo>
Attributes
Source

<xs:element name="spatialRepresentationInfo" type="gmd:MD_SpatialRepresentation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

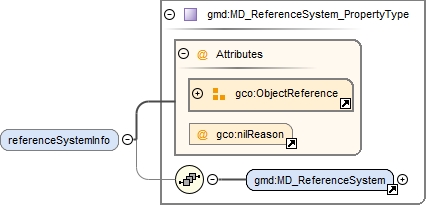

Element gmd:MD_Metadata_Type / gmd:referenceSystemInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonreferenceSystem_xsd.tmp#MD_ReferenceSystemreferenceSystem_xsd.tmp#MD_ReferenceSystem_PropertyType
Type gmd:MD_ReferenceSystem_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:MD_ReferenceSystem
Instance

<gmd:referenceSystemInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_ReferenceSystem id="" uuid="">{1,1}</gmd:MD_ReferenceSystem>
</gmd:referenceSystemInfo>
Attributes
Source

<xs:element name="referenceSystemInfo" type="gmd:MD_ReferenceSystem_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
Element gmd:MD_Metadata_Type / gmd:metadataExtensionInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_MetadataExtensionInformationmetadataExtension_xsd.tmp#MD_MetadataExtensionInformation_PropertyType
Type gmd:MD_MetadataExtensionInformation_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:MD_MetadataExtensionInformation
Instance

<gmd:metadataExtensionInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_MetadataExtensionInformation id="" uuid="">{1,1}</gmd:MD_MetadataExtensionInformation>
</gmd:metadataExtensionInfo>
Attributes
Source

<xs:element name="metadataExtensionInfo" type="gmd:MD_MetadataExtensionInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

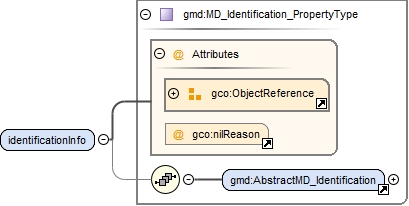

Element gmd:MD_Metadata_Type / gmd:identificationInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonidentification_xsd.tmp#AbstractMD_Identificationidentification_xsd.tmp#MD_Identification_PropertyType
Type gmd:MD_Identification_PropertyType
Properties
content complex
maxOccurs unbounded
Model
Children gmd:AbstractMD_Identification
Instance

<gmd:identificationInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:AbstractMD_Identification id="" uuid="">{1,1}</gmd:AbstractMD_Identification>
</gmd:identificationInfo>
Attributes
Source

<xs:element name="identificationInfo" type="gmd:MD_Identification_PropertyType" maxOccurs="unbounded"/>

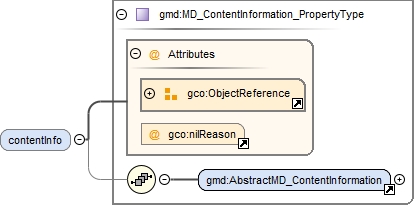

Element gmd:MD_Metadata_Type / gmd:contentInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasoncontent_xsd.tmp#AbstractMD_ContentInformationcontent_xsd.tmp#MD_ContentInformation_PropertyType
Type gmd:MD_ContentInformation_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:AbstractMD_ContentInformation
Instance

<gmd:contentInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:AbstractMD_ContentInformation id="" uuid="">{1,1}</gmd:AbstractMD_ContentInformation>
</gmd:contentInfo>
Attributes
Source

<xs:element name="contentInfo" type="gmd:MD_ContentInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
Element gmd:MD_Metadata_Type / gmd:distributionInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasondistribution_xsd.tmp#MD_Distributiondistribution_xsd.tmp#MD_Distribution_PropertyType
Type gmd:MD_Distribution_PropertyType
Properties
content complex
minOccurs 0
Model
Children gmd:MD_Distribution
Instance

<gmd:distributionInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_Distribution id="" uuid="">{1,1}</gmd:MD_Distribution>
</gmd:distributionInfo>
Attributes
Source

<xs:element name="distributionInfo" type="gmd:MD_Distribution_PropertyType" minOccurs="0"/>

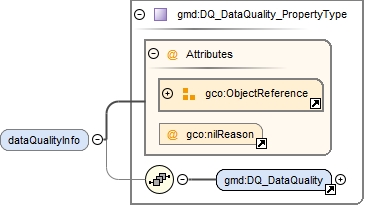

Element gmd:MD_Metadata_Type / gmd:dataQualityInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasondataQuality_xsd.tmp#DQ_DataQualitydataQuality_xsd.tmp#DQ_DataQuality_PropertyType
Type gmd:DQ_DataQuality_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:DQ_DataQuality
Instance

<gmd:dataQualityInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:DQ_DataQuality id="" uuid="">{1,1}</gmd:DQ_DataQuality>
</gmd:dataQualityInfo>
Attributes
Source

<xs:element name="dataQualityInfo" type="gmd:DQ_DataQuality_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
Element gmd:MD_Metadata_Type / gmd:portrayalCatalogueInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonportrayalCatalogue_xsd.tmp#MD_PortrayalCatalogueReferenceportrayalCatalogue_xsd.tmp#MD_PortrayalCatalogueReference_PropertyType
Type gmd:MD_PortrayalCatalogueReference_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:MD_PortrayalCatalogueReference
Instance

<gmd:portrayalCatalogueInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_PortrayalCatalogueReference id="" uuid="">{1,1}</gmd:MD_PortrayalCatalogueReference>
</gmd:portrayalCatalogueInfo>
Attributes
Source

<xs:element name="portrayalCatalogueInfo" type="gmd:MD_PortrayalCatalogueReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

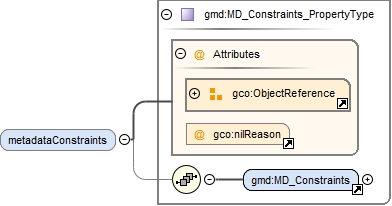

Element gmd:MD_Metadata_Type / gmd:metadataConstraints
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonconstraints_xsd.tmp#MD_Constraintsconstraints_xsd.tmp#MD_Constraints_PropertyType
Type gmd:MD_Constraints_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:MD_Constraints
Instance

<gmd:metadataConstraints xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_Constraints id="" uuid="">{1,1}</gmd:MD_Constraints>
</gmd:metadataConstraints>
Attributes
Source

<xs:element name="metadataConstraints" type="gmd:MD_Constraints_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

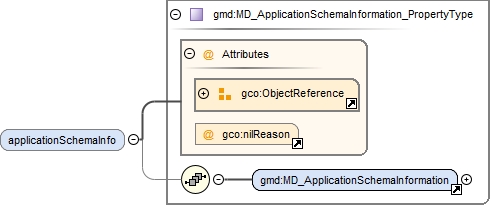

Element gmd:MD_Metadata_Type / gmd:applicationSchemaInfo
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonapplicationSchema_xsd.tmp#MD_ApplicationSchemaInformationapplicationSchema_xsd.tmp#MD_ApplicationSchemaInformation_PropertyType
Type gmd:MD_ApplicationSchemaInformation_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:MD_ApplicationSchemaInformation
Instance

<gmd:applicationSchemaInfo xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_ApplicationSchemaInformation id="" uuid="">{1,1}</gmd:MD_ApplicationSchemaInformation>
</gmd:applicationSchemaInfo>
Attributes
Source

<xs:element name="applicationSchemaInfo" type="gmd:MD_ApplicationSchemaInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

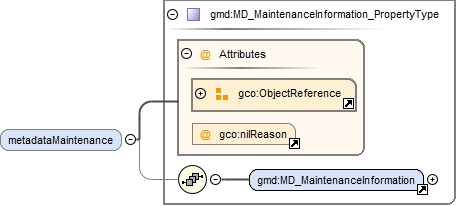

Element gmd:MD_Metadata_Type / gmd:metadataMaintenance
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmaintenance_xsd.tmp#MD_MaintenanceInformationmaintenance_xsd.tmp#MD_MaintenanceInformation_PropertyType
Type gmd:MD_MaintenanceInformation_PropertyType
Properties
content complex
minOccurs 0
Model
Children gmd:MD_MaintenanceInformation
Instance

<gmd:metadataMaintenance xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_MaintenanceInformation id="" uuid="">{1,1}</gmd:MD_MaintenanceInformation>
</gmd:metadataMaintenance>
Attributes
Source

<xs:element name="metadataMaintenance" type="gmd:MD_MaintenanceInformation_PropertyType" minOccurs="0"/>

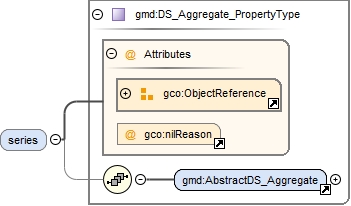

Element gmd:MD_Metadata_Type / gmd:series
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#AbstractDS_AggregatemetadataApplication_xsd.tmp#DS_Aggregate_PropertyType
Type gmd:DS_Aggregate_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:AbstractDS_Aggregate
Instance

<gmd:series xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:AbstractDS_Aggregate id="" uuid="">{1,1}</gmd:AbstractDS_Aggregate>
</gmd:series>
Attributes
Source

<xs:element name="series" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

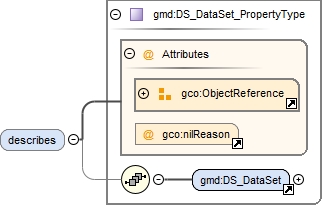

Element gmd:MD_Metadata_Type / gmd:describes
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_DataSetmetadataApplication_xsd.tmp#DS_DataSet_PropertyType
Type gmd:DS_DataSet_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:DS_DataSet
Instance

<gmd:describes xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:DS_DataSet id="" uuid="">{1,1}</gmd:DS_DataSet>
</gmd:describes>
Attributes
Source

<xs:element name="describes" type="gmd:DS_DataSet_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

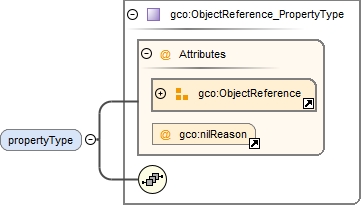

Element gmd:MD_Metadata_Type / gmd:propertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasongcoBase_xsd.tmp#ObjectReference_PropertyType
Type gco:ObjectReference_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Attributes
Source

<xs:element name="propertyType" type="gco:ObjectReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
Element gmd:MD_Metadata_Type / gmd:featureType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasongcoBase_xsd.tmp#ObjectReference_PropertyType
Type gco:ObjectReference_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Attributes
Source

<xs:element name="featureType" type="gco:ObjectReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

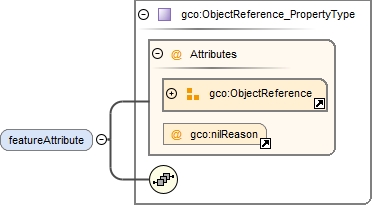

Element gmd:MD_Metadata_Type / gmd:featureAttribute
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasongcoBase_xsd.tmp#ObjectReference_PropertyType
Type gco:ObjectReference_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Attributes
Source

<xs:element name="featureAttribute" type="gco:ObjectReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

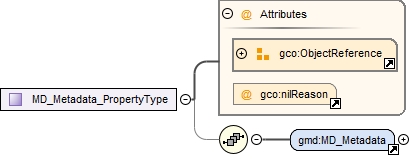

Complex Type gmd:MD_Metadata_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataEntity_xsd.tmp#MD_Metadata
Used by
Model
Children gmd:MD_Metadata
Attributes
Source

<xs:complexType name="MD_Metadata_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:MD_Metadata"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:MD_Metadata_Type
Namespace http://www.isotc211.org/2005/gmd
Annotations

Information about the metadata
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataEntity_xsd.tmp#MD_Metadata_Type_fileIdentifiermetadataEntity_xsd.tmp#MD_Metadata_Type_languagemetadataEntity_xsd.tmp#MD_Metadata_Type_characterSetmetadataEntity_xsd.tmp#MD_Metadata_Type_parentIdentifiermetadataEntity_xsd.tmp#MD_Metadata_Type_hierarchyLevelmetadataEntity_xsd.tmp#MD_Metadata_Type_hierarchyLevelNamemetadataEntity_xsd.tmp#MD_Metadata_Type_contactmetadataEntity_xsd.tmp#MD_Metadata_Type_dateStampmetadataEntity_xsd.tmp#MD_Metadata_Type_metadataStandardNamemetadataEntity_xsd.tmp#MD_Metadata_Type_metadataStandardVersionmetadataEntity_xsd.tmp#MD_Metadata_Type_dataSetURImetadataEntity_xsd.tmp#MD_Metadata_Type_localemetadataEntity_xsd.tmp#MD_Metadata_Type_spatialRepresentationInfometadataEntity_xsd.tmp#MD_Metadata_Type_referenceSystemInfometadataEntity_xsd.tmp#MD_Metadata_Type_metadataExtensionInfometadataEntity_xsd.tmp#MD_Metadata_Type_identificationInfometadataEntity_xsd.tmp#MD_Metadata_Type_contentInfometadataEntity_xsd.tmp#MD_Metadata_Type_distributionInfometadataEntity_xsd.tmp#MD_Metadata_Type_dataQualityInfometadataEntity_xsd.tmp#MD_Metadata_Type_portrayalCatalogueInfometadataEntity_xsd.tmp#MD_Metadata_Type_metadataConstraintsmetadataEntity_xsd.tmp#MD_Metadata_Type_applicationSchemaInfometadataEntity_xsd.tmp#MD_Metadata_Type_metadataMaintenancemetadataEntity_xsd.tmp#MD_Metadata_Type_seriesmetadataEntity_xsd.tmp#MD_Metadata_Type_describesmetadataEntity_xsd.tmp#MD_Metadata_Type_propertyTypemetadataEntity_xsd.tmp#MD_Metadata_Type_featureTypemetadataEntity_xsd.tmp#MD_Metadata_Type_featureAttribute
Type extension of gco:AbstractObject_Type
Type hierarchy
Used by
Element gmd:MD_Metadata
Model
Children gmd:applicationSchemaInfo, gmd:characterSet, gmd:contact, gmd:contentInfo, gmd:dataQualityInfo, gmd:dataSetURI, gmd:dateStamp, gmd:describes, gmd:distributionInfo, gmd:featureAttribute, gmd:featureType, gmd:fileIdentifier, gmd:hierarchyLevel, gmd:hierarchyLevelName, gmd:identificationInfo, gmd:language, gmd:locale, gmd:metadataConstraints, gmd:metadataExtensionInfo, gmd:metadataMaintenance, gmd:metadataStandardName, gmd:metadataStandardVersion, gmd:parentIdentifier, gmd:portrayalCatalogueInfo, gmd:propertyType, gmd:referenceSystemInfo, gmd:series, gmd:spatialRepresentationInfo
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="MD_Metadata_Type">
  <xs:annotation>
    <xs:documentation>Information about the metadata</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="fileIdentifier" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="language" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="characterSet" type="gmd:MD_CharacterSetCode_PropertyType" minOccurs="0"/>
        <xs:element name="parentIdentifier" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="hierarchyLevel" type="gmd:MD_ScopeCode_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="hierarchyLevelName" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="contact" type="gmd:CI_ResponsibleParty_PropertyType" maxOccurs="unbounded"/>
        <xs:element name="dateStamp" type="gco:Date_PropertyType"/>
        <xs:element name="metadataStandardName" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="metadataStandardVersion" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="dataSetURI" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="locale" type="gmd:PT_Locale_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="spatialRepresentationInfo" type="gmd:MD_SpatialRepresentation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="referenceSystemInfo" type="gmd:MD_ReferenceSystem_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="metadataExtensionInfo" type="gmd:MD_MetadataExtensionInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="identificationInfo" type="gmd:MD_Identification_PropertyType" maxOccurs="unbounded"/>
        <xs:element name="contentInfo" type="gmd:MD_ContentInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="distributionInfo" type="gmd:MD_Distribution_PropertyType" minOccurs="0"/>
        <xs:element name="dataQualityInfo" type="gmd:DQ_DataQuality_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="portrayalCatalogueInfo" type="gmd:MD_PortrayalCatalogueReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="metadataConstraints" type="gmd:MD_Constraints_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="applicationSchemaInfo" type="gmd:MD_ApplicationSchemaInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="metadataMaintenance" type="gmd:MD_MaintenanceInformation_PropertyType" minOccurs="0"/>
        <xs:element name="series" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="describes" type="gmd:DS_DataSet_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="propertyType" type="gco:ObjectReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="featureType" type="gco:ObjectReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="featureAttribute" type="gco:ObjectReference_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
XML Schema documentation generated by ® XML Developer Trial Edition.
