Showing:

Annotations
Attributes
Diagrams
Facets
Instances
Model
Properties
Source
Used by
Included schema metadataExtension.xsd
Namespace http://www.isotc211.org/2005/gmd
Annotations

Geographic MetaData (GMD) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GMD includes all the definitions of http://www.isotc211.org/2005/gmd namespace. The root document of this namespace is the file gmd.xsd. This metadataExtension.xsd schema implements the UML conceptual schema defined in A.2.11 of ISO 19115:2003. It contains the implementation of the following classes: MD_ExtendedElementInformation, MD_MetadataExtensionInformation, MD_ObligationCode, MD_DatatypeCode.
Properties
attribute form default unqualified
element form default qualified
version 2012-07-13

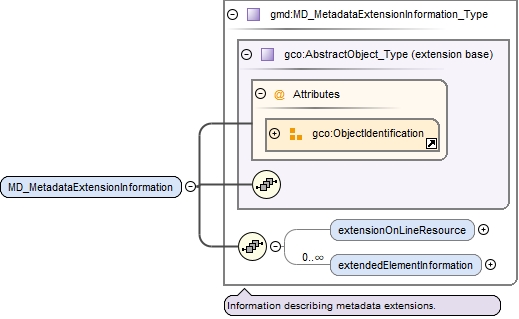

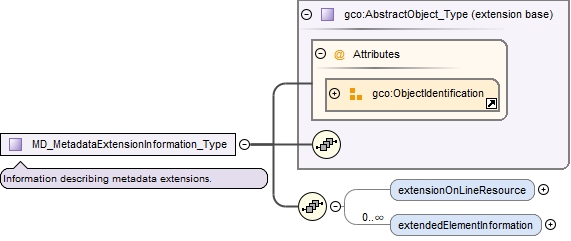

Element gmd:MD_MetadataExtensionInformation
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataExtension_xsd.tmp#MD_MetadataExtensionInformation_Type_extensionOnLineResourcemetadataExtension_xsd.tmp#MD_MetadataExtensionInformation_Type_extendedElementInformationmetadataExtension_xsd.tmp#MD_MetadataExtensionInformation_Type
Type gmd:MD_MetadataExtensionInformation_Type
Type hierarchy
Properties
content complex
Used by
Model
Children gmd:extendedElementInformation, gmd:extensionOnLineResource
Instance

<gmd:MD_MetadataExtensionInformation id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:extensionOnLineResource xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,1}</gmd:extensionOnLineResource>
  <gmd:extendedElementInformation xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:extendedElementInformation>
</gmd:MD_MetadataExtensionInformation>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="MD_MetadataExtensionInformation" type="gmd:MD_MetadataExtensionInformation_Type"/>

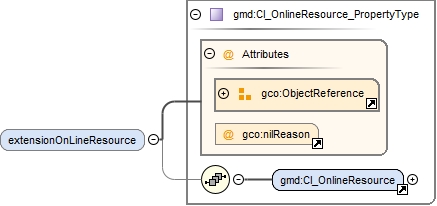

Element gmd:MD_MetadataExtensionInformation_Type / gmd:extensionOnLineResource
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasoncitation_xsd.tmp#CI_OnlineResourcecitation_xsd.tmp#CI_OnlineResource_PropertyType
Type gmd:CI_OnlineResource_PropertyType
Properties
content complex
minOccurs 0
Model
Children gmd:CI_OnlineResource
Instance

<gmd:extensionOnLineResource xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:CI_OnlineResource id="" uuid="">{1,1}</gmd:CI_OnlineResource>
</gmd:extensionOnLineResource>
Attributes
Source

<xs:element name="extensionOnLineResource" type="gmd:CI_OnlineResource_PropertyType" minOccurs="0"/>

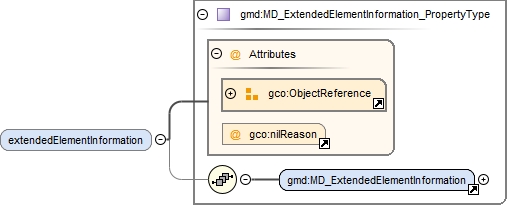

Element gmd:MD_MetadataExtensionInformation_Type / gmd:extendedElementInformation
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_ExtendedElementInformationmetadataExtension_xsd.tmp#MD_ExtendedElementInformation_PropertyType

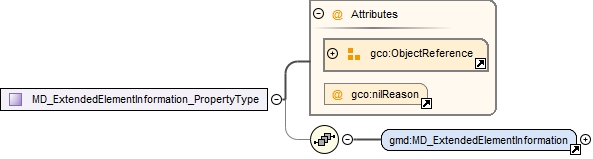

Type gmd:MD_ExtendedElementInformation_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:MD_ExtendedElementInformation
Instance

<gmd:extendedElementInformation xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_ExtendedElementInformation id="" uuid="">{1,1}</gmd:MD_ExtendedElementInformation>
</gmd:extendedElementInformation>
Attributes
Source

<xs:element name="extendedElementInformation" type="gmd:MD_ExtendedElementInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

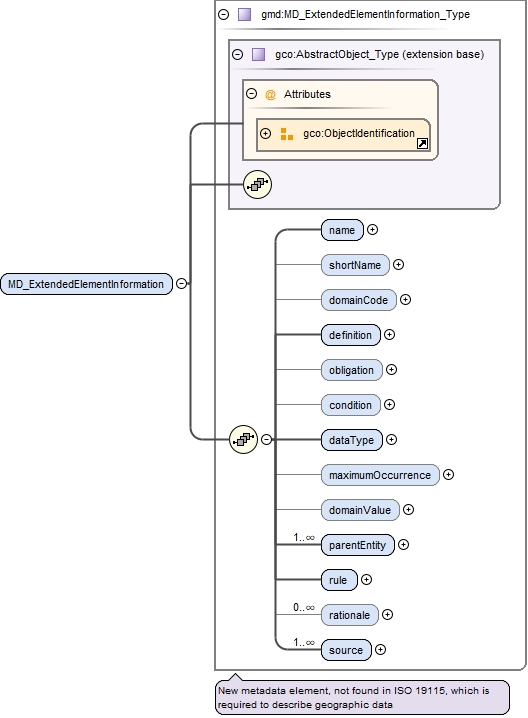

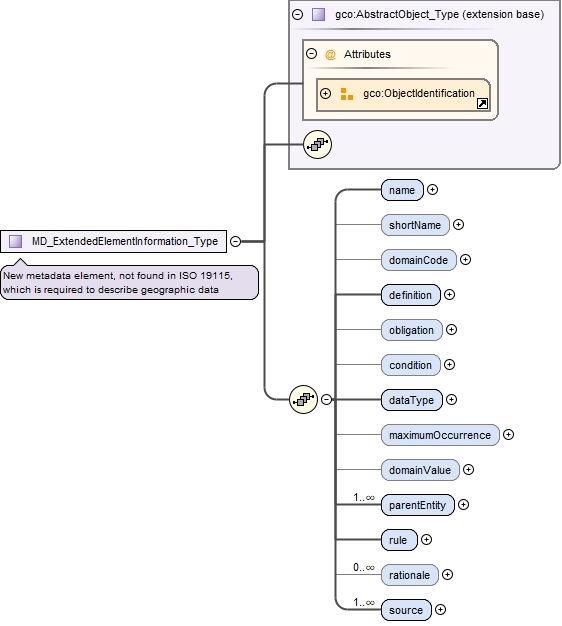

Element gmd:MD_ExtendedElementInformation
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_namemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_shortNamemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_domainCodemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_definitionmetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_obligationmetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_conditionmetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_dataTypemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_maximumOccurrencemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_domainValuemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_parentEntitymetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_rulemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_rationalemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_sourcemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type
Type gmd:MD_ExtendedElementInformation_Type
Type hierarchy
Properties
content complex
Used by
Model
Children gmd:condition, gmd:dataType, gmd:definition, gmd:domainCode, gmd:domainValue, gmd:maximumOccurrence, gmd:name, gmd:obligation, gmd:parentEntity, gmd:rationale, gmd:rule, gmd:shortName, gmd:source
Instance

<gmd:MD_ExtendedElementInformation id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:name gco:nilReason="">{1,1}</gmd:name>
  <gmd:shortName gco:nilReason="">{0,1}</gmd:shortName>
  <gmd:domainCode gco:nilReason="">{0,1}</gmd:domainCode>
  <gmd:definition gco:nilReason="">{1,1}</gmd:definition>
  <gmd:obligation gco:nilReason="">{0,1}</gmd:obligation>
  <gmd:condition gco:nilReason="">{0,1}</gmd:condition>
  <gmd:dataType gco:nilReason="">{1,1}</gmd:dataType>
  <gmd:maximumOccurrence gco:nilReason="">{0,1}</gmd:maximumOccurrence>
  <gmd:domainValue gco:nilReason="">{0,1}</gmd:domainValue>
  <gmd:parentEntity gco:nilReason="">{1,unbounded}</gmd:parentEntity>
  <gmd:rule gco:nilReason="">{1,1}</gmd:rule>
  <gmd:rationale gco:nilReason="">{0,unbounded}</gmd:rationale>

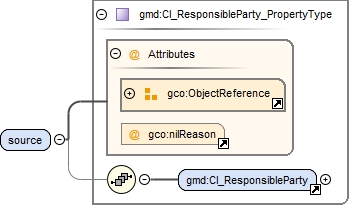

  <gmd:source xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:source>
</gmd:MD_ExtendedElementInformation>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="MD_ExtendedElementInformation" type="gmd:MD_ExtendedElementInformation_Type"/>

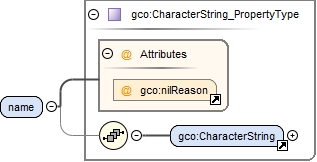

Element gmd:MD_ExtendedElementInformation_Type / gmd:name
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
Model
Children gco:CharacterString
Instance

<gmd:name gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:name>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="name" type="gco:CharacterString_PropertyType"/>

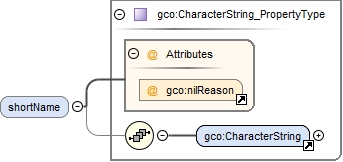

Element gmd:MD_ExtendedElementInformation_Type / gmd:shortName
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:shortName gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:shortName>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="shortName" type="gco:CharacterString_PropertyType" minOccurs="0"/>

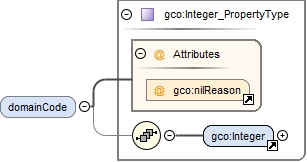

Element gmd:MD_ExtendedElementInformation_Type / gmd:domainCode
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#IntegerbasicTypes_xsd_1.tmp#Integer_PropertyType
Type gco:Integer_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:Integer
Instance

<gmd:domainCode gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:Integer>{1,1}</gco:Integer>
</gmd:domainCode>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="domainCode" type="gco:Integer_PropertyType" minOccurs="0"/>

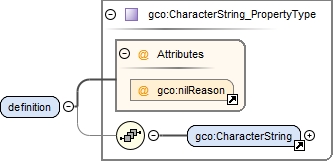

Element gmd:MD_ExtendedElementInformation_Type / gmd:definition
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
Model
Children gco:CharacterString
Instance

<gmd:definition gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:definition>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="definition" type="gco:CharacterString_PropertyType"/>

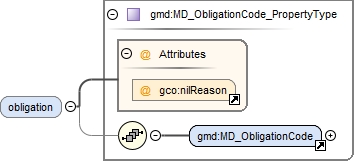

Element gmd:MD_ExtendedElementInformation_Type / gmd:obligation
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_ObligationCodemetadataExtension_xsd.tmp#MD_ObligationCode_PropertyType

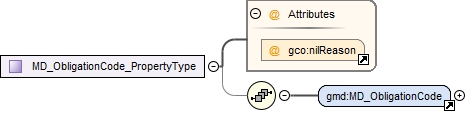

Type gmd:MD_ObligationCode_PropertyType
Properties
content complex
minOccurs 0
Model
Children gmd:MD_ObligationCode
Instance

<gmd:obligation gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_ObligationCode>{1,1}</gmd:MD_ObligationCode>
</gmd:obligation>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="obligation" type="gmd:MD_ObligationCode_PropertyType" minOccurs="0"/>

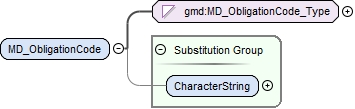

Element gmd:MD_ObligationCode
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagrammetadataExtension_xsd.tmp#MD_ObligationCode_TypebasicTypes_xsd_1.tmp#CharacterString
Type gmd:MD_ObligationCode_Type
Properties
content simple
Facets
enumeration mandatory
enumeration optional
enumeration conditional
Substitution Group Affiliation
Used by
Source

<xs:element name="MD_ObligationCode" type="gmd:MD_ObligationCode_Type" substitutionGroup="gco:CharacterString"/>

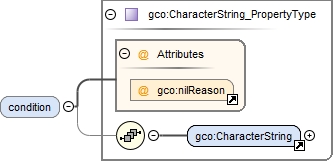

Element gmd:MD_ExtendedElementInformation_Type / gmd:condition
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:condition gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:condition>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="condition" type="gco:CharacterString_PropertyType" minOccurs="0"/>

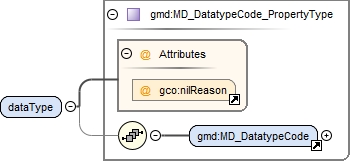

Element gmd:MD_ExtendedElementInformation_Type / gmd:dataType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_DatatypeCodemetadataExtension_xsd.tmp#MD_DatatypeCode_PropertyType

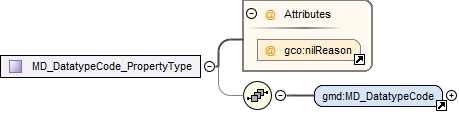

Type gmd:MD_DatatypeCode_PropertyType
Properties
content complex
Model
Children gmd:MD_DatatypeCode
Instance

<gmd:dataType gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_DatatypeCode codeList="" codeListValue="" codeSpace="">{1,1}</gmd:MD_DatatypeCode>
</gmd:dataType>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="dataType" type="gmd:MD_DatatypeCode_PropertyType"/>

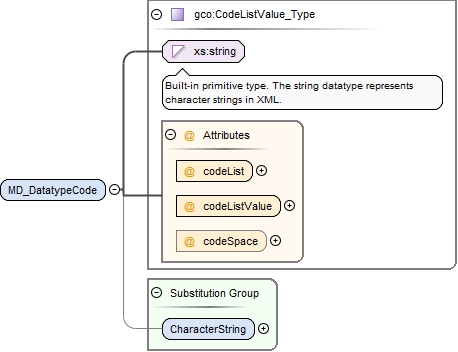

Element gmd:MD_DatatypeCode
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#CodeListValue_Type_codeListgcoBase_xsd.tmp#CodeListValue_Type_codeListValuegcoBase_xsd.tmp#CodeListValue_Type_codeSpacegcoBase_xsd.tmp#CodeListValue_TypebasicTypes_xsd_1.tmp#CharacterString
Type gco:CodeListValue_Type
Properties
content complex
Substitution Group Affiliation
Used by
Attributes
QName Type Use
codeList xs:anyURI required
codeListValue xs:anyURI required
codeSpace xs:anyURI optional
Source

<xs:element name="MD_DatatypeCode" type="gco:CodeListValue_Type" substitutionGroup="gco:CharacterString"/>

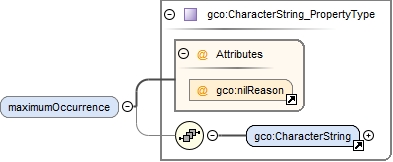

Element gmd:MD_ExtendedElementInformation_Type / gmd:maximumOccurrence
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:maximumOccurrence gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:maximumOccurrence>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="maximumOccurrence" type="gco:CharacterString_PropertyType" minOccurs="0"/>

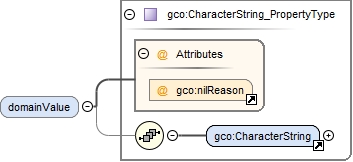

Element gmd:MD_ExtendedElementInformation_Type / gmd:domainValue
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:domainValue gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:domainValue>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="domainValue" type="gco:CharacterString_PropertyType" minOccurs="0"/>
Element gmd:MD_ExtendedElementInformation_Type / gmd:parentEntity
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
maxOccurs unbounded
Model
Children gco:CharacterString
Instance

<gmd:parentEntity gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:parentEntity>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="parentEntity" type="gco:CharacterString_PropertyType" maxOccurs="unbounded"/>

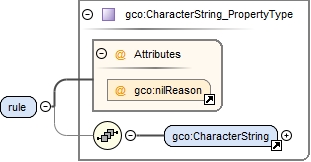

Element gmd:MD_ExtendedElementInformation_Type / gmd:rule
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
Model
Children gco:CharacterString
Instance

<gmd:rule gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:rule>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="rule" type="gco:CharacterString_PropertyType"/>

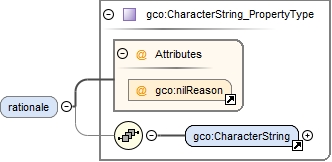

Element gmd:MD_ExtendedElementInformation_Type / gmd:rationale
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gco:CharacterString
Instance

<gmd:rationale gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:rationale>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="rationale" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
Element gmd:MD_ExtendedElementInformation_Type / gmd:source
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasoncitation_xsd.tmp#CI_ResponsiblePartycitation_xsd.tmp#CI_ResponsibleParty_PropertyType
Type gmd:CI_ResponsibleParty_PropertyType
Properties
content complex
maxOccurs unbounded
Model
Children gmd:CI_ResponsibleParty
Instance

<gmd:source xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:CI_ResponsibleParty id="" uuid="">{1,1}</gmd:CI_ResponsibleParty>
</gmd:source>
Attributes
Source

<xs:element name="source" type="gmd:CI_ResponsibleParty_PropertyType" maxOccurs="unbounded"/>

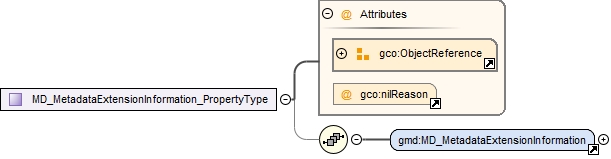

Complex Type gmd:MD_MetadataExtensionInformation_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_MetadataExtensionInformation
Used by
Model
Children gmd:MD_MetadataExtensionInformation
Attributes
Source

<xs:complexType name="MD_MetadataExtensionInformation_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:MD_MetadataExtensionInformation"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:MD_MetadataExtensionInformation_Type
Namespace http://www.isotc211.org/2005/gmd
Annotations

Information describing metadata extensions.
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataExtension_xsd.tmp#MD_MetadataExtensionInformation_Type_extensionOnLineResourcemetadataExtension_xsd.tmp#MD_MetadataExtensionInformation_Type_extendedElementInformation
Type extension of gco:AbstractObject_Type
Type hierarchy
Used by
Model
Children gmd:extendedElementInformation, gmd:extensionOnLineResource
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="MD_MetadataExtensionInformation_Type">
  <xs:annotation>
    <xs:documentation>Information describing metadata extensions.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="extensionOnLineResource" type="gmd:CI_OnlineResource_PropertyType" minOccurs="0"/>
        <xs:element name="extendedElementInformation" type="gmd:MD_ExtendedElementInformation_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:MD_ExtendedElementInformation_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_ExtendedElementInformation
Used by
Model
Children gmd:MD_ExtendedElementInformation
Attributes
Source

<xs:complexType name="MD_ExtendedElementInformation_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:MD_ExtendedElementInformation"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:MD_ExtendedElementInformation_Type
Namespace http://www.isotc211.org/2005/gmd
Annotations

New metadata element, not found in ISO 19115, which is required to describe geographic data
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_namemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_shortNamemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_domainCodemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_definitionmetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_obligationmetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_conditionmetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_dataTypemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_maximumOccurrencemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_domainValuemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_parentEntitymetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_rulemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_rationalemetadataExtension_xsd.tmp#MD_ExtendedElementInformation_Type_source
Type extension of gco:AbstractObject_Type
Type hierarchy
Used by
Model
Children gmd:condition, gmd:dataType, gmd:definition, gmd:domainCode, gmd:domainValue, gmd:maximumOccurrence, gmd:name, gmd:obligation, gmd:parentEntity, gmd:rationale, gmd:rule, gmd:shortName, gmd:source
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="MD_ExtendedElementInformation_Type">
  <xs:annotation>
    <xs:documentation>New metadata element, not found in ISO 19115, which is required to describe geographic data</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="name" type="gco:CharacterString_PropertyType"/>
        <xs:element name="shortName" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="domainCode" type="gco:Integer_PropertyType" minOccurs="0"/>
        <xs:element name="definition" type="gco:CharacterString_PropertyType"/>
        <xs:element name="obligation" type="gmd:MD_ObligationCode_PropertyType" minOccurs="0"/>
        <xs:element name="condition" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="dataType" type="gmd:MD_DatatypeCode_PropertyType"/>
        <xs:element name="maximumOccurrence" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="domainValue" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="parentEntity" type="gco:CharacterString_PropertyType" maxOccurs="unbounded"/>
        <xs:element name="rule" type="gco:CharacterString_PropertyType"/>
        <xs:element name="rationale" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="source" type="gmd:CI_ResponsibleParty_PropertyType" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:MD_ObligationCode_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_ObligationCode
Used by
Model
Children gmd:MD_ObligationCode
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:complexType name="MD_ObligationCode_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:MD_ObligationCode"/>
  </xs:sequence>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Simple Type gmd:MD_ObligationCode_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration mandatory
enumeration optional
enumeration conditional
Used by
Source

<xs:simpleType name="MD_ObligationCode_Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="mandatory"/>
    <xs:enumeration value="optional"/>
    <xs:enumeration value="conditional"/>
  </xs:restriction>
</xs:simpleType>
Complex Type gmd:MD_DatatypeCode_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonmetadataExtension_xsd.tmp#MD_DatatypeCode
Used by
Model
Children gmd:MD_DatatypeCode
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:complexType name="MD_DatatypeCode_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:MD_DatatypeCode"/>
  </xs:sequence>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
XML Schema documentation generated by ® XML Developer Trial Edition.
