Included schema referenceSystem.xsd
Namespace http://www.isotc211.org/2005/gmd
Annotations

Geographic MetaData (GMD) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GMD includes all the definitions of http://www.isotc211.org/2005/gmd namespace. The root document of this namespace is the file gmd.xsd. This referenceSystem.xsd schema implements the UML conceptual schema defined in A.2.7 of ISO 19115:2003 and ISO 19115:2003/Cor. 1:2006. It contains the implementation of the following classes: RS_Identifier, MD_ReferenceSystem, MD_Identifier and RS_Reference System.
Properties
attribute form default unqualified
element form default qualified
version 2012-07-13

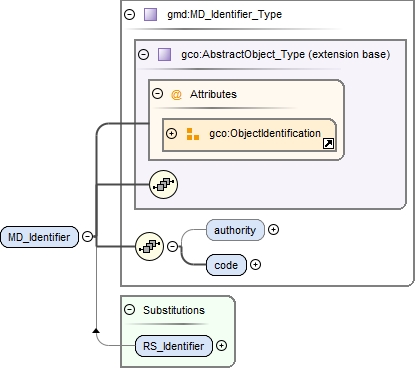

Element gmd:MD_Identifier
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#MD_Identifier_Type_authorityreferenceSystem_xsd.tmp#MD_Identifier_Type_codereferenceSystem_xsd.tmp#MD_Identifier_TypereferenceSystem_xsd.tmp#RS_Identifier
Type gmd:MD_Identifier_Type
Type hierarchy
Properties
content complex
Substitution Group
Used by
Model
Children gmd:authority, gmd:code
Instance

<gmd:MD_Identifier id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:authority xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,1}</gmd:authority>
  <gmd:code gco:nilReason="">{1,1}</gmd:code>
</gmd:MD_Identifier>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="MD_Identifier" type="gmd:MD_Identifier_Type"/>

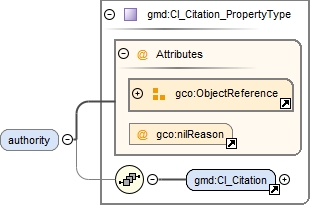

Element gmd:MD_Identifier_Type / gmd:authority
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasoncitation_xsd.tmp#CI_Citationcitation_xsd.tmp#CI_Citation_PropertyType
Type gmd:CI_Citation_PropertyType
Properties
content complex
minOccurs 0
Model
Children gmd:CI_Citation
Instance

<gmd:authority xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:CI_Citation id="" uuid="">{1,1}</gmd:CI_Citation>
</gmd:authority>
Attributes
Source

<xs:element name="authority" type="gmd:CI_Citation_PropertyType" minOccurs="0"/>

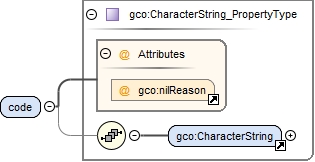

Element gmd:MD_Identifier_Type / gmd:code
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
Model
Children gco:CharacterString
Instance

<gmd:code gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:code>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="code" type="gco:CharacterString_PropertyType"/>

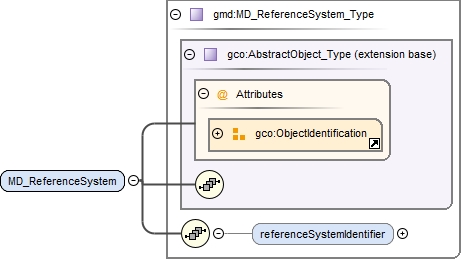

Element gmd:MD_ReferenceSystem
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#MD_ReferenceSystem_Type_referenceSystemIdentifierreferenceSystem_xsd.tmp#MD_ReferenceSystem_Type
Type gmd:MD_ReferenceSystem_Type
Type hierarchy
Properties
content complex
Used by
Model
Children gmd:referenceSystemIdentifier
Instance

<gmd:MD_ReferenceSystem id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:referenceSystemIdentifier xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,1}</gmd:referenceSystemIdentifier>
</gmd:MD_ReferenceSystem>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="MD_ReferenceSystem" type="gmd:MD_ReferenceSystem_Type"/>

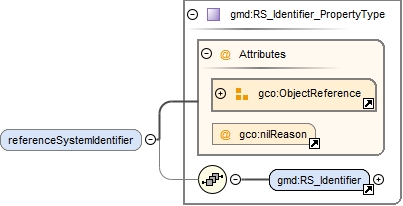

Element gmd:MD_ReferenceSystem_Type / gmd:referenceSystemIdentifier
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonreferenceSystem_xsd.tmp#RS_IdentifierreferenceSystem_xsd.tmp#RS_Identifier_PropertyType
Type gmd:RS_Identifier_PropertyType
Properties
content complex
minOccurs 0
Model
Children gmd:RS_Identifier
Instance

<gmd:referenceSystemIdentifier xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:RS_Identifier id="" uuid="">{1,1}</gmd:RS_Identifier>
</gmd:referenceSystemIdentifier>
Attributes
Source

<xs:element name="referenceSystemIdentifier" type="gmd:RS_Identifier_PropertyType" minOccurs="0"/>

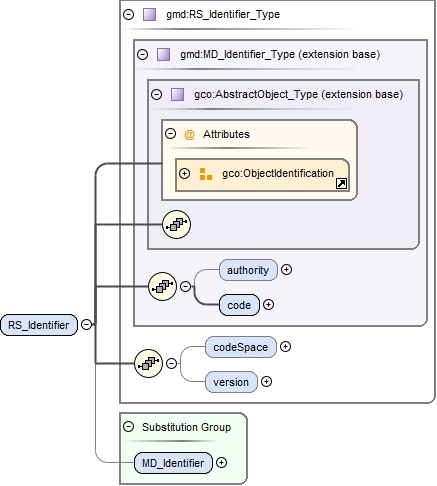

Element gmd:RS_Identifier
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#MD_Identifier_Type_authorityreferenceSystem_xsd.tmp#MD_Identifier_Type_codereferenceSystem_xsd.tmp#MD_Identifier_TypereferenceSystem_xsd.tmp#RS_Identifier_Type_codeSpacereferenceSystem_xsd.tmp#RS_Identifier_Type_versionreferenceSystem_xsd.tmp#RS_Identifier_TypereferenceSystem_xsd.tmp#MD_Identifier
Type gmd:RS_Identifier_Type
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gmd:authority, gmd:code, gmd:codeSpace, gmd:version
Instance

<gmd:RS_Identifier id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:authority xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,1}</gmd:authority>
  <gmd:code gco:nilReason="">{1,1}</gmd:code>
  <gmd:codeSpace gco:nilReason="">{0,1}</gmd:codeSpace>
  <gmd:version gco:nilReason="">{0,1}</gmd:version>
</gmd:RS_Identifier>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="RS_Identifier" type="gmd:RS_Identifier_Type" substitutionGroup="gmd:MD_Identifier"/>

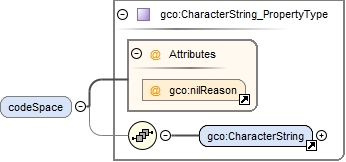

Element gmd:RS_Identifier_Type / gmd:codeSpace
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:codeSpace gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:codeSpace>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="codeSpace" type="gco:CharacterString_PropertyType" minOccurs="0"/>

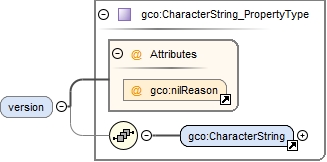

Element gmd:RS_Identifier_Type / gmd:version
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Type gco:CharacterString_PropertyType
Properties
content complex
minOccurs 0
Model
Children gco:CharacterString
Instance

<gmd:version gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:version>
Attributes
QName Type Use
gco:nilReason gml:NilReasonType optional
Source

<xs:element name="version" type="gco:CharacterString_PropertyType" minOccurs="0"/>

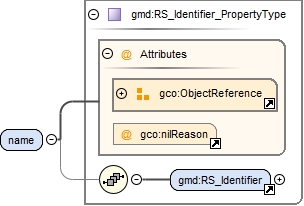

Element gmd:AbstractRS_ReferenceSystem_Type / gmd:name
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonreferenceSystem_xsd.tmp#RS_IdentifierreferenceSystem_xsd.tmp#RS_Identifier_PropertyType
Type gmd:RS_Identifier_PropertyType
Properties
content complex
Model
Children gmd:RS_Identifier
Instance

<gmd:name xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:RS_Identifier id="" uuid="">{1,1}</gmd:RS_Identifier>
</gmd:name>
Attributes
Source

<xs:element name="name" type="gmd:RS_Identifier_PropertyType"/>

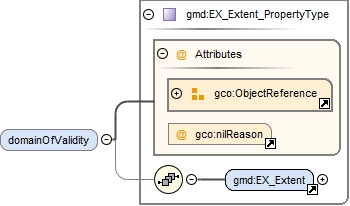

Element gmd:AbstractRS_ReferenceSystem_Type / gmd:domainOfValidity
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonextent_xsd.tmp#EX_Extentextent_xsd.tmp#EX_Extent_PropertyType
Type gmd:EX_Extent_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:EX_Extent
Instance

<gmd:domainOfValidity xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:EX_Extent id="" uuid="">{1,1}</gmd:EX_Extent>
</gmd:domainOfValidity>
Attributes
Source

<xs:element name="domainOfValidity" type="gmd:EX_Extent_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

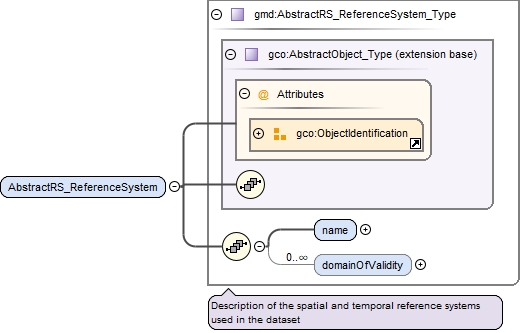

Element gmd:AbstractRS_ReferenceSystem
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#AbstractRS_ReferenceSystem_Type_namereferenceSystem_xsd.tmp#AbstractRS_ReferenceSystem_Type_domainOfValidityreferenceSystem_xsd.tmp#AbstractRS_ReferenceSystem_Type
Type gmd:AbstractRS_ReferenceSystem_Type
Type hierarchy
Properties
content complex
abstract true
Used by
Model
Children gmd:domainOfValidity, gmd:name
Instance

<gmd:AbstractRS_ReferenceSystem id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:name xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,1}</gmd:name>
  <gmd:domainOfValidity xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:domainOfValidity>
</gmd:AbstractRS_ReferenceSystem>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="AbstractRS_ReferenceSystem" type="gmd:AbstractRS_ReferenceSystem_Type" abstract="true"/>

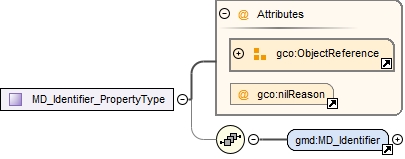

Complex Type gmd:MD_Identifier_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonreferenceSystem_xsd.tmp#MD_Identifier
Used by
Model
Children gmd:MD_Identifier
Attributes
Source

<xs:complexType name="MD_Identifier_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:MD_Identifier"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>

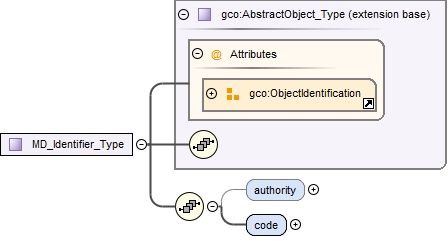

Complex Type gmd:MD_Identifier_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#MD_Identifier_Type_authorityreferenceSystem_xsd.tmp#MD_Identifier_Type_code
Type extension of gco:AbstractObject_Type
Type hierarchy
Used by
Model
Children gmd:authority, gmd:code
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="MD_Identifier_Type">
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="authority" type="gmd:CI_Citation_PropertyType" minOccurs="0"/>
        <xs:element name="code" type="gco:CharacterString_PropertyType"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

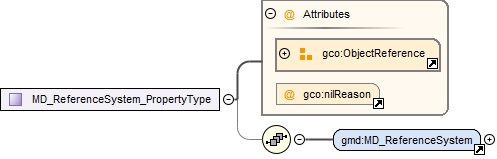

Complex Type gmd:MD_ReferenceSystem_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonreferenceSystem_xsd.tmp#MD_ReferenceSystem
Used by
Model
Children gmd:MD_ReferenceSystem
Attributes
Source

<xs:complexType name="MD_ReferenceSystem_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:MD_ReferenceSystem"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>

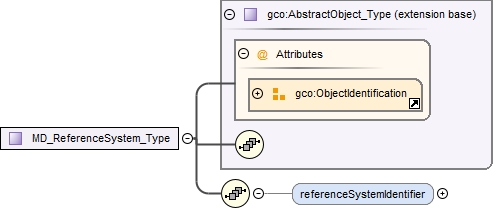

Complex Type gmd:MD_ReferenceSystem_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#MD_ReferenceSystem_Type_referenceSystemIdentifier
Type extension of gco:AbstractObject_Type
Type hierarchy
Used by
Model
Children gmd:referenceSystemIdentifier
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="MD_ReferenceSystem_Type">
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="referenceSystemIdentifier" type="gmd:RS_Identifier_PropertyType" minOccurs="0"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:RS_Identifier_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonreferenceSystem_xsd.tmp#RS_Identifier
Used by
Model
Children gmd:RS_Identifier
Attributes
Source

<xs:complexType name="RS_Identifier_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:RS_Identifier"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>

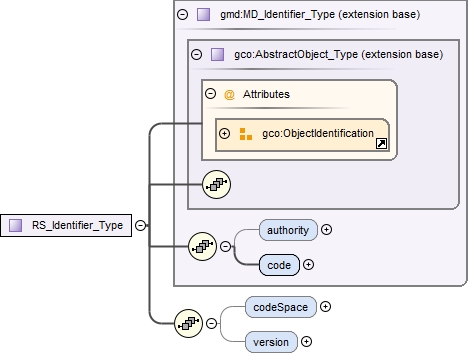

Complex Type gmd:RS_Identifier_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#MD_Identifier_Type_authorityreferenceSystem_xsd.tmp#MD_Identifier_Type_codereferenceSystem_xsd.tmp#MD_Identifier_TypereferenceSystem_xsd.tmp#RS_Identifier_Type_codeSpacereferenceSystem_xsd.tmp#RS_Identifier_Type_version
Type extension of gmd:MD_Identifier_Type
Type hierarchy
Used by
Model
Children gmd:authority, gmd:code, gmd:codeSpace, gmd:version
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="RS_Identifier_Type">
  <xs:complexContent>
    <xs:extension base="gmd:MD_Identifier_Type">
      <xs:sequence>
        <xs:element name="codeSpace" type="gco:CharacterString_PropertyType" minOccurs="0"/>
        <xs:element name="version" type="gco:CharacterString_PropertyType" minOccurs="0"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

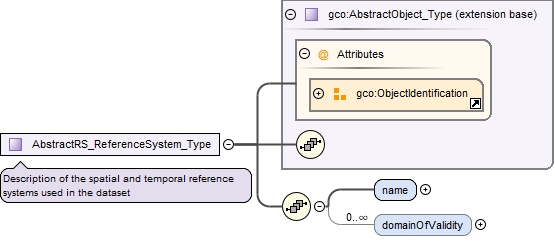

Complex Type gmd:AbstractRS_ReferenceSystem_Type
Namespace http://www.isotc211.org/2005/gmd
Annotations

Description of the spatial and temporal reference systems used in the dataset
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypereferenceSystem_xsd.tmp#AbstractRS_ReferenceSystem_Type_namereferenceSystem_xsd.tmp#AbstractRS_ReferenceSystem_Type_domainOfValidity
Type extension of gco:AbstractObject_Type
Type hierarchy
Properties
abstract true
Used by
Model
Children gmd:domainOfValidity, gmd:name
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="AbstractRS_ReferenceSystem_Type" abstract="true">
  <xs:annotation>
    <xs:documentation>Description of the spatial and temporal reference systems used in the dataset</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="name" type="gmd:RS_Identifier_PropertyType"/>
        <xs:element name="domainOfValidity" type="gmd:EX_Extent_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:RS_ReferenceSystem_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram

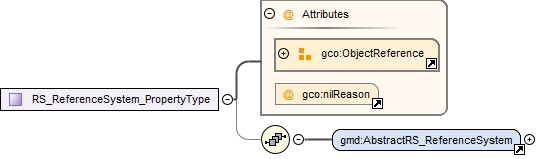

DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonreferenceSystem_xsd.tmp#AbstractRS_ReferenceSystem
Model
Children gmd:AbstractRS_ReferenceSystem
Attributes
Source

<xs:complexType name="RS_ReferenceSystem_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:AbstractRS_ReferenceSystem"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
XML Schema documentation generated by ® XML Developer Trial Edition.
