Included schema metadataApplication.xsd
Namespace http://www.isotc211.org/2005/gmd
Annotations

Geographic MetaData (GMD) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GMD includes all the definitions of http://www.isotc211.org/2005/gmd namespace. The root document of this namespace is the file gmd.xsd. This metadataApplication.xsd schema implements the UML conceptual schema defined in A.2.12 of ISO 19115:2003. It contains the implementation of the class: MD_ApplicationSchemaInformation.
Properties
attribute form default unqualified
element form default qualified
version 2012-07-13

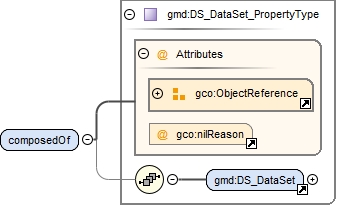

Element gmd:AbstractDS_Aggregate_Type / gmd:composedOf
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_DataSetmetadataApplication_xsd.tmp#DS_DataSet_PropertyType
Type gmd:DS_DataSet_PropertyType
Properties
content complex
maxOccurs unbounded
Model
Children gmd:DS_DataSet
Instance

<gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:DS_DataSet id="" uuid="">{1,1}</gmd:DS_DataSet>
</gmd:composedOf>
Attributes
Source

<xs:element name="composedOf" type="gmd:DS_DataSet_PropertyType" maxOccurs="unbounded"/>

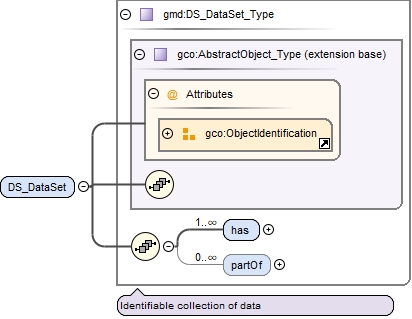

Element gmd:DS_DataSet
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#DS_DataSet_Type_hasmetadataApplication_xsd.tmp#DS_DataSet_Type_partOfmetadataApplication_xsd.tmp#DS_DataSet_Type

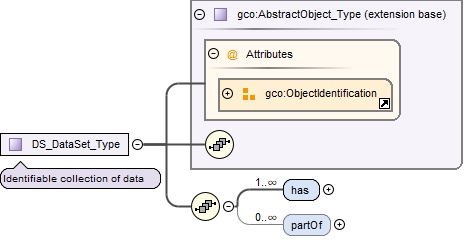

Type gmd:DS_DataSet_Type
Type hierarchy
Properties
content complex
Used by
Model
Children gmd:has, gmd:partOf
Instance

<gmd:DS_DataSet id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:has xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:has>
  <gmd:partOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:partOf>
</gmd:DS_DataSet>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_DataSet" type="gmd:DS_DataSet_Type"/>

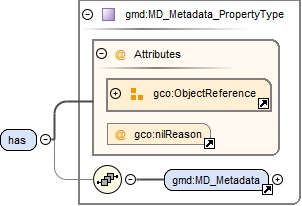

Element gmd:DS_DataSet_Type / gmd:has
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataEntity_xsd.tmp#MD_MetadatametadataEntity_xsd.tmp#MD_Metadata_PropertyType
Type gmd:MD_Metadata_PropertyType
Properties
content complex
maxOccurs unbounded
Model
Children gmd:MD_Metadata
Instance

<gmd:has xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_Metadata id="" uuid="">{1,1}</gmd:MD_Metadata>
</gmd:has>
Attributes
Source

<xs:element name="has" type="gmd:MD_Metadata_PropertyType" maxOccurs="unbounded"/>

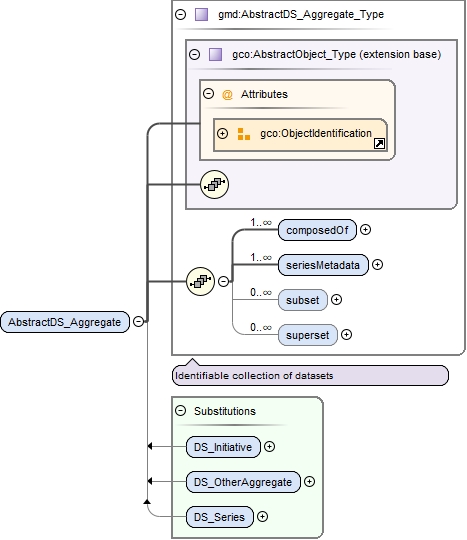

Element gmd:AbstractDS_Aggregate
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_InitiativemetadataApplication_xsd.tmp#DS_OtherAggregatemetadataApplication_xsd.tmp#DS_Series
Type gmd:AbstractDS_Aggregate_Type
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:AbstractDS_Aggregate id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:AbstractDS_Aggregate>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="AbstractDS_Aggregate" type="gmd:AbstractDS_Aggregate_Type" abstract="true"/>

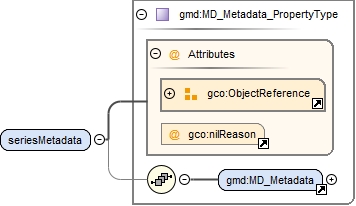

Element gmd:AbstractDS_Aggregate_Type / gmd:seriesMetadata
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataEntity_xsd.tmp#MD_MetadatametadataEntity_xsd.tmp#MD_Metadata_PropertyType
Type gmd:MD_Metadata_PropertyType
Properties
content complex
maxOccurs unbounded
Model
Children gmd:MD_Metadata
Instance

<gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_Metadata id="" uuid="">{1,1}</gmd:MD_Metadata>
</gmd:seriesMetadata>
Attributes
Source

<xs:element name="seriesMetadata" type="gmd:MD_Metadata_PropertyType" maxOccurs="unbounded"/>

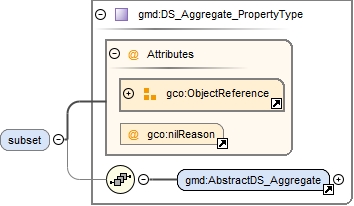

Element gmd:AbstractDS_Aggregate_Type / gmd:subset
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#AbstractDS_AggregatemetadataApplication_xsd.tmp#DS_Aggregate_PropertyType
Type gmd:DS_Aggregate_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:AbstractDS_Aggregate
Instance

<gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:AbstractDS_Aggregate id="" uuid="">{1,1}</gmd:AbstractDS_Aggregate>
</gmd:subset>
Attributes
Source

<xs:element name="subset" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

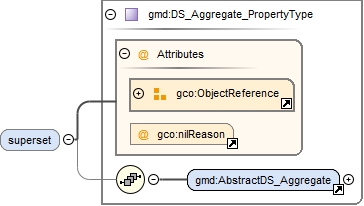

Element gmd:AbstractDS_Aggregate_Type / gmd:superset
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#AbstractDS_AggregatemetadataApplication_xsd.tmp#DS_Aggregate_PropertyType
Type gmd:DS_Aggregate_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:AbstractDS_Aggregate
Instance

<gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:AbstractDS_Aggregate id="" uuid="">{1,1}</gmd:AbstractDS_Aggregate>
</gmd:superset>
Attributes
Source

<xs:element name="superset" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

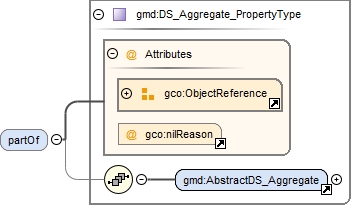

Element gmd:DS_DataSet_Type / gmd:partOf
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#AbstractDS_AggregatemetadataApplication_xsd.tmp#DS_Aggregate_PropertyType
Type gmd:DS_Aggregate_PropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gmd:AbstractDS_Aggregate
Instance

<gmd:partOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:AbstractDS_Aggregate id="" uuid="">{1,1}</gmd:AbstractDS_Aggregate>
</gmd:partOf>
Attributes
Source

<xs:element name="partOf" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

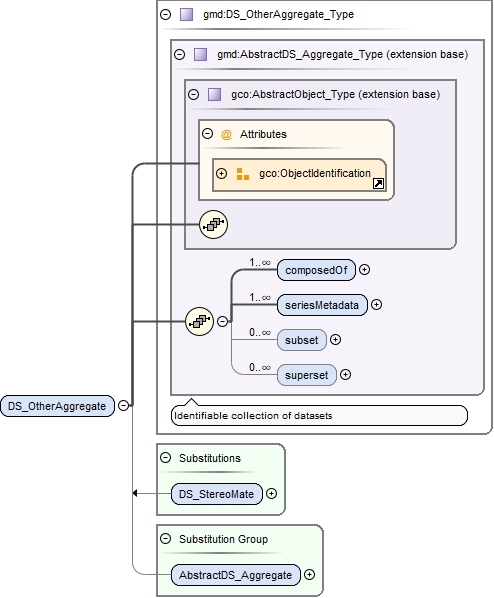

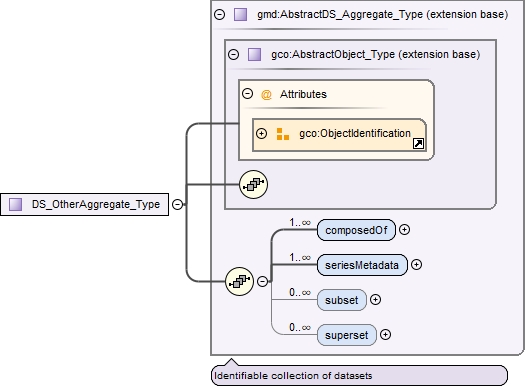

Element gmd:DS_OtherAggregate
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_OtherAggregate_TypemetadataApplication_xsd.tmp#DS_StereoMatemetadataApplication_xsd.tmp#AbstractDS_Aggregate
Type gmd:DS_OtherAggregate_Type
Type hierarchy
Properties
content complex
Substitution Group
Substitution Group Affiliation
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:DS_OtherAggregate id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:DS_OtherAggregate>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_OtherAggregate" type="gmd:DS_OtherAggregate_Type" substitutionGroup="gmd:AbstractDS_Aggregate"/>

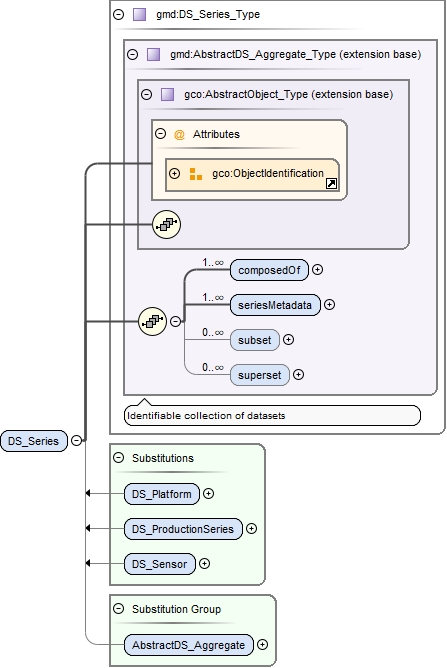

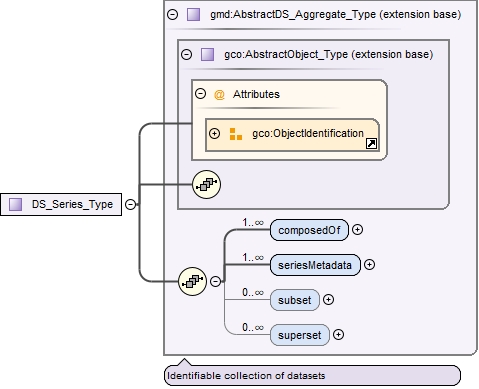

Element gmd:DS_Series
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Series_TypemetadataApplication_xsd.tmp#DS_PlatformmetadataApplication_xsd.tmp#DS_ProductionSeriesmetadataApplication_xsd.tmp#DS_SensormetadataApplication_xsd.tmp#AbstractDS_Aggregate
Type gmd:DS_Series_Type
Type hierarchy
Properties
content complex
Substitution Group
Substitution Group Affiliation
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:DS_Series id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:DS_Series>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_Series" type="gmd:DS_Series_Type" substitutionGroup="gmd:AbstractDS_Aggregate"/>

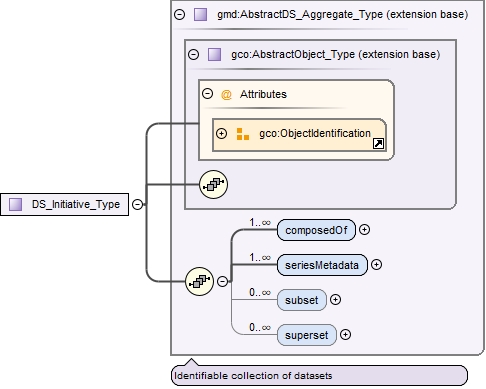

Element gmd:DS_Initiative
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Initiative_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate
Type gmd:DS_Initiative_Type
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:DS_Initiative id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:DS_Initiative>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_Initiative" type="gmd:DS_Initiative_Type" substitutionGroup="gmd:AbstractDS_Aggregate"/>

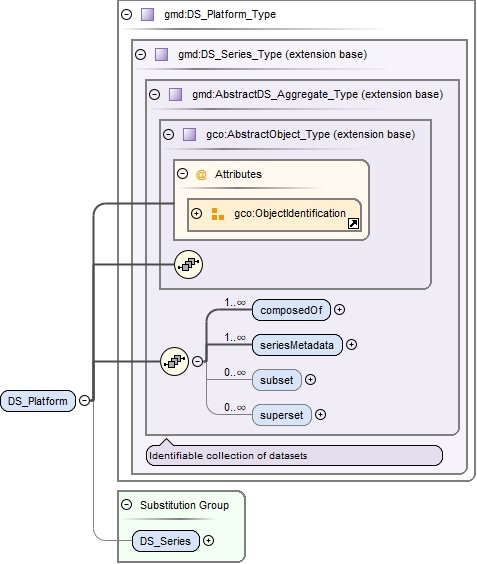

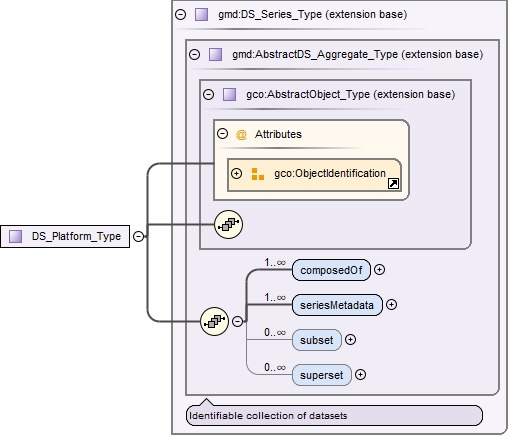

Element gmd:DS_Platform
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Series_TypemetadataApplication_xsd.tmp#DS_Platform_TypemetadataApplication_xsd.tmp#DS_Series
Type gmd:DS_Platform_Type
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:DS_Platform id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:DS_Platform>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_Platform" type="gmd:DS_Platform_Type" substitutionGroup="gmd:DS_Series"/>
Element gmd:DS_Sensor
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Series_TypemetadataApplication_xsd.tmp#DS_Sensor_TypemetadataApplication_xsd.tmp#DS_Series

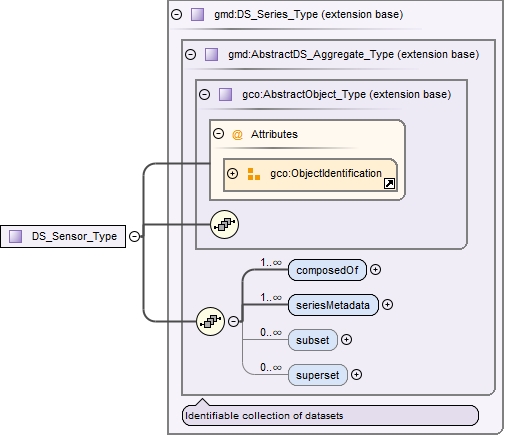

Type gmd:DS_Sensor_Type
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:DS_Sensor id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:DS_Sensor>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_Sensor" type="gmd:DS_Sensor_Type" substitutionGroup="gmd:DS_Series"/>

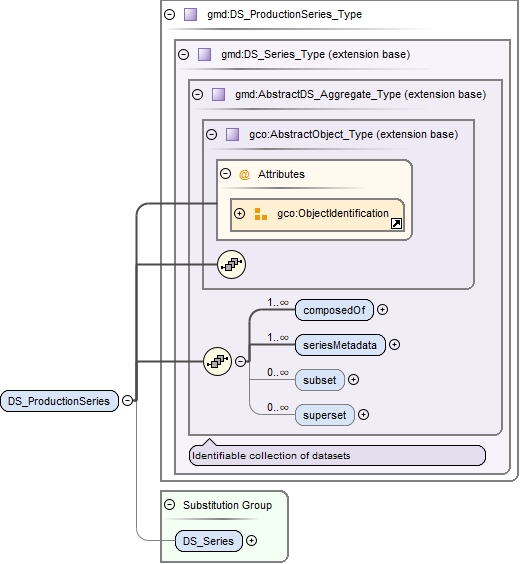

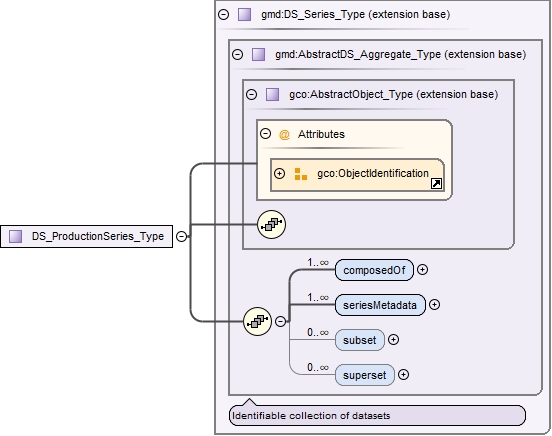

Element gmd:DS_ProductionSeries
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Series_TypemetadataApplication_xsd.tmp#DS_ProductionSeries_TypemetadataApplication_xsd.tmp#DS_Series
Type gmd:DS_ProductionSeries_Type
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:DS_ProductionSeries id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:DS_ProductionSeries>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_ProductionSeries" type="gmd:DS_ProductionSeries_Type" substitutionGroup="gmd:DS_Series"/>

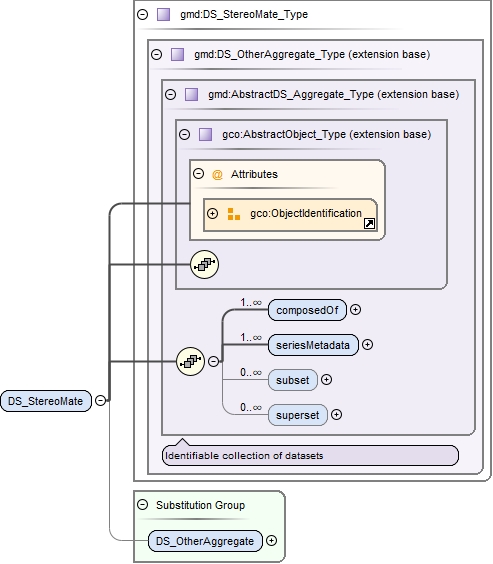

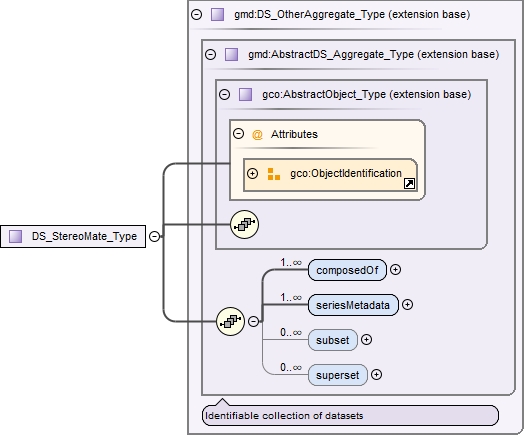

Element gmd:DS_StereoMate
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_OtherAggregate_TypemetadataApplication_xsd.tmp#DS_StereoMate_TypemetadataApplication_xsd.tmp#DS_OtherAggregate
Type gmd:DS_StereoMate_Type
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Instance

<gmd:DS_StereoMate id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:composedOf xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:composedOf>
  <gmd:seriesMetadata xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:seriesMetadata>
  <gmd:subset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:subset>
  <gmd:superset xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{0,unbounded}</gmd:superset>
</gmd:DS_StereoMate>
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:element name="DS_StereoMate" type="gmd:DS_StereoMate_Type" substitutionGroup="gmd:DS_OtherAggregate"/>
Complex Type gmd:AbstractDS_Aggregate_Type
Namespace http://www.isotc211.org/2005/gmd
Annotations

Identifiable collection of datasets
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_superset
Type extension of gco:AbstractObject_Type
Type hierarchy
Properties
abstract true
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="AbstractDS_Aggregate_Type" abstract="true">
  <xs:annotation>
    <xs:documentation>Identifiable collection of datasets</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="composedOf" type="gmd:DS_DataSet_PropertyType" maxOccurs="unbounded"/>
        <xs:element name="seriesMetadata" type="gmd:MD_Metadata_PropertyType" maxOccurs="unbounded"/>
        <xs:element name="subset" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="superset" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:DS_DataSet_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_DataSet
Used by
Model
Children gmd:DS_DataSet
Attributes
Source

<xs:complexType name="DS_DataSet_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_DataSet"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_DataSet_Type
Namespace http://www.isotc211.org/2005/gmd
Annotations

Identifiable collection of data
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#DS_DataSet_Type_hasmetadataApplication_xsd.tmp#DS_DataSet_Type_partOf
Type extension of gco:AbstractObject_Type
Type hierarchy
Used by
Element gmd:DS_DataSet
Model
Children gmd:has, gmd:partOf
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_DataSet_Type">
  <xs:annotation>
    <xs:documentation>Identifiable collection of data</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="has" type="gmd:MD_Metadata_PropertyType" maxOccurs="unbounded"/>
        <xs:element name="partOf" type="gmd:DS_Aggregate_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

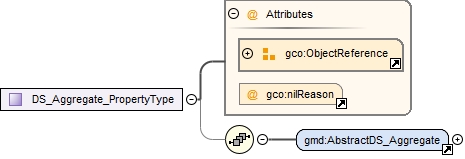

Complex Type gmd:DS_Aggregate_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#AbstractDS_Aggregate
Used by
Model
Children gmd:AbstractDS_Aggregate
Attributes
Source

<xs:complexType name="DS_Aggregate_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:AbstractDS_Aggregate"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_OtherAggregate_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type
Type extension of gmd:AbstractDS_Aggregate_Type
Type hierarchy
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_OtherAggregate_Type">
  <xs:complexContent>
    <xs:extension base="gmd:AbstractDS_Aggregate_Type"/>
  </xs:complexContent>
</xs:complexType>

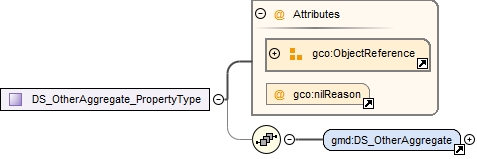

Complex Type gmd:DS_OtherAggregate_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_OtherAggregate
Model
Children gmd:DS_OtherAggregate
Attributes
Source

<xs:complexType name="DS_OtherAggregate_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_OtherAggregate"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_Series_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type
Type extension of gmd:AbstractDS_Aggregate_Type
Type hierarchy
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_Series_Type">
  <xs:complexContent>
    <xs:extension base="gmd:AbstractDS_Aggregate_Type"/>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:DS_Series_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_Series
Model
Children gmd:DS_Series
Attributes
Source

<xs:complexType name="DS_Series_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_Series"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_Initiative_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type
Type extension of gmd:AbstractDS_Aggregate_Type
Type hierarchy
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_Initiative_Type">
  <xs:complexContent>
    <xs:extension base="gmd:AbstractDS_Aggregate_Type"/>
  </xs:complexContent>
</xs:complexType>

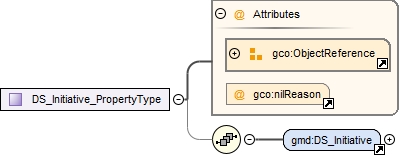

Complex Type gmd:DS_Initiative_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_Initiative
Model
Children gmd:DS_Initiative
Attributes
Source

<xs:complexType name="DS_Initiative_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_Initiative"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_Platform_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Series_Type
Type extension of gmd:DS_Series_Type
Type hierarchy
Used by
Element gmd:DS_Platform
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_Platform_Type">
  <xs:complexContent>
    <xs:extension base="gmd:DS_Series_Type"/>
  </xs:complexContent>
</xs:complexType>

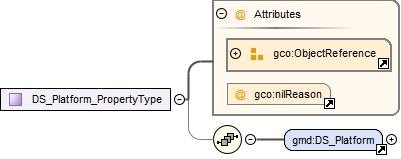

Complex Type gmd:DS_Platform_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_Platform
Model
Children gmd:DS_Platform
Attributes
Source

<xs:complexType name="DS_Platform_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_Platform"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_Sensor_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Series_Type
Type extension of gmd:DS_Series_Type
Type hierarchy
Used by
Element gmd:DS_Sensor
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_Sensor_Type">
  <xs:complexContent>
    <xs:extension base="gmd:DS_Series_Type"/>
  </xs:complexContent>
</xs:complexType>

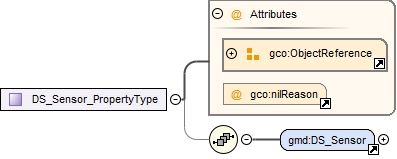

Complex Type gmd:DS_Sensor_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_Sensor
Model
Children gmd:DS_Sensor
Attributes
Source

<xs:complexType name="DS_Sensor_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_Sensor"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_ProductionSeries_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_Series_Type
Type extension of gmd:DS_Series_Type
Type hierarchy
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_ProductionSeries_Type">
  <xs:complexContent>
    <xs:extension base="gmd:DS_Series_Type"/>
  </xs:complexContent>
</xs:complexType>

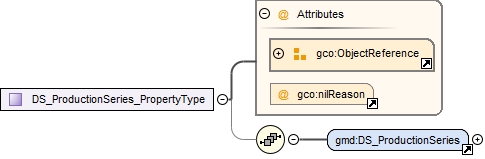

Complex Type gmd:DS_ProductionSeries_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_ProductionSeries
Model
Children gmd:DS_ProductionSeries
Attributes
Source

<xs:complexType name="DS_ProductionSeries_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_ProductionSeries"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:DS_StereoMate_Type
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypemetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_composedOfmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_seriesMetadatametadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_subsetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_Type_supersetmetadataApplication_xsd.tmp#AbstractDS_Aggregate_TypemetadataApplication_xsd.tmp#DS_OtherAggregate_Type
Type extension of gmd:DS_OtherAggregate_Type
Type hierarchy
Used by
Model
Children gmd:composedOf, gmd:seriesMetadata, gmd:subset, gmd:superset
Attributes
QName Type Use
id xs:ID optional
uuid xs:string optional
Source

<xs:complexType name="DS_StereoMate_Type">
  <xs:complexContent>
    <xs:extension base="gmd:DS_OtherAggregate_Type"/>
  </xs:complexContent>
</xs:complexType>

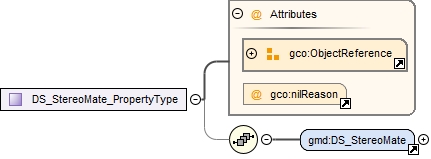

Complex Type gmd:DS_StereoMate_PropertyType
Namespace http://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonmetadataApplication_xsd.tmp#DS_StereoMate
Model
Children gmd:DS_StereoMate
Attributes
Source

<xs:complexType name="DS_StereoMate_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:DS_StereoMate"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
XML Schema documentation generated by ® XML Developer Trial Edition.
