Schema documentation for temporalObjects.xsd

Showing:

Annotations

Attributes

Diagrams

Model

Properties

Source

Used by

Included schema temporalObjects.xsd

Namespace

http://www.isotc211.org/2005/gts

Annotations

Geographic Temporal Schema (GTS) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GTS includes all the definitions of http://www.isotc211.org/2005/gts namespace. The root document of this namespace is the file gts.xsd. The temporalObjects.xsd schema contains the XML implementation of TM_Object, TM_Primitive and TM_PeriodDuration from ISO 19108. The encoding of these classes is mapped to ISO 19136 temporal types and W3C built-in types.

Properties

attribute form default	unqualified
element form default	qualified
version	2012-07-13

Element gts:TM_PeriodDuration

Namespace

http://www.isotc211.org/2005/gts

Diagram

Type

xs:duration

Properties

content

simple

Used by

Complex Type

gts:TM_PeriodDuration_PropertyType

Source

<xs:element name="TM_PeriodDuration" type="xs:duration"/>

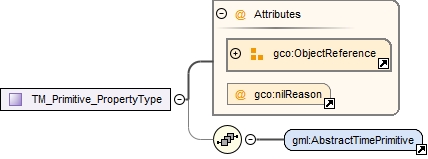

Complex Type gts:TM_Primitive_PropertyType

Namespace

http://www.isotc211.org/2005/gts

Diagram

Used by

Element

gmd:EX_TemporalExtent_Type/gmd:extent

Model

AbstractTimePrimitive

Children

AbstractTimePrimitive

Attributes

QName	Type	Fixed	Use
gco:nilReason	gml:NilReasonType		optional
uuidref	xs:string		optional
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:href	xlink:hrefType		optional
xlink:role	xlink:roleType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	simple	optional

Source

<xs:complexType name="TM_Primitive_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gml:AbstractTimePrimitive"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>

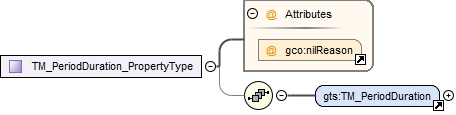

Complex Type gts:TM_PeriodDuration_PropertyType

Namespace

http://www.isotc211.org/2005/gts

Diagram

Used by

Element

gmd:MD_MaintenanceInformation_Type/gmd:userDefinedMaintenanceFrequency

Model

gts:TM_PeriodDuration

Children

gts:TM_PeriodDuration

Attributes

QName	Type	Use
gco:nilReason	gml:NilReasonType	optional

Source

<xs:complexType name="TM_PeriodDuration_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gts:TM_PeriodDuration"/>
  </xs:sequence>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
