group particle

diagram
namespace	http://www.w3.org/2001/XMLSchema
children	xs:element xs:group xs:all xs:choice xs:sequence xs:any
used by	complexType  group
source	<xs:group name="particle">   <xs:choice>     <xs:element name="element" type="xs:localElement"/>     <xs:element name="group" type="xs:groupRef"/>     <xs:element ref="xs:all"/>     <xs:element ref="xs:choice"/>     <xs:element ref="xs:sequence"/>     <xs:element ref="xs:any"/>   </xs:choice> </xs:group>

element particle/element

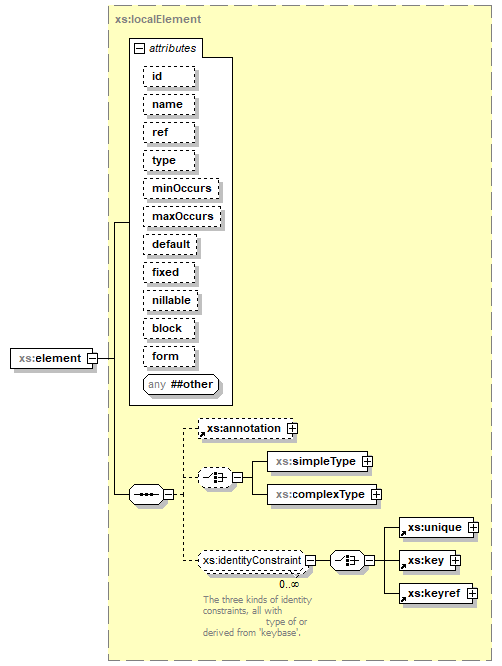

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localElement
properties	isRef  0 content  complex
children	xs:annotation xs:simpleType xs:complexType xs:unique xs:key xs:keyref
used by	group  schemaTop
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName          ref xs:QName          type xs:QName          minOccurs xs:nonNegativeInteger optional   1      maxOccurs xs:allNNI optional   1      default xs:string          fixed xs:string          nillable xs:boolean optional   false      block xs:blockSet          form xs:formChoice
source	<xs:element name="element" type="xs:localElement"/>

element particle/group

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:groupRef
properties	isRef  0 content  complex
children	xs:annotation
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          minOccurs xs:nonNegativeInteger optional   1      maxOccurs xs:allNNI optional   1      ref xs:QName required
source	<xs:element name="group" type="xs:groupRef"/>
