element union

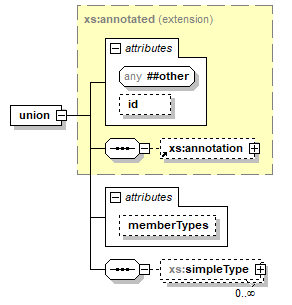

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	extension of xs:annotated
properties	content  complex id  union
children	xs:annotation xs:simpleType
used by	group  simpleDerivation
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          memberTypes derived by: xs:list optional
source	<xs:element name="union" id="union">   <xs:complexType>     <xs:annotation>       <xs:documentation source="http://www.w3.org/TR/xmlschema-2/#element-union">           memberTypes attribute must be non-empty or there must be           at least one simpleType child         </xs:documentation>     </xs:annotation>     <xs:complexContent>       <xs:extension base="xs:annotated">         <xs:sequence>           <xs:element name="simpleType" type="xs:localSimpleType" minOccurs="0" maxOccurs="unbounded"/>         </xs:sequence>         <xs:attribute name="memberTypes" use="optional">           <xs:simpleType>             <xs:list itemType="xs:QName"/>           </xs:simpleType>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute union/@memberTypes

type	list of xs:QName
properties	isRef  0 use  optional
source	<xs:attribute name="memberTypes" use="optional">   <xs:simpleType>     <xs:list itemType="xs:QName"/>   </xs:simpleType> </xs:attribute>

element union/simpleType

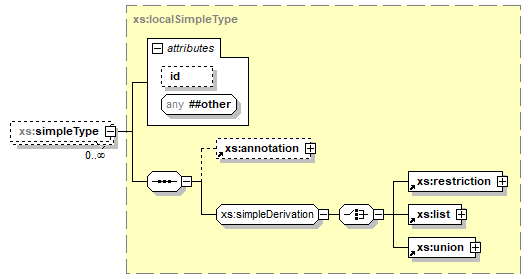

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localSimpleType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	xs:annotation xs:restriction xs:list xs:union
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID
source	<xs:element name="simpleType" type="xs:localSimpleType" minOccurs="0" maxOccurs="unbounded"/>
