Included schema geometryAggregates.xsd
Namespace http://www.opengis.net/gml
Annotations

GML is an OGC Standard.
Copyright (c) 2001,2005,2010 Open Geospatial Consortium.
To obtain additional rights of use, visit http://www.opengeospatial.org/legal/ .
Properties
attribute form default unqualified
element form default qualified
version 3.1.1.2

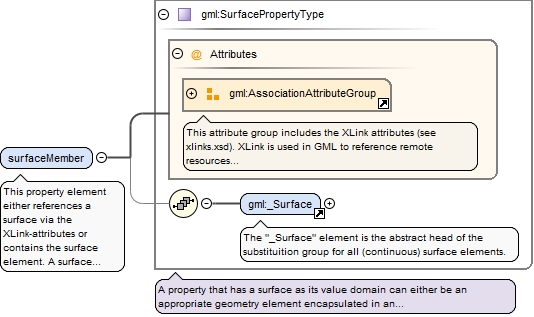

Element gml:surfaceMember
Namespace http://www.opengis.net/gml
Annotations

This property element either references a surface via the XLink-attributes or contains the surface element. A surface element is any element which is substitutable for "_Surface".
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryBasic2d_xsd.tmp#_SurfacegeometryBasic2d_xsd.tmp#SurfacePropertyType
Type gml:SurfacePropertyType
Properties
content complex
Used by
Model
Children gml:_Surface
Instance

<gml:surfaceMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:_Surface axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:_Surface>
</gml:surfaceMember>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="surfaceMember" type="gml:SurfacePropertyType">
  <annotation>
    <documentation>This property element either references a surface via the XLink-attributes or contains the surface element. A surface element is any element which is substitutable for "_Surface".</documentation>
  </annotation>
</element>
Element gml:solidMember
Namespace http://www.opengis.net/gml
Annotations

This property element either references a solid via the XLink-attributes or contains the solid element. A solid element is any element which is substitutable for "_Solid".

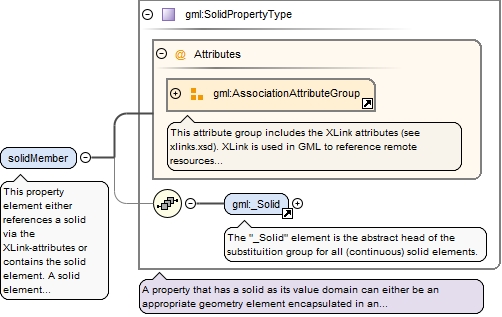

Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryPrimitives_xsd.tmp#_SolidgeometryPrimitives_xsd.tmp#SolidPropertyType
Type gml:SolidPropertyType
Properties
content complex
Used by
Model
Children gml:_Solid
Instance

<gml:solidMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:_Solid axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:_Solid>
</gml:solidMember>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="solidMember" type="gml:SolidPropertyType">
  <annotation>
    <documentation>This property element either references a solid via the XLink-attributes or contains the solid element. A solid element is any element which is substitutable for "_Solid".</documentation>
  </annotation>
</element>

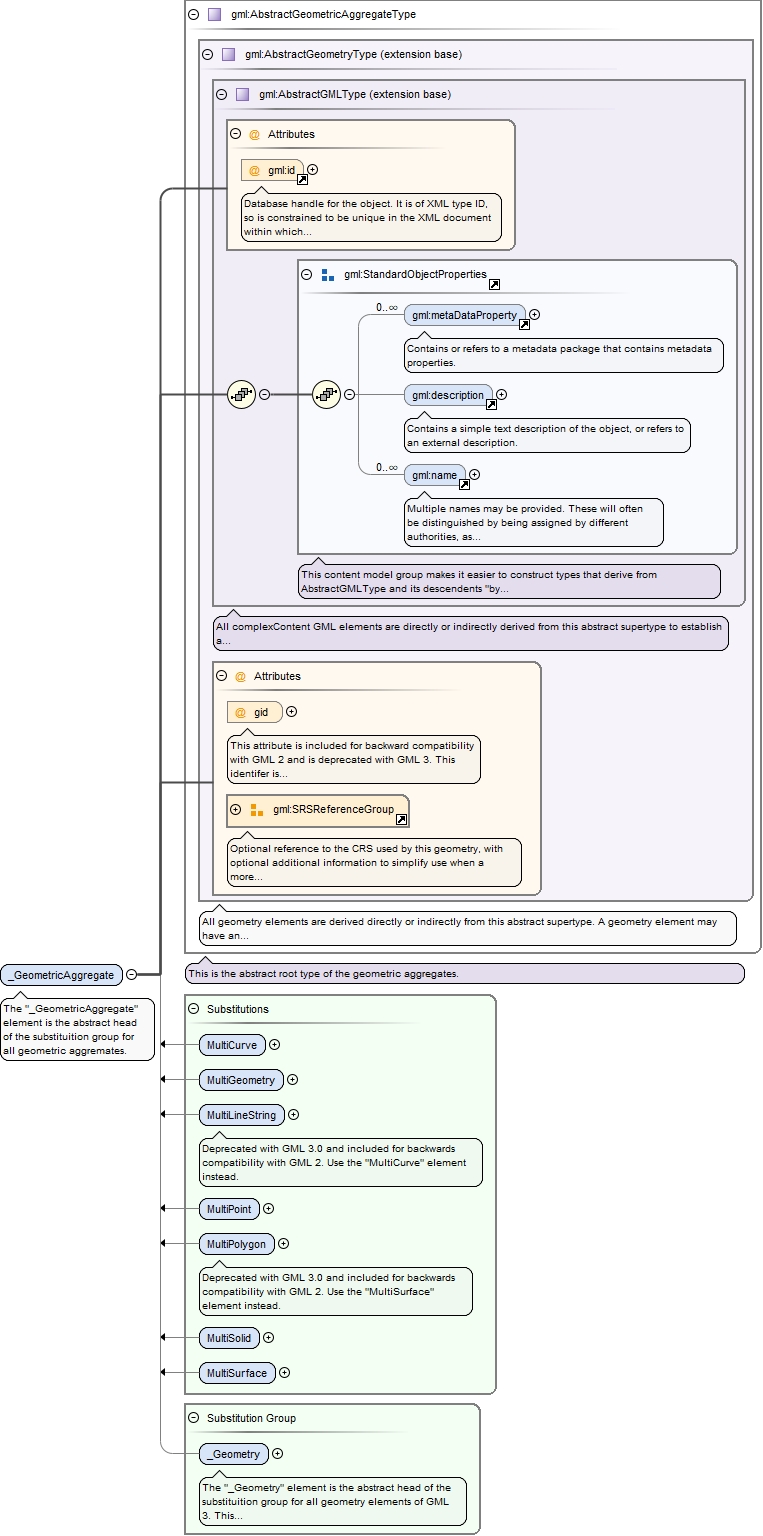

Element gml:_GeometricAggregate
Namespace http://www.opengis.net/gml
Annotations

The "_GeometricAggregate" element is the abstract head of the substituition group for all geometric aggremates.
Diagram

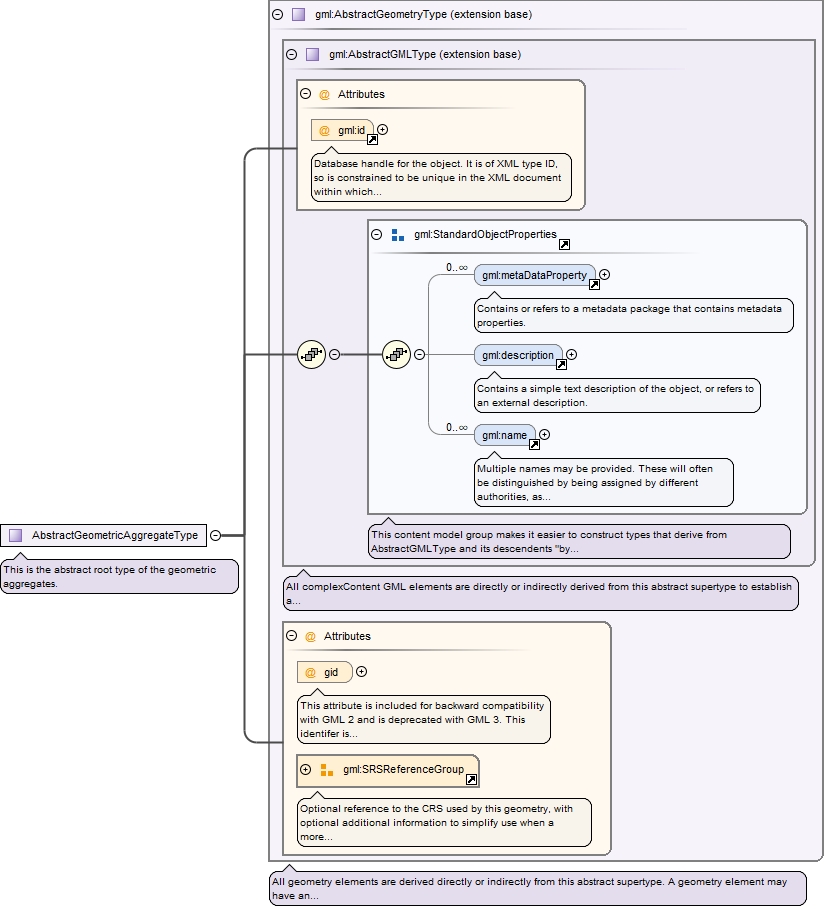

DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#MultiCurvegeometryAggregates_xsd.tmp#MultiGeometrygeometryAggregates_xsd.tmp#MultiLineStringgeometryAggregates_xsd.tmp#MultiPointgeometryAggregates_xsd.tmp#MultiPolygongeometryAggregates_xsd.tmp#MultiSolidgeometryAggregates_xsd.tmp#MultiSurfacegeometryBasic0d1d_xsd.tmp#_Geometry
Type gml:AbstractGeometricAggregateType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Complex Type gml:MultiGeometryPropertyType
Model
gml:metaDataProperty* , gml:description{0,1} , gml:name*
Children gml:description, gml:metaDataProperty, gml:name
Instance

<gml:_GeometricAggregate axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:_GeometricAggregate>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="_GeometricAggregate" type="gml:AbstractGeometricAggregateType" abstract="true" substitutionGroup="gml:_Geometry">
  <annotation>
    <documentation>The "_GeometricAggregate" element is the abstract head of the substituition group for all geometric aggremates.</documentation>
  </annotation>
</element>
Element gml:MultiGeometry
Namespace http://www.opengis.net/gml

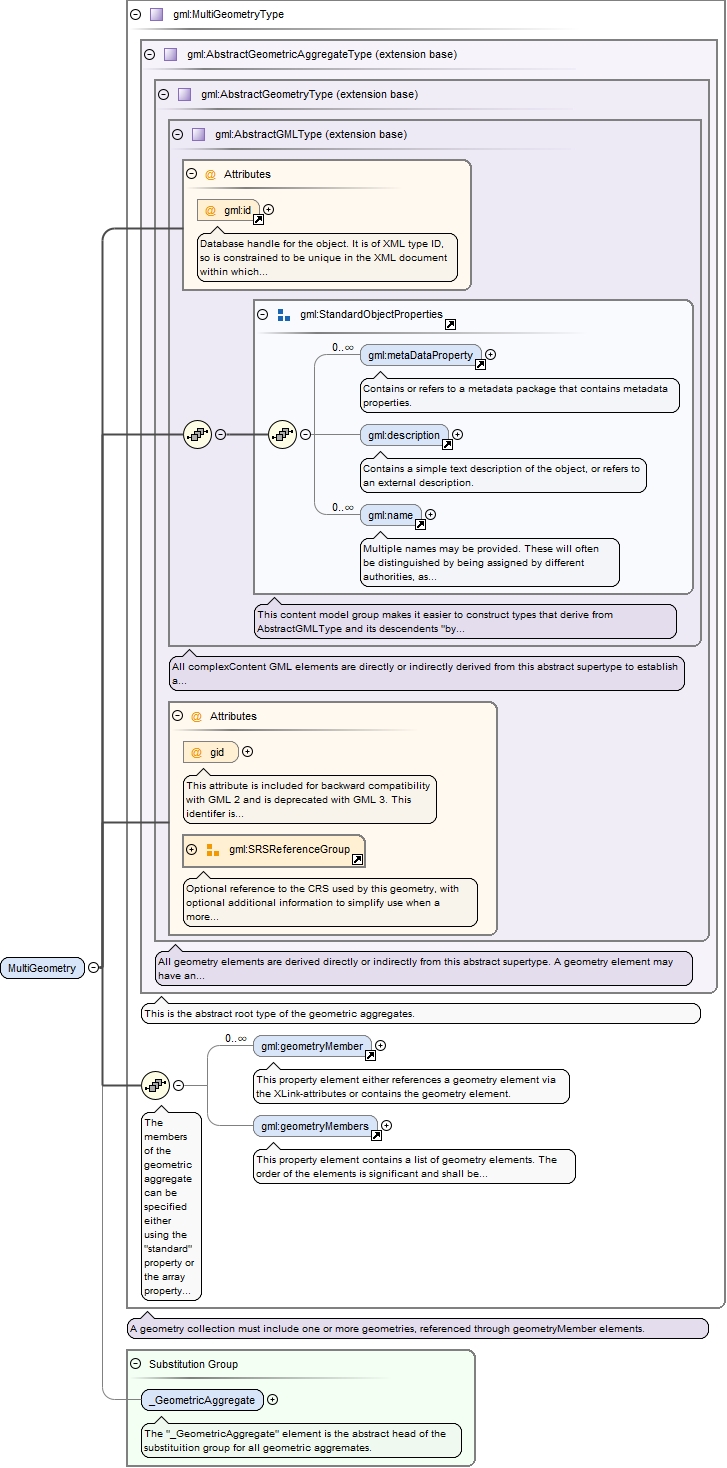

Diagram

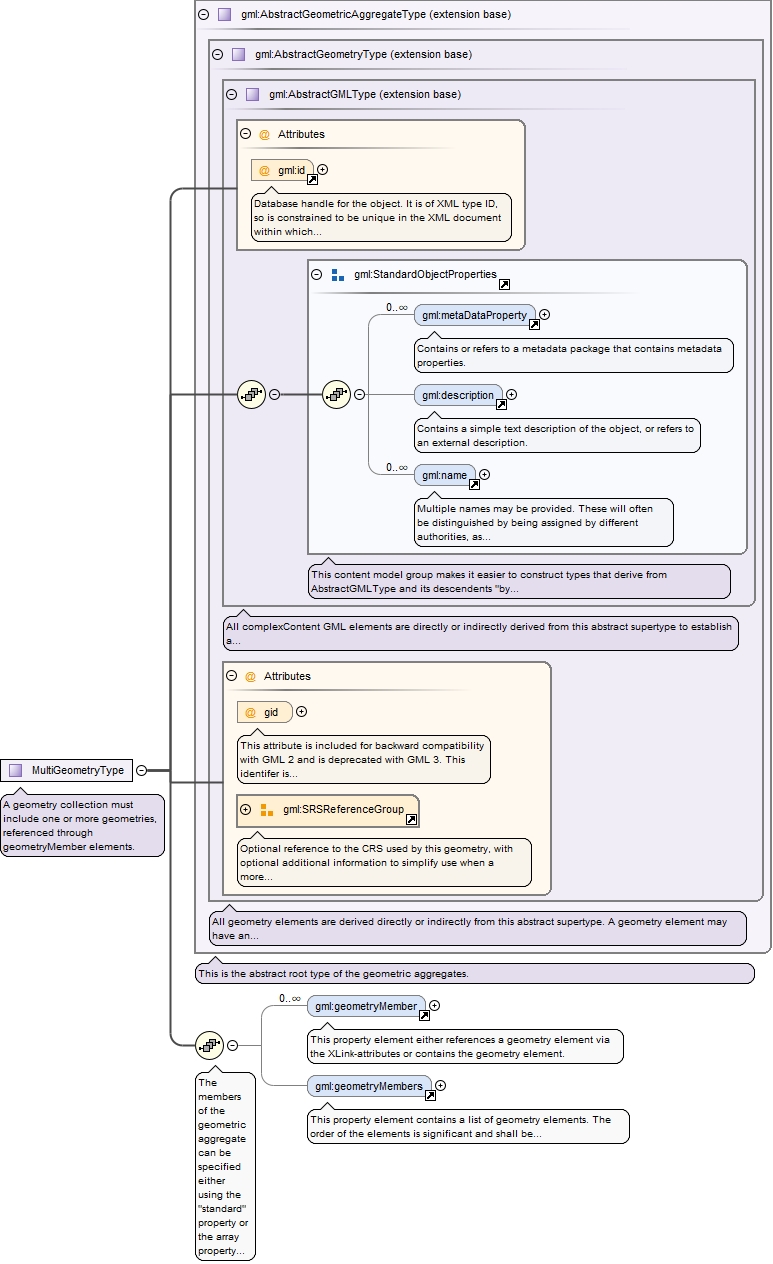

DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#geometryMembergeometryAggregates_xsd.tmp#geometryMembersgeometryAggregates_xsd.tmp#MultiGeometryTypegeometryAggregates_xsd.tmp#_GeometricAggregate
Type gml:MultiGeometryType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children gml:description, gml:geometryMember, gml:geometryMembers, gml:metaDataProperty, gml:name
Instance

<gml:MultiGeometry axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:geometryMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:geometryMember>
  <gml:geometryMembers>{0,1}</gml:geometryMembers>
</gml:MultiGeometry>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="MultiGeometry" type="gml:MultiGeometryType" substitutionGroup="gml:_GeometricAggregate"/>
Element gml:geometryMember
Namespace http://www.opengis.net/gml
Annotations

This property element either references a geometry element via the XLink-attributes or contains the geometry element.

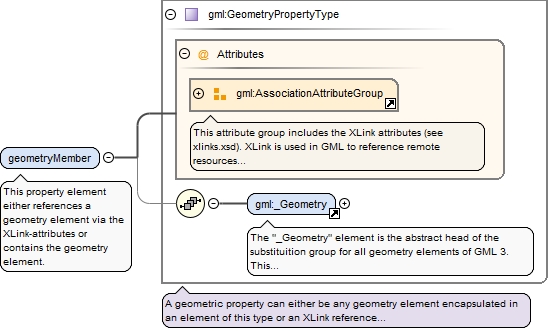

Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryBasic0d1d_xsd.tmp#_GeometrygeometryBasic0d1d_xsd.tmp#GeometryPropertyType
Type gml:GeometryPropertyType
Properties
content complex
Used by
Complex Type gml:MultiGeometryType
Model
Children gml:_Geometry
Instance

<gml:geometryMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:_Geometry axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:_Geometry>
</gml:geometryMember>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="geometryMember" type="gml:GeometryPropertyType">
  <annotation>
    <documentation>This property element either references a geometry element via the XLink-attributes or contains the geometry element.</documentation>
  </annotation>
</element>

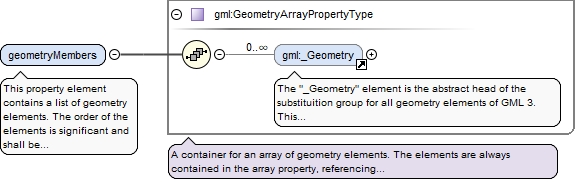

Element gml:geometryMembers
Namespace http://www.opengis.net/gml
Annotations

This property element contains a list of geometry elements. The order of the elements is significant and shall be preserved when processing the array.
Diagram
DiagramgeometryBasic0d1d_xsd.tmp#_GeometrygeometryBasic0d1d_xsd.tmp#GeometryArrayPropertyType
Type gml:GeometryArrayPropertyType
Properties
content complex
Used by
Complex Type gml:MultiGeometryType
Model
Children gml:_Geometry
Instance

<gml:geometryMembers xmlns:gml="http://www.opengis.net/gml">
  <gml:_Geometry axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{0,unbounded}</gml:_Geometry>
</gml:geometryMembers>
Source

<element name="geometryMembers" type="gml:GeometryArrayPropertyType">
  <annotation>
    <documentation>This property element contains a list of geometry elements. The order of the elements is significant and shall be preserved when processing the array.</documentation>
  </annotation>
</element>

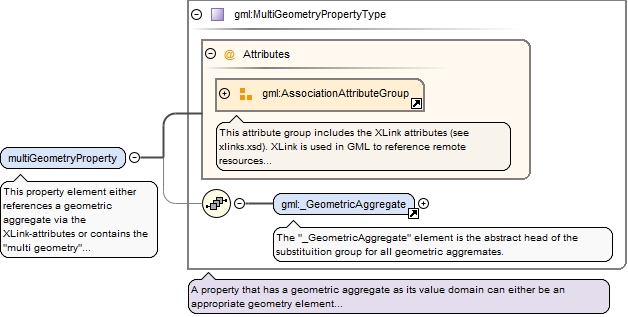

Element gml:multiGeometryProperty
Namespace http://www.opengis.net/gml
Annotations

This property element either references a geometric aggregate via the XLink-attributes or contains the "multi geometry" element. multiGeometryProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for _GeometricAggregate.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#_GeometricAggregategeometryAggregates_xsd.tmp#MultiGeometryPropertyType
Type gml:MultiGeometryPropertyType
Properties
content complex
Model
Children gml:_GeometricAggregate
Instance

<gml:multiGeometryProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:_GeometricAggregate axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:_GeometricAggregate>
</gml:multiGeometryProperty>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiGeometryProperty" type="gml:MultiGeometryPropertyType">
  <annotation>
    <appinfo>
      <sch:pattern name="Check either href or content not both">
        <sch:rule context="gml:multiGeometryProperty">
          <sch:extends rule="hrefOrContent"/>
        </sch:rule>
      </sch:pattern>
    </appinfo>
    <documentation>This property element either references a geometric aggregate via the XLink-attributes or contains the "multi geometry" element. multiGeometryProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for _GeometricAggregate.</documentation>
  </annotation>
</element>

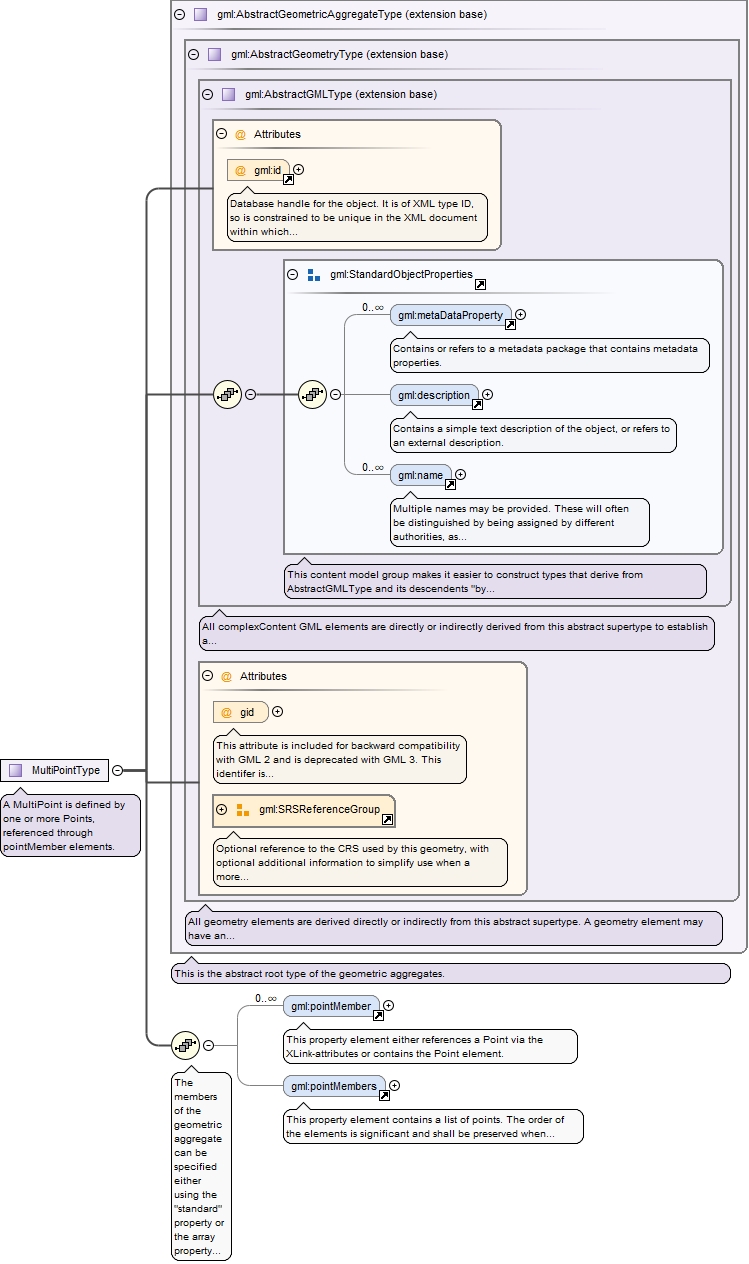

Element gml:MultiPoint
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#pointMembergeometryAggregates_xsd.tmp#pointMembersgeometryAggregates_xsd.tmp#MultiPointTypegeometryAggregates_xsd.tmp#_GeometricAggregate
Type gml:MultiPointType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:pointMember, gml:pointMembers
Instance

<gml:MultiPoint axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:pointMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:pointMember>
  <gml:pointMembers>{0,1}</gml:pointMembers>
</gml:MultiPoint>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="MultiPoint" type="gml:MultiPointType" substitutionGroup="gml:_GeometricAggregate"/>
Element gml:pointMember
Namespace http://www.opengis.net/gml
Annotations

This property element either references a Point via the XLink-attributes or contains the Point element.

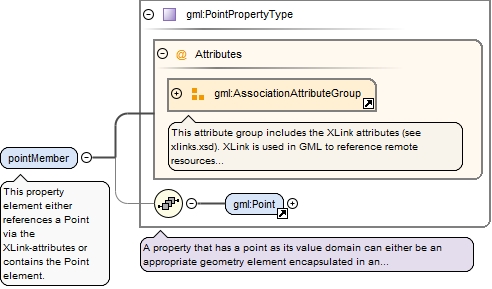

Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryBasic0d1d_xsd.tmp#PointgeometryBasic0d1d_xsd.tmp#PointPropertyType
Type gml:PointPropertyType
Properties
content complex
Used by
Complex Type gml:MultiPointType
Model
Children gml:Point
Instance

<gml:pointMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:Point axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Point>
</gml:pointMember>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="pointMember" type="gml:PointPropertyType">
  <annotation>
    <documentation>This property element either references a Point via the XLink-attributes or contains the Point element.</documentation>
  </annotation>
</element>

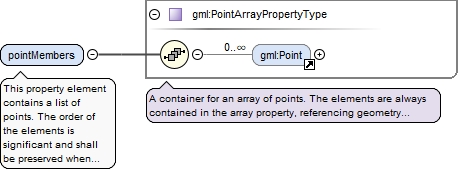

Element gml:pointMembers
Namespace http://www.opengis.net/gml
Annotations

This property element contains a list of points. The order of the elements is significant and shall be preserved when processing the array.
Diagram
DiagramgeometryBasic0d1d_xsd.tmp#PointgeometryBasic0d1d_xsd.tmp#PointArrayPropertyType
Type gml:PointArrayPropertyType
Properties
content complex
Used by
Complex Type gml:MultiPointType
Model
Children gml:Point
Instance

<gml:pointMembers xmlns:gml="http://www.opengis.net/gml">
  <gml:Point axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{0,unbounded}</gml:Point>
</gml:pointMembers>
Source

<element name="pointMembers" type="gml:PointArrayPropertyType">
  <annotation>
    <documentation>This property element contains a list of points. The order of the elements is significant and shall be preserved when processing the array.</documentation>
  </annotation>
</element>

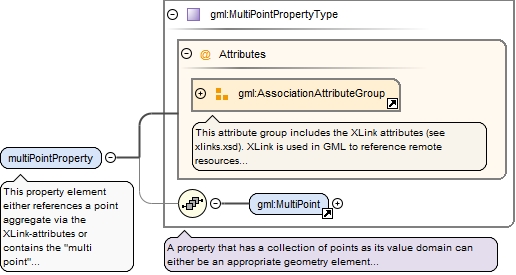

Element gml:multiPointProperty
Namespace http://www.opengis.net/gml
Annotations

This property element either references a point aggregate via the XLink-attributes or contains the "multi point" element. multiPointProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiPoint.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiPointgeometryAggregates_xsd.tmp#MultiPointPropertyType
Type gml:MultiPointPropertyType
Properties
content complex
Model
Children gml:MultiPoint
Instance

<gml:multiPointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiPoint axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiPoint>
</gml:multiPointProperty>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiPointProperty" type="gml:MultiPointPropertyType">
  <annotation>
    <appinfo>
      <sch:pattern name="Check either href or content not both">
        <sch:rule context="gml:multiPointProperty">
          <sch:extends rule="hrefOrContent"/>
        </sch:rule>
      </sch:pattern>
    </appinfo>
    <documentation>This property element either references a point aggregate via the XLink-attributes or contains the "multi point" element. multiPointProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiPoint.</documentation>
  </annotation>
</element>

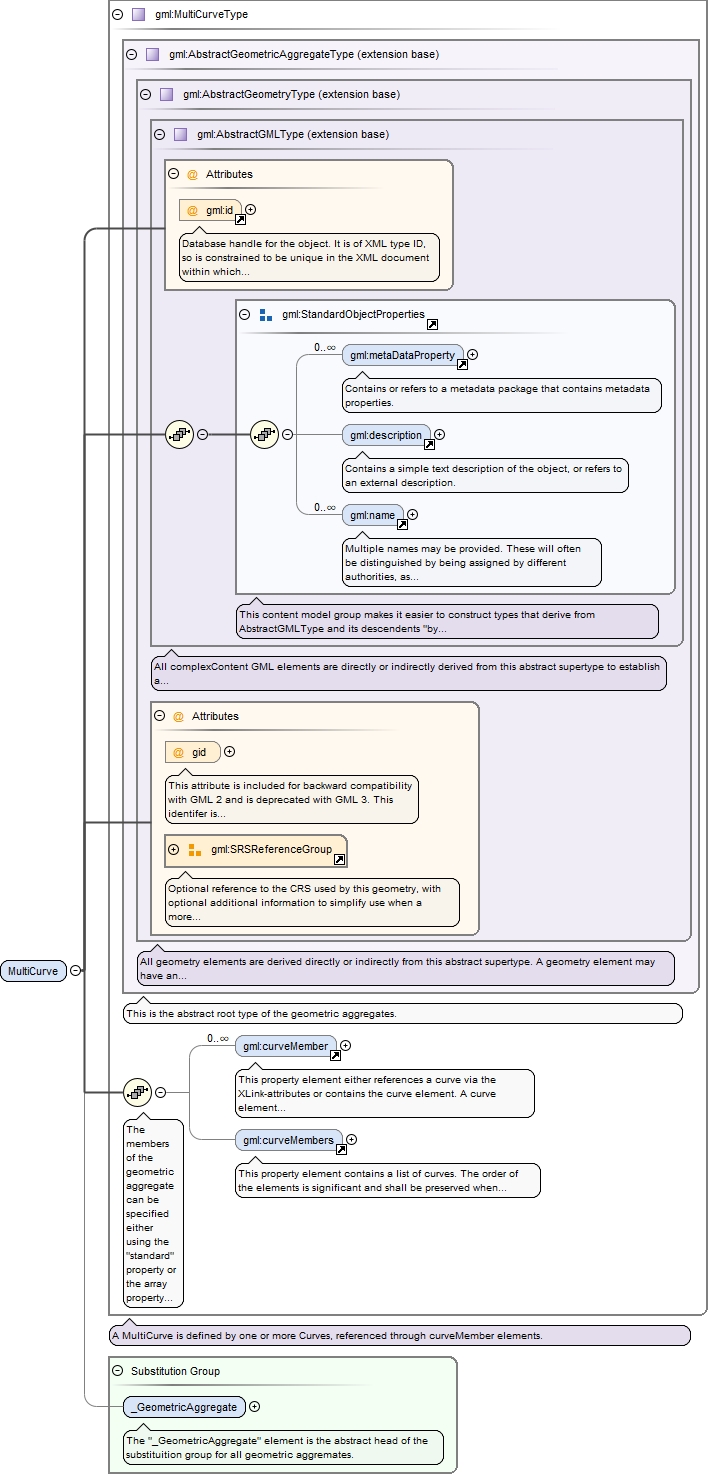

Element gml:MultiCurve
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryPrimitives_xsd.tmp#curveMembergeometryAggregates_xsd.tmp#curveMembersgeometryAggregates_xsd.tmp#MultiCurveTypegeometryAggregates_xsd.tmp#_GeometricAggregate
Type gml:MultiCurveType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:curveMember, gml:curveMembers, gml:description, gml:metaDataProperty, gml:name
Instance

<gml:MultiCurve axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:curveMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:curveMember>
  <gml:curveMembers>{0,1}</gml:curveMembers>
</gml:MultiCurve>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="MultiCurve" type="gml:MultiCurveType" substitutionGroup="gml:_GeometricAggregate"/>

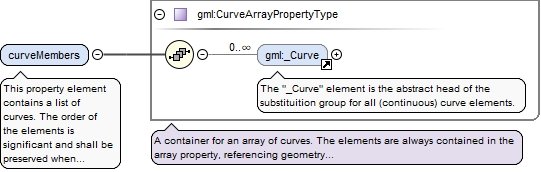

Element gml:curveMembers
Namespace http://www.opengis.net/gml
Annotations

This property element contains a list of curves. The order of the elements is significant and shall be preserved when processing the array.
Diagram
DiagramgeometryBasic0d1d_xsd.tmp#_CurvegeometryBasic0d1d_xsd.tmp#CurveArrayPropertyType
Type gml:CurveArrayPropertyType
Properties
content complex
Used by
Complex Type gml:MultiCurveType
Model
Children gml:_Curve
Instance

<gml:curveMembers xmlns:gml="http://www.opengis.net/gml">
  <gml:_Curve axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{0,unbounded}</gml:_Curve>
</gml:curveMembers>
Source

<element name="curveMembers" type="gml:CurveArrayPropertyType">
  <annotation>
    <documentation>This property element contains a list of curves. The order of the elements is significant and shall be preserved when processing the array.</documentation>
  </annotation>
</element>

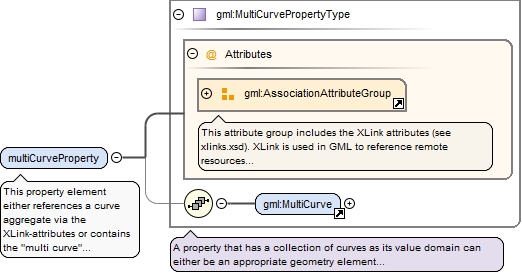

Element gml:multiCurveProperty
Namespace http://www.opengis.net/gml
Annotations

This property element either references a curve aggregate via the XLink-attributes or contains the "multi curve" element. multiCurveProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiCurve.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiCurvegeometryAggregates_xsd.tmp#MultiCurvePropertyType
Type gml:MultiCurvePropertyType
Properties
content complex
Model
Children gml:MultiCurve
Instance

<gml:multiCurveProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiCurve axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiCurve>
</gml:multiCurveProperty>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiCurveProperty" type="gml:MultiCurvePropertyType">
  <annotation>
    <appinfo>
      <sch:pattern name="Check either href or content not both">
        <sch:rule context="gml:multiCurveProperty">
          <sch:extends rule="hrefOrContent"/>
        </sch:rule>
      </sch:pattern>
    </appinfo>
    <documentation>This property element either references a curve aggregate via the XLink-attributes or contains the "multi curve" element. multiCurveProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiCurve.</documentation>
  </annotation>
</element>

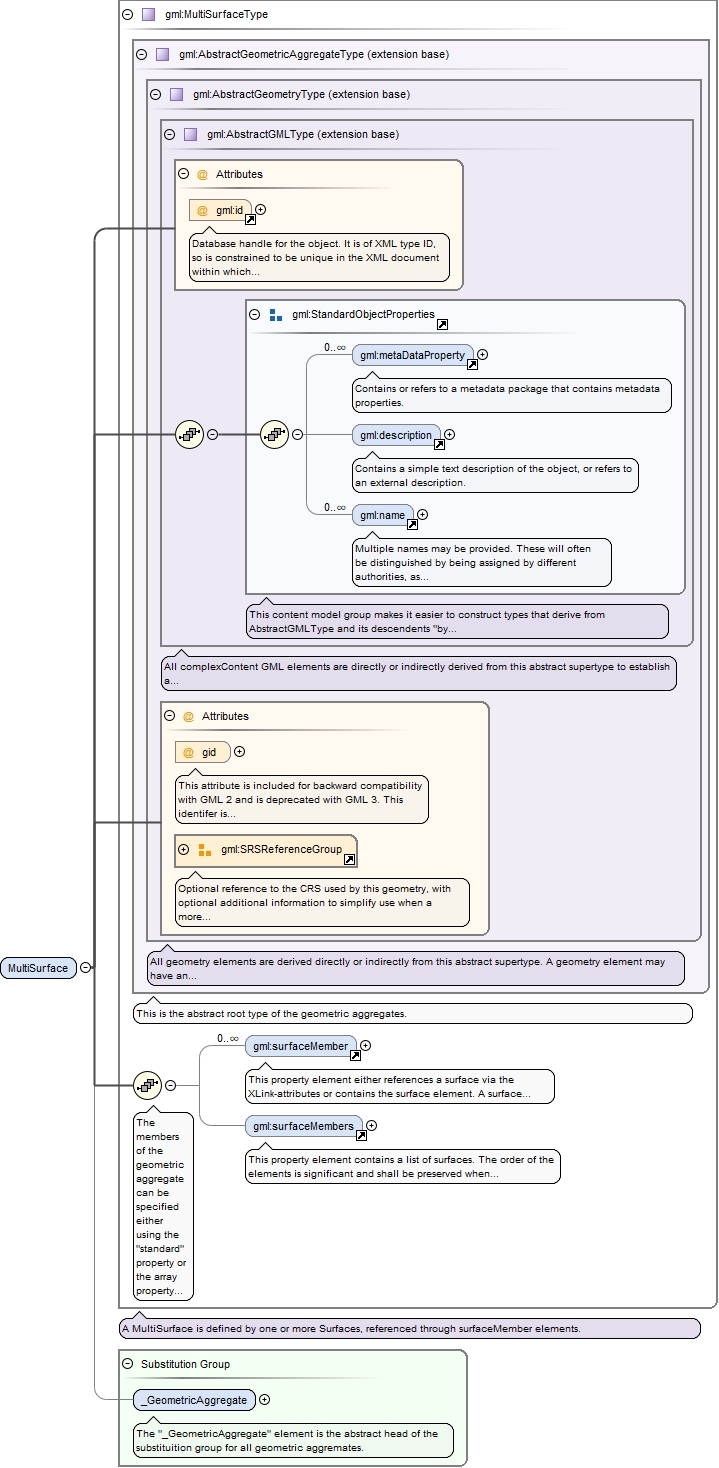

Element gml:MultiSurface
Namespace http://www.opengis.net/gml

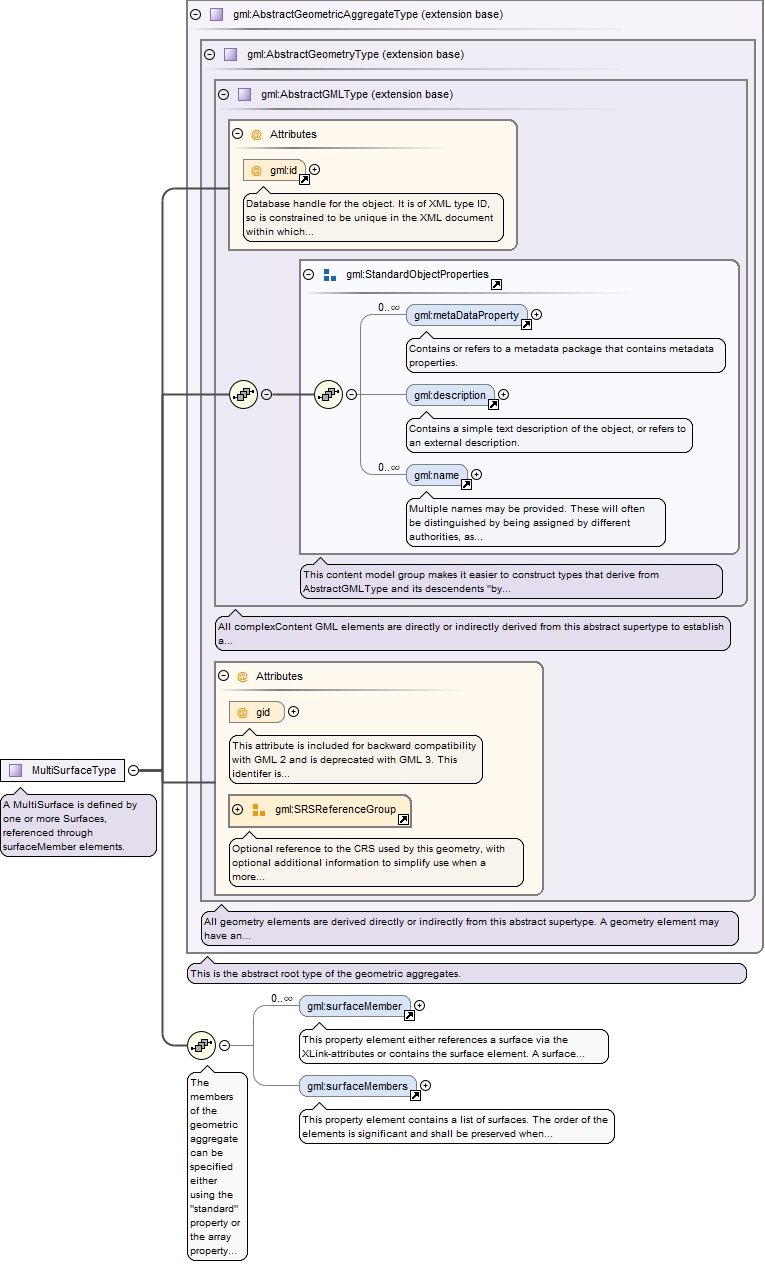

Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#surfaceMembergeometryAggregates_xsd.tmp#surfaceMembersgeometryAggregates_xsd.tmp#MultiSurfaceTypegeometryAggregates_xsd.tmp#_GeometricAggregate
Type gml:MultiSurfaceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:surfaceMember, gml:surfaceMembers
Instance

<gml:MultiSurface axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:surfaceMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:surfaceMember>
  <gml:surfaceMembers>{0,1}</gml:surfaceMembers>
</gml:MultiSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="MultiSurface" type="gml:MultiSurfaceType" substitutionGroup="gml:_GeometricAggregate"/>

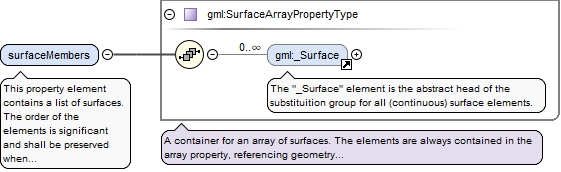

Element gml:surfaceMembers
Namespace http://www.opengis.net/gml
Annotations

This property element contains a list of surfaces. The order of the elements is significant and shall be preserved when processing the array.
Diagram
DiagramgeometryBasic2d_xsd.tmp#_SurfacegeometryBasic2d_xsd.tmp#SurfaceArrayPropertyType
Type gml:SurfaceArrayPropertyType
Properties
content complex
Used by
Complex Type gml:MultiSurfaceType
Model
Children gml:_Surface
Instance

<gml:surfaceMembers xmlns:gml="http://www.opengis.net/gml">
  <gml:_Surface axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{0,unbounded}</gml:_Surface>
</gml:surfaceMembers>
Source

<element name="surfaceMembers" type="gml:SurfaceArrayPropertyType">
  <annotation>
    <documentation>This property element contains a list of surfaces. The order of the elements is significant and shall be preserved when processing the array.</documentation>
  </annotation>
</element>

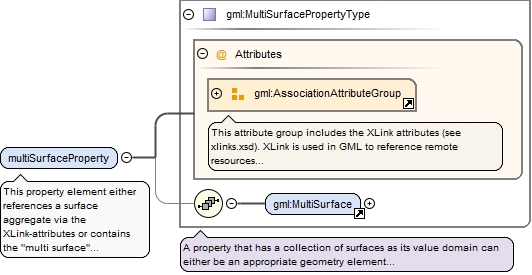

Element gml:multiSurfaceProperty
Namespace http://www.opengis.net/gml
Annotations

This property element either references a surface aggregate via the XLink-attributes or contains the "multi surface" element. multiSurfaceProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiSurface.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiSurfacegeometryAggregates_xsd.tmp#MultiSurfacePropertyType
Type gml:MultiSurfacePropertyType
Properties
content complex
Model
Children gml:MultiSurface
Instance

<gml:multiSurfaceProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiSurface axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiSurface>
</gml:multiSurfaceProperty>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiSurfaceProperty" type="gml:MultiSurfacePropertyType">
  <annotation>
    <appinfo>
      <sch:pattern name="Check either href or content not both">
        <sch:rule context="gml:multiSurfaceProperty">
          <sch:extends rule="hrefOrContent"/>
        </sch:rule>
      </sch:pattern>
    </appinfo>
    <documentation>This property element either references a surface aggregate via the XLink-attributes or contains the "multi surface" element. multiSurfaceProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiSurface.</documentation>
  </annotation>
</element>
Element gml:MultiSolid
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#solidMembergeometryAggregates_xsd.tmp#solidMembersgeometryAggregates_xsd.tmp#MultiSolidTypegeometryAggregates_xsd.tmp#_GeometricAggregate
Type gml:MultiSolidType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:solidMember, gml:solidMembers
Instance

<gml:MultiSolid axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:solidMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:solidMember>
  <gml:solidMembers>{0,1}</gml:solidMembers>
</gml:MultiSolid>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="MultiSolid" type="gml:MultiSolidType" substitutionGroup="gml:_GeometricAggregate"/>

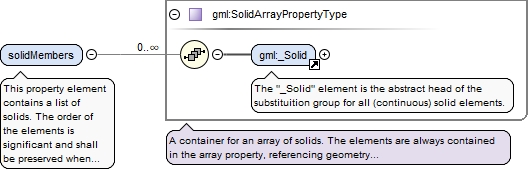

Element gml:solidMembers
Namespace http://www.opengis.net/gml
Annotations

This property element contains a list of solids. The order of the elements is significant and shall be preserved when processing the array.
Diagram
DiagramgeometryPrimitives_xsd.tmp#_SolidgeometryPrimitives_xsd.tmp#SolidArrayPropertyType
Type gml:SolidArrayPropertyType
Properties
content complex
Used by
Complex Type gml:MultiSolidType
Model
Children gml:_Solid
Instance

<gml:solidMembers xmlns:gml="http://www.opengis.net/gml">
  <gml:_Solid axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:_Solid>
</gml:solidMembers>
Source

<element name="solidMembers" type="gml:SolidArrayPropertyType">
  <annotation>
    <documentation>This property element contains a list of solids. The order of the elements is significant and shall be preserved when processing the array.</documentation>
  </annotation>
</element>
Element gml:multiSolidProperty
Namespace http://www.opengis.net/gml
Annotations

This property element either references a solid aggregate via the XLink-attributes or contains the "multi solid" element. multiSolidProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiSolid.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiSolidgeometryAggregates_xsd.tmp#MultiSolidPropertyType
Type gml:MultiSolidPropertyType
Properties
content complex
Model
Children gml:MultiSolid
Instance

<gml:multiSolidProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiSolid axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiSolid>
</gml:multiSolidProperty>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiSolidProperty" type="gml:MultiSolidPropertyType">
  <annotation>
    <appinfo>
      <sch:pattern name="Check either href or content not both">
        <sch:rule context="gml:multiSolidProperty">
          <sch:extends rule="hrefOrContent"/>
        </sch:rule>
      </sch:pattern>
    </appinfo>
    <documentation>This property element either references a solid aggregate via the XLink-attributes or contains the "multi solid" element. multiSolidProperty is the predefined property which can be used by GML Application Schemas whenever a GML Feature has a property with a value that is substitutable for MultiSolid.</documentation>
  </annotation>
</element>

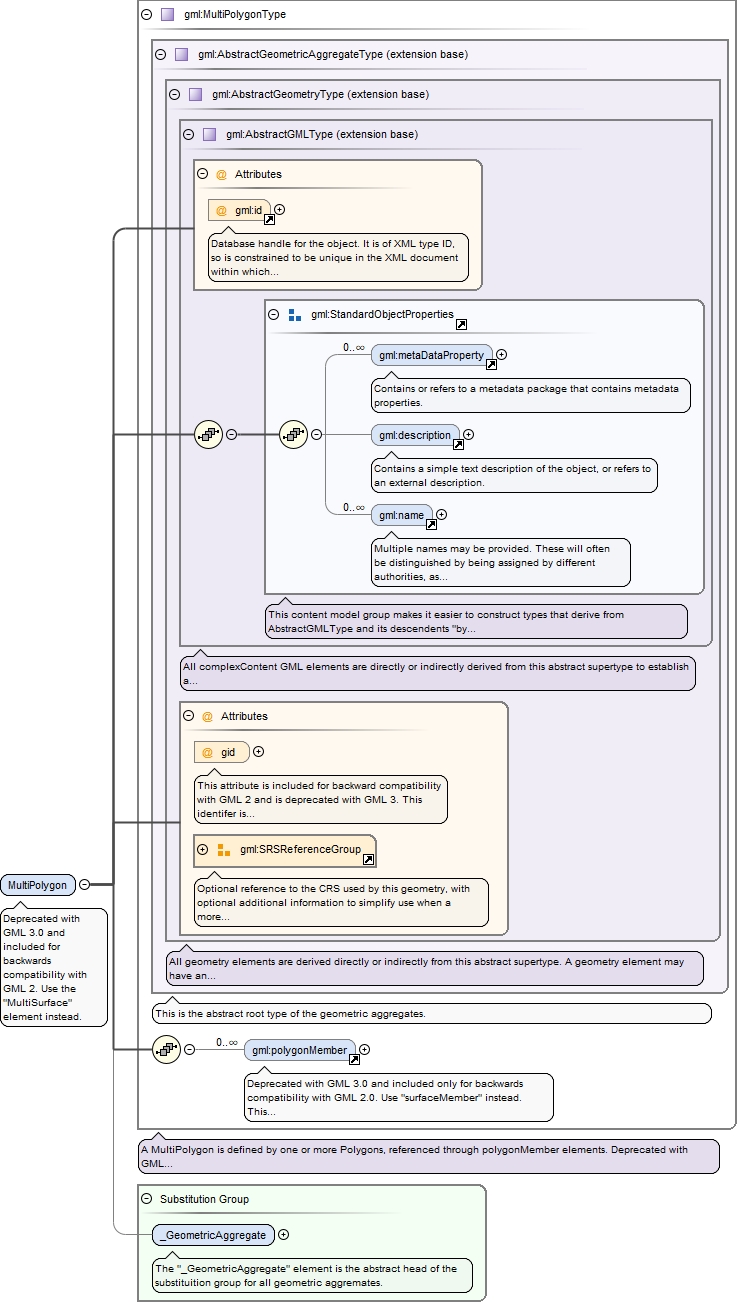

Element gml:MultiPolygon
Namespace http://www.opengis.net/gml
Annotations

Deprecated with GML 3.0 and included for backwards compatibility with GML 2. Use the "MultiSurface" element instead.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#polygonMembergeometryAggregates_xsd.tmp#MultiPolygonTypegeometryAggregates_xsd.tmp#_GeometricAggregate
Type gml:MultiPolygonType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:polygonMember
Instance

<gml:MultiPolygon axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:polygonMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:polygonMember>
</gml:MultiPolygon>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="MultiPolygon" type="gml:MultiPolygonType" substitutionGroup="gml:_GeometricAggregate">
  <annotation>
    <documentation>Deprecated with GML 3.0 and included for backwards compatibility with GML 2. Use the "MultiSurface" element instead.</documentation>
  </annotation>
</element>

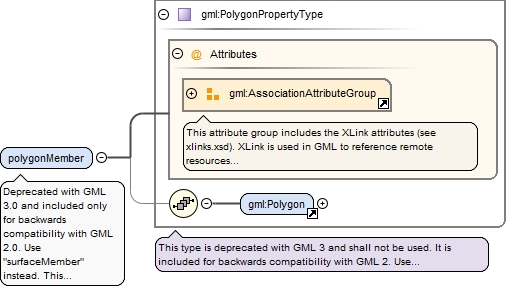

Element gml:polygonMember
Namespace http://www.opengis.net/gml
Annotations

Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "surfaceMember" instead.
This property element either references a polygon via the XLink-attributes or contains the polygon element.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryBasic2d_xsd.tmp#PolygongeometryBasic2d_xsd.tmp#PolygonPropertyType
Type gml:PolygonPropertyType
Properties
content complex
Used by
Complex Type gml:MultiPolygonType
Model
Children gml:Polygon
Instance

<gml:polygonMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:Polygon axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Polygon>
</gml:polygonMember>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="polygonMember" type="gml:PolygonPropertyType">
  <annotation>
    <appinfo>deprecated</appinfo>
    <documentation>Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "surfaceMember" instead. This property element either references a polygon via the XLink-attributes or contains the polygon element.</documentation>
  </annotation>
</element>

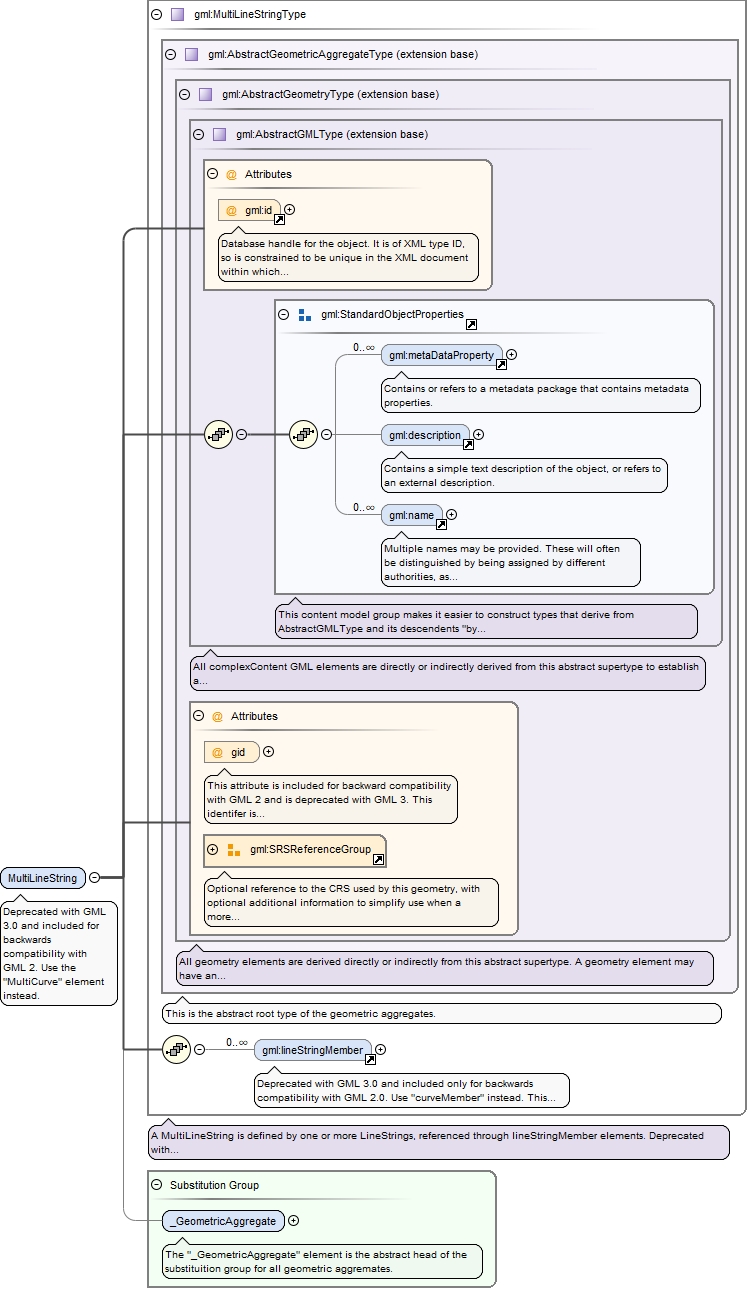

Element gml:MultiLineString
Namespace http://www.opengis.net/gml
Annotations

Deprecated with GML 3.0 and included for backwards compatibility with GML 2. Use the "MultiCurve" element instead.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#lineStringMembergeometryAggregates_xsd.tmp#MultiLineStringTypegeometryAggregates_xsd.tmp#_GeometricAggregate
Type gml:MultiLineStringType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:description, gml:lineStringMember, gml:metaDataProperty, gml:name
Instance

<gml:MultiLineString axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:lineStringMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:lineStringMember>
</gml:MultiLineString>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<element name="MultiLineString" type="gml:MultiLineStringType" substitutionGroup="gml:_GeometricAggregate">
  <annotation>
    <documentation>Deprecated with GML 3.0 and included for backwards compatibility with GML 2. Use the "MultiCurve" element instead.</documentation>
  </annotation>
</element>

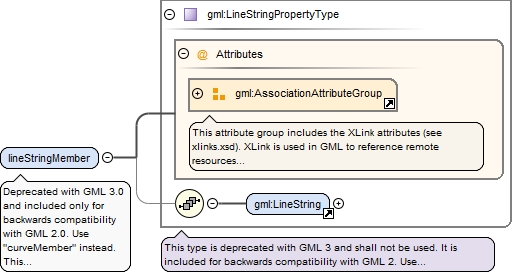

Element gml:lineStringMember
Namespace http://www.opengis.net/gml
Annotations

Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "curveMember" instead.
This property element either references a line string via the XLink-attributes or contains the line string element.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryBasic0d1d_xsd.tmp#LineStringgeometryBasic0d1d_xsd.tmp#LineStringPropertyType
Type gml:LineStringPropertyType
Properties
content complex
Used by
Model
Children gml:LineString
Instance

<gml:lineStringMember xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:LineString axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:LineString>
</gml:lineStringMember>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="lineStringMember" type="gml:LineStringPropertyType">
  <annotation>
    <appinfo>deprecated</appinfo>
    <documentation>Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "curveMember" instead. This property element either references a line string via the XLink-attributes or contains the line string element.</documentation>
  </annotation>
</element>

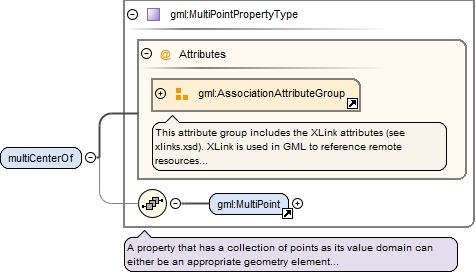

Element gml:multiCenterOf
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiPointgeometryAggregates_xsd.tmp#MultiPointPropertyType
Type gml:MultiPointPropertyType
Properties
content complex
Model
Children gml:MultiPoint
Instance

<gml:multiCenterOf xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiPoint axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiPoint>
</gml:multiCenterOf>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiCenterOf" type="gml:MultiPointPropertyType"/>

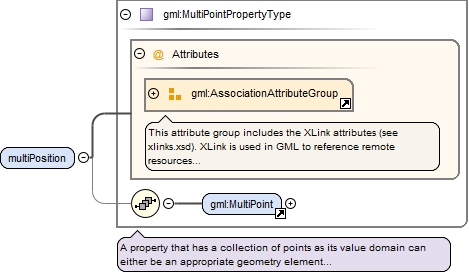

Element gml:multiPosition
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiPointgeometryAggregates_xsd.tmp#MultiPointPropertyType
Type gml:MultiPointPropertyType
Properties
content complex
Model
Children gml:MultiPoint
Instance

<gml:multiPosition xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiPoint axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiPoint>
</gml:multiPosition>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiPosition" type="gml:MultiPointPropertyType"/>

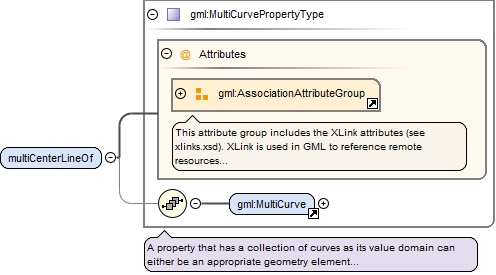

Element gml:multiCenterLineOf
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiCurvegeometryAggregates_xsd.tmp#MultiCurvePropertyType
Type gml:MultiCurvePropertyType
Properties
content complex
Model
Children gml:MultiCurve
Instance

<gml:multiCenterLineOf xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiCurve axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiCurve>
</gml:multiCenterLineOf>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiCenterLineOf" type="gml:MultiCurvePropertyType"/>

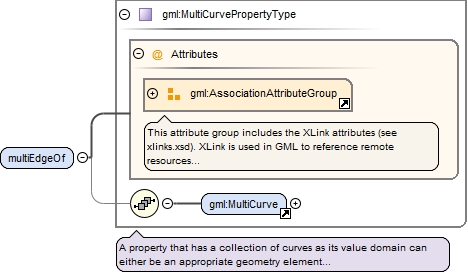

Element gml:multiEdgeOf
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiCurvegeometryAggregates_xsd.tmp#MultiCurvePropertyType
Type gml:MultiCurvePropertyType
Properties
content complex
Model
Children gml:MultiCurve
Instance

<gml:multiEdgeOf xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiCurve axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiCurve>
</gml:multiEdgeOf>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiEdgeOf" type="gml:MultiCurvePropertyType"/>

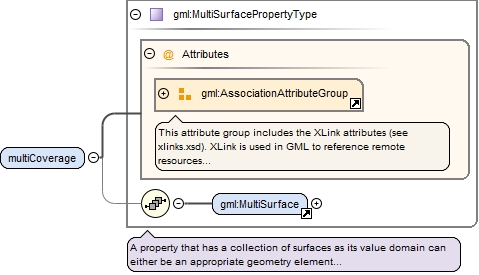

Element gml:multiCoverage
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiSurfacegeometryAggregates_xsd.tmp#MultiSurfacePropertyType
Type gml:MultiSurfacePropertyType
Properties
content complex
Model
Children gml:MultiSurface
Instance

<gml:multiCoverage xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiSurface axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiSurface>
</gml:multiCoverage>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiCoverage" type="gml:MultiSurfacePropertyType"/>

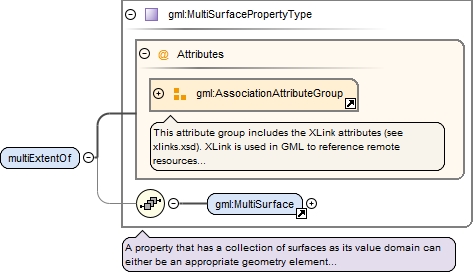

Element gml:multiExtentOf
Namespace http://www.opengis.net/gml
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiSurfacegeometryAggregates_xsd.tmp#MultiSurfacePropertyType
Type gml:MultiSurfacePropertyType
Properties
content complex
Model
Children gml:MultiSurface
Instance

<gml:multiExtentOf xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiSurface axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiSurface>
</gml:multiExtentOf>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiExtentOf" type="gml:MultiSurfacePropertyType"/>

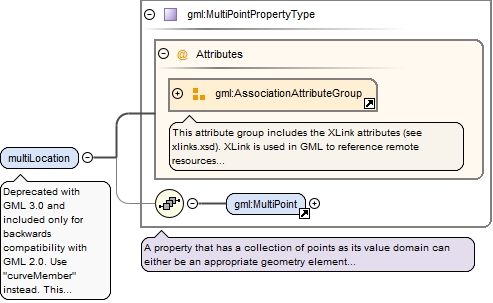

Element gml:multiLocation
Namespace http://www.opengis.net/gml
Annotations

Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "curveMember" instead.
This property element either references a line string via the XLink-attributes or contains the line string element.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiPointgeometryAggregates_xsd.tmp#MultiPointPropertyType
Type gml:MultiPointPropertyType
Properties
content complex
Model
Children gml:MultiPoint
Instance

<gml:multiLocation xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml">
  <gml:MultiPoint axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:MultiPoint>
</gml:multiLocation>
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="multiLocation" type="gml:MultiPointPropertyType">
  <annotation>
    <appinfo>deprecated</appinfo>
    <documentation>Deprecated with GML 3.0 and included only for backwards compatibility with GML 2.0. Use "curveMember" instead. This property element either references a line string via the XLink-attributes or contains the line string element.</documentation>
  </annotation>
</element>
Complex Type gml:AbstractGeometricAggregateType
Namespace http://www.opengis.net/gml
Annotations

This is the abstract root type of the geometric aggregates.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryType
Type extension of gml:AbstractGeometryType
Type hierarchy
Properties
abstract true
Used by
Model
Children gml:description, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="AbstractGeometricAggregateType" abstract="true">
  <annotation>
    <documentation>This is the abstract root type of the geometric aggregates.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometryType"/>
  </complexContent>
</complexType>
Complex Type gml:MultiGeometryType
Namespace http://www.opengis.net/gml
Annotations

A geometry collection must include one or more geometries, referenced through geometryMember elements.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#geometryMembergeometryAggregates_xsd.tmp#geometryMembers
Type extension of gml:AbstractGeometricAggregateType
Type hierarchy
Used by
Model
Children gml:description, gml:geometryMember, gml:geometryMembers, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="MultiGeometryType">
  <annotation>
    <documentation>A geometry collection must include one or more geometries, referenced through geometryMember elements.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricAggregateType">
      <sequence>
        <annotation>
          <documentation>The members of the geometric aggregate can be specified either using the "standard" property or the array property style. It is also valid to use both the "standard" and the array property style in the same collection. NOTE: Array properties cannot reference remote geometry elements.</documentation>
        </annotation>
        <element ref="gml:geometryMember" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:geometryMembers" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:MultiGeometryPropertyType
Namespace http://www.opengis.net/gml
Annotations

A property that has a geometric aggregate as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#_GeometricAggregate
Used by
Model
Children gml:_GeometricAggregate
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="MultiGeometryPropertyType">
  <annotation>
    <documentation>A property that has a geometric aggregate as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="gml:_GeometricAggregate"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup">
    <annotation>
      <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup.</documentation>
    </annotation>
  </attributeGroup>
</complexType>
Complex Type gml:MultiPointType
Namespace http://www.opengis.net/gml
Annotations

A MultiPoint is defined by one or more Points, referenced through pointMember elements.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#pointMembergeometryAggregates_xsd.tmp#pointMembers
Type extension of gml:AbstractGeometricAggregateType
Type hierarchy
Used by
Element gml:MultiPoint
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:pointMember, gml:pointMembers
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="MultiPointType">
  <annotation>
    <documentation>A MultiPoint is defined by one or more Points, referenced through pointMember elements.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricAggregateType">
      <sequence>
        <annotation>
          <documentation>The members of the geometric aggregate can be specified either using the "standard" property or the array property style. It is also valid to use both the "standard" and the array property style in the same collection. NOTE: Array properties cannot reference remote geometry elements.</documentation>
        </annotation>
        <element ref="gml:pointMember" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:pointMembers" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:MultiPointPropertyType
Namespace http://www.opengis.net/gml
Annotations

A property that has a collection of points as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiPoint
Used by
Model
Children gml:MultiPoint
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="MultiPointPropertyType">
  <annotation>
    <documentation>A property that has a collection of points as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="gml:MultiPoint"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup">
    <annotation>
      <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup.</documentation>
    </annotation>
  </attributeGroup>
</complexType>
Complex Type gml:MultiCurveType
Namespace http://www.opengis.net/gml
Annotations

A MultiCurve is defined by one or more Curves, referenced through curveMember elements.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryPrimitives_xsd.tmp#curveMembergeometryAggregates_xsd.tmp#curveMembers
Type extension of gml:AbstractGeometricAggregateType
Type hierarchy
Used by
Element gml:MultiCurve
Model
Children gml:curveMember, gml:curveMembers, gml:description, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="MultiCurveType">
  <annotation>
    <documentation>A MultiCurve is defined by one or more Curves, referenced through curveMember elements.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricAggregateType">
      <sequence>
        <annotation>
          <documentation>The members of the geometric aggregate can be specified either using the "standard" property or the array property style. It is also valid to use both the "standard" and the array property style in the same collection. NOTE: Array properties cannot reference remote geometry elements.</documentation>
        </annotation>
        <element ref="gml:curveMember" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:curveMembers" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:MultiCurvePropertyType
Namespace http://www.opengis.net/gml
Annotations

A property that has a collection of curves as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiCurve
Used by
Model
Children gml:MultiCurve
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="MultiCurvePropertyType">
  <annotation>
    <documentation>A property that has a collection of curves as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="gml:MultiCurve"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup">
    <annotation>
      <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup.</documentation>
    </annotation>
  </attributeGroup>
</complexType>
Complex Type gml:MultiSurfaceType
Namespace http://www.opengis.net/gml
Annotations

A MultiSurface is defined by one or more Surfaces, referenced through surfaceMember elements.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#surfaceMembergeometryAggregates_xsd.tmp#surfaceMembers
Type extension of gml:AbstractGeometricAggregateType
Type hierarchy
Used by
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:surfaceMember, gml:surfaceMembers
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="MultiSurfaceType">
  <annotation>
    <documentation>A MultiSurface is defined by one or more Surfaces, referenced through surfaceMember elements.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricAggregateType">
      <sequence>
        <annotation>
          <documentation>The members of the geometric aggregate can be specified either using the "standard" property or the array property style. It is also valid to use both the "standard" and the array property style in the same collection. NOTE: Array properties cannot reference remote geometry elements.</documentation>
        </annotation>
        <element ref="gml:surfaceMember" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:surfaceMembers" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:MultiSurfacePropertyType
Namespace http://www.opengis.net/gml
Annotations

A property that has a collection of surfaces as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiSurface
Used by
Model
Children gml:MultiSurface
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="MultiSurfacePropertyType">
  <annotation>
    <documentation>A property that has a collection of surfaces as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="gml:MultiSurface"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup">
    <annotation>
      <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup.</documentation>
    </annotation>
  </attributeGroup>
</complexType>
Complex Type gml:MultiSolidType
Namespace http://www.opengis.net/gml
Annotations

A MultiSolid is defined by one or more Solids, referenced through solidMember elements.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#solidMembergeometryAggregates_xsd.tmp#solidMembers
Type extension of gml:AbstractGeometricAggregateType
Type hierarchy
Used by
Element gml:MultiSolid
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:solidMember, gml:solidMembers
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="MultiSolidType">
  <annotation>
    <documentation>A MultiSolid is defined by one or more Solids, referenced through solidMember elements.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricAggregateType">
      <sequence>
        <annotation>
          <documentation>The members of the geometric aggregate can be specified either using the "standard" property or the array property style. It is also valid to use both the "standard" and the array property style in the same collection. NOTE: Array properties cannot reference remote geometry elements.</documentation>
        </annotation>
        <element ref="gml:solidMember" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:solidMembers" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:MultiSolidPropertyType
Namespace http://www.opengis.net/gml
Annotations

A property that has a collection of solids as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiSolid
Used by
Model
Children gml:MultiSolid
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="MultiSolidPropertyType">
  <annotation>
    <documentation>A property that has a collection of solids as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="gml:MultiSolid"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup">
    <annotation>
      <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup.</documentation>
    </annotation>
  </attributeGroup>
</complexType>
Complex Type gml:MultiPolygonType
Namespace http://www.opengis.net/gml
Annotations

A MultiPolygon is defined by one or more Polygons, referenced through polygonMember elements. Deprecated with GML version 3.0. Use MultiSurfaceType instead.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#polygonMember
Type extension of gml:AbstractGeometricAggregateType
Type hierarchy
Used by
Model
Children gml:description, gml:metaDataProperty, gml:name, gml:polygonMember
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="MultiPolygonType">
  <annotation>
    <documentation>A MultiPolygon is defined by one or more Polygons, referenced through polygonMember elements. Deprecated with GML version 3.0. Use MultiSurfaceType instead.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricAggregateType">
      <sequence>
        <element ref="gml:polygonMember" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:MultiLineStringType
Namespace http://www.opengis.net/gml
Annotations

A MultiLineString is defined by one or more LineStrings, referenced through lineStringMember elements. Deprecated with GML version 3.0. Use MultiCurveType instead.
Diagram
DiagramgmlBase_xsd.tmp#idgmlBase_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegeometryBasic0d1d_xsd.tmp#AbstractGeometryType_gidgeometryBasic0d1d_xsd.tmp#SRSReferenceGroupgeometryBasic0d1d_xsd.tmp#AbstractGeometryTypegeometryAggregates_xsd.tmp#AbstractGeometricAggregateTypegeometryAggregates_xsd.tmp#lineStringMember
Type extension of gml:AbstractGeometricAggregateType
Type hierarchy
Used by
Model
Children gml:description, gml:lineStringMember, gml:metaDataProperty, gml:name
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
When the srsName attribute is omitted, this attribute shall also be omitted.
gid xs:string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
srsDimension xs:positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName xs:anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
shall also be omitted.
Source

<complexType name="MultiLineStringType">
  <annotation>
    <documentation>A MultiLineString is defined by one or more LineStrings, referenced through lineStringMember elements. Deprecated with GML version 3.0. Use MultiCurveType instead.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricAggregateType">
      <sequence>
        <element ref="gml:lineStringMember" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:MultiLineStringPropertyType
Namespace http://www.opengis.net/gml
Annotations

This type is deprecated with GML 3 and shall not be used. It is included for backwards compatibility with GML 2. Use MultiCurvePropertyType instead.
A property that has a collection of line strings as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiLineString
Model
Children gml:MultiLineString
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="MultiLineStringPropertyType">
  <annotation>
    <documentation>This type is deprecated with GML 3 and shall not be used. It is included for backwards compatibility with GML 2. Use MultiCurvePropertyType instead. A property that has a collection of line strings as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="gml:MultiLineString"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup">
    <annotation>
      <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup.</documentation>
    </annotation>
  </attributeGroup>
</complexType>
Complex Type gml:MultiPolygonPropertyType
Namespace http://www.opengis.net/gml
Annotations

This type is deprecated with GML 3 and shall not be used. It is included for backwards compatibility with GML 2. Use MultiSurfacePropertyType instead.

A property that has a collection of polygons as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgeometryAggregates_xsd.tmp#MultiPolygon
Model
Children gml:MultiPolygon
Attributes
QName Type Fixed Use Annotation
gml:remoteSchema xs:anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="MultiPolygonPropertyType">
  <annotation>
    <documentation>This type is deprecated with GML 3 and shall not be used. It is included for backwards compatibility with GML 2. Use MultiSurfacePropertyType instead. A property that has a collection of polygons as its value domain can either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element must be given, but neither both nor none.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="gml:MultiPolygon"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup">
    <annotation>
      <documentation>This attribute group includes the XLink attributes (see xlinks.xsd). XLink is used in GML to reference remote resources (including those elsewhere in the same document). A simple link element can be constructed by including a specific set of XLink attributes. The XML Linking Language (XLink) is currently a Proposed Recommendation of the World Wide Web Consortium. XLink allows elements to be inserted into XML documents so as to create sophisticated links between resources; such links can be used to reference remote properties. A simple link element can be used to implement pointer functionality, and this functionality has been built into various GML 3 elements by including the gml:AssociationAttributeGroup.</documentation>
    </annotation>
  </attributeGroup>
</complexType>
XML Schema documentation generated by ® XML Developer.
