Imported schema smil20-language.xsd
Namespace http://www.w3.org/2001/SMIL20/Language
Properties
attribute form default unqualified
element form default qualified

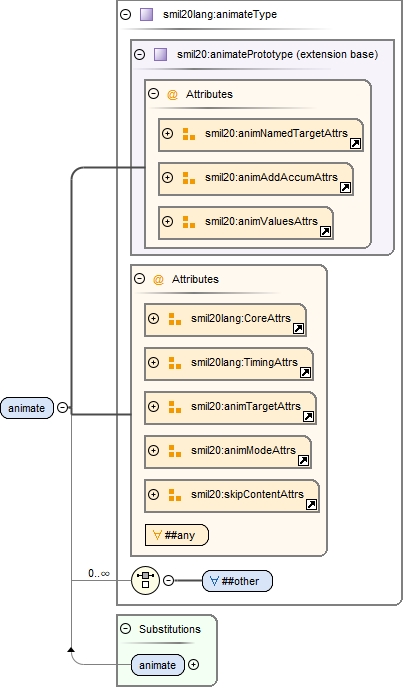

Element smil20lang:animate
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#animNamedTargetAttrssmil20_xsd.tmp#animAddAccumAttrssmil20_xsd.tmp#animValuesAttrssmil20_xsd.tmp#animatePrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#animModeAttrssmil20_xsd.tmp#skipContentAttrssmil20-language_xsd.tmp#animateTypesmil20_xsd.tmp#animate
Type smil20lang:animateType
Type hierarchy
Properties
content complex
Substitution Group
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
accumulate restriction of xs:string none optional
additive restriction of xs:string replace optional
alt xs:string optional
attributeName xs:string required
attributeType restriction of xs:string auto optional
begin xs:string optional
by xs:string optional
calcMode restriction of xs:string linear optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from xs:string optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
values xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<element name="animate" type="smil20lang:animateType"/>

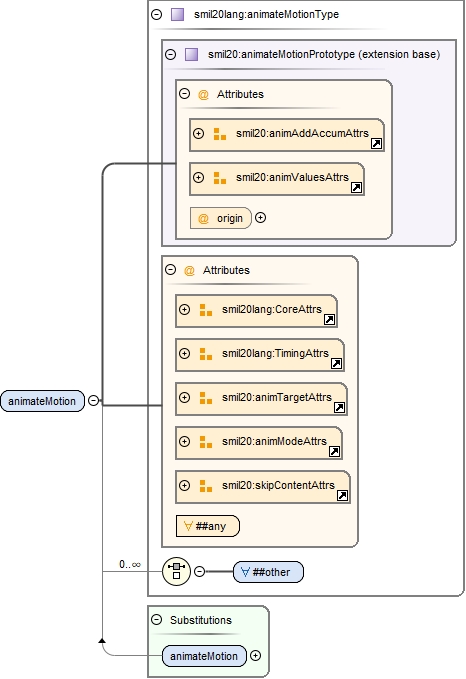

Element smil20lang:animateMotion
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#animAddAccumAttrssmil20_xsd.tmp#animValuesAttrssmil20_xsd.tmp#animateMotionPrototype_originsmil20_xsd.tmp#animateMotionPrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#animModeAttrssmil20_xsd.tmp#skipContentAttrssmil20-language_xsd.tmp#animateMotionTypesmil20_xsd.tmp#animateMotion
Type smil20lang:animateMotionType
Type hierarchy
Properties
content complex
Substitution Group
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
accumulate restriction of xs:string none optional
additive restriction of xs:string replace optional
alt xs:string optional
begin xs:string optional
by xs:string optional
calcMode restriction of xs:string linear optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from xs:string optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
origin xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
values xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<element name="animateMotion" type="smil20lang:animateMotionType"/>

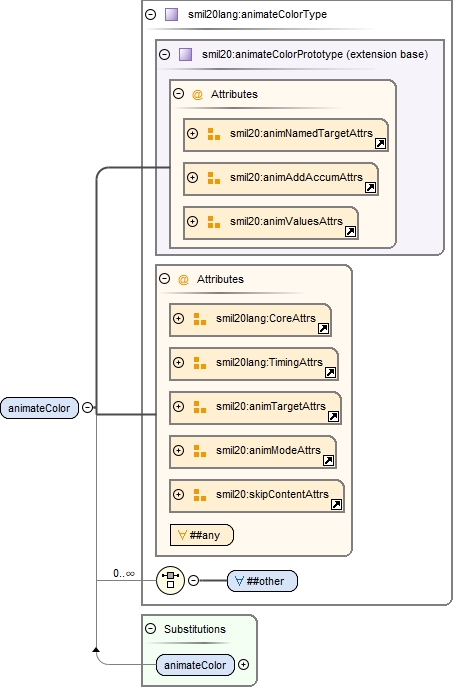

Element smil20lang:animateColor
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram

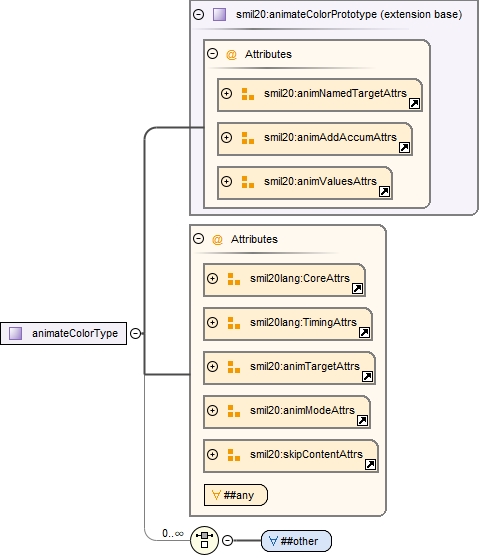

Diagramsmil20_xsd.tmp#animNamedTargetAttrssmil20_xsd.tmp#animAddAccumAttrssmil20_xsd.tmp#animValuesAttrssmil20_xsd.tmp#animateColorPrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#animModeAttrssmil20_xsd.tmp#skipContentAttrssmil20-language_xsd.tmp#animateColorTypesmil20_xsd.tmp#animateColor
Type smil20lang:animateColorType
Type hierarchy
Properties
content complex
Substitution Group
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
accumulate restriction of xs:string none optional
additive restriction of xs:string replace optional
alt xs:string optional
attributeName xs:string required
attributeType restriction of xs:string auto optional
begin xs:string optional
by xs:string optional
calcMode restriction of xs:string linear optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from xs:string optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
values xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<element name="animateColor" type="smil20lang:animateColorType"/>

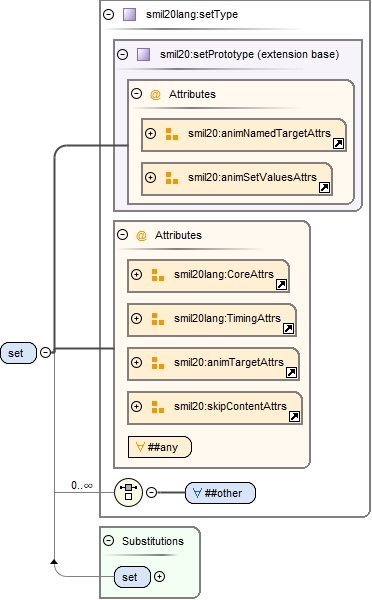

Element smil20lang:set
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#animNamedTargetAttrssmil20_xsd.tmp#animSetValuesAttrssmil20_xsd.tmp#setPrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#skipContentAttrssmil20-language_xsd.tmp#setTypesmil20_xsd.tmp#set
Type smil20lang:setType
Type hierarchy
Properties
content complex
Substitution Group
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
alt xs:string optional
attributeName xs:string required
attributeType restriction of xs:string auto optional
begin xs:string optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<element name="set" type="smil20lang:setType"/>

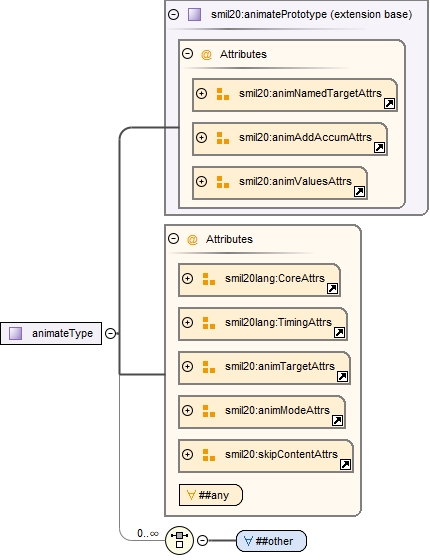

Complex Type smil20lang:animateType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#animNamedTargetAttrssmil20_xsd.tmp#animAddAccumAttrssmil20_xsd.tmp#animValuesAttrssmil20_xsd.tmp#animatePrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#animModeAttrssmil20_xsd.tmp#skipContentAttrs
Type extension of smil20:animatePrototype
Type hierarchy
Used by
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
accumulate restriction of xs:string none optional
additive restriction of xs:string replace optional
alt xs:string optional
attributeName xs:string required
attributeType restriction of xs:string auto optional
begin xs:string optional
by xs:string optional
calcMode restriction of xs:string linear optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from xs:string optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
values xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<complexType name="animateType">
  <complexContent>
    <extension base="smil20:animatePrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:animModeAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>

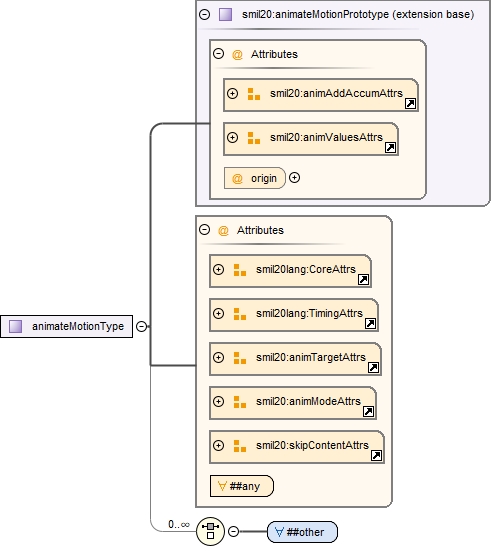

Complex Type smil20lang:animateMotionType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#animAddAccumAttrssmil20_xsd.tmp#animValuesAttrssmil20_xsd.tmp#animateMotionPrototype_originsmil20_xsd.tmp#animateMotionPrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#animModeAttrssmil20_xsd.tmp#skipContentAttrs
Type extension of smil20:animateMotionPrototype
Type hierarchy
Used by
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
accumulate restriction of xs:string none optional
additive restriction of xs:string replace optional
alt xs:string optional
begin xs:string optional
by xs:string optional
calcMode restriction of xs:string linear optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from xs:string optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
origin xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
values xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<complexType name="animateMotionType">
  <complexContent>
    <extension base="smil20:animateMotionPrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:animModeAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>
Complex Type smil20lang:animateColorType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#animNamedTargetAttrssmil20_xsd.tmp#animAddAccumAttrssmil20_xsd.tmp#animValuesAttrssmil20_xsd.tmp#animateColorPrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#animModeAttrssmil20_xsd.tmp#skipContentAttrs
Type extension of smil20:animateColorPrototype
Type hierarchy
Used by
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
accumulate restriction of xs:string none optional
additive restriction of xs:string replace optional
alt xs:string optional
attributeName xs:string required
attributeType restriction of xs:string auto optional
begin xs:string optional
by xs:string optional
calcMode restriction of xs:string linear optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from xs:string optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
values xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<complexType name="animateColorType">
  <complexContent>
    <extension base="smil20:animateColorPrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:animModeAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>

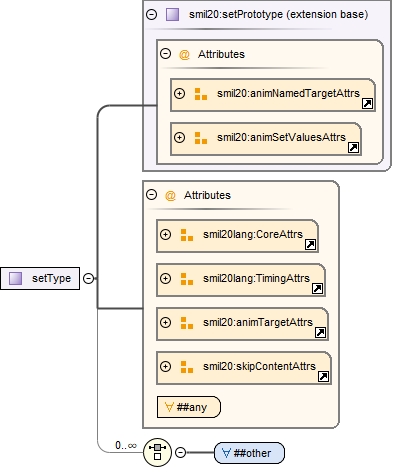

Complex Type smil20lang:setType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#animNamedTargetAttrssmil20_xsd.tmp#animSetValuesAttrssmil20_xsd.tmp#setPrototypesmil20-language_xsd.tmp#CoreAttrssmil20-language_xsd.tmp#TimingAttrssmil20_xsd.tmp#animTargetAttrssmil20_xsd.tmp#skipContentAttrs
Type extension of smil20:setPrototype
Type hierarchy
Used by
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Default Use Annotation
alt xs:string optional
attributeName xs:string required
attributeType restriction of xs:string auto optional
begin xs:string optional
class xs:string optional
dur xs:string optional
end xs:string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
id ID optional
longdesc xs:anyURI optional
max xs:string optional
min xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content xs:boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance xs:string optional
syncToleranceDefault xs:string inherit optional
targetElement xs:IDREF optional
to xs:string optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Wildcard: ANY attribute from ANY namespace
Source

<complexType name="setType">
  <complexContent>
    <extension base="smil20:setPrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>

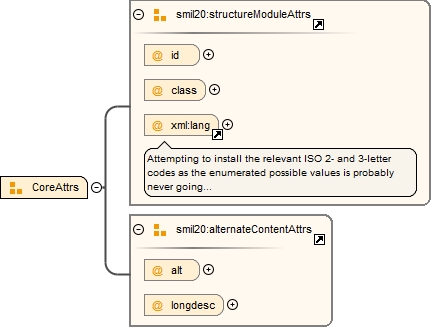

Attribute Group smil20lang:CoreAttrs
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#structureModuleAttrs_idsmil20_xsd.tmp#structureModuleAttrs_classxml_xsd.tmp#langsmil20_xsd.tmp#structureModuleAttrssmil20_xsd.tmp#alternateContentAttrs_altsmil20_xsd.tmp#alternateContentAttrs_longdescsmil20_xsd.tmp#alternateContentAttrs
Used by
Attributes
QName Type Use Annotation
alt xs:string optional
class xs:string optional
id ID optional
longdesc xs:anyURI optional
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<attributeGroup name="CoreAttrs">
  <attributeGroup ref="smil20:structureModuleAttrs"/>
  <attributeGroup ref="smil20:alternateContentAttrs"/>
</attributeGroup>
Attribute Group smil20lang:TimingAttrs
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#beginEndTimingAttrssmil20_xsd.tmp#durTimingAttrssmil20_xsd.tmp#repeatTimingAttrssmil20_xsd.tmp#deprecatedRepeatTimingsmil20_xsd.tmp#minMaxTimingAttrssmil20-language_xsd.tmp#BasicTimingAttrssmil20_xsd.tmp#syncBehaviorAttrs_syncBehaviorsmil20_xsd.tmp#syncBehaviorAttrs_syncTolerancesmil20_xsd.tmp#syncBehaviorAttrssmil20_xsd.tmp#syncBehaviorDefaultAttrs_syncBehaviorDefaultsmil20_xsd.tmp#syncBehaviorDefaultAttrs_syncToleranceDefaultsmil20_xsd.tmp#syncBehaviorDefaultAttrssmil20_xsd.tmp#restartTimingAttrs_restartsmil20_xsd.tmp#restartTimingAttrssmil20_xsd.tmp#restartDefaultAttrs_restartDefaultsmil20_xsd.tmp#restartDefaultAttrssmil20_xsd.tmp#fillTimingAttrs_fillsmil20_xsd.tmp#fillTimingAttrssmil20_xsd.tmp#fillDefaultAttrs_fillDefaultsmil20_xsd.tmp#fillDefaultAttrs
Used by
Attributes
Source

<attributeGroup name="TimingAttrs">
  <attributeGroup ref="smil20lang:BasicTimingAttrs"/>
  <attributeGroup ref="smil20:syncBehaviorAttrs"/>
  <attributeGroup ref="smil20:syncBehaviorDefaultAttrs"/>
  <attributeGroup ref="smil20:restartTimingAttrs"/>
  <attributeGroup ref="smil20:restartDefaultAttrs"/>
  <attributeGroup ref="smil20:fillTimingAttrs"/>
  <attributeGroup ref="smil20:fillDefaultAttrs"/>
</attributeGroup>

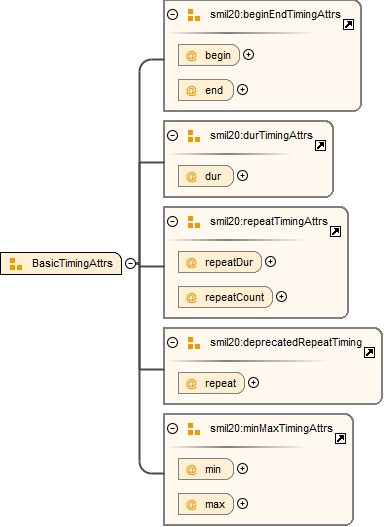

Attribute Group smil20lang:BasicTimingAttrs
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagramsmil20_xsd.tmp#beginEndTimingAttrs_beginsmil20_xsd.tmp#beginEndTimingAttrs_endsmil20_xsd.tmp#beginEndTimingAttrssmil20_xsd.tmp#durTimingAttrs_dursmil20_xsd.tmp#durTimingAttrssmil20_xsd.tmp#repeatTimingAttrs_repeatDursmil20_xsd.tmp#repeatTimingAttrs_repeatCountsmil20_xsd.tmp#repeatTimingAttrssmil20_xsd.tmp#deprecatedRepeatTiming_repeatsmil20_xsd.tmp#deprecatedRepeatTimingsmil20_xsd.tmp#minMaxTimingAttrs_minsmil20_xsd.tmp#minMaxTimingAttrs_maxsmil20_xsd.tmp#minMaxTimingAttrs
Used by
Attribute Group smil20lang:TimingAttrs
Attributes
QName Type Use
begin xs:string optional
dur xs:string optional
end xs:string optional
max xs:string optional
min xs:string optional
repeat xs:nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur xs:string optional
Source

<attributeGroup name="BasicTimingAttrs">
  <attributeGroup ref="smil20:beginEndTimingAttrs"/>
  <attributeGroup ref="smil20:durTimingAttrs"/>
  <attributeGroup ref="smil20:repeatTimingAttrs"/>
  <attributeGroup ref="smil20:deprecatedRepeatTiming"/>
  <attributeGroup ref="smil20:minMaxTimingAttrs"/>
</attributeGroup>
XML Schema documentation generated by ® XML Developer.
