complexType GraphStyleType

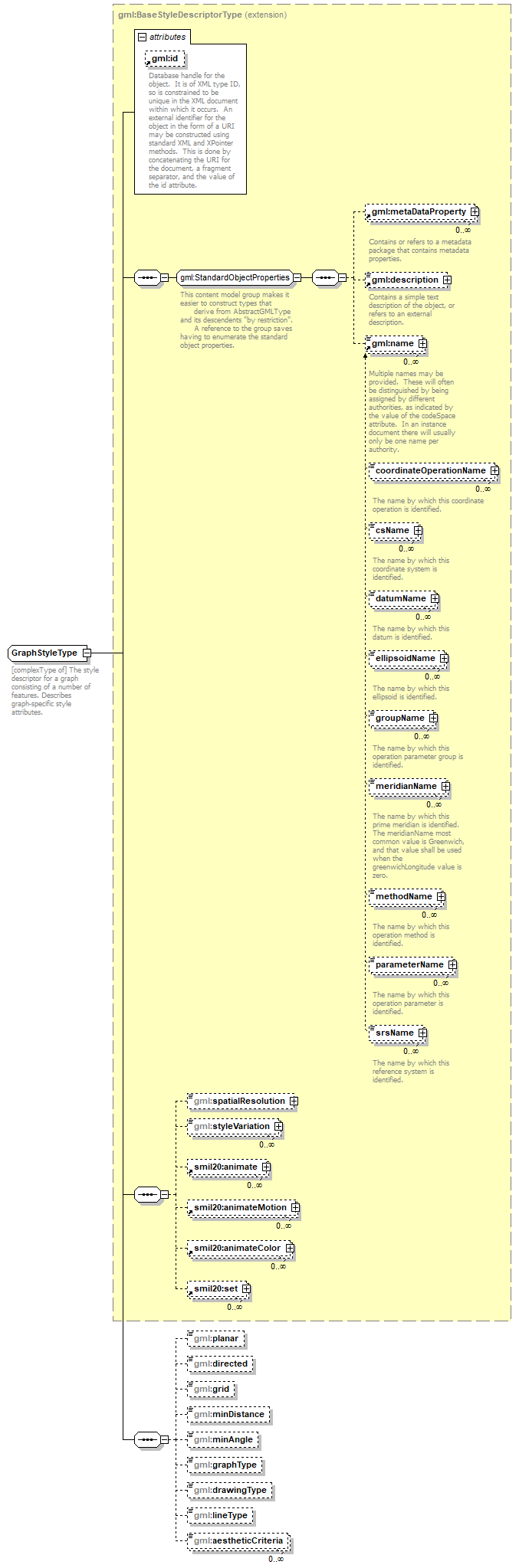

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:BaseStyleDescriptorType
properties	base  gml:BaseStyleDescriptorType
children	gml:metaDataProperty gml:description gml:name gml:spatialResolution gml:styleVariation smil20:animate smil20:animateMotion smil20:animateColor smil20:set gml:planar gml:directed gml:grid gml:minDistance gml:minAngle gml:graphType gml:drawingType gml:lineType gml:aestheticCriteria
used by	element  GraphStyle
attributes	Name   Type   Use   Default   Fixed   annotation id optional         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation [complexType of] The style descriptor for a graph consisting of a number of features. Describes graph-specific style attributes.
source	<xs:complexType name="GraphStyleType">   <xs:annotation>     <xs:documentation>[complexType of] The style descriptor for a graph consisting of a number of features. Describes graph-specific style attributes.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:BaseStyleDescriptorType">       <xs:sequence>         <xs:element name="planar" type="boolean" minOccurs="0"/>         <xs:element name="directed" type="boolean" minOccurs="0"/>         <xs:element name="grid" type="boolean" minOccurs="0"/>         <xs:element name="minDistance" type="double" minOccurs="0"/>         <xs:element name="minAngle" type="double" minOccurs="0"/>         <xs:element name="graphType" type="gml:GraphTypeType" minOccurs="0"/>         <xs:element name="drawingType" type="gml:DrawingTypeType" minOccurs="0"/>         <xs:element name="lineType" type="gml:LineTypeType" minOccurs="0"/>         <xs:element name="aestheticCriteria" type="gml:AesheticCriteriaType" minOccurs="0" maxOccurs="unbounded"/>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element GraphStyleType/planar

diagram
namespace	http://www.opengis.net/gml
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="planar" type="boolean" minOccurs="0"/>

element GraphStyleType/directed

diagram
namespace	http://www.opengis.net/gml
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="directed" type="boolean" minOccurs="0"/>

element GraphStyleType/grid

diagram
namespace	http://www.opengis.net/gml
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="grid" type="boolean" minOccurs="0"/>

element GraphStyleType/minDistance

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="minDistance" type="double" minOccurs="0"/>

element GraphStyleType/minAngle

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="minAngle" type="double" minOccurs="0"/>

element GraphStyleType/graphType

diagram
namespace	http://www.opengis.net/gml
type	gml:GraphTypeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  TREE  enumeration  BICONNECTED
source	<xs:element name="graphType" type="gml:GraphTypeType" minOccurs="0"/>

element GraphStyleType/drawingType

diagram
namespace	http://www.opengis.net/gml
type	gml:DrawingTypeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  POLYLINE  enumeration  ORTHOGONAL
source	<xs:element name="drawingType" type="gml:DrawingTypeType" minOccurs="0"/>

element GraphStyleType/lineType

diagram
namespace	http://www.opengis.net/gml
type	gml:LineTypeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  STRAIGHT  enumeration  BENT
source	<xs:element name="lineType" type="gml:LineTypeType" minOccurs="0"/>

element GraphStyleType/aestheticCriteria

diagram
namespace	http://www.opengis.net/gml
type	gml:AesheticCriteriaType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  enumeration  MIN_CROSSINGS  enumeration  MIN_AREA  enumeration  MIN_BENDS  enumeration  MAX_BENDS  enumeration  UNIFORM_BENDS  enumeration  MIN_SLOPES  enumeration  MIN_EDGE_LENGTH  enumeration  MAX_EDGE_LENGTH  enumeration  UNIFORM_EDGE_LENGTH  enumeration  MAX_ANGULAR_RESOLUTION  enumeration  MIN_ASPECT_RATIO  enumeration  MAX_SYMMETRIES
source	<xs:element name="aestheticCriteria" type="gml:AesheticCriteriaType" minOccurs="0" maxOccurs="unbounded"/>
