complexType localElement

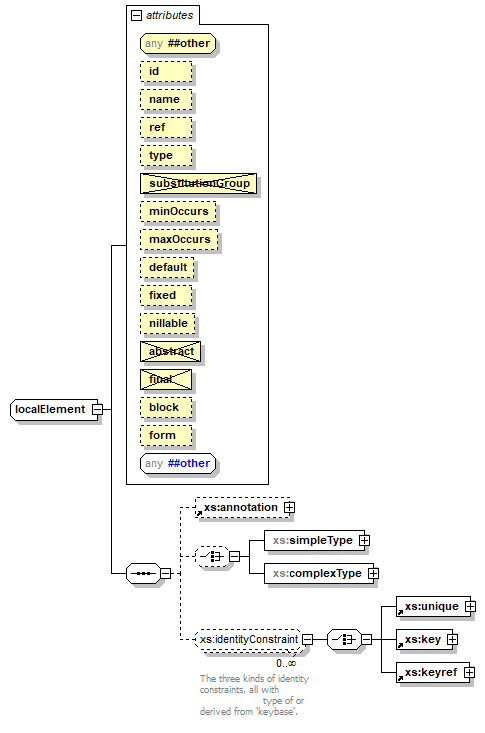

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	restriction of xs:element
properties	base  xs:element
children	xs:annotation xs:simpleType xs:complexType xs:unique xs:key xs:keyref
used by	elements  nestedParticle/element particle/element complexType  narrowMaxMin
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName          ref xs:QName          type xs:QName          substitutionGroup prohibited         minOccurs xs:nonNegativeInteger optional   1      maxOccurs xs:allNNI optional   1      default xs:string          fixed xs:string          nillable xs:boolean optional   false      abstract prohibited         final prohibited         block xs:blockSet          form xs:formChoice
source	<xs:complexType name="localElement">   <xs:complexContent>     <xs:restriction base="xs:element">       <xs:sequence>         <xs:element ref="xs:annotation" minOccurs="0"/>         <xs:choice minOccurs="0">           <xs:element name="simpleType" type="xs:localSimpleType"/>           <xs:element name="complexType" type="xs:localComplexType"/>         </xs:choice>         <xs:group ref="xs:identityConstraint" minOccurs="0" maxOccurs="unbounded"/>       </xs:sequence>       <xs:attribute name="substitutionGroup" use="prohibited"/>       <xs:attribute name="final" use="prohibited"/>       <xs:attribute name="abstract" use="prohibited"/>       <xs:anyAttribute namespace="##other" processContents="lax"/>     </xs:restriction>   </xs:complexContent> </xs:complexType>

attribute localElement/@substitutionGroup

properties	isRef  0 use  prohibited
source	<xs:attribute name="substitutionGroup" use="prohibited"/>

attribute localElement/@abstract

properties	isRef  0 use  prohibited
source	<xs:attribute name="abstract" use="prohibited"/>

attribute localElement/@final

properties	isRef  0 use  prohibited
source	<xs:attribute name="final" use="prohibited"/>

element localElement/simpleType

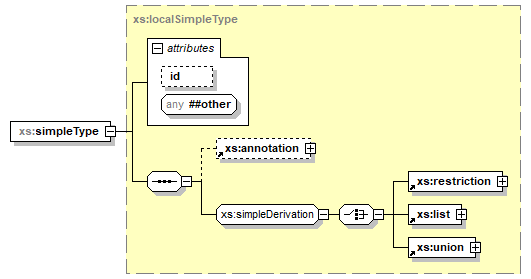

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localSimpleType
properties	isRef  0 content  complex
children	xs:annotation xs:restriction xs:list xs:union
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID
source	<xs:element name="simpleType" type="xs:localSimpleType"/>

element localElement/complexType

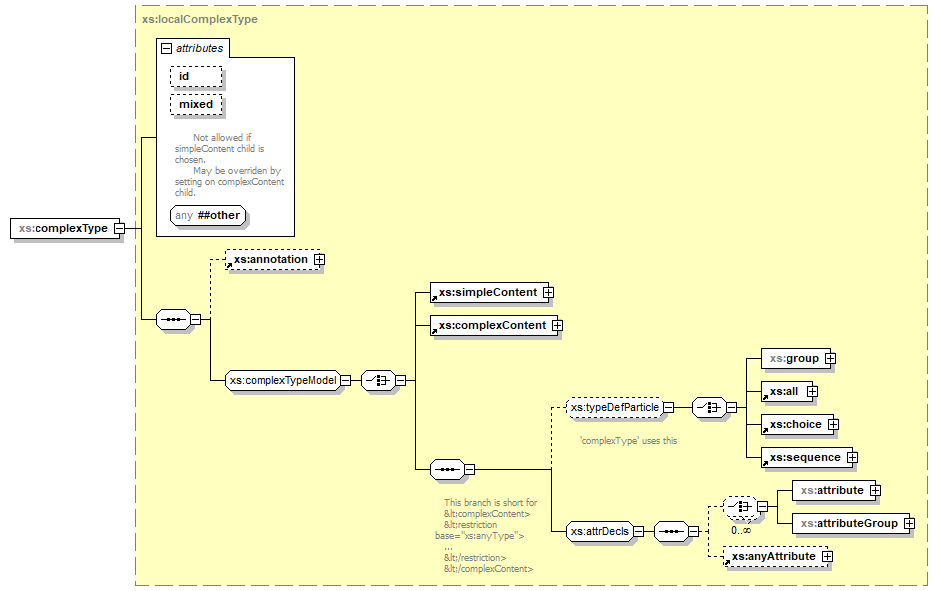

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localComplexType
properties	isRef  0 content  complex
children	xs:annotation xs:simpleContent xs:complexContent xs:group xs:all xs:choice xs:sequence xs:attribute xs:attributeGroup xs:anyAttribute
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          mixed xs:boolean optional   false      documentation       Not allowed if simpleContent child is chosen.       May be overriden by setting on complexContent child.
source	<xs:element name="complexType" type="xs:localComplexType"/>
