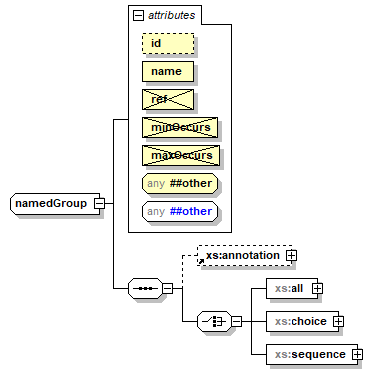

complexType namedGroup

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	restriction of xs:realGroup
properties	base  xs:realGroup
children	xs:annotation xs:all xs:choice xs:sequence
used by	element  group
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName required         ref prohibited         minOccurs prohibited         maxOccurs prohibited
source	<xs:complexType name="namedGroup">   <xs:complexContent>     <xs:restriction base="xs:realGroup">       <xs:sequence>         <xs:element ref="xs:annotation" minOccurs="0"/>         <xs:choice>           <xs:element name="all">             <xs:complexType>               <xs:complexContent>                 <xs:restriction base="xs:all">                   <xs:group ref="xs:allModel"/>                   <xs:attribute name="minOccurs" use="prohibited"/>                   <xs:attribute name="maxOccurs" use="prohibited"/>                   <xs:anyAttribute namespace="##other" processContents="lax"/>                 </xs:restriction>               </xs:complexContent>             </xs:complexType>           </xs:element>           <xs:element name="choice" type="xs:simpleExplicitGroup"/>           <xs:element name="sequence" type="xs:simpleExplicitGroup"/>         </xs:choice>       </xs:sequence>       <xs:attribute name="name" type="xs:NCName" use="required"/>       <xs:attribute name="ref" use="prohibited"/>       <xs:attribute name="minOccurs" use="prohibited"/>       <xs:attribute name="maxOccurs" use="prohibited"/>       <xs:anyAttribute namespace="##other" processContents="lax"/>     </xs:restriction>   </xs:complexContent> </xs:complexType>

attribute namedGroup/@name

type	xs:NCName
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:NCName" use="required"/>

attribute namedGroup/@ref

properties	isRef  0 use  prohibited
source	<xs:attribute name="ref" use="prohibited"/>

attribute namedGroup/@minOccurs

properties	isRef  0 use  prohibited
source	<xs:attribute name="minOccurs" use="prohibited"/>

attribute namedGroup/@maxOccurs

properties	isRef  0 use  prohibited
source	<xs:attribute name="maxOccurs" use="prohibited"/>

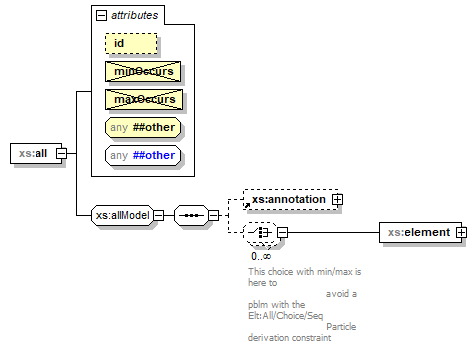

element namedGroup/all

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	restriction of xs:all
properties	isRef  0 content  complex
children	xs:annotation xs:element
used by	complexType  realGroup groups  particle typeDefParticle
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          minOccurs prohibited         maxOccurs prohibited
source	<xs:element name="all">   <xs:complexType>     <xs:complexContent>       <xs:restriction base="xs:all">         <xs:group ref="xs:allModel"/>         <xs:attribute name="minOccurs" use="prohibited"/>         <xs:attribute name="maxOccurs" use="prohibited"/>         <xs:anyAttribute namespace="##other" processContents="lax"/>       </xs:restriction>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute namedGroup/all/@minOccurs

properties	isRef  0 use  prohibited
source	<xs:attribute name="minOccurs" use="prohibited"/>

attribute namedGroup/all/@maxOccurs

properties	isRef  0 use  prohibited
source	<xs:attribute name="maxOccurs" use="prohibited"/>

element namedGroup/choice

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:simpleExplicitGroup
properties	isRef  0 content  complex
children	xs:annotation xs:element xs:group xs:choice xs:sequence xs:any
used by	complexType  realGroup groups  nestedParticle particle typeDefParticle
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID
source	<xs:element name="choice" type="xs:simpleExplicitGroup"/>

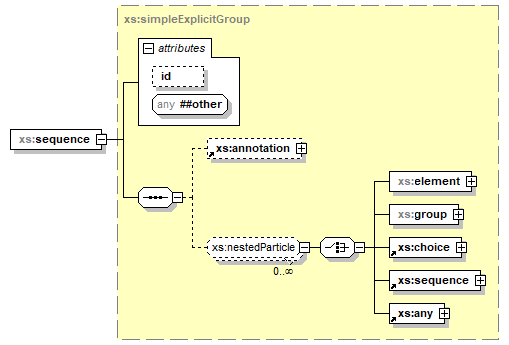

element namedGroup/sequence

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:simpleExplicitGroup
properties	isRef  0 content  complex
children	xs:annotation xs:element xs:group xs:choice xs:sequence xs:any
used by	complexType  realGroup groups  nestedParticle particle typeDefParticle
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID
source	<xs:element name="sequence" type="xs:simpleExplicitGroup"/>
