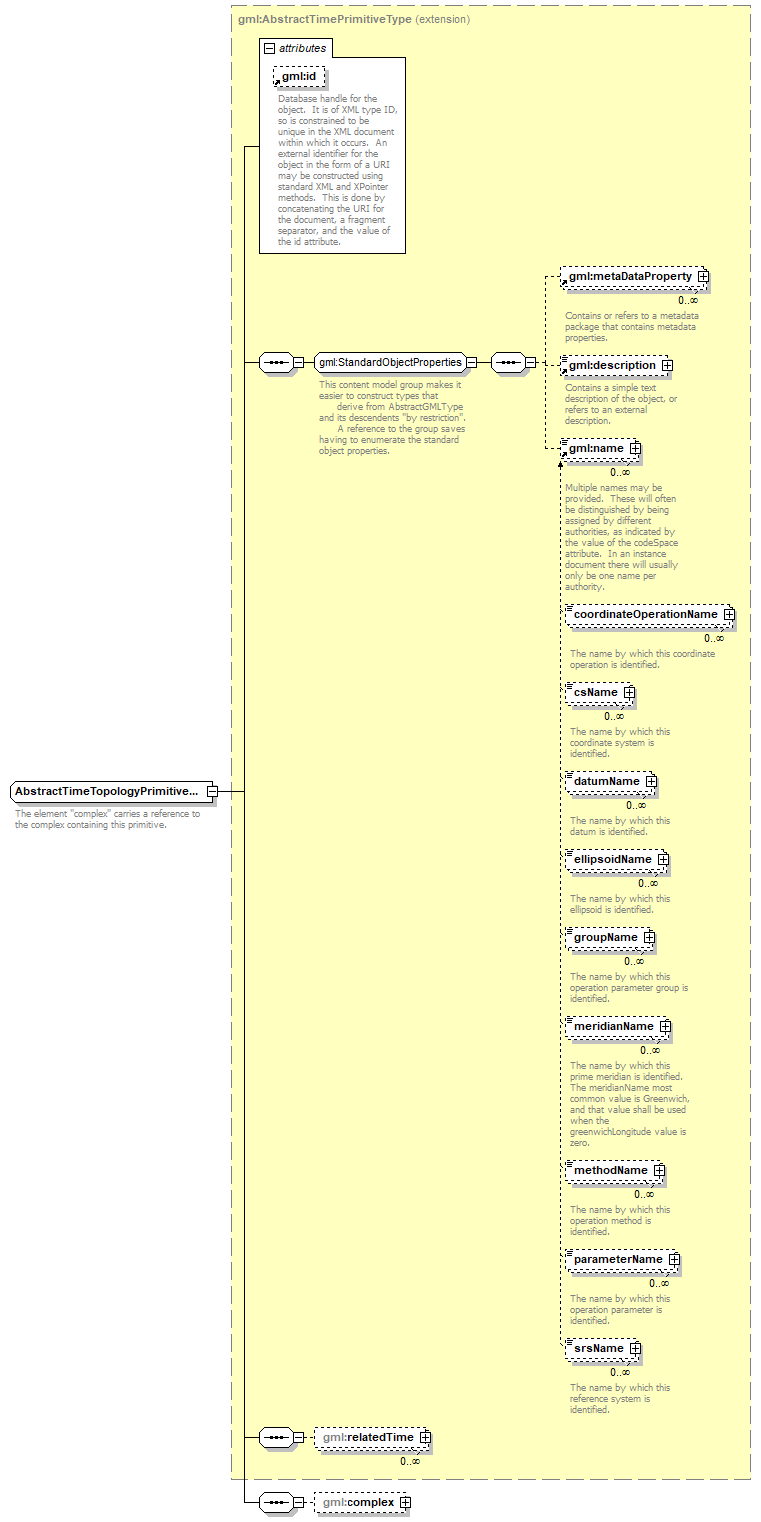

complexType AbstractTimeTopologyPrimitiveType

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractTimePrimitiveType
properties	base  gml:AbstractTimePrimitiveType abstract  true
children	gml:metaDataProperty gml:description gml:name gml:relatedTime gml:complex
used by	element  _TimeTopologyPrimitive complexTypes  TimeEdgeType TimeNodeType
attributes	Name   Type   Use   Default   Fixed   annotation id optional         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation The element "complex" carries a reference to the complex containing this primitive.
source	<xs:complexType name="AbstractTimeTopologyPrimitiveType" abstract="true">   <xs:annotation>     <xs:documentation xml:lang="en">The element "complex" carries a reference to the complex containing this primitive.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractTimePrimitiveType">       <xs:sequence>         <xs:element name="complex" type="gml:ReferenceType" minOccurs="0"/>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

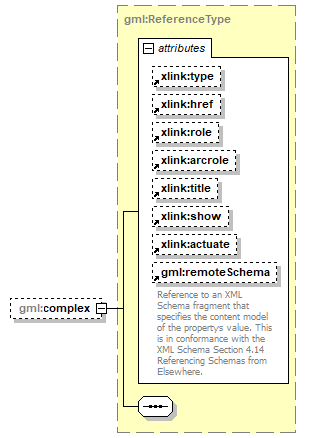

element AbstractTimeTopologyPrimitiveType/complex

diagram
namespace	http://www.opengis.net/gml
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          remoteSchema optional         documentation Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
source	<xs:element name="complex" type="gml:ReferenceType" minOccurs="0"/>
