complexType AffinePlacementType

diagram
namespace	http://www.opengis.net/gml
children	gml:location gml:refDirection gml:inDimension gml:outDimension
used by	element  AffinePlacement

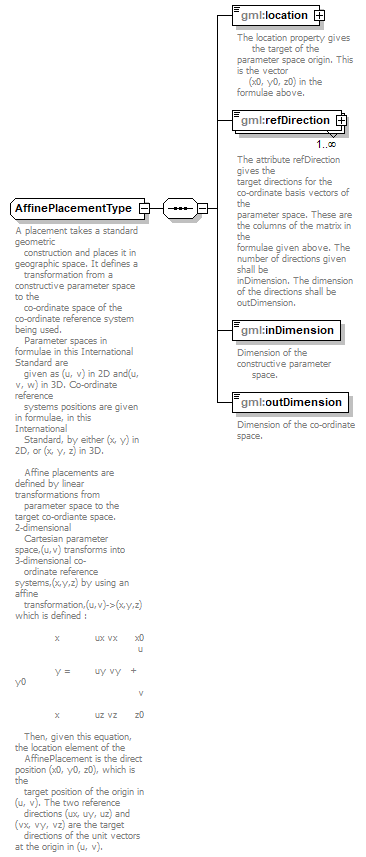

annotation	documentation A placement takes a standard geometric    construction and places it in geographic space. It defines a    transformation from a constructive parameter space to the    co-ordinate space of the co-ordinate reference system being used.     Parameter spaces in formulae in this International Standard are    given as (u, v) in 2D and(u, v, w) in 3D. Co-ordinate reference    systems positions are given in formulae, in this International    Standard, by either (x, y) in 2D, or (x, y, z) in 3D.    Affine placements are defined by linear transformations from    parameter space to the target co-ordiante space. 2-dimensional    Cartesian parameter space,(u,v) transforms into 3-dimensional co-    ordinate reference systems,(x,y,z) by using an affine    transformation,(u,v)->(x,y,z) which is defined : x ux vx  x0 u   y = uy vy   + y0 v x uz vz z0    Then, given this equation, the location element of the    AffinePlacement is the direct position (x0, y0, z0), which is the    target position of the origin in (u, v). The two reference    directions (ux, uy, uz) and (vx, vy, vz) are the target        directions of the unit vectors at the origin in (u, v).
source	<xs:complexType name="AffinePlacementType">   <xs:annotation>     <xs:documentation>A placement takes a standard geometric    construction and places it in geographic space. It defines a    transformation from a constructive parameter space to the    co-ordinate space of the co-ordinate reference system being used.     Parameter spaces in formulae in this International Standard are    given as (u, v) in 2D and(u, v, w) in 3D. Co-ordinate reference    systems positions are given in formulae, in this International    Standard, by either (x, y) in 2D, or (x, y, z) in 3D.    Affine placements are defined by linear transformations from    parameter space to the target co-ordiante space. 2-dimensional    Cartesian parameter space,(u,v) transforms into 3-dimensional co-    ordinate reference systems,(x,y,z) by using an affine    transformation,(u,v)->(x,y,z) which is defined : x ux vx  x0 u   y = uy vy   + y0 v x uz vz z0    Then, given this equation, the location element of the    AffinePlacement is the direct position (x0, y0, z0), which is the    target position of the origin in (u, v). The two reference    directions (ux, uy, uz) and (vx, vy, vz) are the target        directions of the unit vectors at the origin in (u, v).</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="location" type="gml:DirectPositionType">       <xs:annotation>         <xs:documentation>The location property gives      the target of the parameter space origin. This is the vector      (x0, y0, z0) in the formulae above.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="refDirection" type="gml:VectorType" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>The attribute refDirection gives the    target directions for the co-ordinate basis vectors of the  parameter space. These are the columns of the matrix in the formulae given above. The number of directions given shall be inDimension. The dimension of the directions shall be outDimension.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="inDimension" type="positiveInteger">       <xs:annotation>         <xs:documentation>Dimension of the constructive parameter      space.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="outDimension" type="positiveInteger">       <xs:annotation>         <xs:documentation>Dimension of the co-ordinate space.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AffinePlacementType/location

diagram
namespace	http://www.opengis.net/gml
type	gml:DirectPositionType
properties	isRef  0 content  complex
used by	complexTypes  AbstractFeatureType BoundedFeatureType MovingObjectStatusType

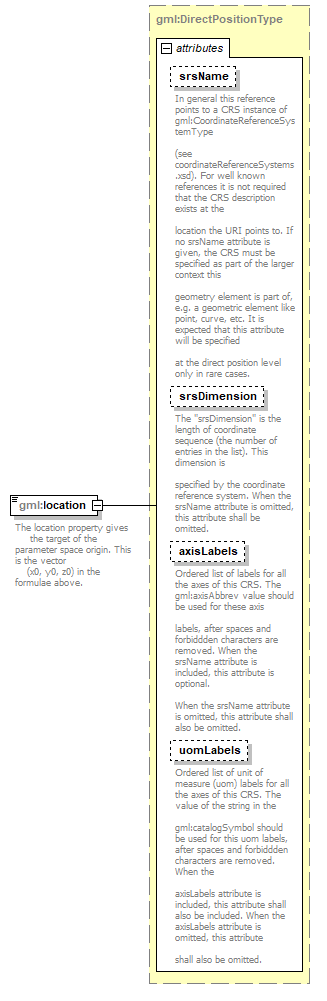

attributes	Name   Type   Use   Default   Fixed   annotation srsName xs:anyURI optional         documentation In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType (see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified at the direct position level only in rare cases. srsDimension xs:positiveInteger optional         documentation The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted. axisLabels gml:NCNameList optional         documentation Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional. When the srsName attribute is omitted, this attribute shall also be omitted. uomLabels gml:NCNameList optional         documentation Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute shall also be omitted.
annotation	documentation The location property gives      the target of the parameter space origin. This is the vector      (x0, y0, z0) in the formulae above.
source	<xs:element name="location" type="gml:DirectPositionType">   <xs:annotation>     <xs:documentation>The location property gives      the target of the parameter space origin. This is the vector      (x0, y0, z0) in the formulae above.</xs:documentation>   </xs:annotation> </xs:element>

element AffinePlacementType/refDirection

diagram
namespace	http://www.opengis.net/gml
type	gml:VectorType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex

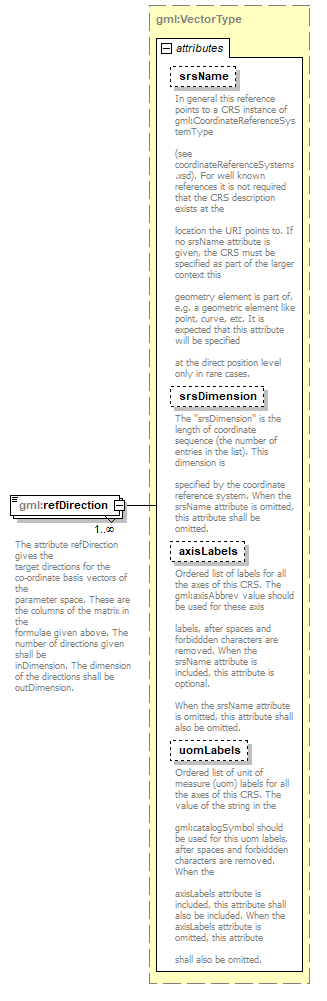

attributes	Name   Type   Use   Default   Fixed   annotation srsName xs:anyURI optional         documentation In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType (see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified at the direct position level only in rare cases. srsDimension xs:positiveInteger optional         documentation The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted. axisLabels gml:NCNameList optional         documentation Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional. When the srsName attribute is omitted, this attribute shall also be omitted. uomLabels gml:NCNameList optional         documentation Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute shall also be omitted.
annotation	documentation The attribute refDirection gives the    target directions for the co-ordinate basis vectors of the  parameter space. These are the columns of the matrix in the formulae given above. The number of directions given shall be inDimension. The dimension of the directions shall be outDimension.
source	<xs:element name="refDirection" type="gml:VectorType" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>The attribute refDirection gives the    target directions for the co-ordinate basis vectors of the  parameter space. These are the columns of the matrix in the formulae given above. The number of directions given shall be inDimension. The dimension of the directions shall be outDimension.</xs:documentation>   </xs:annotation> </xs:element>

element AffinePlacementType/inDimension

diagram
namespace	http://www.opengis.net/gml
type	xs:positiveInteger
properties	isRef  0 content  simple
annotation	documentation Dimension of the constructive parameter      space.
source	<xs:element name="inDimension" type="positiveInteger">   <xs:annotation>     <xs:documentation>Dimension of the constructive parameter      space.</xs:documentation>   </xs:annotation> </xs:element>

element AffinePlacementType/outDimension

diagram
namespace	http://www.opengis.net/gml
type	xs:positiveInteger
properties	isRef  0 content  simple
annotation	documentation Dimension of the co-ordinate space.
source	<xs:element name="outDimension" type="positiveInteger">   <xs:annotation>     <xs:documentation>Dimension of the co-ordinate space.</xs:documentation>   </xs:annotation> </xs:element>
