complexType DirectedTopoSolidPropertyType

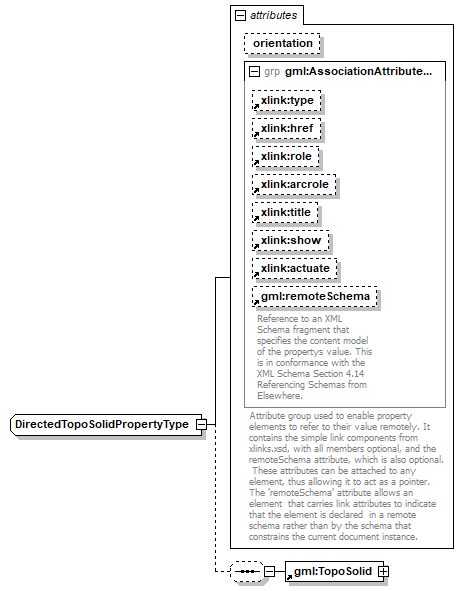

diagram
namespace	http://www.opengis.net/gml
children	gml:TopoSolid
used by	element  directedTopoSolid
attributes	Name   Type   Use   Default   Fixed   annotation orientation gml:SignType    +      type       simple   href          role          arcrole          title          show          actuate          remoteSchema optional         documentation Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
source	<xs:complexType name="DirectedTopoSolidPropertyType">   <xs:sequence minOccurs="0">     <xs:element ref="gml:TopoSolid"/>   </xs:sequence>   <xs:attribute name="orientation" type="gml:SignType" default="+"/>   <xs:attributeGroup ref="gml:AssociationAttributeGroup"/> </xs:complexType>

attribute DirectedTopoSolidPropertyType/@orientation

type	gml:SignType
properties	isRef  0 default  +
facets	Kind  Value  annotation  enumeration  -  enumeration  +
source	<xs:attribute name="orientation" type="gml:SignType" default="+"/>
