complexType FormulaType

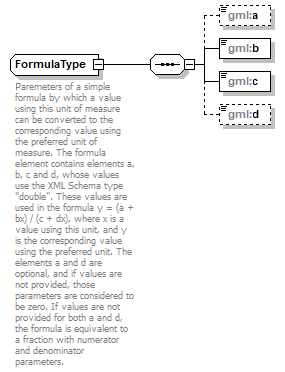

diagram
namespace	http://www.opengis.net/gml
children	gml:a gml:b gml:c gml:d
used by	element  ConversionToPreferredUnitType/formula
annotation	documentation Paremeters of a simple formula by which a value using this unit of measure can be converted to the corresponding value using the preferred unit of measure. The formula element contains elements a, b, c and d, whose values use the XML Schema type "double". These values are used in the formula y = (a + bx) / (c + dx), where x is a value using this unit, and y is the corresponding value using the preferred unit. The elements a and d are optional, and if values are not provided, those parameters are considered to be zero. If values are not provided for both a and d, the formula is equivalent to a fraction with numerator and denominator parameters.
source	<xs:complexType name="FormulaType">   <xs:annotation>     <xs:documentation>Paremeters of a simple formula by which a value using this unit of measure can be converted to the corresponding value using the preferred unit of measure. The formula element contains elements a, b, c and d, whose values use the XML Schema type "double". These values are used in the formula y = (a + bx) / (c + dx), where x is a value using this unit, and y is the corresponding value using the preferred unit. The elements a and d are optional, and if values are not provided, those parameters are considered to be zero. If values are not provided for both a and d, the formula is equivalent to a fraction with numerator and denominator parameters.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="a" type="double" minOccurs="0"/>     <xs:element name="b" type="double"/>     <xs:element name="c" type="double"/>     <xs:element name="d" type="double" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element FormulaType/a

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="a" type="double" minOccurs="0"/>

element FormulaType/b

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 content  simple
source	<xs:element name="b" type="double"/>

element FormulaType/c

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 content  simple
source	<xs:element name="c" type="double"/>

element FormulaType/d

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="d" type="double" minOccurs="0"/>
