complexType KnotType

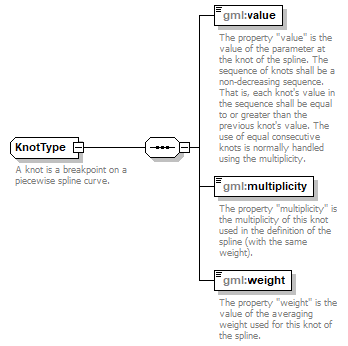

diagram
namespace	http://www.opengis.net/gml
children	gml:value gml:multiplicity gml:weight
used by	element  KnotPropertyType/Knot
annotation	documentation A knot is a breakpoint on a piecewise spline curve.
source	<xs:complexType name="KnotType">   <xs:annotation>     <xs:documentation>A knot is a breakpoint on a piecewise spline curve.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="value" type="double">       <xs:annotation>         <xs:documentation>The property "value" is the value of the parameter at the knot of the spline. The sequence of knots shall be a non-decreasing sequence. That is, each knot's value in the sequence shall be equal to or greater than the previous knot's value. The use of equal consecutive knots is normally handled using the multiplicity.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="multiplicity" type="nonNegativeInteger">       <xs:annotation>         <xs:documentation>The property "multiplicity" is the multiplicity of this knot used in the definition of the spline (with the same weight).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="weight" type="double">       <xs:annotation>         <xs:documentation>The property "weight" is the value of the averaging weight used for this knot of the spline.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element KnotType/value

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 content  simple
used by	complexType  ParameterValueType
annotation	documentation The property "value" is the value of the parameter at the knot of the spline. The sequence of knots shall be a non-decreasing sequence. That is, each knot's value in the sequence shall be equal to or greater than the previous knot's value. The use of equal consecutive knots is normally handled using the multiplicity.
source	<xs:element name="value" type="double">   <xs:annotation>     <xs:documentation>The property "value" is the value of the parameter at the knot of the spline. The sequence of knots shall be a non-decreasing sequence. That is, each knot's value in the sequence shall be equal to or greater than the previous knot's value. The use of equal consecutive knots is normally handled using the multiplicity.</xs:documentation>   </xs:annotation> </xs:element>

element KnotType/multiplicity

diagram
namespace	http://www.opengis.net/gml
type	xs:nonNegativeInteger
properties	isRef  0 content  simple
annotation	documentation The property "multiplicity" is the multiplicity of this knot used in the definition of the spline (with the same weight).
source	<xs:element name="multiplicity" type="nonNegativeInteger">   <xs:annotation>     <xs:documentation>The property "multiplicity" is the multiplicity of this knot used in the definition of the spline (with the same weight).</xs:documentation>   </xs:annotation> </xs:element>

element KnotType/weight

diagram
namespace	http://www.opengis.net/gml
type	xs:double
properties	isRef  0 content  simple
annotation	documentation The property "weight" is the value of the averaging weight used for this knot of the spline.
source	<xs:element name="weight" type="double">   <xs:annotation>     <xs:documentation>The property "weight" is the value of the averaging weight used for this knot of the spline.</xs:documentation>   </xs:annotation> </xs:element>
