complexType OrientableCurveType

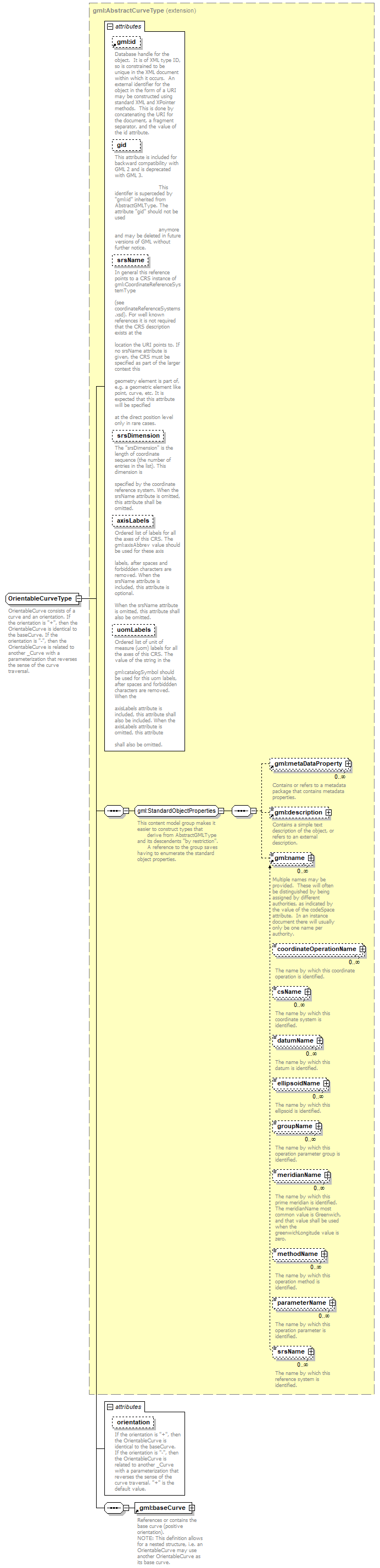

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractCurveType
properties	base  gml:AbstractCurveType
children	gml:metaDataProperty gml:description gml:name gml:baseCurve
used by	element  OrientableCurve
attributes	Name   Type   Use   Default   Fixed   annotation id optional         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute. gid xs:string optional         documentation This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3. This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used anymore and may be deleted in future versions of GML without further notice. srsName xs:anyURI optional         documentation In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType (see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified at the direct position level only in rare cases. srsDimension xs:positiveInteger optional         documentation The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted. axisLabels gml:NCNameList optional         documentation Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional. When the srsName attribute is omitted, this attribute shall also be omitted. uomLabels gml:NCNameList optional         documentation Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute shall also be omitted. orientation gml:SignType    +      documentation If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another _Curve with a parameterization that reverses the sense of the curve traversal. "+" is the default value.
annotation	documentation OrientableCurve consists of a curve and an orientation. If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another _Curve with a parameterization that reverses the sense of the curve traversal.
source	<xs:complexType name="OrientableCurveType">   <xs:annotation>     <xs:documentation>OrientableCurve consists of a curve and an orientation. If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another _Curve with a parameterization that reverses the sense of the curve traversal.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractCurveType">       <xs:sequence>         <xs:element ref="gml:baseCurve">           <xs:annotation>             <xs:documentation>References or contains the base curve (positive orientation). NOTE: This definition allows for a nested structure, i.e. an OrientableCurve may use another OrientableCurve as its base curve.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="orientation" type="gml:SignType" default="+">         <xs:annotation>           <xs:documentation>If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another _Curve with a parameterization that reverses the sense of the curve traversal. "+" is the default value.</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute OrientableCurveType/@orientation

type	gml:SignType
properties	isRef  0 default  +
facets	Kind  Value  annotation  enumeration  -  enumeration  +
annotation	documentation If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another _Curve with a parameterization that reverses the sense of the curve traversal. "+" is the default value.
source	<xs:attribute name="orientation" type="gml:SignType" default="+">   <xs:annotation>     <xs:documentation>If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another _Curve with a parameterization that reverses the sense of the curve traversal. "+" is the default value.</xs:documentation>   </xs:annotation> </xs:attribute>
