complexType SolidType

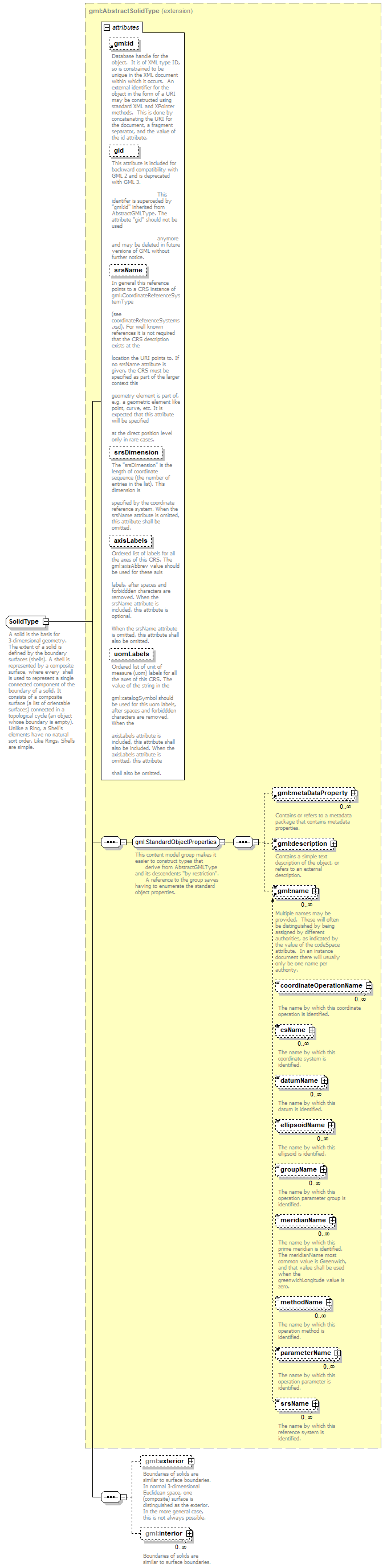

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractSolidType
properties	base  gml:AbstractSolidType
children	gml:metaDataProperty gml:description gml:name gml:exterior gml:interior
used by	element  Solid
attributes	Name   Type   Use   Default   Fixed   annotation id optional         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute. gid xs:string optional         documentation This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3. This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used anymore and may be deleted in future versions of GML without further notice. srsName xs:anyURI optional         documentation In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType (see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified at the direct position level only in rare cases. srsDimension xs:positiveInteger optional         documentation The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted. axisLabels gml:NCNameList optional         documentation Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional. When the srsName attribute is omitted, this attribute shall also be omitted. uomLabels gml:NCNameList optional         documentation Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute shall also be omitted.
annotation	documentation A solid is the basis for 3-dimensional geometry. The extent of a solid is defined by the boundary surfaces (shells). A shell is represented by a composite surface, where every  shell is used to represent a single connected component of the boundary of a solid. It consists of a composite surface (a list of orientable surfaces) connected in a topological cycle (an object whose boundary is empty). Unlike a Ring, a Shell's elements have no natural sort order. Like Rings, Shells are simple.
source	<xs:complexType name="SolidType">   <xs:annotation>     <xs:documentation>A solid is the basis for 3-dimensional geometry. The extent of a solid is defined by the boundary surfaces (shells). A shell is represented by a composite surface, where every  shell is used to represent a single connected component of the boundary of a solid. It consists of a composite surface (a list of orientable surfaces) connected in a topological cycle (an object whose boundary is empty). Unlike a Ring, a Shell's elements have no natural sort order. Like Rings, Shells are simple.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractSolidType">       <xs:sequence>         <xs:element name="exterior" type="gml:SurfacePropertyType" minOccurs="0">           <xs:annotation>             <xs:appinfo>               <sch:pattern name="Check either href or content not both">                 <sch:rule context="gml:exterior">                   <sch:extends rule="hrefOrContent"/>                 </sch:rule>               </sch:pattern>             </xs:appinfo>             <xs:documentation>Boundaries of solids are similar to surface boundaries. In normal 3-dimensional Euclidean space, one (composite) surface is distinguished as the exterior. In the more general case, this is not always possible.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="interior" type="gml:SurfacePropertyType" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:appinfo>               <sch:pattern name="Check either href or content not both">                 <sch:rule context="gml:interior">                   <sch:extends rule="hrefOrContent"/>                 </sch:rule>               </sch:pattern>             </xs:appinfo>             <xs:documentation>Boundaries of solids are similar to surface boundaries.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element SolidType/exterior

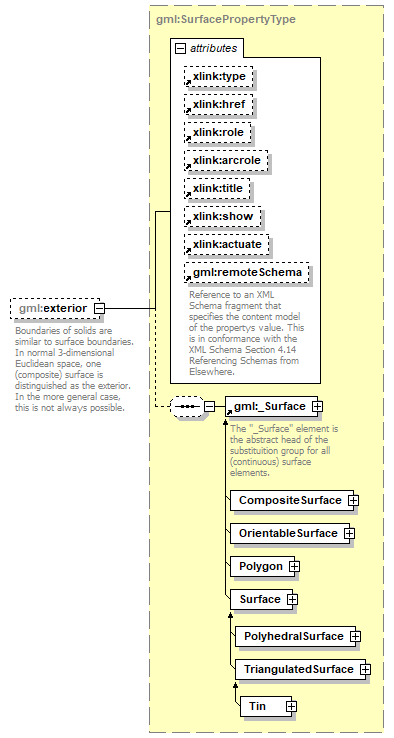

diagram
namespace	http://www.opengis.net/gml
type	gml:SurfacePropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:_Surface
used by	complexTypes  PolygonPatchType PolygonType RectangleType TriangleType
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          remoteSchema optional         documentation Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
annotation	appinfo <sch:pattern name="Check either href or content not both"> <sch:rule context="gml:exterior"> <sch:extends rule="hrefOrContent"/> </sch:rule> </sch:pattern> documentation Boundaries of solids are similar to surface boundaries. In normal 3-dimensional Euclidean space, one (composite) surface is distinguished as the exterior. In the more general case, this is not always possible.
source	<xs:element name="exterior" type="gml:SurfacePropertyType" minOccurs="0">   <xs:annotation>     <xs:appinfo>       <sch:pattern name="Check either href or content not both">         <sch:rule context="gml:exterior">           <sch:extends rule="hrefOrContent"/>         </sch:rule>       </sch:pattern>     </xs:appinfo>     <xs:documentation>Boundaries of solids are similar to surface boundaries. In normal 3-dimensional Euclidean space, one (composite) surface is distinguished as the exterior. In the more general case, this is not always possible.</xs:documentation>   </xs:annotation> </xs:element>

element SolidType/interior

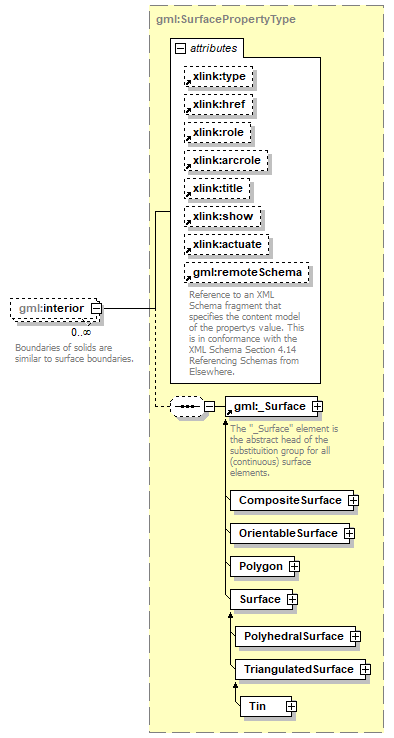

diagram
namespace	http://www.opengis.net/gml
type	gml:SurfacePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gml:_Surface
used by	complexTypes  PolygonPatchType PolygonType
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          remoteSchema optional         documentation Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
annotation	appinfo <sch:pattern name="Check either href or content not both"> <sch:rule context="gml:interior"> <sch:extends rule="hrefOrContent"/> </sch:rule> </sch:pattern> documentation Boundaries of solids are similar to surface boundaries.
source	<xs:element name="interior" type="gml:SurfacePropertyType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:appinfo>       <sch:pattern name="Check either href or content not both">         <sch:rule context="gml:interior">           <sch:extends rule="hrefOrContent"/>         </sch:rule>       </sch:pattern>     </xs:appinfo>     <xs:documentation>Boundaries of solids are similar to surface boundaries.</xs:documentation>   </xs:annotation> </xs:element>
