complexType SymbolType

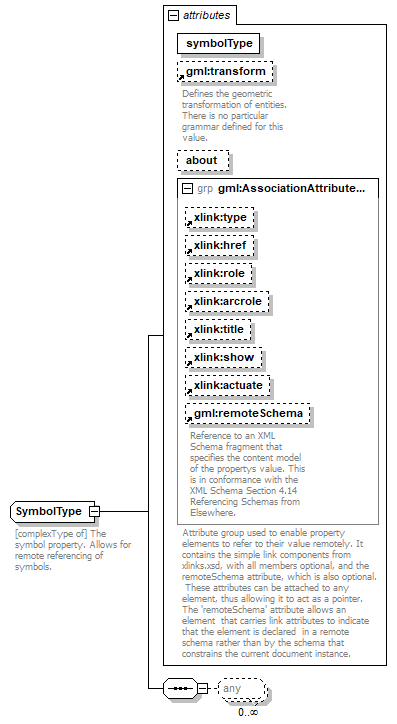

diagram index_p1069.png
namespace http://www.opengis.net/gml
used by
element symbol
attributes
Name  Type  Use  Default  Fixed  annotation
symbolTypegml:SymbolTypeEnumerationrequired
transformoptional
documentation
Defines the geometric transformation of entities. There is no particular grammar defined for this value.
aboutxs:anyURIoptional
type    simple
href
role
arcrole
title
show
actuate
remoteSchemaoptional
documentation
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
annotation
documentation
[complexType of] The symbol property. Allows for remote referencing of symbols.
source <xs:complexType name="SymbolType">
  <xs:annotation>
    <xs:documentation>[complexType of] The symbol property. Allows for remote referencing of symbols.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:any processContents="skip" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="symbolType" type="gml:SymbolTypeEnumeration" use="required"/>
  <xs:attribute ref="gml:transform" use="optional"/>
  <xs:attribute name="about" type="anyURI" use="optional"/>
  <xs:attributeGroup ref="gml:AssociationAttributeGroup"/>
</xs:complexType>

attribute SymbolType/@symbolType
type gml:SymbolTypeEnumeration
properties
isRef 0
use required
facets
Kind Value annotation
enumeration svg
enumeration xpath
enumeration other
source <xs:attribute name="symbolType" type="gml:SymbolTypeEnumeration" use="required"/>

attribute SymbolType/@about
type xs:anyURI
properties
isRef 0
use optional
source <xs:attribute name="about" type="anyURI" use="optional"/>
