complexType TimeOrdinalReferenceSystemType

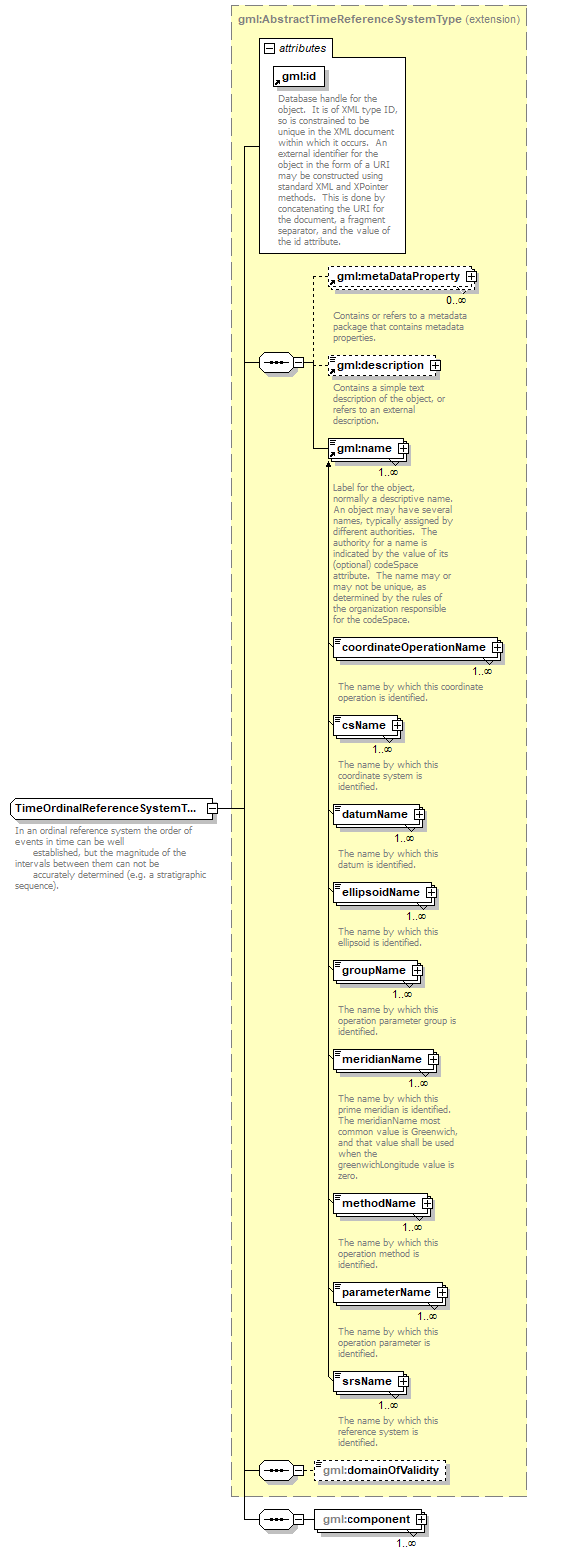

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractTimeReferenceSystemType
properties	base  gml:AbstractTimeReferenceSystemType
children	gml:metaDataProperty gml:description gml:name gml:domainOfValidity gml:component
used by	element  TimeOrdinalReferenceSystem
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation In an ordinal reference system the order of events in time can be well       established, but the magnitude of the intervals between them can not be       accurately determined (e.g. a stratigraphic sequence).
source	<xs:complexType name="TimeOrdinalReferenceSystemType">   <xs:annotation>     <xs:documentation xml:lang="en">In an ordinal reference system the order of events in time can be well       established, but the magnitude of the intervals between them can not be       accurately determined (e.g. a stratigraphic sequence).</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractTimeReferenceSystemType">       <xs:sequence>         <xs:element name="component" type="gml:TimeOrdinalEraPropertyType" maxOccurs="unbounded"/>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element TimeOrdinalReferenceSystemType/component

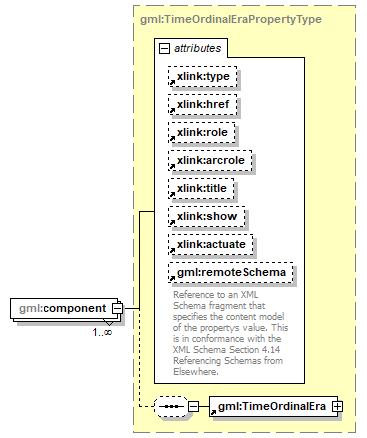

diagram
namespace	http://www.opengis.net/gml
type	gml:TimeOrdinalEraPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	gml:TimeOrdinalEra
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          remoteSchema optional         documentation Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
source	<xs:element name="component" type="gml:TimeOrdinalEraPropertyType" maxOccurs="unbounded"/>
