complexType TinType

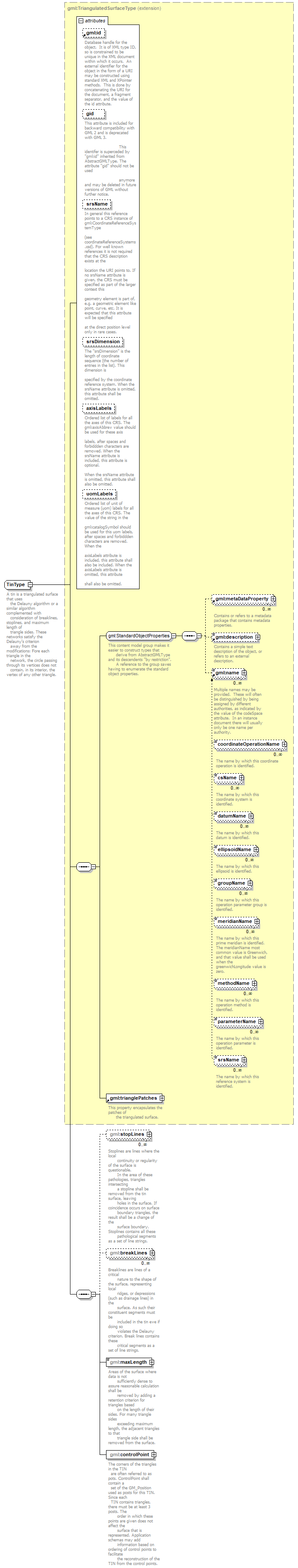

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:TriangulatedSurfaceType
properties	base  gml:TriangulatedSurfaceType
children	gml:metaDataProperty gml:description gml:name gml:trianglePatches gml:stopLines gml:breakLines gml:maxLength gml:controlPoint
used by	element  Tin
attributes	Name   Type   Use   Default   Fixed   annotation id optional         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute. gid xs:string optional         documentation This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3. This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used anymore and may be deleted in future versions of GML without further notice. srsName xs:anyURI optional         documentation In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType (see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified at the direct position level only in rare cases. srsDimension xs:positiveInteger optional         documentation The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted. axisLabels gml:NCNameList optional         documentation Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional. When the srsName attribute is omitted, this attribute shall also be omitted. uomLabels gml:NCNameList optional         documentation Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute shall also be omitted.
annotation	documentation A tin is a triangulated surface that uses    the Delauny algorithm or a similar algorithm complemented with    consideration of breaklines, stoplines, and maximum length of    triangle sides. These networks satisfy the Delauny's criterion    away from the modifications: Fore each triangle in the    network, the circle passing through its vertices does not    contain, in its interior, the vertex of any other triangle.
source	<xs:complexType name="TinType">   <xs:annotation>     <xs:documentation>A tin is a triangulated surface that uses    the Delauny algorithm or a similar algorithm complemented with    consideration of breaklines, stoplines, and maximum length of    triangle sides. These networks satisfy the Delauny's criterion    away from the modifications: Fore each triangle in the    network, the circle passing through its vertices does not    contain, in its interior, the vertex of any other triangle.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:TriangulatedSurfaceType">       <xs:sequence>         <xs:element name="stopLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Stoplines are lines where the local        continuity or regularity of the surface is questionable.        In the area of these pathologies, triangles intersecting        a stopline shall be removed from the tin surface, leaving        holes in the surface. If coincidence occurs on surface        boundary triangles, the result shall be a change of the        surface boundary. Stoplines contains all these        pathological segments as a set of line strings.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="breakLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Breaklines are lines of a critical        nature to the shape of the surface, representing local        ridges, or depressions (such as drainage lines) in the        surface. As such their constituent segments must be        included in the tin eve if doing so        violates the Delauny criterion. Break lines contains these        critical segments as a set of line strings.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="maxLength" type="gml:LengthType">           <xs:annotation>             <xs:documentation>Areas of the surface where data is not        sufficiently dense to assure reasonable calculation shall be           removed by adding a retention criterion for triangles based        on the length of their sides. For many triangle sides         exceeding maximum length, the adjacent triangles to that        triangle side shall be removed from the surface.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="controlPoint">           <xs:annotation>             <xs:documentation>The corners of the triangles in the TIN   are often referred to as pots. ControlPoint shall contain a   set of the GM_Position used as posts for this TIN. Since each    TIN contains triangles, there must be at least 3 posts. The        order in which these points are given does not affect the        surface that is represented. Application schemas may add        information based on ordering of control points to facilitate        the reconstruction of the TIN from the control points.</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:choice>               <xs:element ref="gml:posList"/>               <xs:group ref="gml:geometricPositionGroup" minOccurs="3" maxOccurs="unbounded"/>             </xs:choice>           </xs:complexType>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element TinType/stopLines

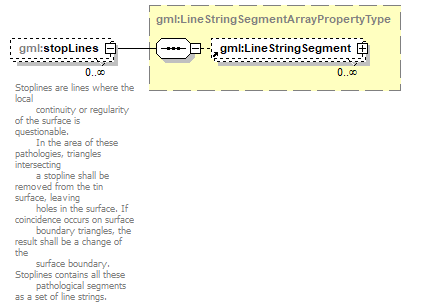

diagram
namespace	http://www.opengis.net/gml
type	gml:LineStringSegmentArrayPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gml:LineStringSegment
annotation	documentation Stoplines are lines where the local        continuity or regularity of the surface is questionable.        In the area of these pathologies, triangles intersecting        a stopline shall be removed from the tin surface, leaving        holes in the surface. If coincidence occurs on surface        boundary triangles, the result shall be a change of the        surface boundary. Stoplines contains all these        pathological segments as a set of line strings.
source	<xs:element name="stopLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Stoplines are lines where the local        continuity or regularity of the surface is questionable.        In the area of these pathologies, triangles intersecting        a stopline shall be removed from the tin surface, leaving        holes in the surface. If coincidence occurs on surface        boundary triangles, the result shall be a change of the        surface boundary. Stoplines contains all these        pathological segments as a set of line strings.</xs:documentation>   </xs:annotation> </xs:element>

element TinType/breakLines

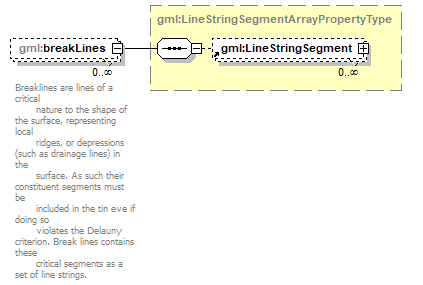

diagram
namespace	http://www.opengis.net/gml
type	gml:LineStringSegmentArrayPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gml:LineStringSegment
annotation	documentation Breaklines are lines of a critical        nature to the shape of the surface, representing local        ridges, or depressions (such as drainage lines) in the        surface. As such their constituent segments must be        included in the tin eve if doing so        violates the Delauny criterion. Break lines contains these        critical segments as a set of line strings.
source	<xs:element name="breakLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Breaklines are lines of a critical        nature to the shape of the surface, representing local        ridges, or depressions (such as drainage lines) in the        surface. As such their constituent segments must be        included in the tin eve if doing so        violates the Delauny criterion. Break lines contains these        critical segments as a set of line strings.</xs:documentation>   </xs:annotation> </xs:element>

element TinType/maxLength

diagram
namespace	http://www.opengis.net/gml
type	gml:LengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom xs:anyURI required
annotation	documentation Areas of the surface where data is not        sufficiently dense to assure reasonable calculation shall be           removed by adding a retention criterion for triangles based        on the length of their sides. For many triangle sides         exceeding maximum length, the adjacent triangles to that        triangle side shall be removed from the surface.
source	<xs:element name="maxLength" type="gml:LengthType">   <xs:annotation>     <xs:documentation>Areas of the surface where data is not        sufficiently dense to assure reasonable calculation shall be           removed by adding a retention criterion for triangles based        on the length of their sides. For many triangle sides         exceeding maximum length, the adjacent triangles to that        triangle side shall be removed from the surface.</xs:documentation>   </xs:annotation> </xs:element>

element TinType/controlPoint

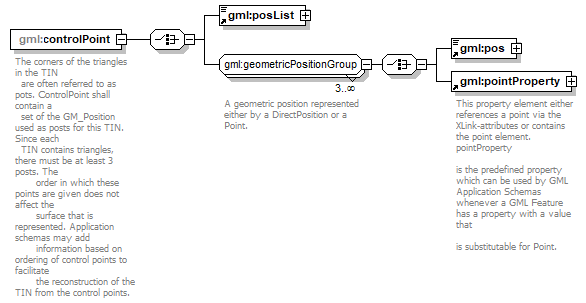

diagram
namespace	http://www.opengis.net/gml
properties	isRef  0 content  complex
children	gml:posList gml:pos gml:pointProperty
annotation	documentation The corners of the triangles in the TIN   are often referred to as pots. ControlPoint shall contain a   set of the GM_Position used as posts for this TIN. Since each    TIN contains triangles, there must be at least 3 posts. The        order in which these points are given does not affect the        surface that is represented. Application schemas may add        information based on ordering of control points to facilitate        the reconstruction of the TIN from the control points.
source	<xs:element name="controlPoint">   <xs:annotation>     <xs:documentation>The corners of the triangles in the TIN   are often referred to as pots. ControlPoint shall contain a   set of the GM_Position used as posts for this TIN. Since each    TIN contains triangles, there must be at least 3 posts. The        order in which these points are given does not affect the        surface that is represented. Application schemas may add        information based on ordering of control points to facilitate        the reconstruction of the TIN from the control points.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice>       <xs:element ref="gml:posList"/>       <xs:group ref="gml:geometricPositionGroup" minOccurs="3" maxOccurs="unbounded"/>     </xs:choice>   </xs:complexType> </xs:element>
