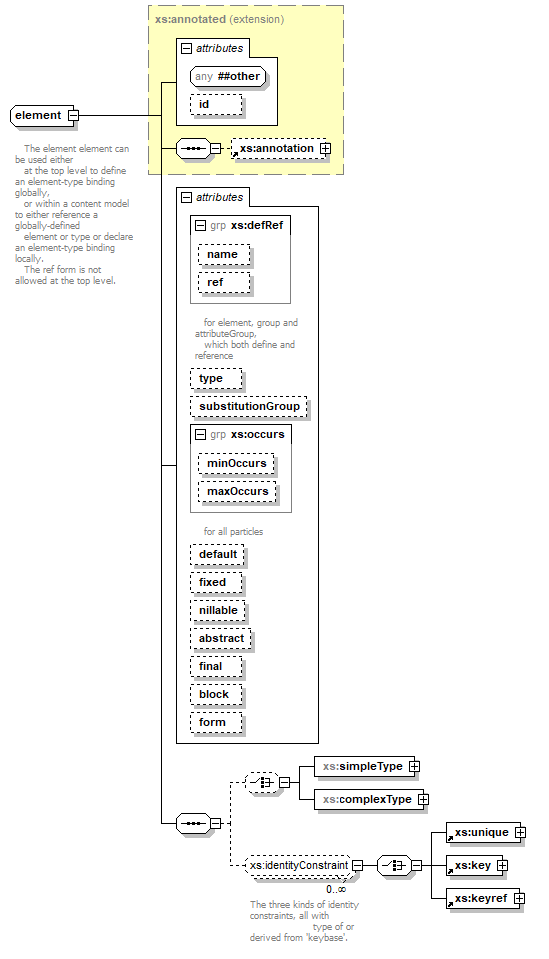

complexType element

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	extension of xs:annotated
properties	base  xs:annotated abstract  true
children	xs:annotation xs:simpleType xs:complexType xs:unique xs:key xs:keyref
used by	complexTypes  localElement topLevelElement
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName          ref xs:QName          type xs:QName          substitutionGroup xs:QName          minOccurs xs:nonNegativeInteger optional   1      maxOccurs xs:allNNI optional   1      default xs:string          fixed xs:string          nillable xs:boolean optional   false      abstract xs:boolean optional   false      final xs:derivationSet          block xs:blockSet          form xs:formChoice
annotation	documentation    The element element can be used either    at the top level to define an element-type binding globally,    or within a content model to either reference a globally-defined    element or type or declare an element-type binding locally.    The ref form is not allowed at the top level.
source	<xs:complexType name="element" abstract="true">   <xs:annotation>     <xs:documentation>    The element element can be used either    at the top level to define an element-type binding globally,    or within a content model to either reference a globally-defined    element or type or declare an element-type binding locally.    The ref form is not allowed at the top level.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="xs:annotated">       <xs:sequence>         <xs:choice minOccurs="0">           <xs:element name="simpleType" type="xs:localSimpleType"/>           <xs:element name="complexType" type="xs:localComplexType"/>         </xs:choice>         <xs:group ref="xs:identityConstraint" minOccurs="0" maxOccurs="unbounded"/>       </xs:sequence>       <xs:attributeGroup ref="xs:defRef"/>       <xs:attribute name="type" type="xs:QName"/>       <xs:attribute name="substitutionGroup" type="xs:QName"/>       <xs:attributeGroup ref="xs:occurs"/>       <xs:attribute name="default" type="xs:string"/>       <xs:attribute name="fixed" type="xs:string"/>       <xs:attribute name="nillable" type="xs:boolean" use="optional" default="false"/>       <xs:attribute name="abstract" type="xs:boolean" use="optional" default="false"/>       <xs:attribute name="final" type="xs:derivationSet"/>       <xs:attribute name="block" type="xs:blockSet"/>       <xs:attribute name="form" type="xs:formChoice"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute element/@type

type	xs:QName
properties	isRef  0
source	<xs:attribute name="type" type="xs:QName"/>

attribute element/@substitutionGroup

type	xs:QName
properties	isRef  0
source	<xs:attribute name="substitutionGroup" type="xs:QName"/>

attribute element/@default

type	xs:string
properties	isRef  0
source	<xs:attribute name="default" type="xs:string"/>

attribute element/@fixed

type	xs:string
properties	isRef  0
source	<xs:attribute name="fixed" type="xs:string"/>

attribute element/@nillable

type	xs:boolean
properties	isRef  0 default  false use  optional
source	<xs:attribute name="nillable" type="xs:boolean" use="optional" default="false"/>

attribute element/@abstract

type	xs:boolean
properties	isRef  0 default  false use  optional
source	<xs:attribute name="abstract" type="xs:boolean" use="optional" default="false"/>

attribute element/@final

type	xs:derivationSet
properties	isRef  0
source	<xs:attribute name="final" type="xs:derivationSet"/>

attribute element/@block

type	xs:blockSet
properties	isRef  0
source	<xs:attribute name="block" type="xs:blockSet"/>

attribute element/@form

type	xs:formChoice
properties	isRef  0
facets	Kind  Value  annotation  enumeration  qualified  enumeration  unqualified
source	<xs:attribute name="form" type="xs:formChoice"/>

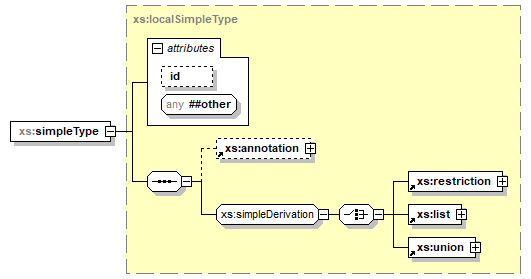

element element/simpleType

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localSimpleType
properties	isRef  0 content  complex
children	xs:annotation xs:restriction xs:list xs:union
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID
source	<xs:element name="simpleType" type="xs:localSimpleType"/>

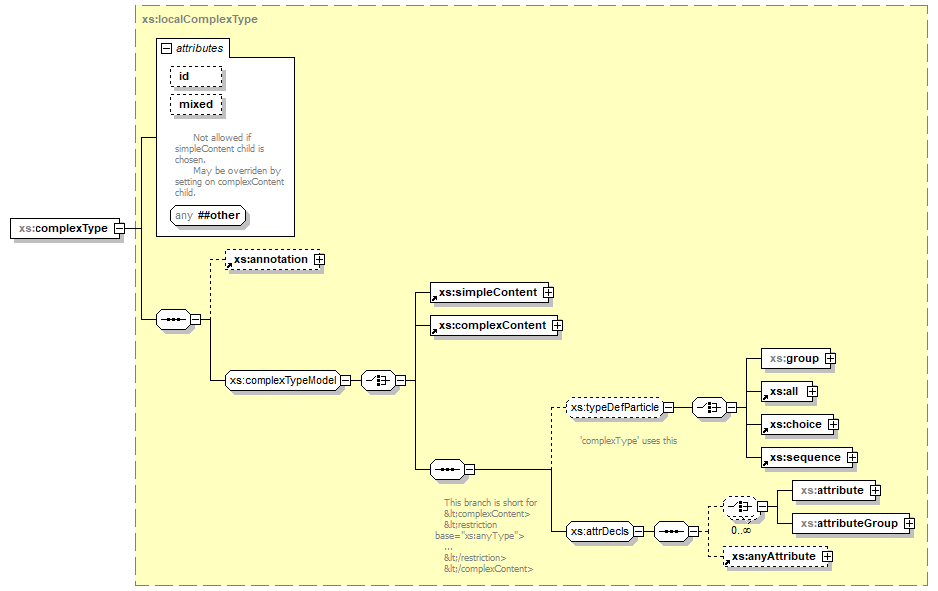

element element/complexType

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localComplexType
properties	isRef  0 content  complex
children	xs:annotation xs:simpleContent xs:complexContent xs:group xs:all xs:choice xs:sequence xs:attribute xs:attributeGroup xs:anyAttribute
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          mixed xs:boolean optional   false      documentation       Not allowed if simpleContent child is chosen.       May be overriden by setting on complexContent child.
source	<xs:element name="complexType" type="xs:localComplexType"/>
