group allModel

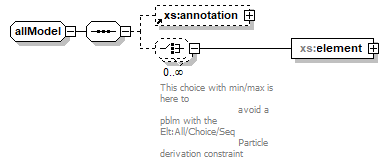

diagram
namespace	http://www.w3.org/2001/XMLSchema
children	xs:annotation xs:element
used by	element  namedGroup/all complexType  all
source	<xs:group name="allModel">   <xs:sequence>     <xs:element ref="xs:annotation" minOccurs="0"/>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>This choice with min/max is here to                           avoid a pblm with the Elt:All/Choice/Seq                           Particle derivation constraint</xs:documentation>       </xs:annotation>       <xs:element name="element" type="xs:narrowMaxMin"/>     </xs:choice>   </xs:sequence> </xs:group>

element allModel/element

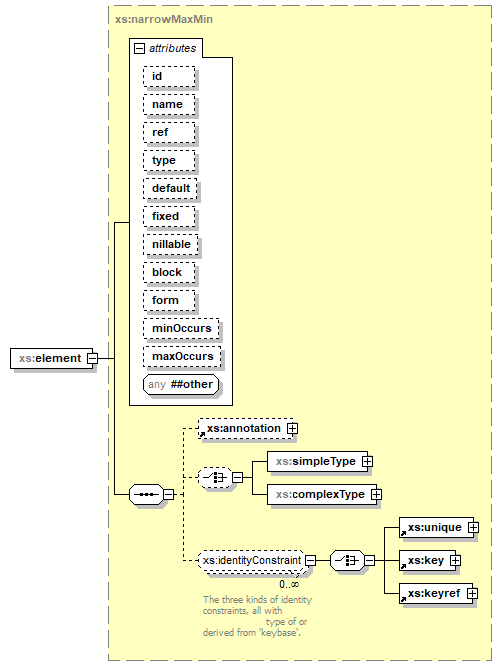

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:narrowMaxMin
properties	isRef  0 content  complex
children	xs:annotation xs:simpleType xs:complexType xs:unique xs:key xs:keyref
used by	group  schemaTop
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName          ref xs:QName          type xs:QName          default xs:string          fixed xs:string          nillable xs:boolean optional   false      block xs:blockSet          form xs:formChoice          minOccurs derived by: xs:nonNegativeInteger optional   1      maxOccurs derived by: xs:allNNI optional   1
source	<xs:element name="element" type="xs:narrowMaxMin"/>
