group attrDecls

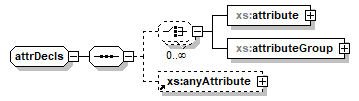

diagram
namespace	http://www.w3.org/2001/XMLSchema
children	xs:attribute xs:attributeGroup xs:anyAttribute
used by	complexTypes  attributeGroup complexRestrictionType extensionType namedAttributeGroup restrictionType simpleExtensionType simpleRestrictionType group  complexTypeModel
source	<xs:group name="attrDecls">   <xs:sequence>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element name="attribute" type="xs:attribute"/>       <xs:element name="attributeGroup" type="xs:attributeGroupRef"/>     </xs:choice>     <xs:element ref="xs:anyAttribute" minOccurs="0"/>   </xs:sequence> </xs:group>

element attrDecls/attribute

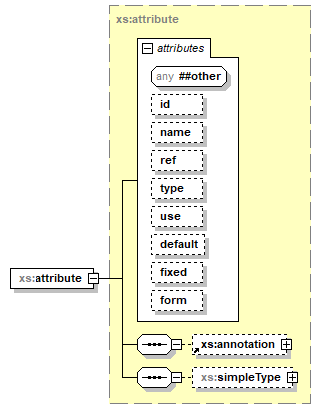

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:attribute
properties	isRef  0 content  complex
children	xs:annotation xs:simpleType
used by	group  schemaTop
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName          ref xs:QName          type xs:QName          use derived by: xs:NMTOKEN optional   optional      default xs:string          fixed xs:string          form xs:formChoice
source	<xs:element name="attribute" type="xs:attribute"/>

element attrDecls/attributeGroup

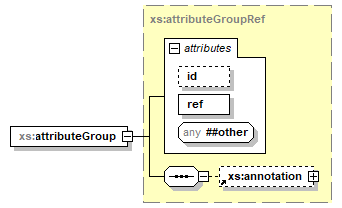

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:attributeGroupRef
properties	isRef  0 content  complex
children	xs:annotation
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          ref xs:QName required
source	<xs:element name="attributeGroup" type="xs:attributeGroupRef"/>
