complexType attributeGroupRef

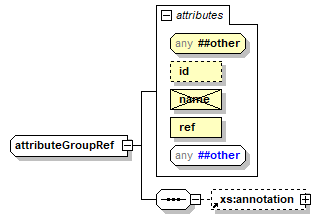

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	restriction of xs:attributeGroup
properties	base  xs:attributeGroup
children	xs:annotation
used by	element  attrDecls/attributeGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name prohibited         ref xs:QName required
source	<xs:complexType name="attributeGroupRef">   <xs:complexContent>     <xs:restriction base="xs:attributeGroup">       <xs:sequence>         <xs:element ref="xs:annotation" minOccurs="0"/>       </xs:sequence>       <xs:attribute name="ref" type="xs:QName" use="required"/>       <xs:attribute name="name" use="prohibited"/>       <xs:anyAttribute namespace="##other" processContents="lax"/>     </xs:restriction>   </xs:complexContent> </xs:complexType>

attribute attributeGroupRef/@name

properties	isRef  0 use  prohibited
source	<xs:attribute name="name" use="prohibited"/>

attribute attributeGroupRef/@ref

type	xs:QName
properties	isRef  0 use  required
source	<xs:attribute name="ref" type="xs:QName" use="required"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
