Included schema spatialRepresentation.xsd
Namespace http://www.isotc211.org/2005/gmd Annotations
Geographic MetaData (GMD) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GMD includes all the definitions of http://www.isotc211.org/2005/gmd namespace. The root document of this namespace is the file gmd.xsd. This portrayalCatalogue.xsd schema implements the UML conceptual schema defined in A.2.6 of ISO 19115:2003. It contains the implementation of the following classes: MD_GridSpatialRepresentation, MD_VectorSpatialRepresentation, MD_SpatialRepresentation, MD_Georeferenceable, MD_Dimension, MD_Georectified, MD_GeometricObjects, MD_TopologyLevelCode, MD_GeometricObjectTypeCode, MD_CellGeometryCode, MD_DimensionNameTypeCode, MD_PixelOrientationCode.
Properties
attribute form default unqualified element form default qualified version 2012-07-13

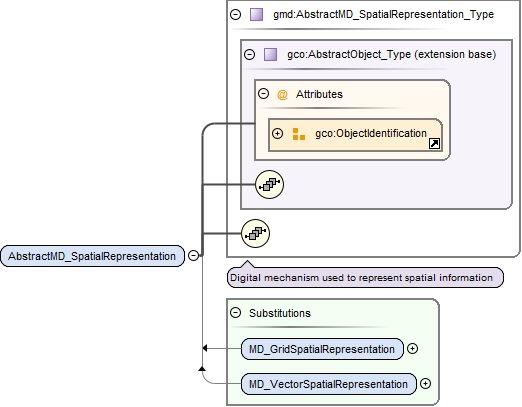

Element gmd:AbstractMD_SpatialRepresentation

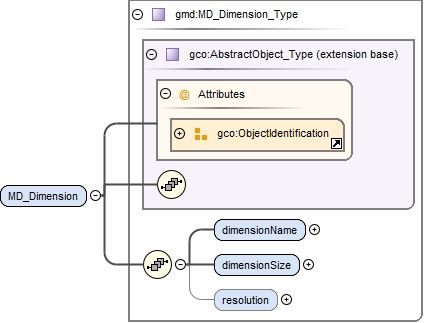

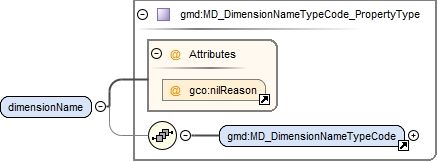

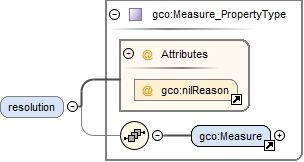

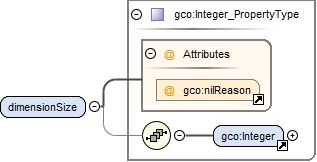

Element gmd:MD_Dimension
Element gmd:MD_DimensionNameTypeCode

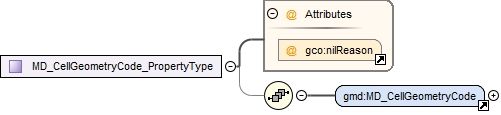

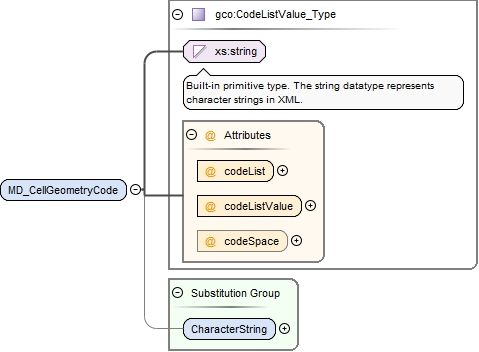

Element gmd:MD_CellGeometryCode

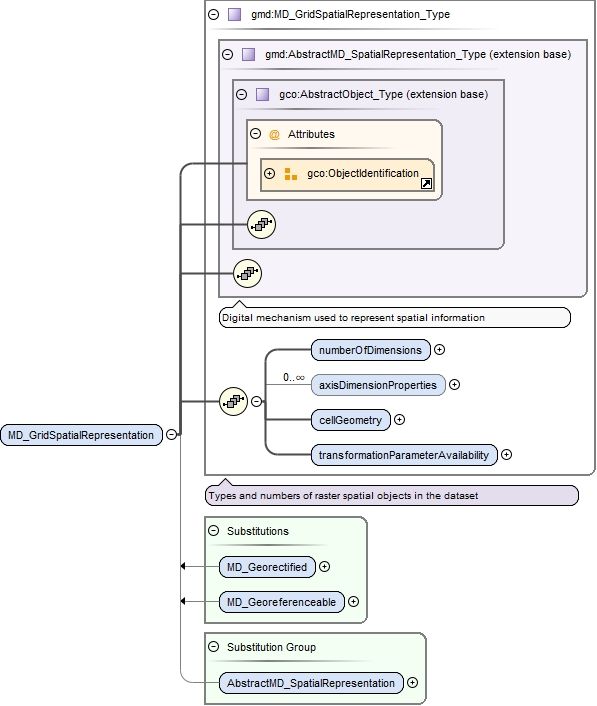

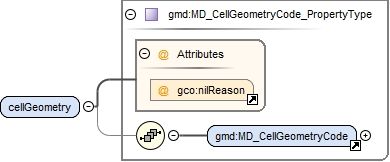

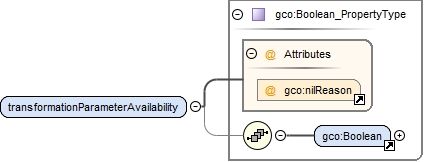

Element gmd:MD_GridSpatialRepresentation

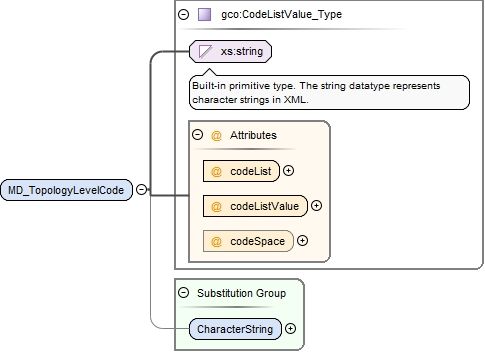

Element gmd:MD_TopologyLevelCode

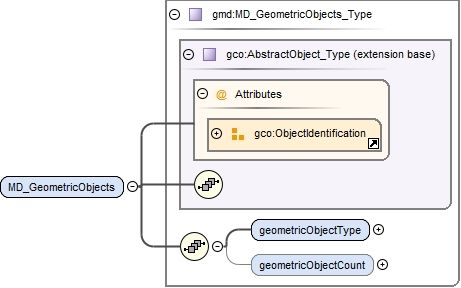

Element gmd:MD_GeometricObjects

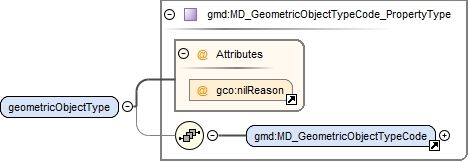

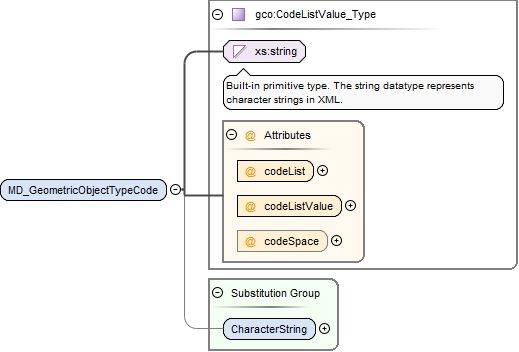

Element gmd:MD_GeometricObjectTypeCode

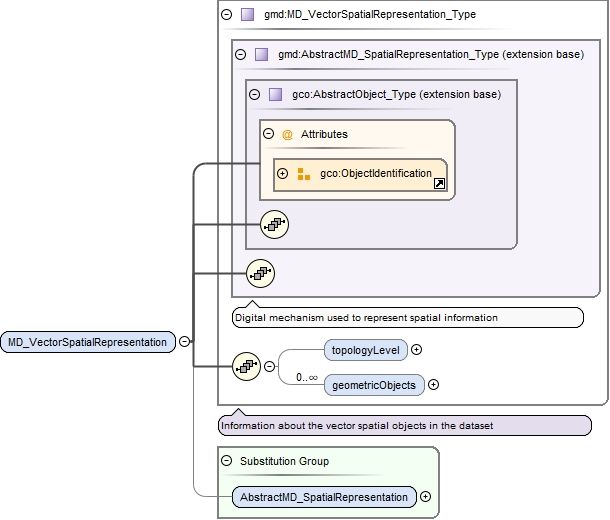

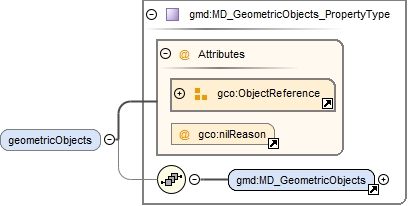

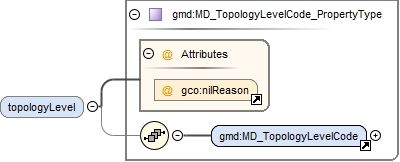

Element gmd:MD_VectorSpatialRepresentation

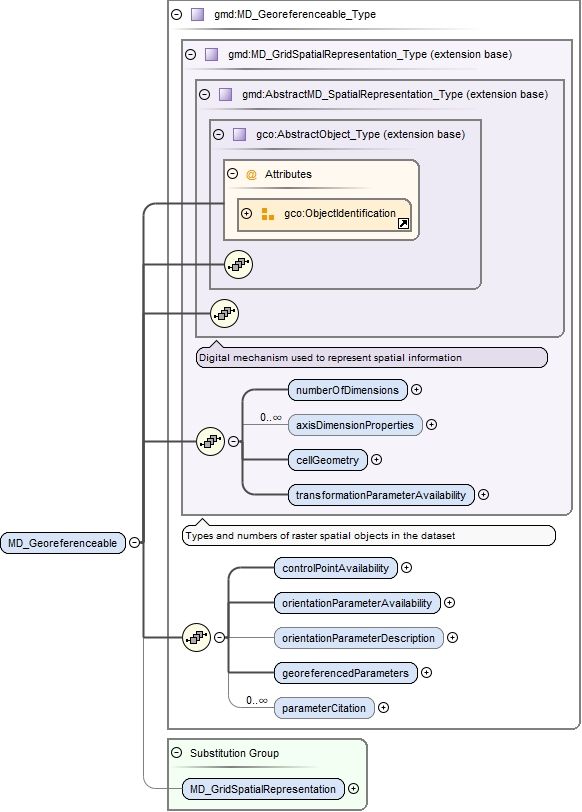

Element gmd:MD_Georeferenceable
Namespace http://www.isotc211.org/2005/gmd Diagram
Type gmd:MD_Georeferenceable_Type Type hierarchy Properties
Substitution Group Affiliation Used by
Model
Children gmd:axisDimensionProperties gmd:cellGeometry gmd:controlPointAvailability gmd:georeferencedParameters gmd:numberOfDimensions gmd:orientationParameterAvailability gmd:orientationParameterDescription gmd:parameterCitation gmd:transformationParameterAvailability Instance
<gmd:MD_Georeferenceable id= "" uuid= "" xmlns:gmd= "http://www.isotc211.org/2005/gmd" >
<gmd:numberOfDimensions gco:nilReason= "" > {1,1} </gmd:numberOfDimensions>

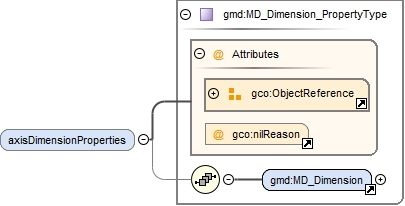

<gmd:axisDimensionProperties xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:axisDimensionProperties>
<gmd:cellGeometry gco:nilReason= "" > {1,1} </gmd:cellGeometry>
<gmd:transformationParameterAvailability gco:nilReason= "" > {1,1} </gmd:transformationParameterAvailability>

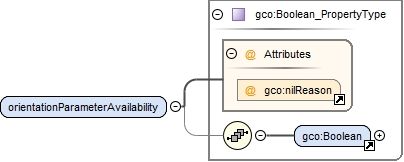

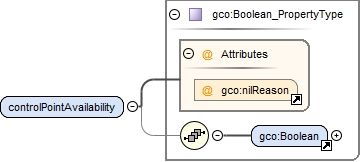

<gmd:controlPointAvailability gco:nilReason= "" > {1,1} </gmd:controlPointAvailability>
<gmd:orientationParameterAvailability gco:nilReason= "" > {1,1} </gmd:orientationParameterAvailability>

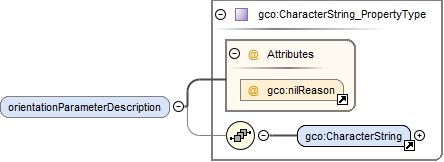

<gmd:orientationParameterDescription gco:nilReason= "" > {0,1} </gmd:orientationParameterDescription>

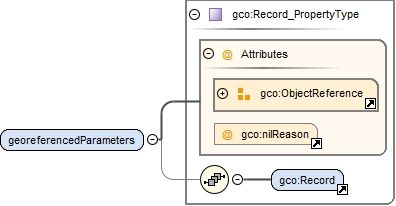

<gmd:georeferencedParameters xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {1,1} </gmd:georeferencedParameters>

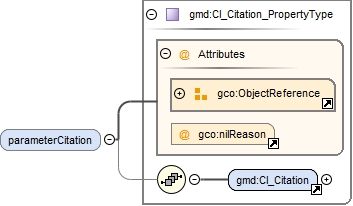

<gmd:parameterCitation xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:parameterCitation>
</gmd:MD_Georeferenceable>
Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:element name= "MD_Georeferenceable" type= "gmd:MD_Georeferenceable_Type" substitutionGroup= "gmd:MD_GridSpatialRepresentation" />

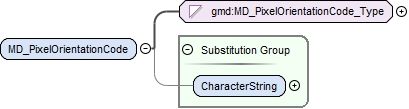

Element gmd:MD_PixelOrientationCode
Namespace http://www.isotc211.org/2005/gmd Diagram
Type gmd:MD_PixelOrientationCode_Type Properties
Facets
enumeration center
enumeration lowerLeft
enumeration lowerRight
enumeration upperRight
enumeration upperLeft
Substitution Group Affiliation Used by
Source
<xs:element name= "MD_PixelOrientationCode" type= "gmd:MD_PixelOrientationCode_Type" substitutionGroup= "gco:CharacterString" />

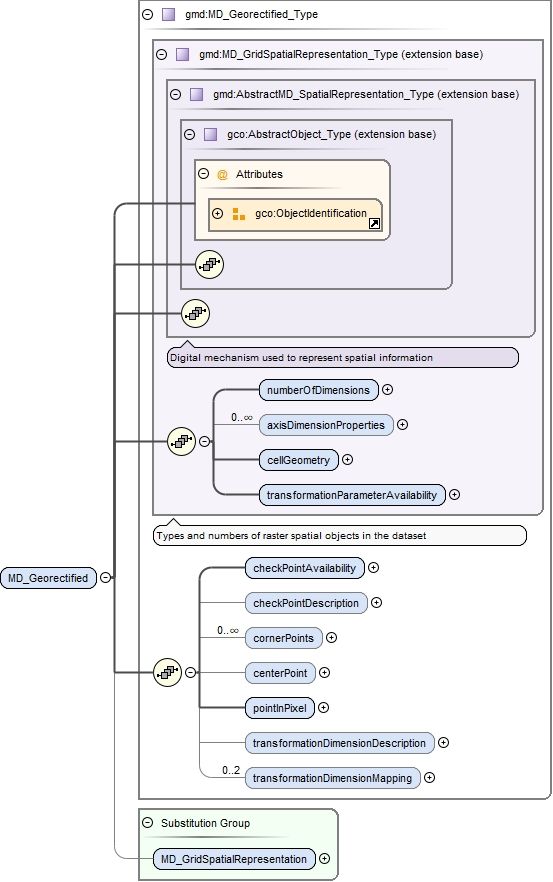

Element gmd:MD_Georectified
Namespace http://www.isotc211.org/2005/gmd Diagram
Type gmd:MD_Georectified_Type Type hierarchy Properties
Substitution Group Affiliation Used by
Model
gmd:numberOfDimensions ,
gmd:axisDimensionProperties* ,
gmd:cellGeometry ,
gmd:transformationParameterAvailability ,

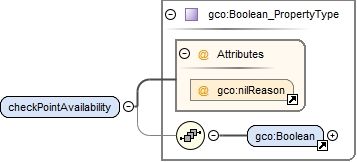

gmd:checkPointAvailability ,

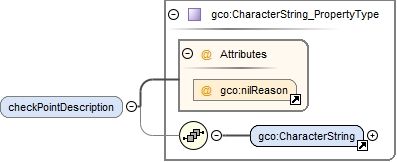

gmd:checkPointDescription{0,1} ,

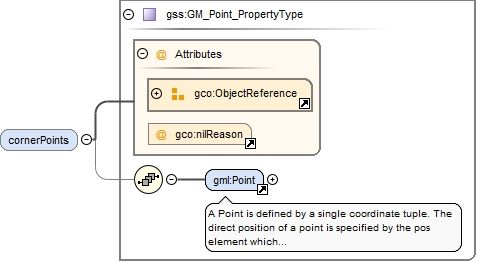

gmd:cornerPoints* ,

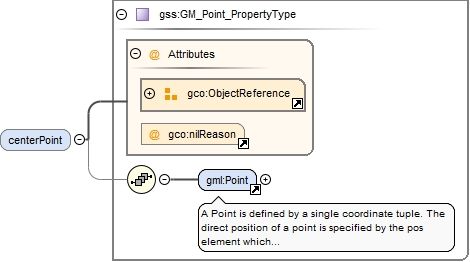

gmd:centerPoint{0,1} ,

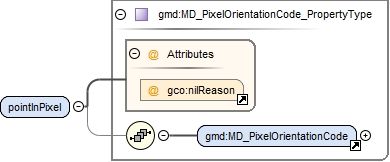

gmd:pointInPixel ,
gmd:transformationDimensionDescription{0,1} ,
gmd:transformationDimensionMapping{0,2} Children gmd:axisDimensionProperties gmd:cellGeometry gmd:centerPoint gmd:checkPointAvailability gmd:checkPointDescription gmd:cornerPoints gmd:numberOfDimensions gmd:pointInPixel gmd:transformationDimensionDescription gmd:transformationDimensionMapping gmd:transformationParameterAvailability Instance
<gmd:MD_Georectified id= "" uuid= "" xmlns:gmd= "http://www.isotc211.org/2005/gmd" >
<gmd:numberOfDimensions gco:nilReason= "" > {1,1} </gmd:numberOfDimensions>
<gmd:axisDimensionProperties xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:axisDimensionProperties>
<gmd:cellGeometry gco:nilReason= "" > {1,1} </gmd:cellGeometry>
<gmd:transformationParameterAvailability gco:nilReason= "" > {1,1} </gmd:transformationParameterAvailability>
<gmd:checkPointAvailability gco:nilReason= "" > {1,1} </gmd:checkPointAvailability>
<gmd:checkPointDescription gco:nilReason= "" > {0,1} </gmd:checkPointDescription>
<gmd:cornerPoints xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:cornerPoints>
<gmd:centerPoint xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,1} </gmd:centerPoint>
<gmd:pointInPixel gco:nilReason= "" > {1,1} </gmd:pointInPixel>
<gmd:transformationDimensionDescription gco:nilReason= "" > {0,1} </gmd:transformationDimensionDescription>
<gmd:transformationDimensionMapping gco:nilReason= "" > {0,2} </gmd:transformationDimensionMapping>
</gmd:MD_Georectified>
Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:element name= "MD_Georectified" type= "gmd:MD_Georectified_Type" substitutionGroup= "gmd:MD_GridSpatialRepresentation" />

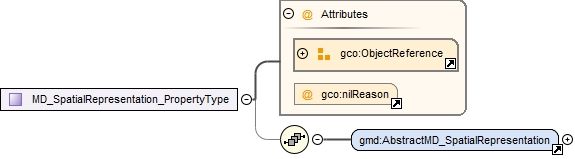

Complex Type gmd:MD_SpatialRepresentation_PropertyType

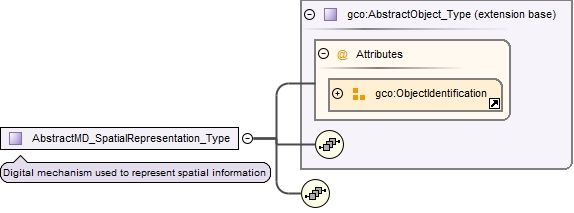

Complex Type gmd:AbstractMD_SpatialRepresentation_Type

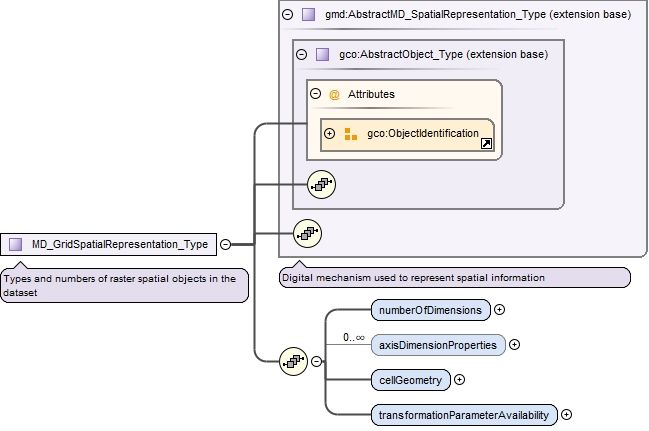

Complex Type gmd:MD_GridSpatialRepresentation_Type

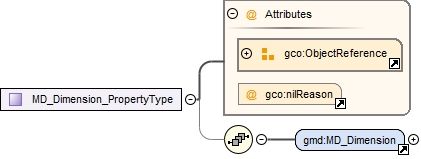

Complex Type gmd:MD_Dimension_PropertyType

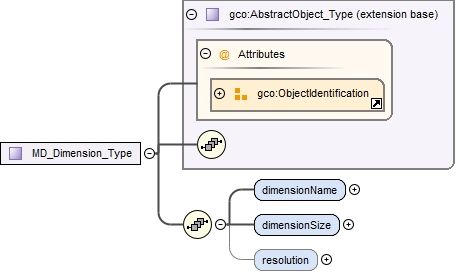

Complex Type gmd:MD_Dimension_Type
Complex Type gmd:MD_DimensionNameTypeCode_PropertyType
Complex Type gmd:MD_CellGeometryCode_PropertyType

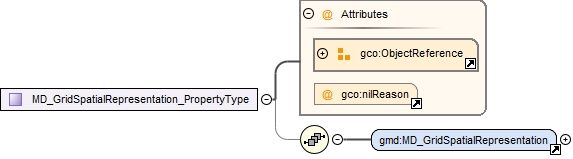

Complex Type gmd:MD_GridSpatialRepresentation_PropertyType

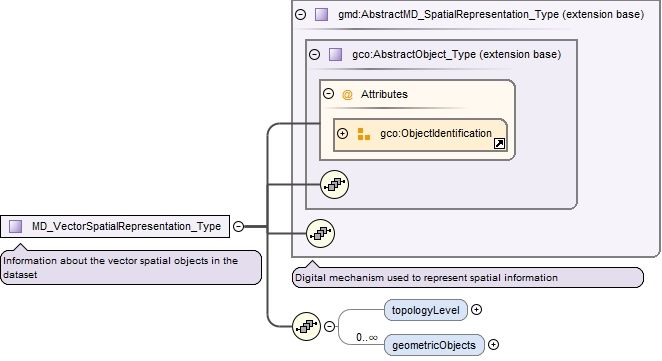

Complex Type gmd:MD_VectorSpatialRepresentation_Type

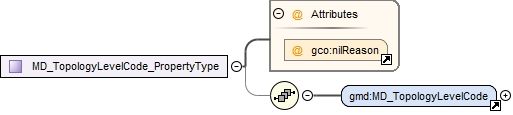

Complex Type gmd:MD_TopologyLevelCode_PropertyType
Complex Type gmd:MD_GeometricObjects_PropertyType

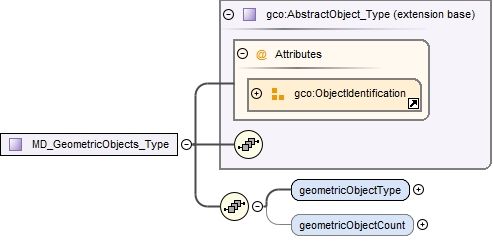

Complex Type gmd:MD_GeometricObjects_Type

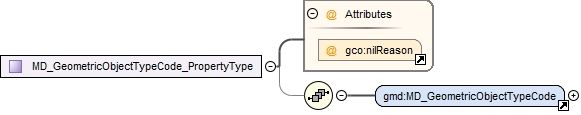

Complex Type gmd:MD_GeometricObjectTypeCode_PropertyType

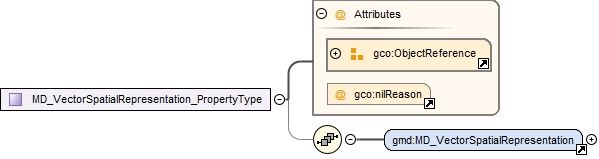

Complex Type gmd:MD_VectorSpatialRepresentation_PropertyType

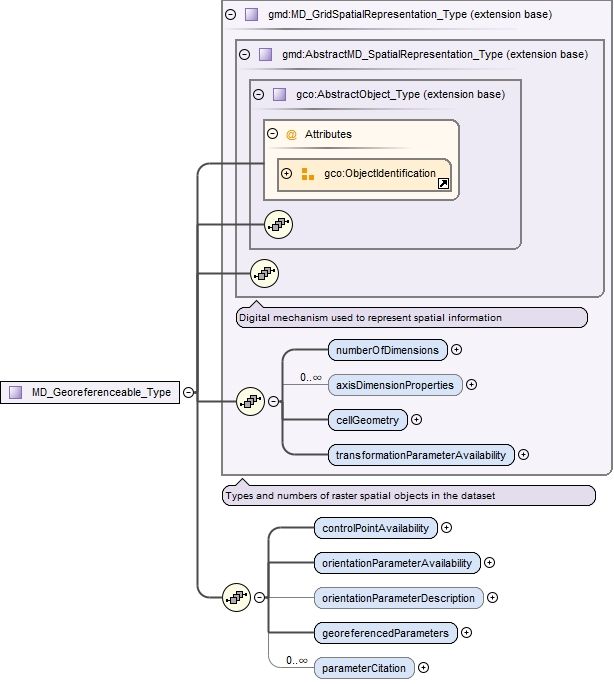

Complex Type gmd:MD_Georeferenceable_Type

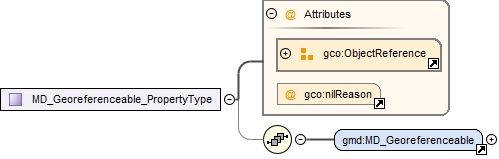

Complex Type gmd:MD_Georeferenceable_PropertyType

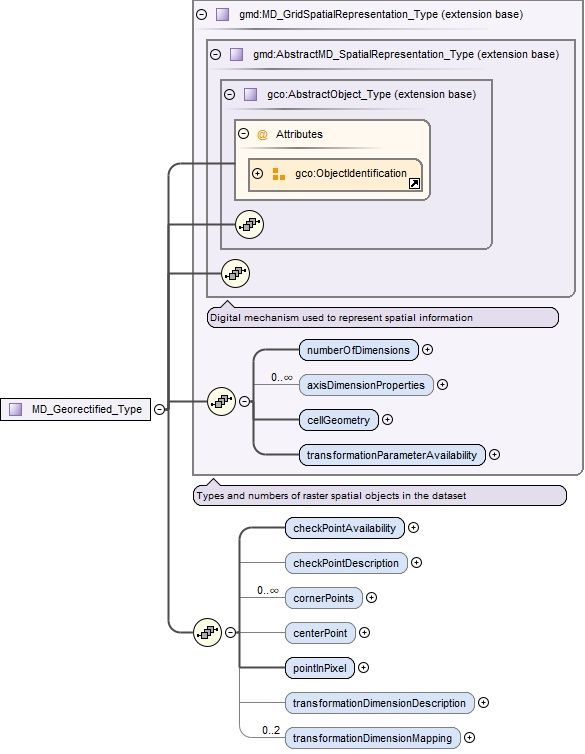

Complex Type gmd:MD_Georectified_Type
Namespace http://www.isotc211.org/2005/gmd Diagram
Type extension of gmd:MD_GridSpatialRepresentation_Type Type hierarchy Used by
Model
gmd:numberOfDimensions ,
gmd:axisDimensionProperties* ,
gmd:cellGeometry ,
gmd:transformationParameterAvailability ,
gmd:checkPointAvailability ,
gmd:checkPointDescription{0,1} ,
gmd:cornerPoints* ,
gmd:centerPoint{0,1} ,
gmd:pointInPixel ,
gmd:transformationDimensionDescription{0,1} ,
gmd:transformationDimensionMapping{0,2} Children gmd:axisDimensionProperties gmd:cellGeometry gmd:centerPoint gmd:checkPointAvailability gmd:checkPointDescription gmd:cornerPoints gmd:numberOfDimensions gmd:pointInPixel gmd:transformationDimensionDescription gmd:transformationDimensionMapping gmd:transformationParameterAvailability Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:complexType name= "MD_Georectified_Type" >
<xs:complexContent >
<xs:extension base= "gmd:MD_GridSpatialRepresentation_Type" >
<xs:sequence >
<xs:element name= "checkPointAvailability" type= "gco:Boolean_PropertyType" />
<xs:element name= "checkPointDescription" type= "gco:CharacterString_PropertyType" minOccurs= "0" />
<xs:element name= "cornerPoints" type= "gss:GM_Point_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
<xs:element name= "centerPoint" type= "gss:GM_Point_PropertyType" minOccurs= "0" />
<xs:element name= "pointInPixel" type= "gmd:MD_PixelOrientationCode_PropertyType" />

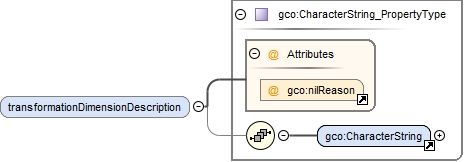

<xs:element name= "transformationDimensionDescription" type= "gco:CharacterString_PropertyType" minOccurs= "0" />
<xs:element name= "transformationDimensionMapping" type= "gco:CharacterString_PropertyType" minOccurs= "0" maxOccurs= "2" />
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>

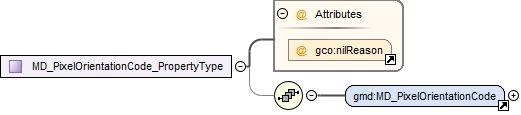

Complex Type gmd:MD_PixelOrientationCode_PropertyType
Simple Type gmd:MD_PixelOrientationCode_Type
Namespace http://www.isotc211.org/2005/gmd Diagram
Type restriction of xs:string Facets
enumeration center
enumeration lowerLeft
enumeration lowerRight
enumeration upperRight
enumeration upperLeft
Used by
Source
<xs:simpleType name= "MD_PixelOrientationCode_Type" >
<xs:restriction base= "xs:string" >
<xs:enumeration value= "center" />
<xs:enumeration value= "lowerLeft" />
<xs:enumeration value= "lowerRight" />
<xs:enumeration value= "upperRight" />
<xs:enumeration value= "upperLeft" />
</xs:restriction>
</xs:simpleType>

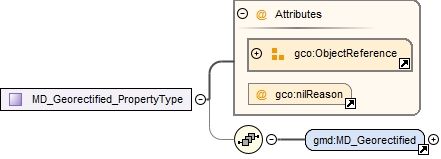

Complex Type gmd:MD_Georectified_PropertyType
