complexType TimeCoordinateSystemType

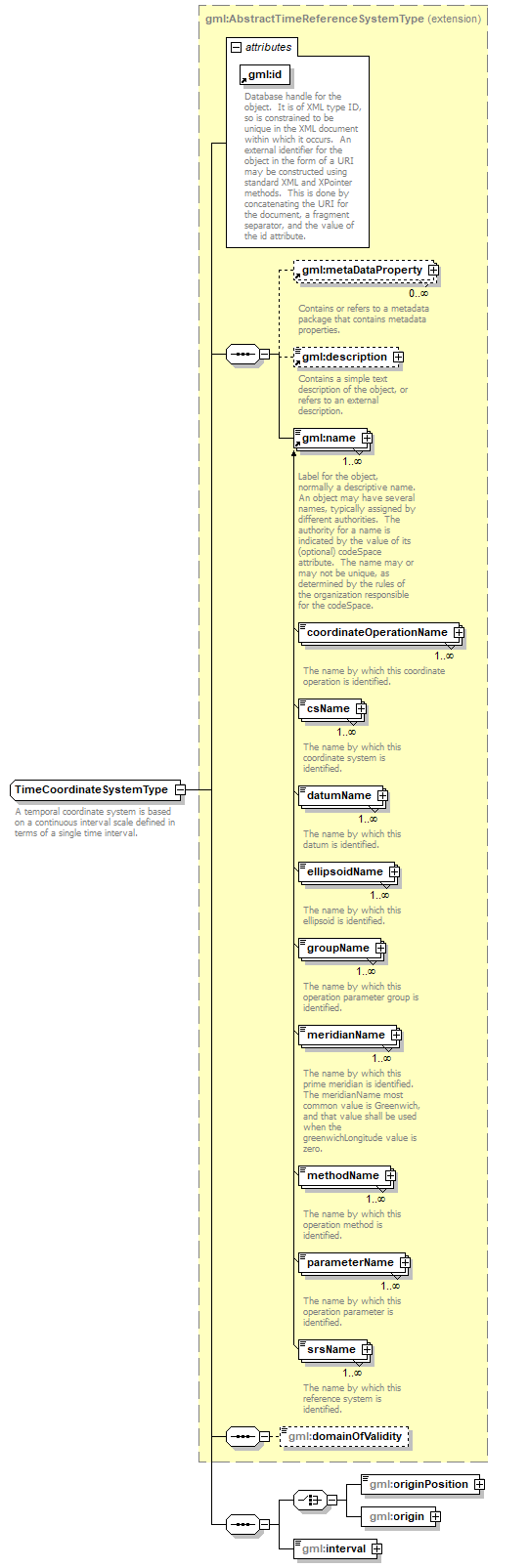

diagram
namespace	http://www.opengis.net/gml
type	extension of gml:AbstractTimeReferenceSystemType
properties	base  gml:AbstractTimeReferenceSystemType
children	gml:metaDataProperty gml:description gml:name gml:domainOfValidity gml:originPosition gml:origin gml:interval
used by	element  TimeCoordinateSystem
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
annotation	documentation A temporal coordinate system is based on a continuous interval scale defined in terms of a single time interval.
source	<xs:complexType name="TimeCoordinateSystemType">   <xs:annotation>     <xs:documentation xml:lang="en">A temporal coordinate system is based on a continuous interval scale defined in terms of a single time interval.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="gml:AbstractTimeReferenceSystemType">       <xs:sequence>         <xs:choice>           <xs:element name="originPosition" type="gml:TimePositionType"/>           <xs:element name="origin" type="gml:TimeInstantPropertyType"/>         </xs:choice>         <xs:element name="interval" type="gml:TimeIntervalLengthType"/>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element TimeCoordinateSystemType/originPosition

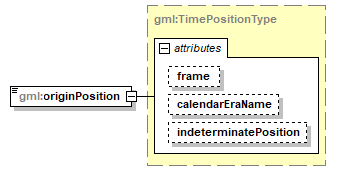

diagram
namespace	http://www.opengis.net/gml
type	gml:TimePositionType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation frame xs:anyURI optional   #ISO-8601      calendarEraName xs:string optional         indeterminatePosition gml:TimeIndeterminateValueType optional
source	<xs:element name="originPosition" type="gml:TimePositionType"/>

element TimeCoordinateSystemType/origin

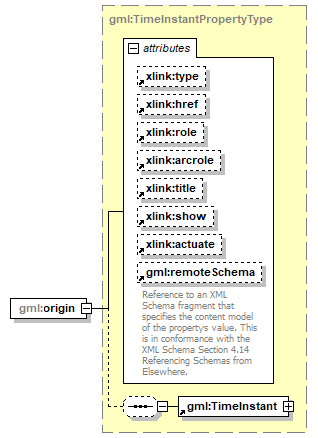

diagram
namespace	http://www.opengis.net/gml
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex
children	gml:TimeInstant
used by	complexType  TemporalDatumType
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          remoteSchema optional         documentation Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
source	<xs:element name="origin" type="gml:TimeInstantPropertyType"/>

element TimeCoordinateSystemType/interval

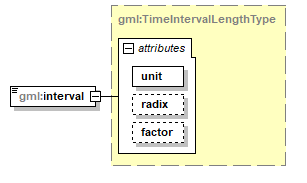

diagram
namespace	http://www.opengis.net/gml
type	gml:TimeIntervalLengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation unit gml:TimeUnitType required         radix xs:positiveInteger optional         factor xs:integer optional
source	<xs:element name="interval" type="gml:TimeIntervalLengthType"/>
