complexType TimePositionType

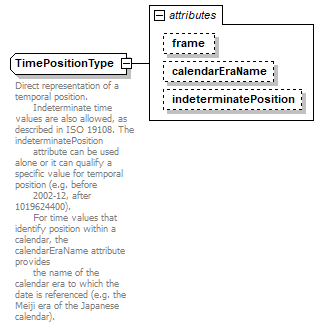

diagram index_p1683.png
namespace http://www.opengis.net/gml
type extension of gml:TimePositionUnion
properties
base gml:TimePositionUnion
final #all
used by
elements TimePeriodType/beginPosition TimePeriodType/endPosition TimeCoordinateSystemType/originPosition timePosition
attributes
Name  Type  Use  Default  Fixed  annotation
framexs:anyURIoptional  #ISO-8601
calendarEraNamexs:stringoptional
indeterminatePositiongml:TimeIndeterminateValueTypeoptional
annotation
documentation
Direct representation of a temporal position.
      Indeterminate time values are also allowed, as described in ISO 19108. The indeterminatePosition
      attribute can be used alone or it can qualify a specific value for temporal position (e.g. before
      2002-12, after 1019624400).
      For time values that identify position within a calendar, the calendarEraName attribute provides
      the name of the calendar era to which the date is referenced (e.g. the Meiji era of the Japanese calendar).
source <xs:complexType name="TimePositionType" final="#all">
  <xs:annotation>
    <xs:documentation xml:lang="en">Direct representation of a temporal position.
      Indeterminate time values are also allowed, as described in ISO 19108. The indeterminatePosition
      attribute can be used alone or it can qualify a specific value for temporal position (e.g. before
      2002-12, after 1019624400).
      For time values that identify position within a calendar, the calendarEraName attribute provides
      the name of the calendar era to which the date is referenced (e.g. the Meiji era of the Japanese calendar).</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="gml:TimePositionUnion">
      <xs:attribute name="frame" type="anyURI" use="optional" default="#ISO-8601"/>
      <xs:attribute name="calendarEraName" type="string" use="optional"/>
      <xs:attribute name="indeterminatePosition" type="gml:TimeIndeterminateValueType" use="optional"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

attribute TimePositionType/@frame
type xs:anyURI
properties
isRef 0
default #ISO-8601
use optional
source <xs:attribute name="frame" type="anyURI" use="optional" default="#ISO-8601"/>

attribute TimePositionType/@calendarEraName
type xs:string
properties
isRef 0
use optional
source <xs:attribute name="calendarEraName" type="string" use="optional"/>

attribute TimePositionType/@indeterminatePosition
type gml:TimeIndeterminateValueType
properties
isRef 0
use optional
facets
Kind Value annotation
enumeration after
enumeration before
enumeration now
enumeration unknown
source <xs:attribute name="indeterminatePosition" type="gml:TimeIndeterminateValueType" use="optional"/>
