complexType attribute

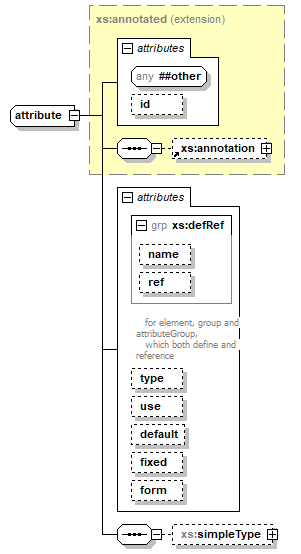

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	extension of xs:annotated
properties	base  xs:annotated
children	xs:annotation xs:simpleType
used by	element  attrDecls/attribute complexType  topLevelAttribute
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName          ref xs:QName          type xs:QName          use derived by: xs:NMTOKEN optional   optional      default xs:string          fixed xs:string          form xs:formChoice
source	<xs:complexType name="attribute">   <xs:complexContent>     <xs:extension base="xs:annotated">       <xs:sequence>         <xs:element name="simpleType" type="xs:localSimpleType" minOccurs="0"/>       </xs:sequence>       <xs:attributeGroup ref="xs:defRef"/>       <xs:attribute name="type" type="xs:QName"/>       <xs:attribute name="use" use="optional" default="optional">         <xs:simpleType>           <xs:restriction base="xs:NMTOKEN">             <xs:enumeration value="prohibited"/>             <xs:enumeration value="optional"/>             <xs:enumeration value="required"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="default" type="xs:string"/>       <xs:attribute name="fixed" type="xs:string"/>       <xs:attribute name="form" type="xs:formChoice"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute attribute/@type

type	xs:QName
properties	isRef  0
source	<xs:attribute name="type" type="xs:QName"/>

attribute attribute/@use

type	restriction of xs:NMTOKEN
properties	isRef  0 default  optional use  optional
facets	Kind  Value  annotation  enumeration  prohibited  enumeration  optional  enumeration  required
source	<xs:attribute name="use" use="optional" default="optional">   <xs:simpleType>     <xs:restriction base="xs:NMTOKEN">       <xs:enumeration value="prohibited"/>       <xs:enumeration value="optional"/>       <xs:enumeration value="required"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute attribute/@default

type	xs:string
properties	isRef  0
source	<xs:attribute name="default" type="xs:string"/>

attribute attribute/@fixed

type	xs:string
properties	isRef  0
source	<xs:attribute name="fixed" type="xs:string"/>

attribute attribute/@form

type	xs:formChoice
properties	isRef  0
facets	Kind  Value  annotation  enumeration  qualified  enumeration  unqualified
source	<xs:attribute name="form" type="xs:formChoice"/>

element attribute/simpleType

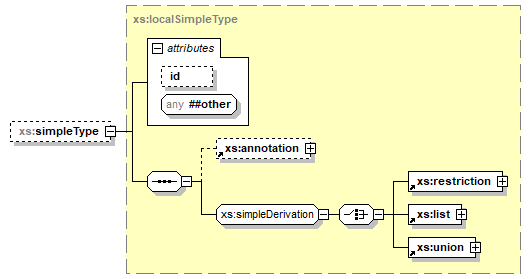

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localSimpleType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	xs:annotation xs:restriction xs:list xs:union
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID
source	<xs:element name="simpleType" type="xs:localSimpleType" minOccurs="0"/>
