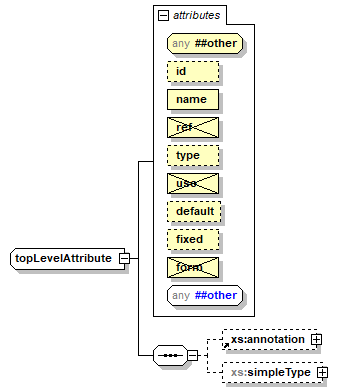

complexType topLevelAttribute

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	restriction of xs:attribute
properties	base  xs:attribute
children	xs:annotation xs:simpleType
used by	element  attribute
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          name xs:NCName required         ref prohibited         type xs:QName          use prohibited         default xs:string          fixed xs:string          form prohibited
source	<xs:complexType name="topLevelAttribute">   <xs:complexContent>     <xs:restriction base="xs:attribute">       <xs:sequence>         <xs:element ref="xs:annotation" minOccurs="0"/>         <xs:element name="simpleType" type="xs:localSimpleType" minOccurs="0"/>       </xs:sequence>       <xs:attribute name="ref" use="prohibited"/>       <xs:attribute name="form" use="prohibited"/>       <xs:attribute name="use" use="prohibited"/>       <xs:attribute name="name" type="xs:NCName" use="required"/>       <xs:anyAttribute namespace="##other" processContents="lax"/>     </xs:restriction>   </xs:complexContent> </xs:complexType>

attribute topLevelAttribute/@name

type	xs:NCName
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:NCName" use="required"/>

attribute topLevelAttribute/@ref

properties	isRef  0 use  prohibited
source	<xs:attribute name="ref" use="prohibited"/>

attribute topLevelAttribute/@use

properties	isRef  0 use  prohibited
source	<xs:attribute name="use" use="prohibited"/>

attribute topLevelAttribute/@form

properties	isRef  0 use  prohibited
source	<xs:attribute name="form" use="prohibited"/>

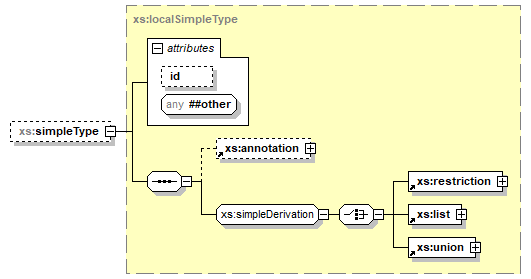

element topLevelAttribute/simpleType

diagram
namespace	http://www.w3.org/2001/XMLSchema
type	xs:localSimpleType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	xs:annotation xs:restriction xs:list xs:union
used by	group  redefinable
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID
source	<xs:element name="simpleType" type="xs:localSimpleType" minOccurs="0"/>
