Schema documentation for direction.xsd

Included schema direction.xsd

Namespace

http://www.opengis.net/gml/3.2

Annotations

See ISO/DIS 19136 Clause 18.
The direction schema components provide the GML Application Schema developer with a standard property element to describe direction, and associated objects that may be used to express orientation, direction, heading, bearing or other directional aspects of geographic features.

GML is an OGC Standard.
Copyright (c) 2007, 2010, 2016, 2018 Open Geospatial Consortium.
To obtain additional rights of use, visit http://www.opengeospatial.org/legal/ .

Properties

attribute form default	unqualified
element form default	qualified
version	3.2.2

Element gml:direction

Namespace

http://www.opengis.net/gml/3.2

Annotations

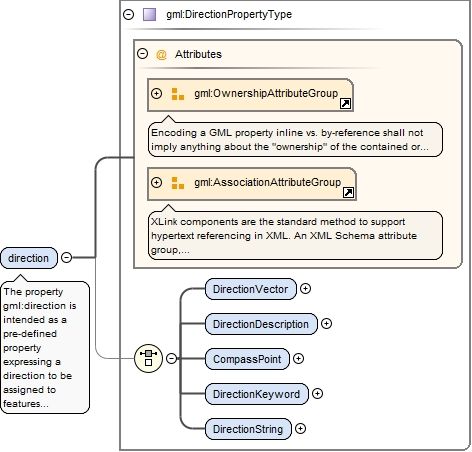

The property gml:direction is intended as a pre-defined property expressing a direction to be assigned to features defined in a GML application schema.

Diagram

Type

gml:DirectionPropertyType

Properties

content

complex

Used by

Complex Types

gml:DirectedObservationAtDistanceType, gml:DirectedObservationType

Model

gml:DirectionVector | gml:DirectionDescription | gml:CompassPoint | gml:DirectionKeyword | gml:DirectionString

Children

gml:CompassPoint, gml:DirectionDescription, gml:DirectionKeyword, gml:DirectionString, gml:DirectionVector

Instance

<gml:direction xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:DirectionVector>{1,1}</gml:DirectionVector>
  <gml:DirectionDescription>{1,1}</gml:DirectionDescription>
  <gml:CompassPoint>{1,1}</gml:CompassPoint>
  <gml:DirectionKeyword codeSpace="">{1,1}</gml:DirectionKeyword>
  <gml:DirectionString xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:DirectionString>
</gml:direction>

Attributes

QName	Type	Fixed	Default	Use
gml:remoteSchema	anyURI			optional
nilReason	gml:NilReasonType			optional
owns	boolean		false	optional
xlink:actuate	xlink:actuateType			optional
xlink:arcrole	xlink:arcroleType			optional
xlink:href	xlink:hrefType			optional
xlink:role	xlink:roleType			optional
xlink:show	xlink:showType			optional
xlink:title	xlink:titleAttrType			optional
xlink:type	xlink:typeType	simple		optional

Source

<element name="direction" type="gml:DirectionPropertyType">
  <annotation>
    <documentation>The property gml:direction is intended as a pre-defined property expressing a direction to be assigned to features defined in a GML application schema.</documentation>
  </annotation>
</element>

Element gml:DirectionPropertyType / gml:DirectionVector

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:DirectionVectorType

Properties

content

complex

Model

gml:vector | (gml:horizontalAngle , gml:verticalAngle)

Children

gml:horizontalAngle, gml:vector, gml:verticalAngle

Instance

<gml:DirectionVector xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:vector axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:vector>
  <gml:horizontalAngle uom="">{1,1}</gml:horizontalAngle>
  <gml:verticalAngle uom="">{1,1}</gml:verticalAngle>
</gml:DirectionVector>

Source

<element name="DirectionVector" type="gml:DirectionVectorType"/>

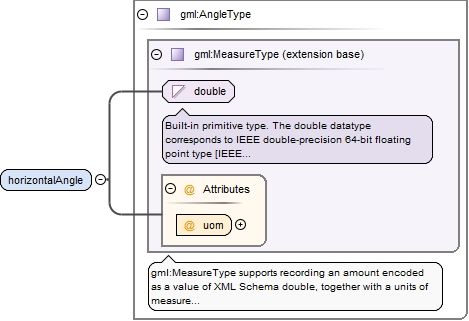

Element gml:DirectionVectorType / gml:horizontalAngle

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:AngleType

Type hierarchy

double
- gml:MeasureType
  - gml:AngleType

Properties

content

complex

Attributes

QName	Type	Use
uom	gml:UomIdentifier	required

Source

<element name="horizontalAngle" type="gml:AngleType"/>

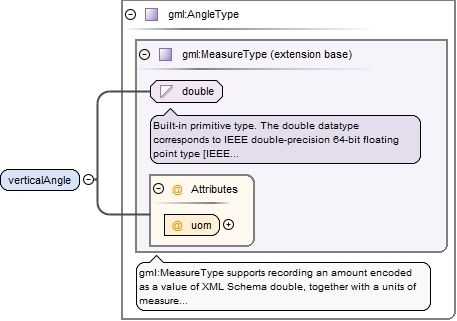

Element gml:DirectionVectorType / gml:verticalAngle

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:AngleType

Type hierarchy

double
- gml:MeasureType
  - gml:AngleType

Properties

content

complex

Attributes

QName	Type	Use
uom	gml:UomIdentifier	required

Source

<element name="verticalAngle" type="gml:AngleType"/>

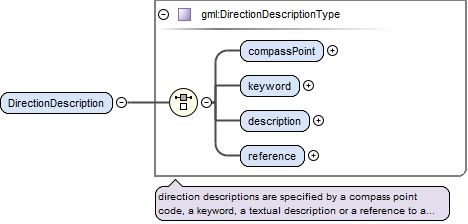

Element gml:DirectionPropertyType / gml:DirectionDescription

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:DirectionDescriptionType

Properties

content

complex

Model

gml:compassPoint | gml:keyword | gml:description | gml:reference

Children

gml:compassPoint, gml:description, gml:keyword, gml:reference

Instance

<gml:DirectionDescription xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:compassPoint>{1,1}</gml:compassPoint>
  <gml:keyword codeSpace="">{1,1}</gml:keyword>
  <gml:description>{1,1}</gml:description>
  <gml:reference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:reference>
</gml:DirectionDescription>

Source

<element name="DirectionDescription" type="gml:DirectionDescriptionType"/>

Element gml:DirectionDescriptionType / gml:compassPoint

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:CompassPointEnumeration

Properties

content

simple

Facets

enumeration	N
enumeration	NNE
enumeration	NE
enumeration	ENE
enumeration	E
enumeration	ESE
enumeration	SE
enumeration	SSE
enumeration	S
enumeration	SSW
enumeration	SW
enumeration	WSW
enumeration	W
enumeration	WNW
enumeration	NW
enumeration	NNW

Source

<element name="compassPoint" type="gml:CompassPointEnumeration"/>

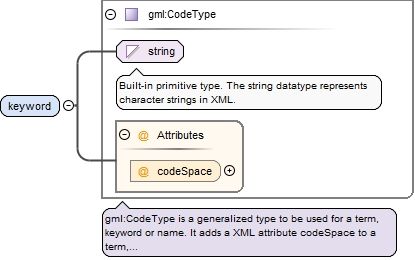

Element gml:DirectionDescriptionType / gml:keyword

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:CodeType

Properties

content

complex

Attributes

QName	Type	Use
codeSpace	anyURI	optional

Source

<element name="keyword" type="gml:CodeType"/>

Element gml:DirectionDescriptionType / gml:description

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

string

Properties

content

simple

Source

<element name="description" type="string"/>

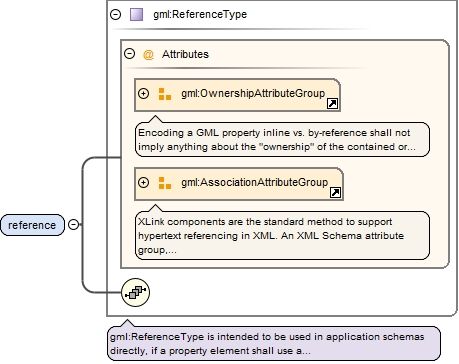

Element gml:DirectionDescriptionType / gml:reference

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:ReferenceType

Properties

content

complex

Model

Attributes

QName	Type	Fixed	Default	Use
gml:remoteSchema	anyURI			optional
nilReason	gml:NilReasonType			optional
owns	boolean		false	optional
xlink:actuate	xlink:actuateType			optional
xlink:arcrole	xlink:arcroleType			optional
xlink:href	xlink:hrefType			optional
xlink:role	xlink:roleType			optional
xlink:show	xlink:showType			optional
xlink:title	xlink:titleAttrType			optional
xlink:type	xlink:typeType	simple		optional

Source

<element name="reference" type="gml:ReferenceType"/>

Element gml:DirectionPropertyType / gml:CompassPoint

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:CompassPointEnumeration

Properties

content

simple

Facets

enumeration	N
enumeration	NNE
enumeration	NE
enumeration	ENE
enumeration	E
enumeration	ESE
enumeration	SE
enumeration	SSE
enumeration	S
enumeration	SSW
enumeration	SW
enumeration	WSW
enumeration	W
enumeration	WNW
enumeration	NW
enumeration	NNW

Source

<element name="CompassPoint" type="gml:CompassPointEnumeration"/>

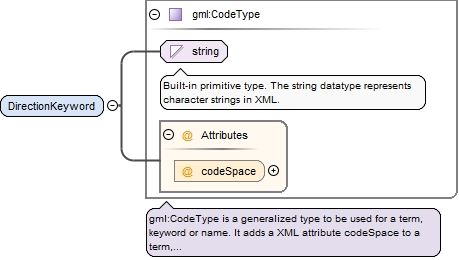

Element gml:DirectionPropertyType / gml:DirectionKeyword

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:CodeType

Properties

content

complex

Attributes

QName	Type	Use
codeSpace	anyURI	optional

Source

<element name="DirectionKeyword" type="gml:CodeType"/>

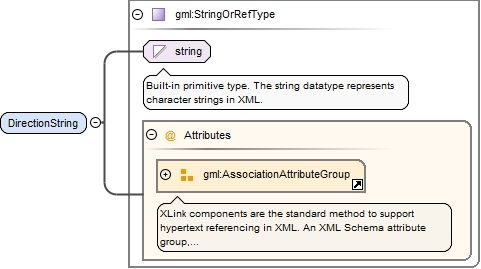

Element gml:DirectionPropertyType / gml:DirectionString

Namespace

http://www.opengis.net/gml/3.2

Diagram

Type

gml:StringOrRefType

Properties

content

complex

Attributes

QName	Type	Fixed	Use
gml:remoteSchema	anyURI		optional
nilReason	gml:NilReasonType		optional
xlink:actuate	xlink:actuateType		optional
xlink:arcrole	xlink:arcroleType		optional
xlink:href	xlink:hrefType		optional
xlink:role	xlink:roleType		optional
xlink:show	xlink:showType		optional
xlink:title	xlink:titleAttrType		optional
xlink:type	xlink:typeType	simple	optional

Source

<element name="DirectionString" type="gml:StringOrRefType"/>

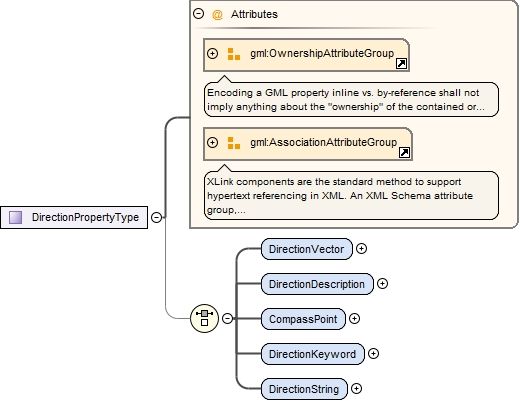

Complex Type gml:DirectionPropertyType

Namespace

http://www.opengis.net/gml/3.2

Diagram

Used by

Elements

gml:MovingObjectStatusType/gml:bearing, gml:direction

Model

gml:DirectionVector | gml:DirectionDescription | gml:CompassPoint | gml:DirectionKeyword | gml:DirectionString

Children

gml:CompassPoint, gml:DirectionDescription, gml:DirectionKeyword, gml:DirectionString, gml:DirectionVector

Attributes

QName	Type	Fixed	Default	Use
gml:remoteSchema	anyURI			optional
nilReason	gml:NilReasonType			optional
owns	boolean		false	optional
xlink:actuate	xlink:actuateType			optional
xlink:arcrole	xlink:arcroleType			optional
xlink:href	xlink:hrefType			optional
xlink:role	xlink:roleType			optional
xlink:show	xlink:showType			optional
xlink:title	xlink:titleAttrType			optional
xlink:type	xlink:typeType	simple		optional

Source

<complexType name="DirectionPropertyType">
  <choice minOccurs="0">
    <element name="DirectionVector" type="gml:DirectionVectorType"/>
    <element name="DirectionDescription" type="gml:DirectionDescriptionType"/>
    <element name="CompassPoint" type="gml:CompassPointEnumeration"/>
    <element name="DirectionKeyword" type="gml:CodeType"/>
    <element name="DirectionString" type="gml:StringOrRefType"/>
  </choice>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

Complex Type gml:DirectionVectorType

Namespace

http://www.opengis.net/gml/3.2

Annotations

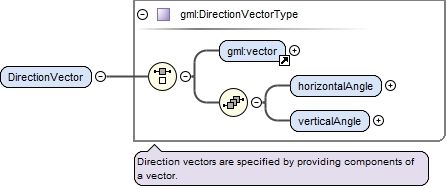

Direction vectors are specified by providing components of a vector.

Diagram

Used by

Element

gml:DirectionPropertyType/gml:DirectionVector

Model

gml:vector | (gml:horizontalAngle , gml:verticalAngle)

Children

gml:horizontalAngle, gml:vector, gml:verticalAngle

Source

<complexType name="DirectionVectorType">
  <annotation>
    <documentation>Direction vectors are specified by providing components of a vector.</documentation>
  </annotation>
  <choice>
    <element ref="gml:vector"/>
    <sequence>
      <annotation>
        <appinfo>deprecated</appinfo>
      </annotation>
      <element name="horizontalAngle" type="gml:AngleType"/>
      <element name="verticalAngle" type="gml:AngleType"/>
    </sequence>
  </choice>
</complexType>

Complex Type gml:DirectionDescriptionType

Namespace

http://www.opengis.net/gml/3.2

Annotations

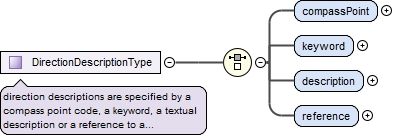

direction descriptions are specified by a compass point code, a keyword, a textual description or a reference to a description.
A gml:compassPoint is specified by a simple enumeration.
In addition, thre elements to contain text-based descriptions of direction are provided.
If the direction is specified using a term from a list, gml:keyword should be used, and the list indicated using the value of the codeSpace attribute.
if the direction is decribed in prose, gml:direction or gml:reference should be used, allowing the value to be included inline or by reference.

Diagram

Used by

Element

gml:DirectionPropertyType/gml:DirectionDescription

Model

gml:compassPoint | gml:keyword | gml:description | gml:reference

Children

gml:compassPoint, gml:description, gml:keyword, gml:reference

Source

<complexType name="DirectionDescriptionType">
  <annotation>
    <documentation>direction descriptions are specified by a compass point code, a keyword, a textual description or a reference to a description. A gml:compassPoint is specified by a simple enumeration. In addition, thre elements to contain text-based descriptions of direction are provided. If the direction is specified using a term from a list, gml:keyword should be used, and the list indicated using the value of the codeSpace attribute. if the direction is decribed in prose, gml:direction or gml:reference should be used, allowing the value to be included inline or by reference.</documentation>
  </annotation>
  <choice>
    <element name="compassPoint" type="gml:CompassPointEnumeration"/>
    <element name="keyword" type="gml:CodeType"/>
    <element name="description" type="string"/>
    <element name="reference" type="gml:ReferenceType"/>
  </choice>
</complexType>

Simple Type gml:CompassPointEnumeration

Namespace

http://www.opengis.net/gml/3.2

Annotations

These directions are necessarily approximate, giving direction with a precision of 22.5°. It is thus generally unnecessary to specify the reference frame, though this may be detailed in the definition of a GML application language.

Diagram

Type

restriction of string

Facets

enumeration	N
enumeration	NNE
enumeration	NE
enumeration	ENE
enumeration	E
enumeration	ESE
enumeration	SE
enumeration	SSE
enumeration	S
enumeration	SSW
enumeration	SW
enumeration	WSW
enumeration	W
enumeration	WNW
enumeration	NW
enumeration	NNW

Used by

Elements

gml:DirectionDescriptionType/gml:compassPoint, gml:DirectionPropertyType/gml:CompassPoint

Source

<simpleType name="CompassPointEnumeration">
  <annotation>
    <documentation>These directions are necessarily approximate, giving direction with a precision of 22.5°. It is thus generally unnecessary to specify the reference frame, though this may be detailed in the definition of a GML application language.</documentation>
  </annotation>
  <restriction base="string">
    <enumeration value="N"/>
    <enumeration value="NNE"/>
    <enumeration value="NE"/>
    <enumeration value="ENE"/>
    <enumeration value="E"/>
    <enumeration value="ESE"/>
    <enumeration value="SE"/>
    <enumeration value="SSE"/>
    <enumeration value="S"/>
    <enumeration value="SSW"/>
    <enumeration value="SW"/>
    <enumeration value="WSW"/>
    <enumeration value="W"/>
    <enumeration value="WNW"/>
    <enumeration value="NW"/>
    <enumeration value="NNW"/>
  </restriction>
</simpleType>

Showing:
