Included schema deprecatedTypes.xsd

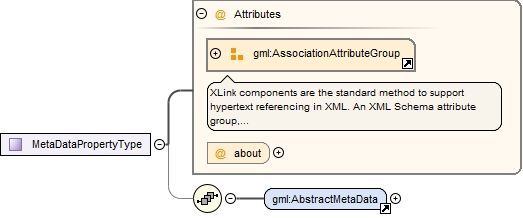

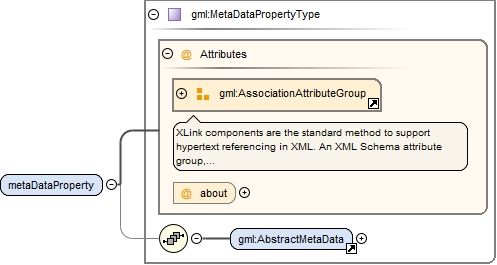

Element gml:metaDataProperty

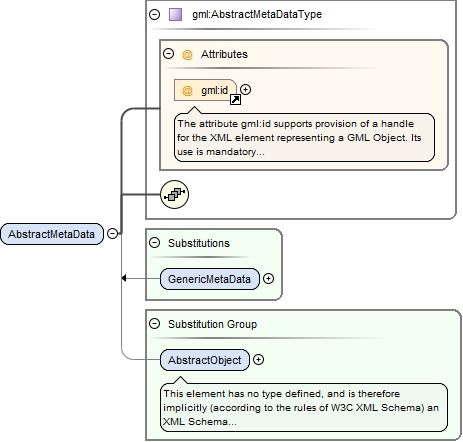

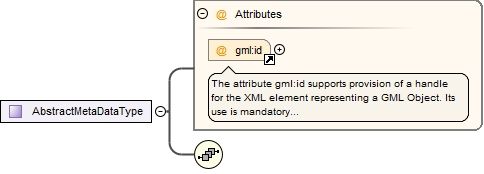

Element gml:AbstractMetaData

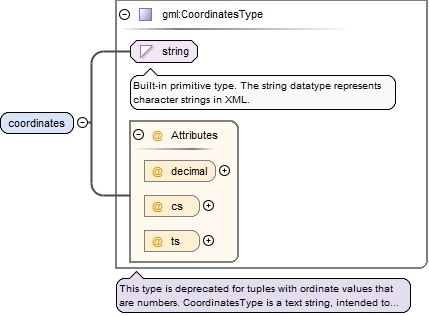

Element gml:coordinates
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:CoordinatesType Properties
Used by
Complex Types gml:ArcByBulgeType gml:ArcByCenterPointType gml:ArcStringByBulgeType gml:ArcStringType gml:ArcType gml:BSplineType gml:BezierType gml:CircleByCenterPointType gml:CircleType gml:CubicSplineType gml:EnvelopeType gml:EnvelopeWithTimePeriodType gml:LineStringSegmentType gml:LineStringType gml:LinearRingType gml:PointType
Attributes
QName Type Default Use cs string , optional
decimal string . optional
ts string optional
Source
<element name= "coordinates" type= "gml:CoordinatesType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>
Element gml:Null

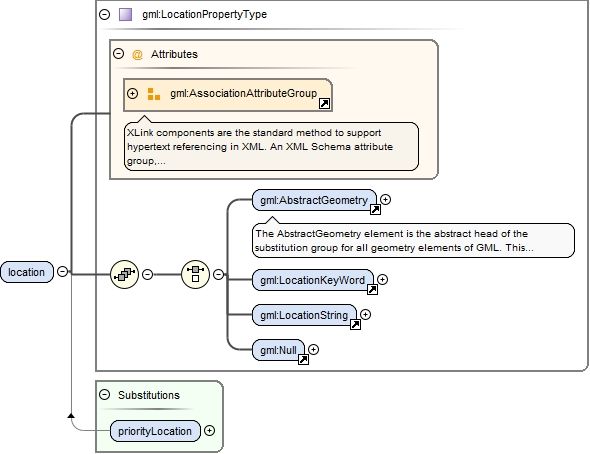

Element gml:location
Namespace http://www.opengis.net/gml/3.2 Diagram

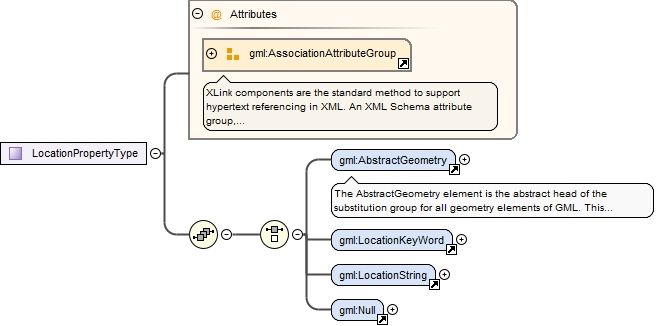

Type gml:LocationPropertyType Properties
Substitution Group Used by
Complex Types gml:AbstractContinuousCoverageType gml:AbstractCoverageType gml:AbstractFeatureCollectionType gml:AbstractFeatureType gml:BoundedFeatureType gml:DirectedObservationAtDistanceType gml:DirectedObservationType gml:DiscreteCoverageType gml:DynamicFeatureCollectionType gml:DynamicFeatureType gml:FeatureCollectionType gml:MovingObjectStatusType gml:ObservationType infrao:AbstractInfraomaisuusKohdeType infrao:AbstractKasvillisuusType infrao:AbstractPaikkatietopalveluKohdeType infrao:AbstractVarusteType infrao:AjoratamerkintaType infrao:ErikoisrakenneKerrosType infrao:HulevesiType infrao:InfraoKohteetType infrao:JateType infrao:KalusteType infrao:KatualueType infrao:KatualueenOsaType infrao:KeskilinjaType infrao:LeikkivalineType infrao:LiikennemerkkiType infrao:LiikuntaType infrao:MeluType infrao:MuuKasviType infrao:MuuVarusteType infrao:OpasteType infrao:PuuType infrao:PysakointiruutuType infrao:RakenneType infrao:ViheralueType infrao:ViheralueenOsaType infrao:YmparistotaideType
Model
Children gml:AbstractGeometry gml:LocationKeyWord gml:LocationString gml:Null Instance
<gml:location xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:AbstractGeometry axisLabels= "" gml:id= "" srsDimension= "" srsName= "" uomLabels= "" > {1,1} </gml:AbstractGeometry>
<gml:LocationKeyWord codeSpace= "" > {1,1} </gml:LocationKeyWord>
<gml:LocationString xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:LocationString>
<gml:Null > {1,1} </gml:Null>
</gml:location>
Attributes
Source
<element name= "location" type= "gml:LocationPropertyType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

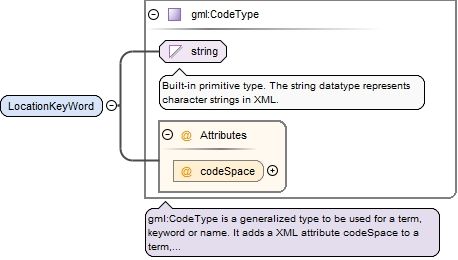

Element gml:LocationKeyWord

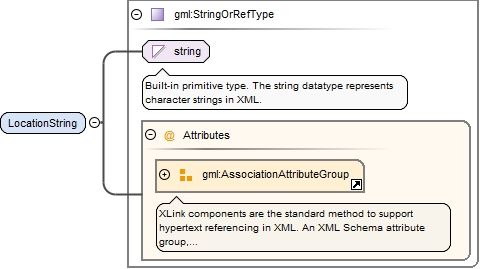

Element gml:LocationString
Element gml:featureMember

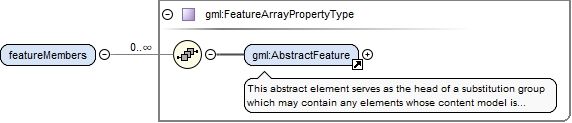

Element gml:featureMembers
Element gml:pointRep
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:PointPropertyType Properties
Used by
Complex Types gml:ArcByBulgeType gml:ArcByCenterPointType gml:ArcStringByBulgeType gml:ArcStringType gml:ArcType gml:BSplineType gml:BezierType gml:CircleByCenterPointType gml:CircleType gml:CubicSplineType gml:LineStringSegmentType gml:LineStringType gml:LinearRingType
Model
Children gml:Point Instance
<gml:pointRep xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:Point axisLabels= "" gml:id= "" srsDimension= "" srsName= "" uomLabels= "" > {1,1} </gml:Point>
</gml:pointRep>
Attributes
Source
<element name= "pointRep" type= "gml:PointPropertyType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>
Element gml:indirectEntry

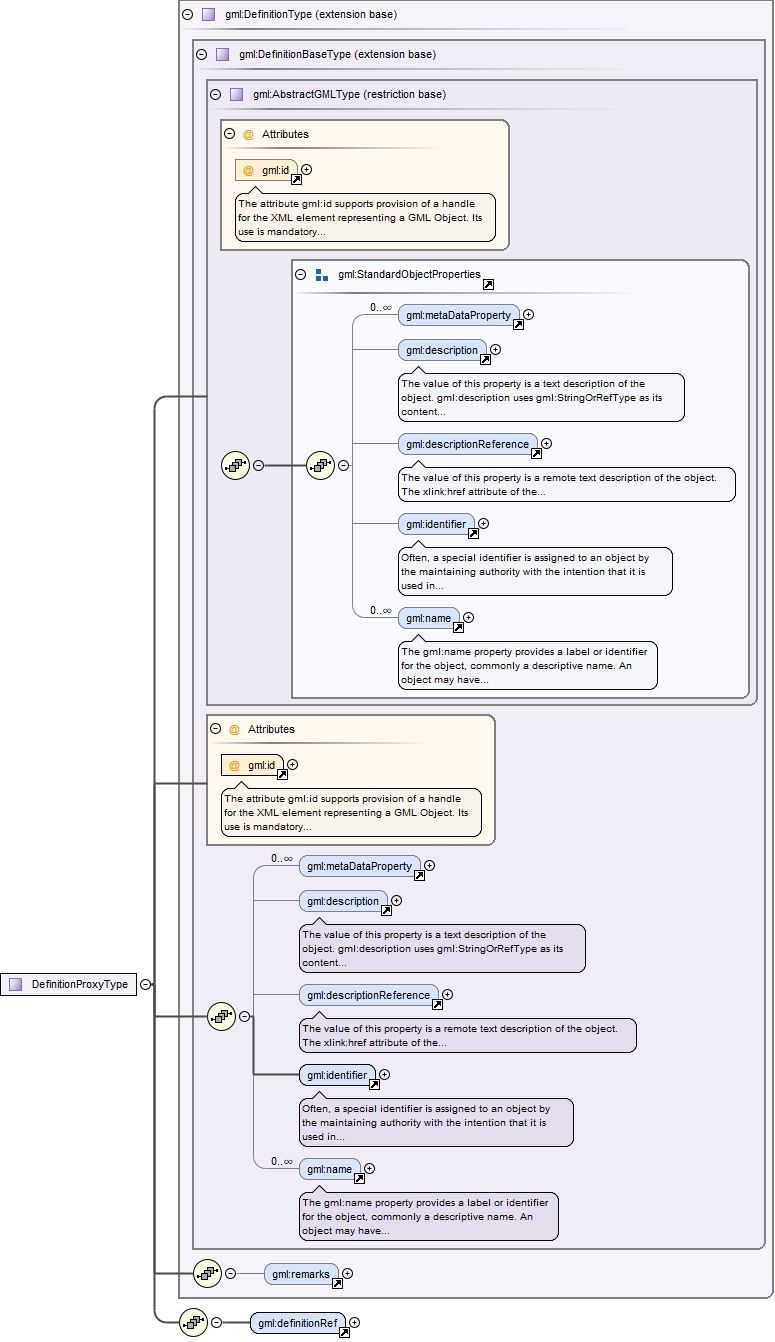

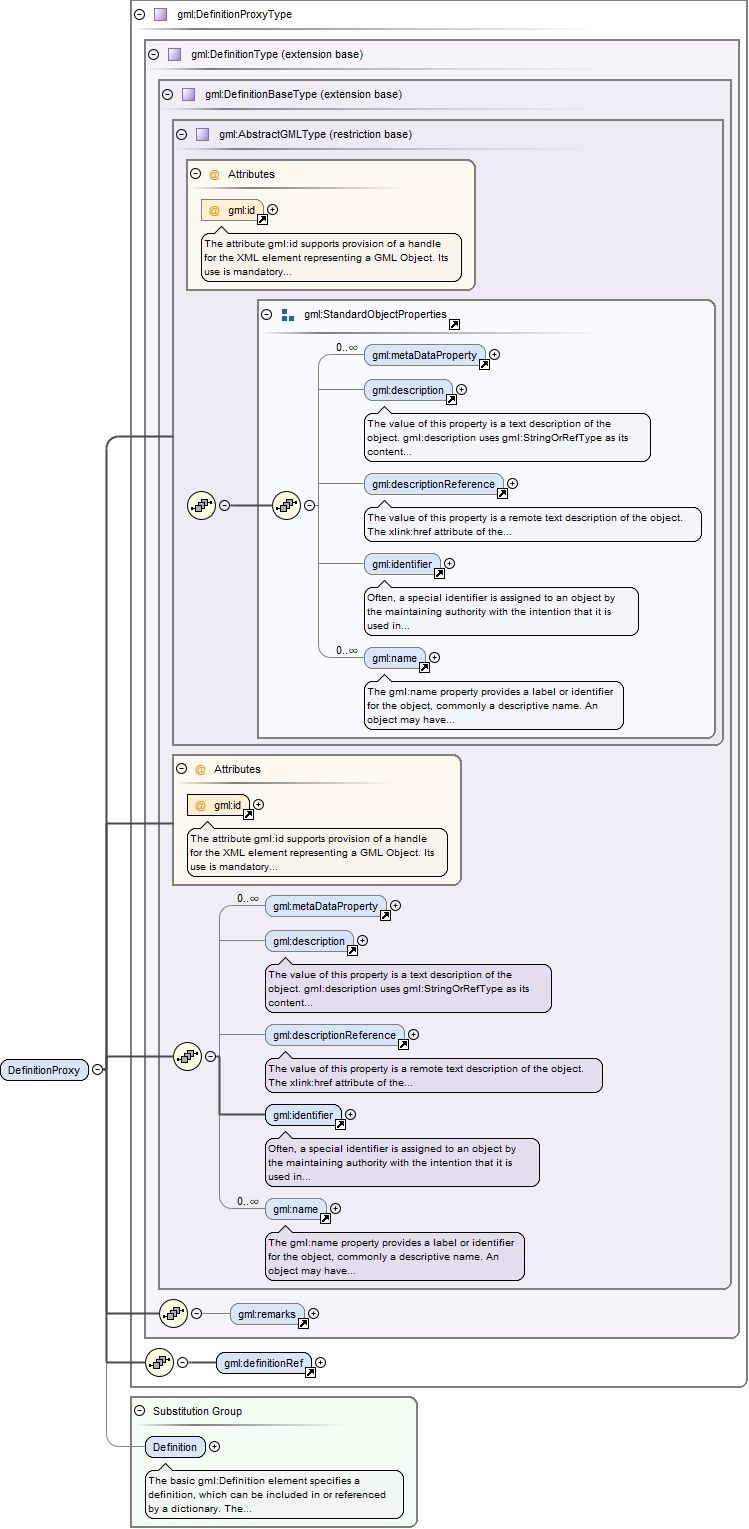

Element gml:DefinitionProxy
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:DefinitionProxyType Type hierarchy Properties
Substitution Group Affiliation Used by
Model
Children gml:definitionRef gml:description gml:descriptionReference gml:identifier gml:metaDataProperty gml:name gml:remarks Instance
<gml:DefinitionProxy gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:definitionRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:definitionRef>
</gml:DefinitionProxy>
Attributes
QName Type Use Annotation gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "DefinitionProxy" type= "gml:DefinitionProxyType" substitutionGroup= "gml:Definition" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

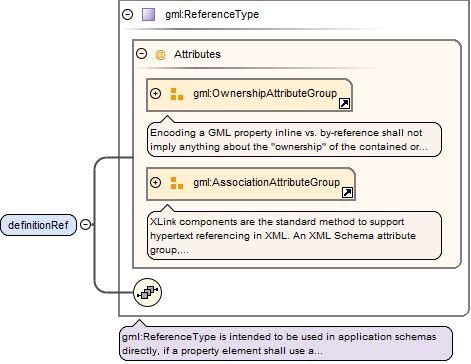

Element gml:definitionRef

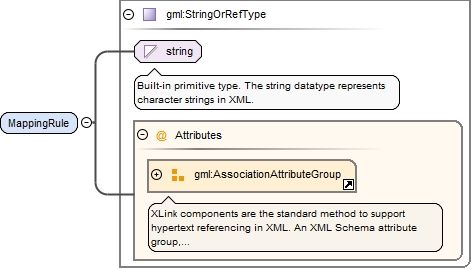

Element gml:MappingRule

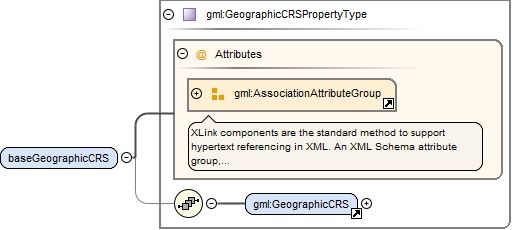

Element gml:baseGeographicCRS

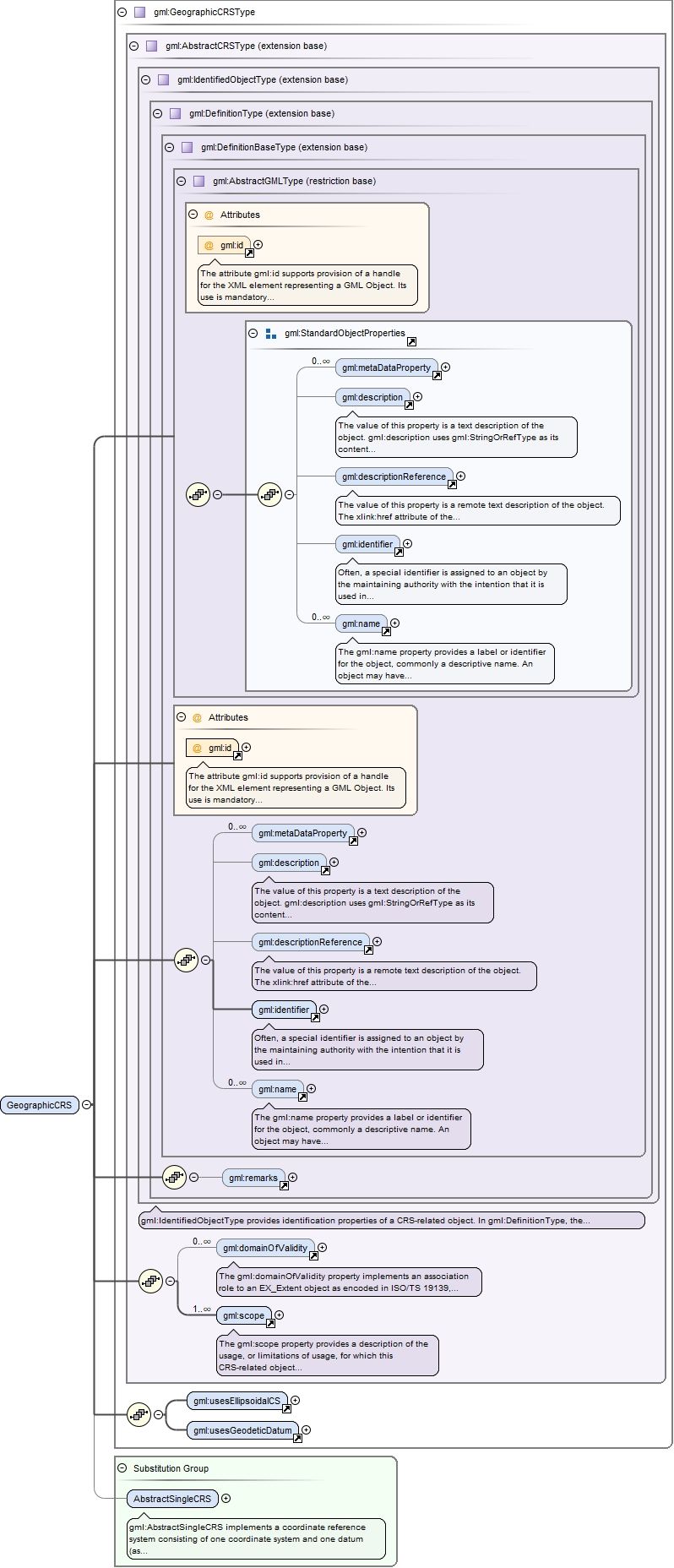

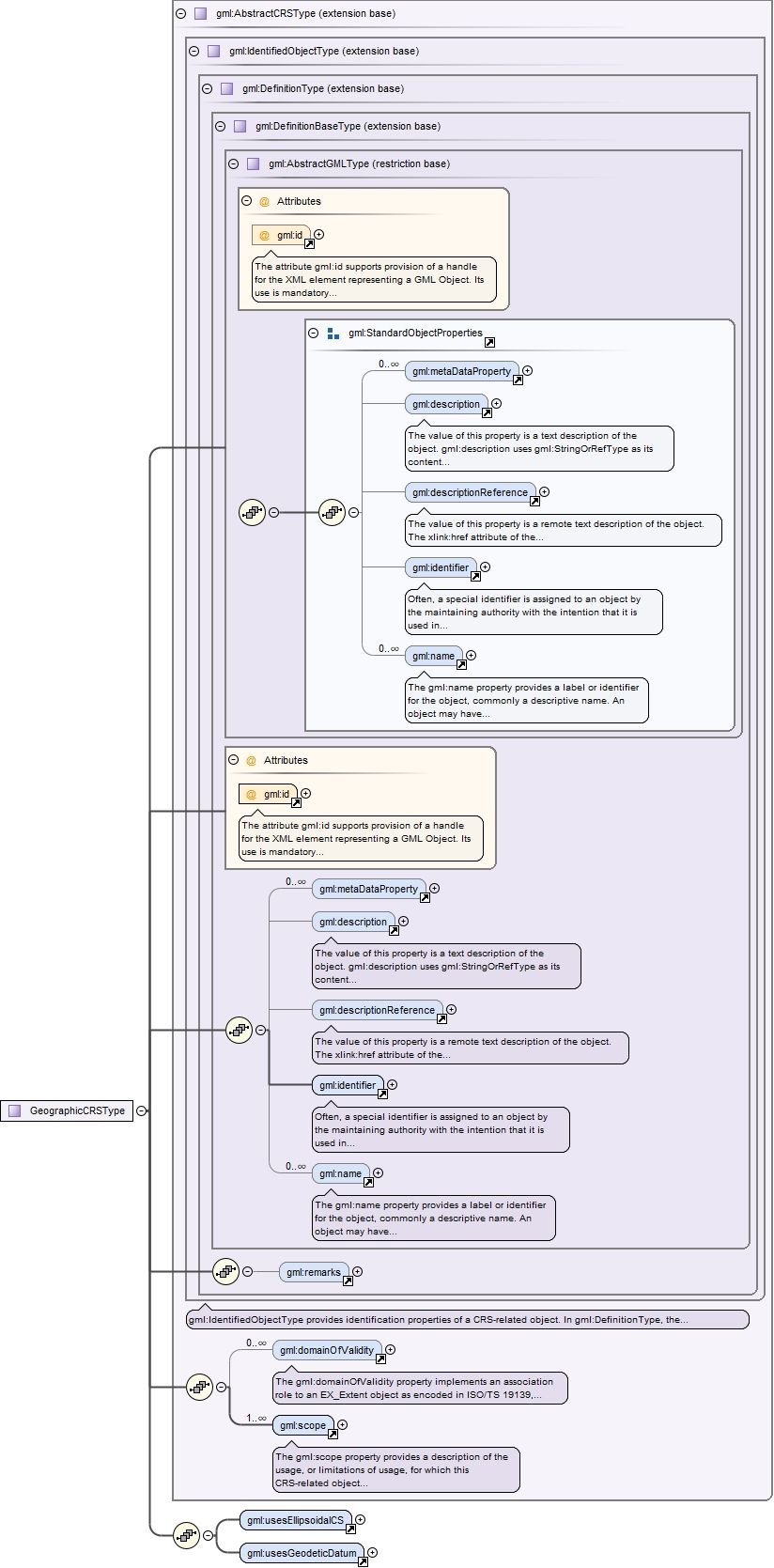

Element gml:GeographicCRS
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:GeographicCRSType Type hierarchy Properties
Substitution Group Affiliation Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier ,
gml:name* ,
gml:remarks{0,1} ,
gml:domainOfValidity* ,
gml:scope+ ,
gml:usesEllipsoidalCS ,
gml:usesGeodeticDatum Children gml:description gml:descriptionReference gml:domainOfValidity gml:identifier gml:metaDataProperty gml:name gml:remarks gml:scope gml:usesEllipsoidalCS gml:usesGeodeticDatum Instance
<gml:GeographicCRS gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:domainOfValidity xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:domainOfValidity>
<gml:scope > {1,unbounded} </gml:scope>
<gml:usesEllipsoidalCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:usesEllipsoidalCS>
<gml:usesGeodeticDatum xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:usesGeodeticDatum>
</gml:GeographicCRS>
Attributes
QName Type Use Annotation gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "GeographicCRS" type= "gml:GeographicCRSType" substitutionGroup= "gml:AbstractSingleCRS" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

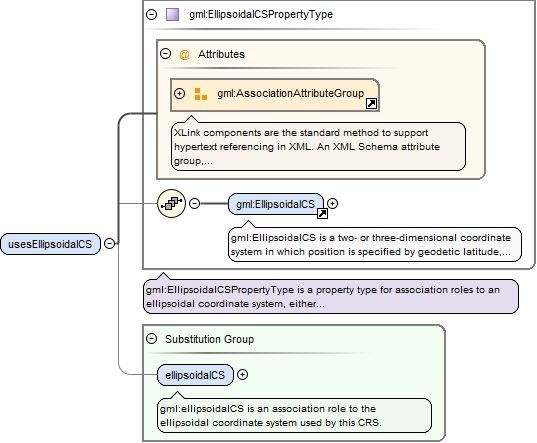

Element gml:usesEllipsoidalCS
Element gml:usesGeodeticDatum

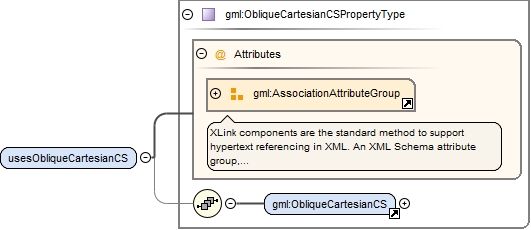

Element gml:usesObliqueCartesianCS

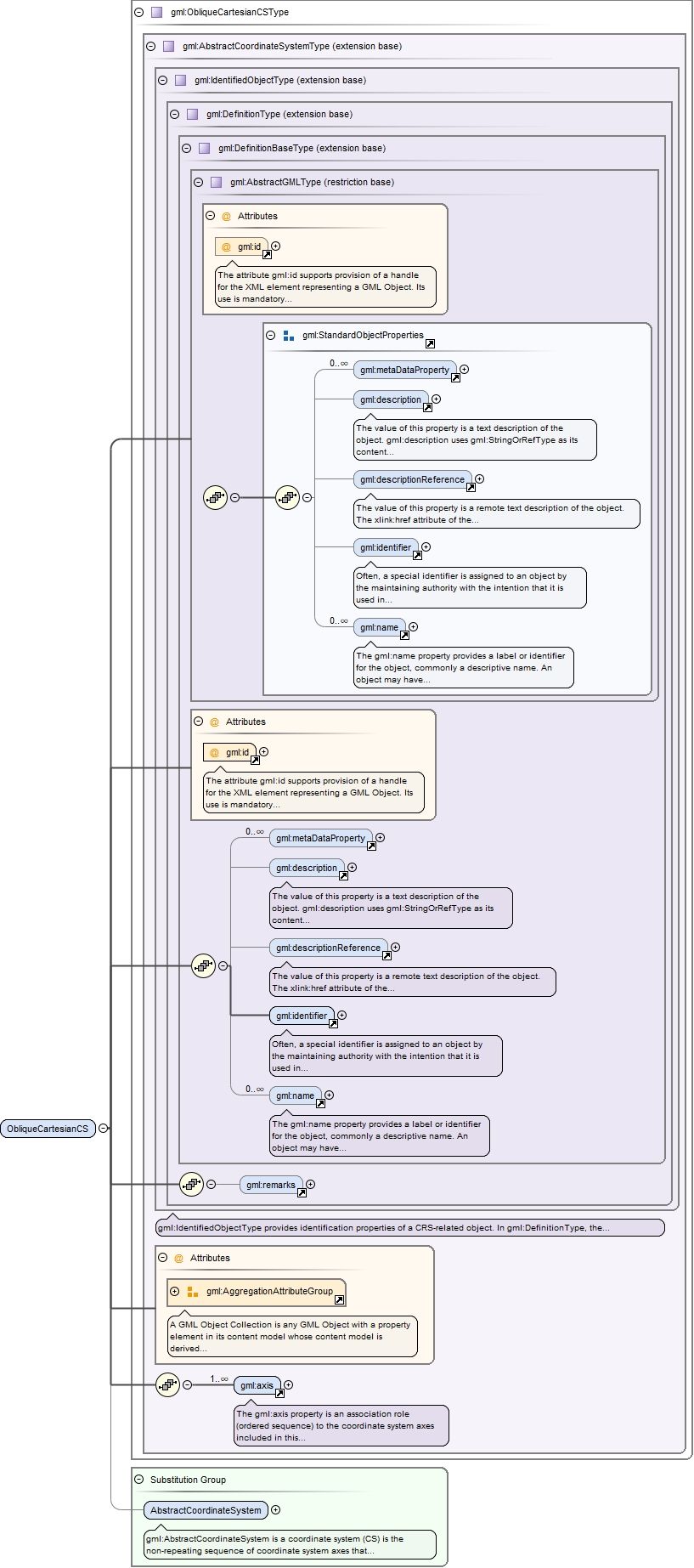

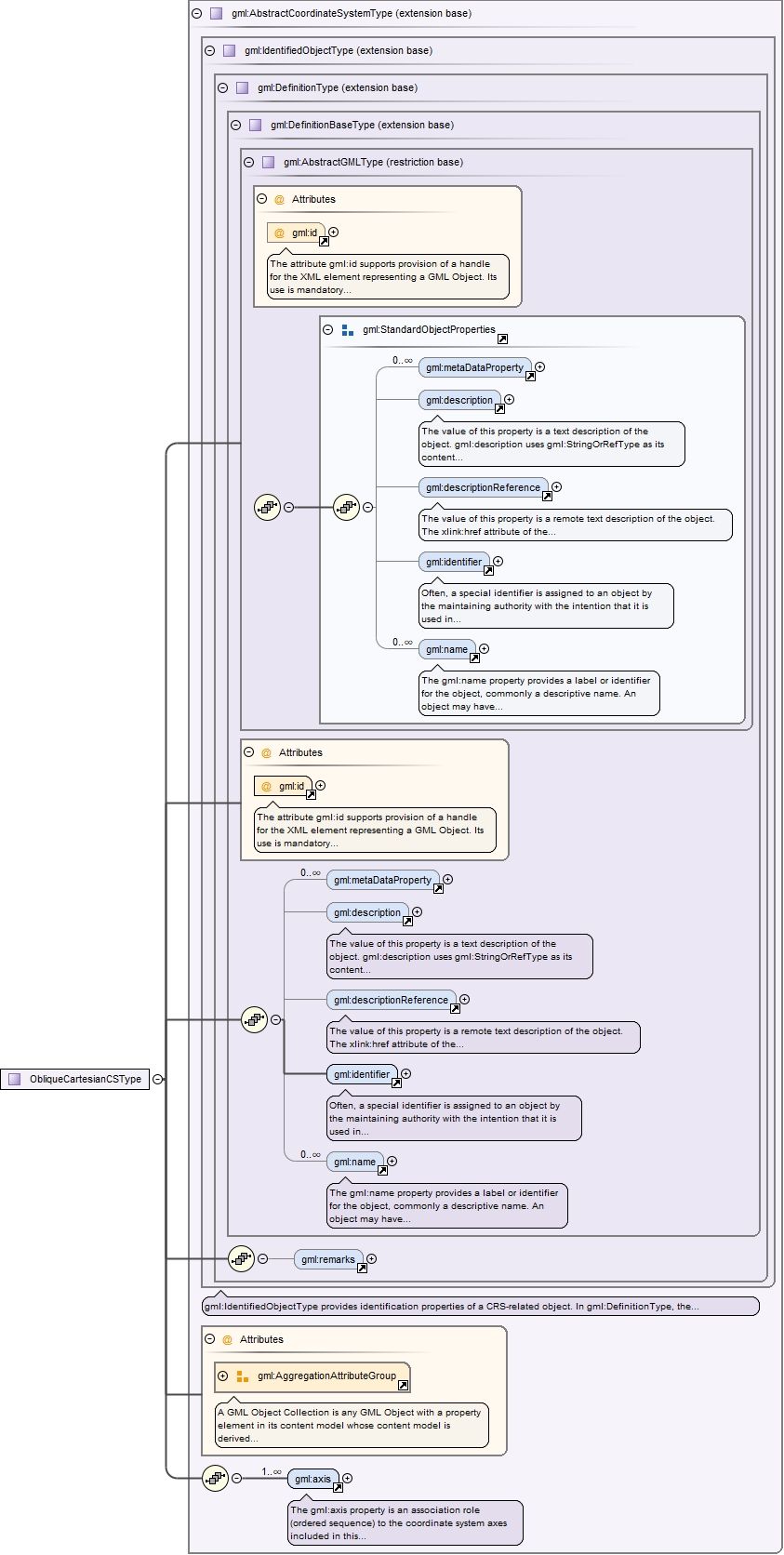

Element gml:ObliqueCartesianCS
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:ObliqueCartesianCSType Type hierarchy Properties
Substitution Group Affiliation Used by
Model
Children gml:axis gml:description gml:descriptionReference gml:identifier gml:metaDataProperty gml:name gml:remarks Instance
<gml:ObliqueCartesianCS aggregationType= "" gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:axis xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </gml:axis>
</gml:ObliqueCartesianCS>
Attributes
QName Type Use Annotation aggregationType gml:AggregationType optional
gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "ObliqueCartesianCS" type= "gml:ObliqueCartesianCSType" substitutionGroup= "gml:AbstractCoordinateSystem" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

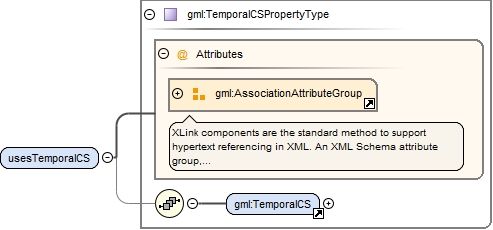

Element gml:usesTemporalCS

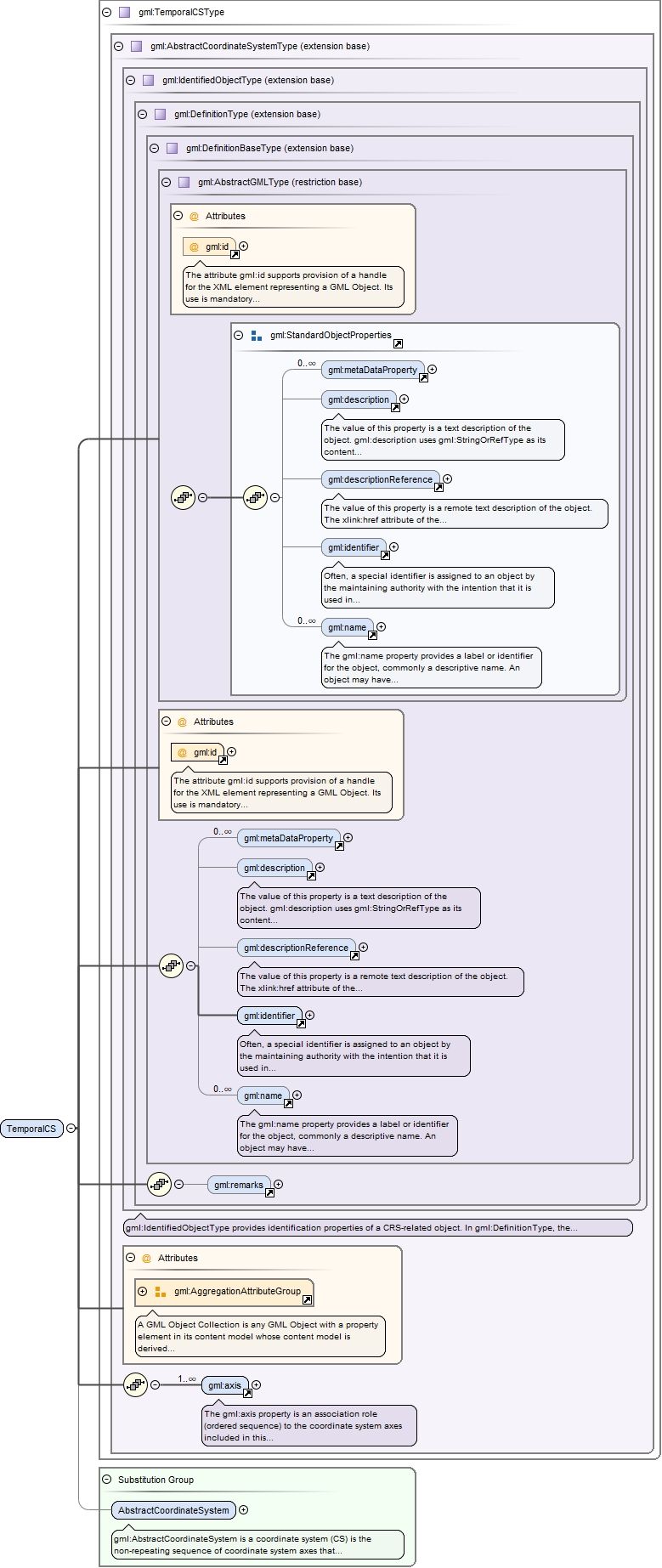

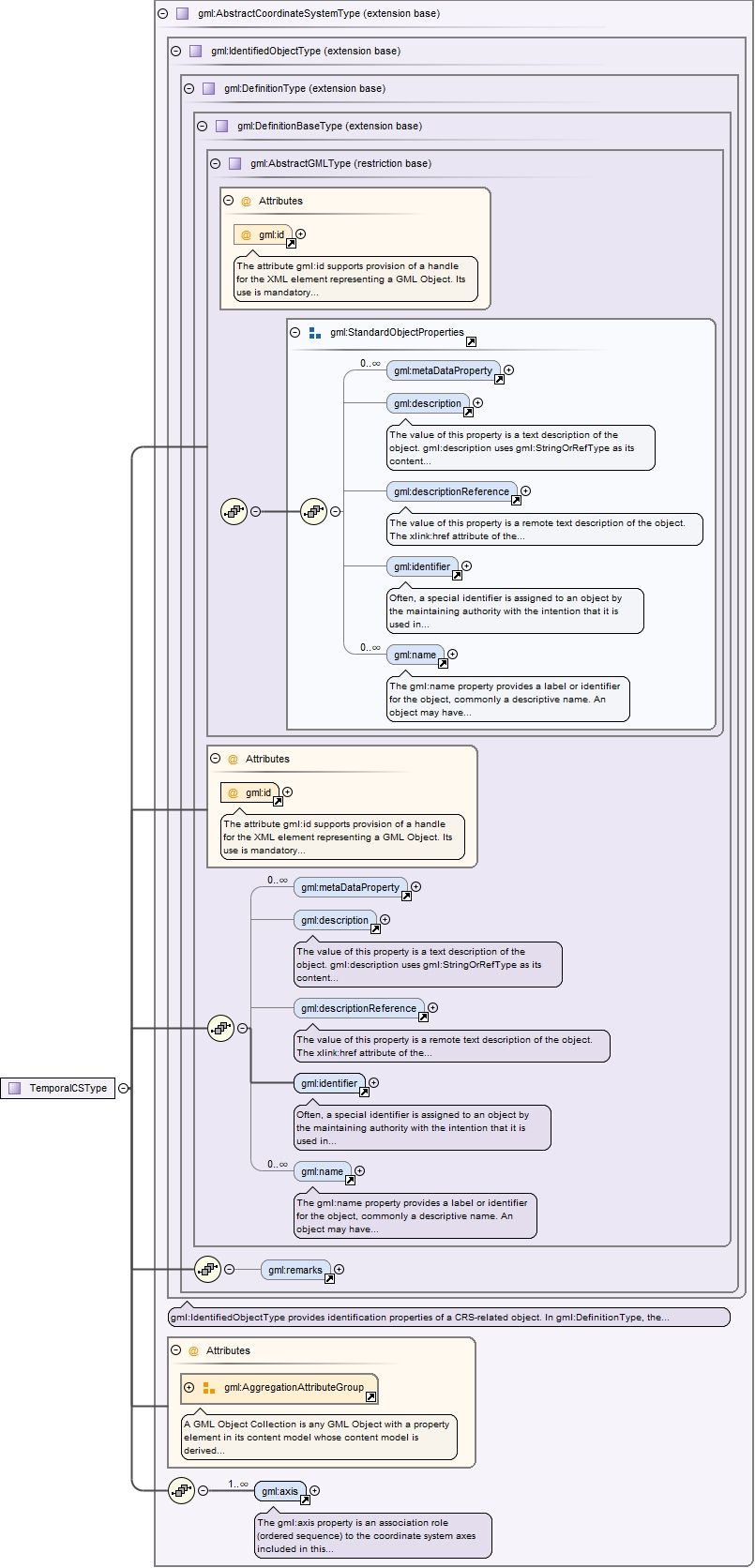

Element gml:TemporalCS
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:TemporalCSType Type hierarchy Properties
Substitution Group Affiliation Used by
Model
Children gml:axis gml:description gml:descriptionReference gml:identifier gml:metaDataProperty gml:name gml:remarks Instance
<gml:TemporalCS aggregationType= "" gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:axis xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </gml:axis>
</gml:TemporalCS>
Attributes
QName Type Use Annotation aggregationType gml:AggregationType optional
gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "TemporalCS" type= "gml:TemporalCSType" substitutionGroup= "gml:AbstractCoordinateSystem" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

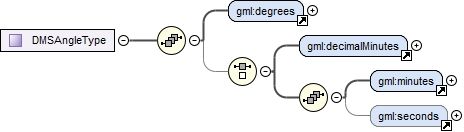

Element gml:dmsAngleValue
Element gml:degrees
Element gml:decimalMinutes
Element gml:minutes
Element gml:seconds

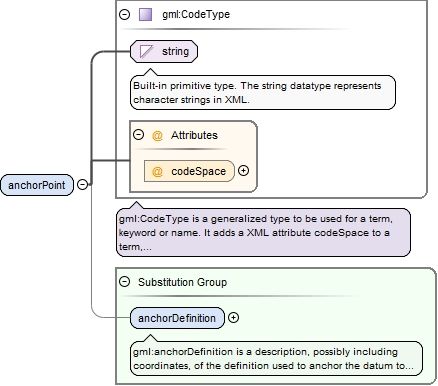

Element gml:anchorPoint

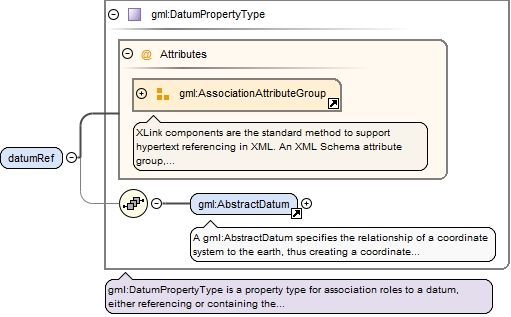

Element gml:datumRef

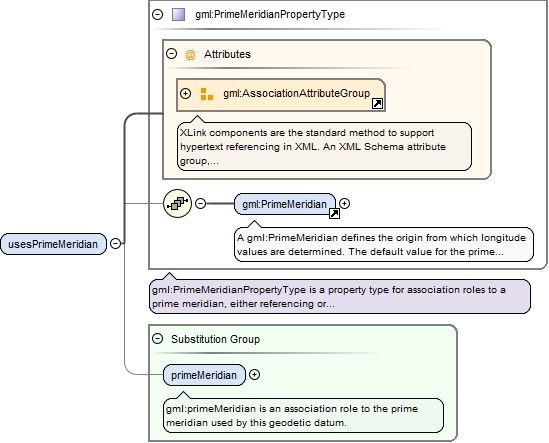

Element gml:usesPrimeMeridian

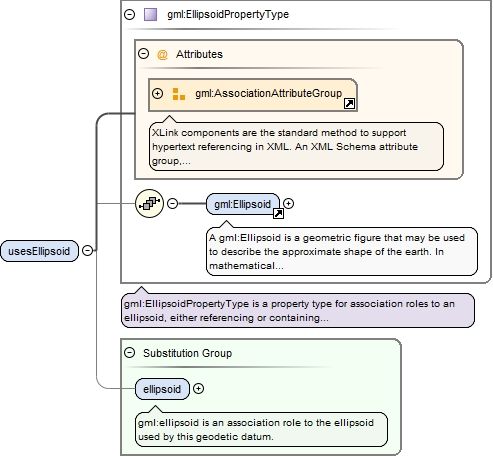

Element gml:usesEllipsoid
Element gml:geodeticDatumRef
Element gml:ellipsoidRef
Element gml:primeMeridianRef

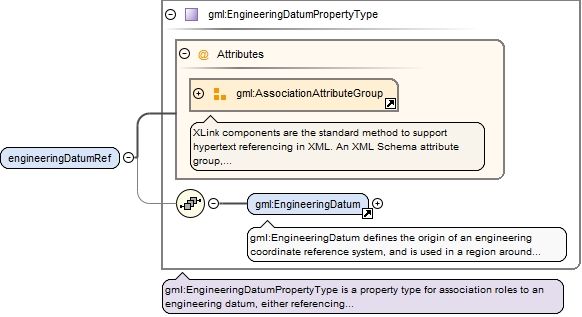

Element gml:engineeringDatumRef
Element gml:imageDatumRef
Element gml:verticalDatumRef
Element gml:temporalDatumRef

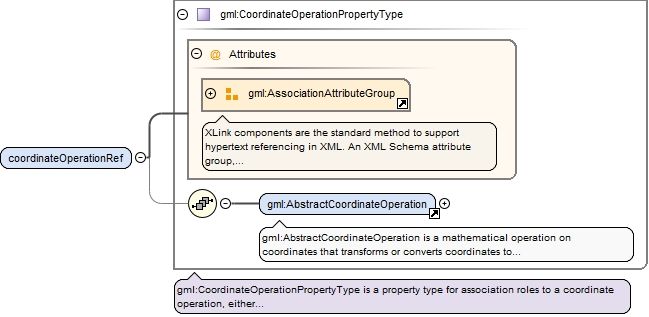

Element gml:coordinateOperationRef

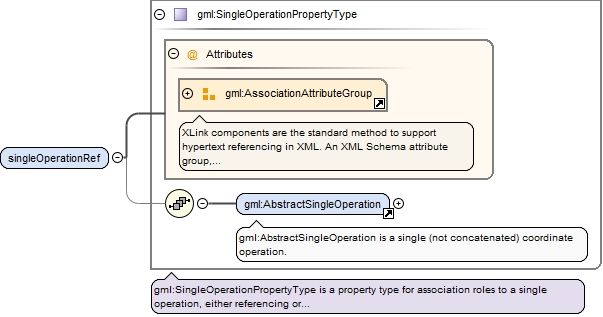

Element gml:singleOperationRef

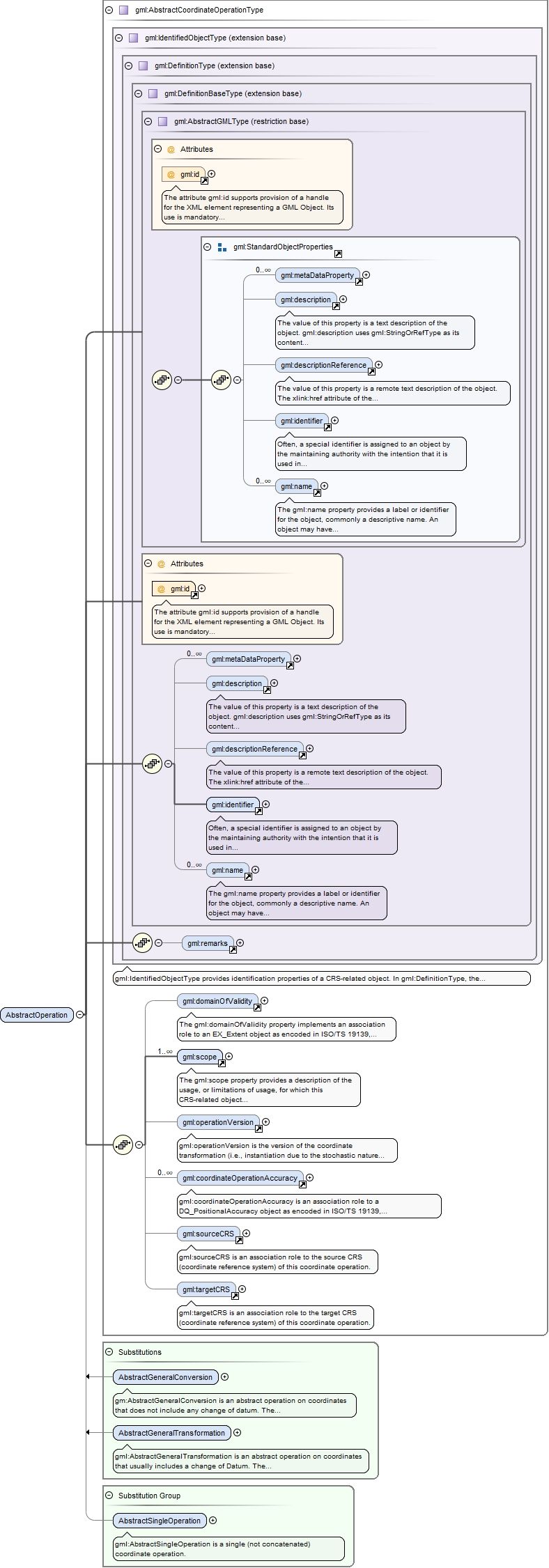

Element gml:AbstractOperation
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:AbstractCoordinateOperationType Type hierarchy Properties
content complex abstract true
Substitution Group Substitution Group Affiliation Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier ,
gml:name* ,
gml:remarks{0,1} ,
gml:domainOfValidity{0,1} ,
gml:scope+ ,
gml:operationVersion{0,1} ,
gml:coordinateOperationAccuracy* ,
gml:sourceCRS{0,1} ,
gml:targetCRS{0,1} Children gml:coordinateOperationAccuracy gml:description gml:descriptionReference gml:domainOfValidity gml:identifier gml:metaDataProperty gml:name gml:operationVersion gml:remarks gml:scope gml:sourceCRS gml:targetCRS Instance
<gml:AbstractOperation gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:domainOfValidity xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:domainOfValidity>
<gml:scope > {1,unbounded} </gml:scope>
<gml:operationVersion > {0,1} </gml:operationVersion>
<gml:coordinateOperationAccuracy xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:coordinateOperationAccuracy>
<gml:sourceCRS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:sourceCRS>
<gml:targetCRS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:targetCRS>
</gml:AbstractOperation>
Attributes
QName Type Use Annotation gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "AbstractOperation" type= "gml:AbstractCoordinateOperationType" abstract= "true" substitutionGroup= "gml:AbstractSingleOperation" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

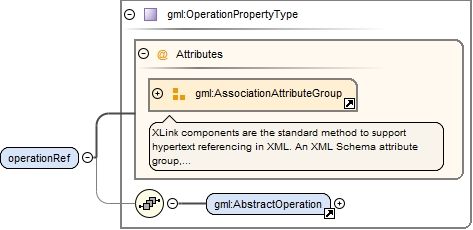

Element gml:operationRef

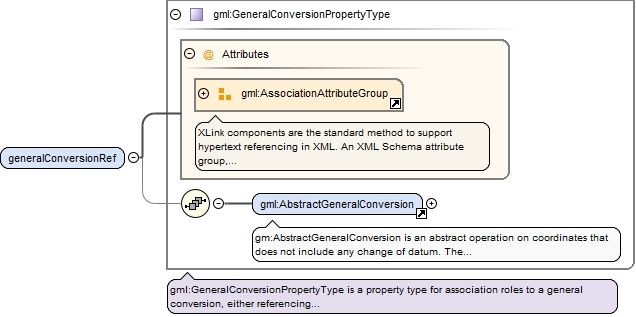

Element gml:generalConversionRef

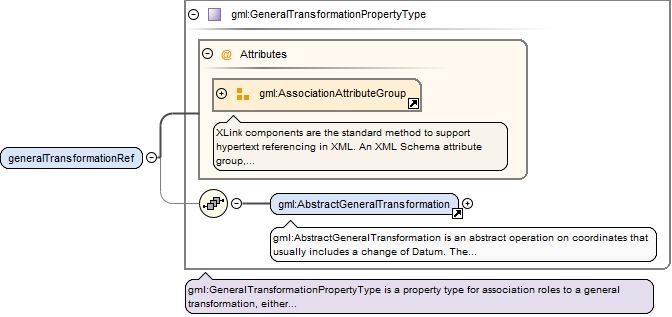

Element gml:generalTransformationRef

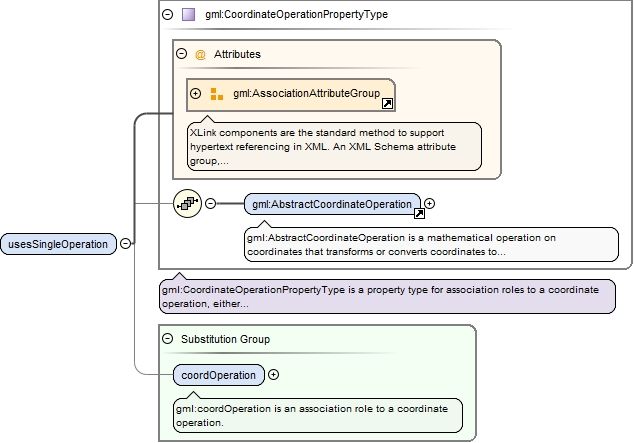

Element gml:usesSingleOperation

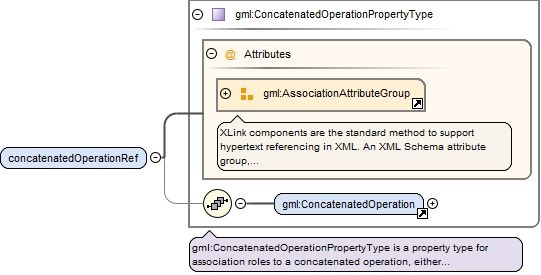

Element gml:concatenatedOperationRef

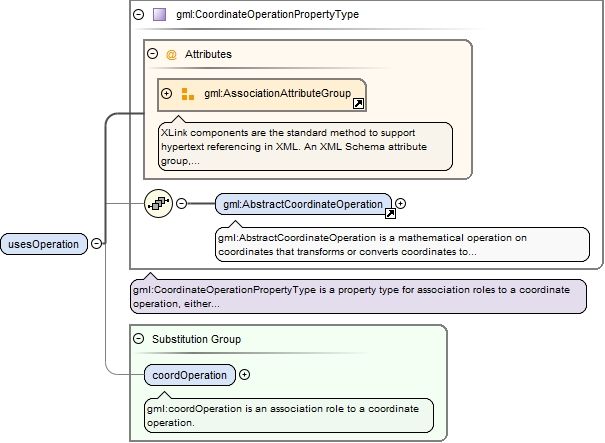

Element gml:usesOperation

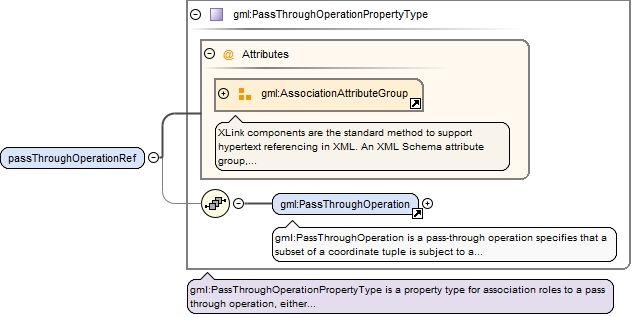

Element gml:passThroughOperationRef

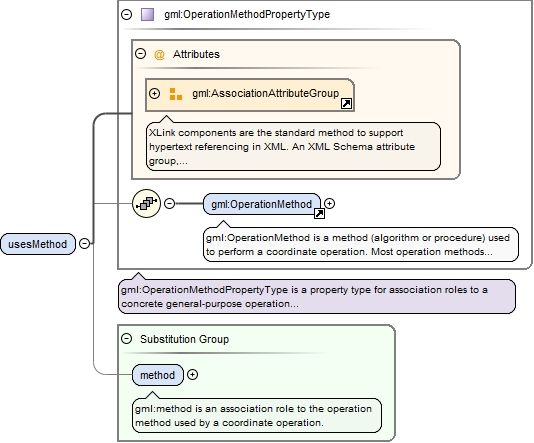

Element gml:usesMethod

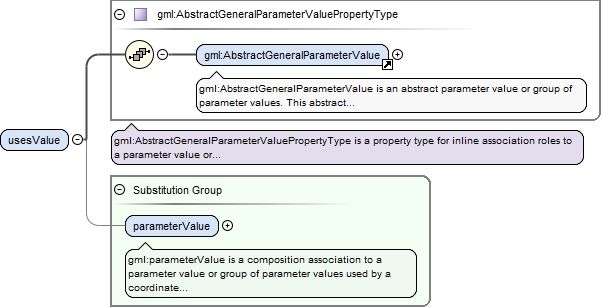

Element gml:usesValue
Element gml:conversionRef
Element gml:transformationRef

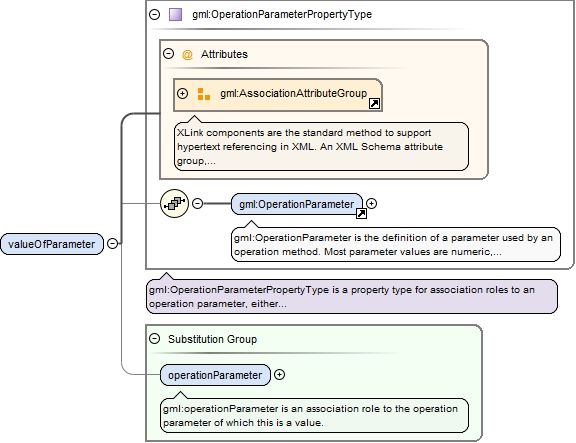

Element gml:valueOfParameter

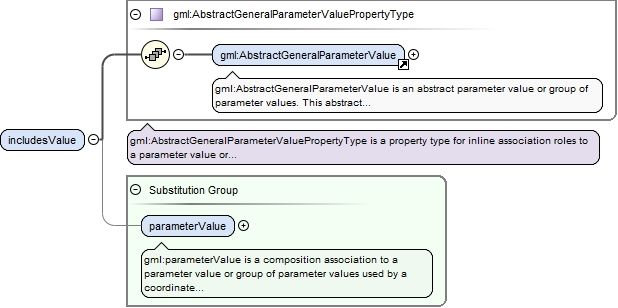

Element gml:includesValue

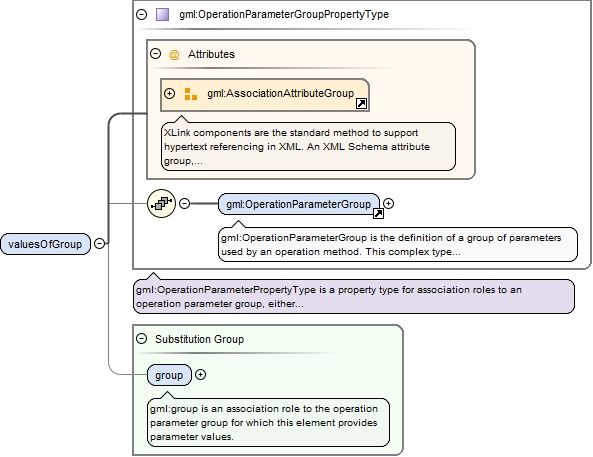

Element gml:valuesOfGroup

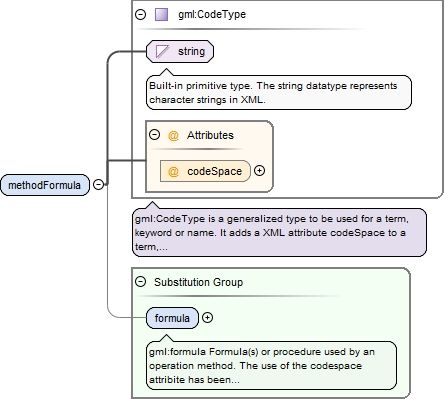

Element gml:methodFormula

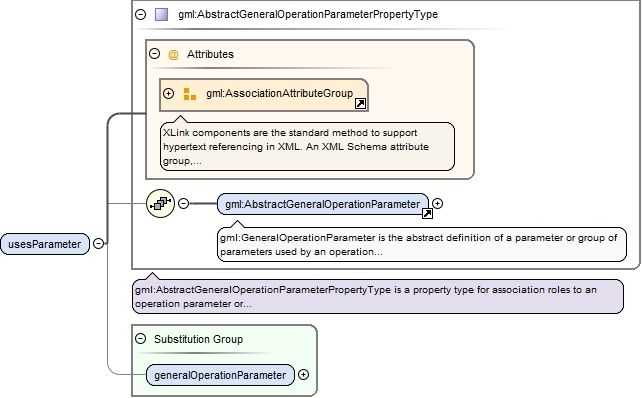

Element gml:usesParameter

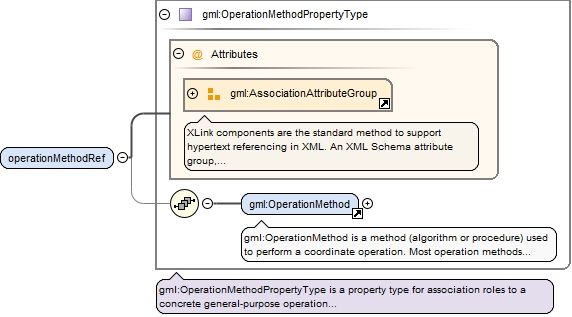

Element gml:operationMethodRef

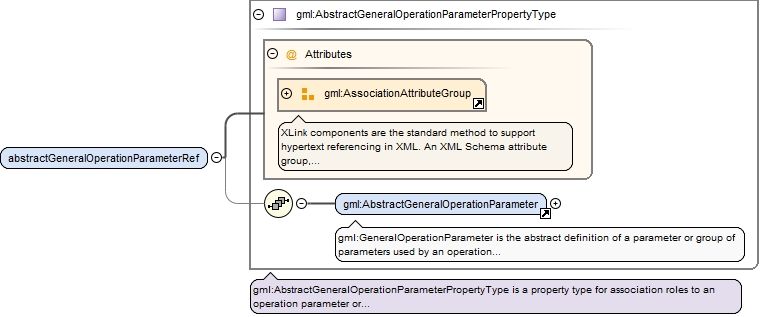

Element gml:abstractGeneralOperationParameterRef

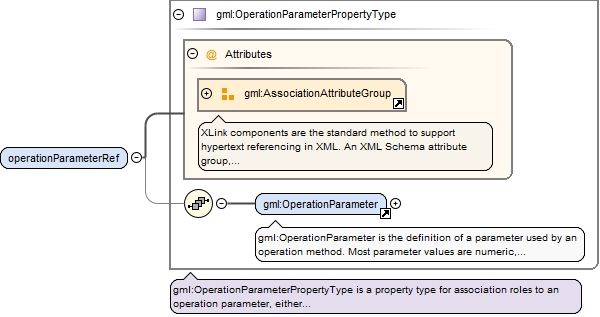

Element gml:operationParameterRef

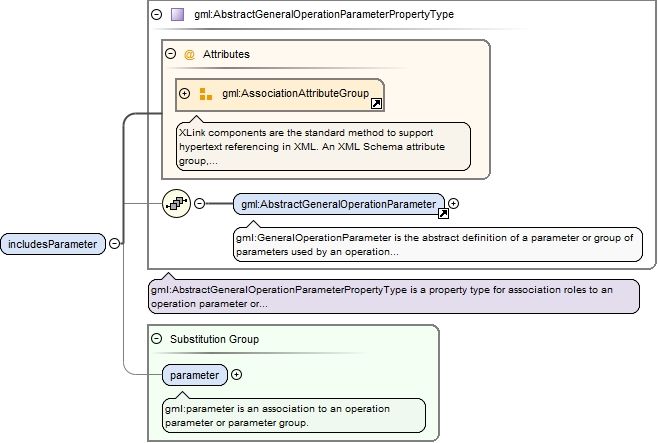

Element gml:includesParameter

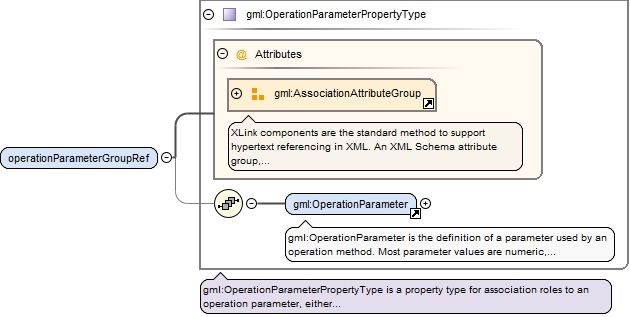

Element gml:operationParameterGroupRef

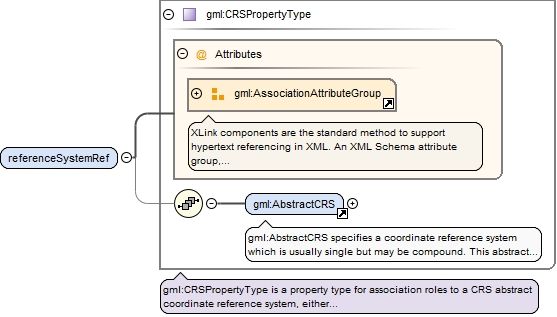

Element gml:referenceSystemRef

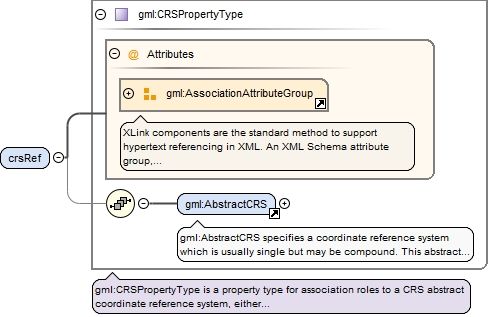

Element gml:crsRef

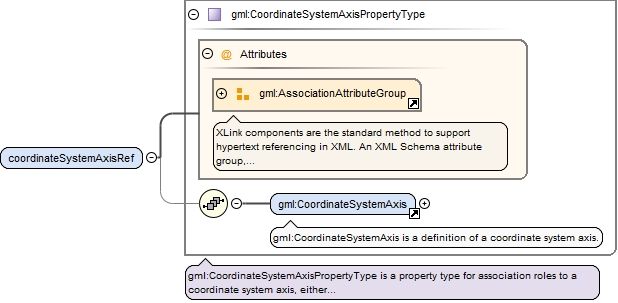

Element gml:coordinateSystemAxisRef

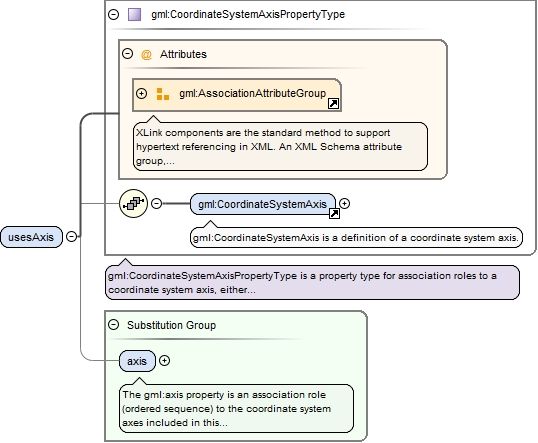

Element gml:usesAxis

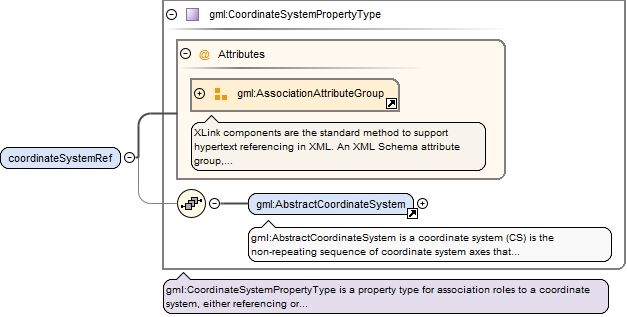

Element gml:coordinateSystemRef
Element gml:ellipsoidalCSRef
Element gml:cartesianCSRef

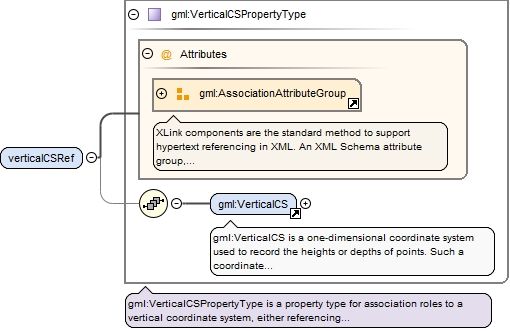

Element gml:verticalCSRef

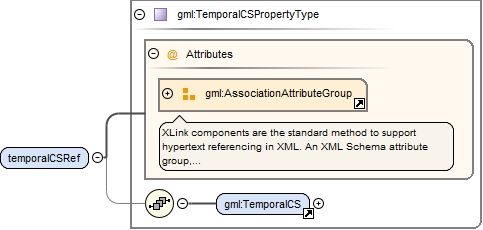

Element gml:temporalCSRef

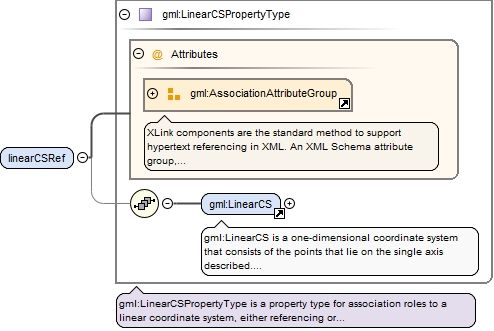

Element gml:linearCSRef

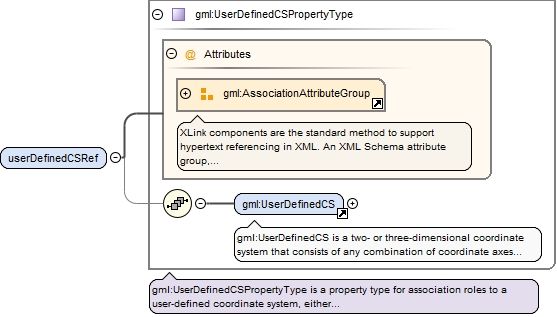

Element gml:userDefinedCSRef

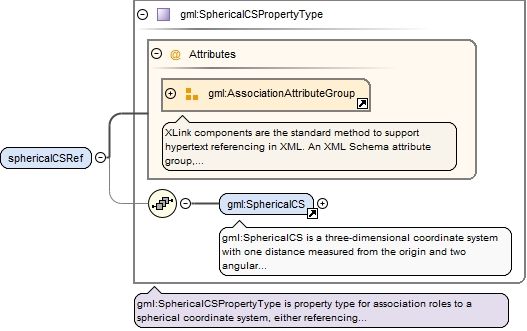

Element gml:sphericalCSRef
Element gml:polarCSRef
Element gml:cylindricalCSRef

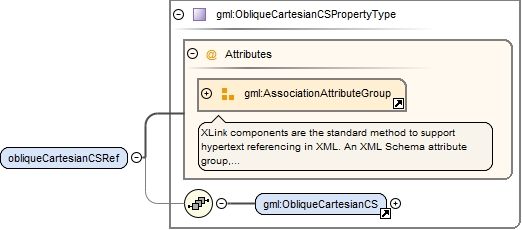

Element gml:obliqueCartesianCSRef

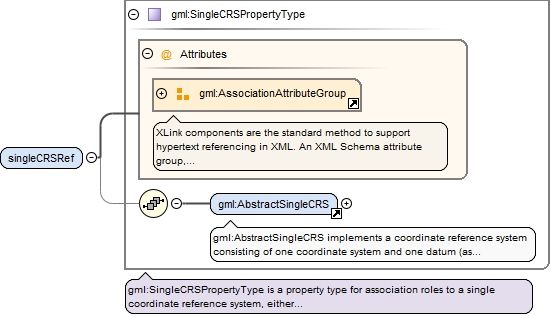

Element gml:singleCRSRef

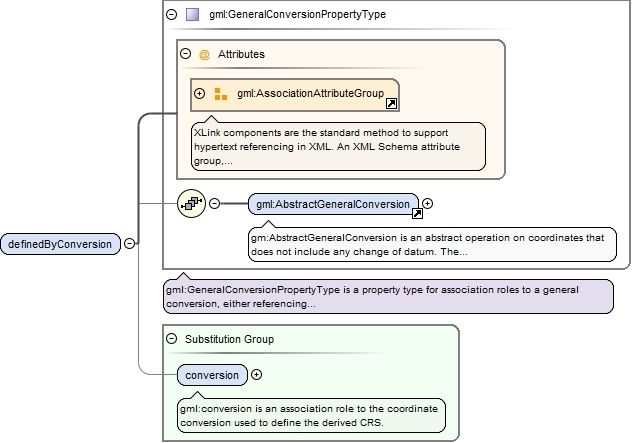

Element gml:definedByConversion

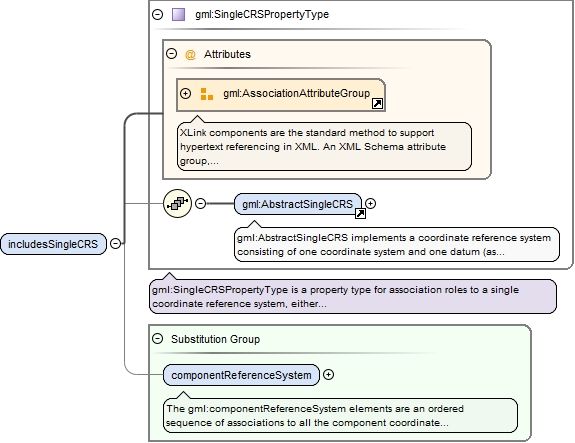

Element gml:includesSingleCRS

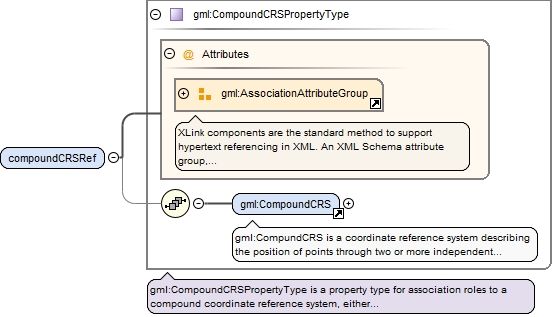

Element gml:compoundCRSRef

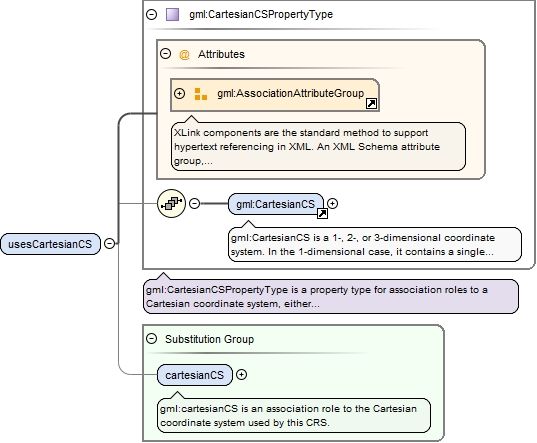

Element gml:usesCartesianCS

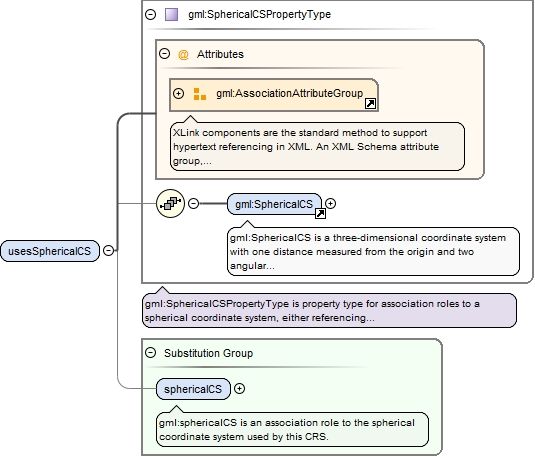

Element gml:usesSphericalCS
Element gml:usesVerticalCS

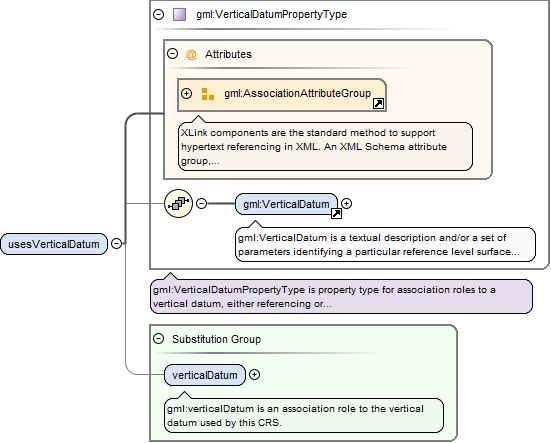

Element gml:usesVerticalDatum

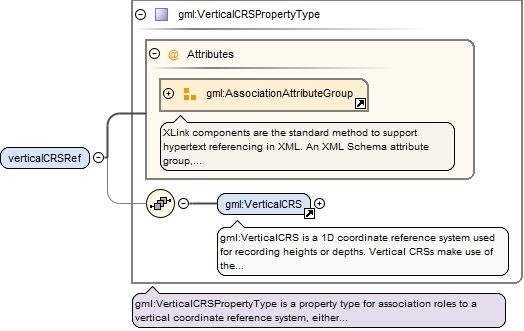

Element gml:verticalCRSRef

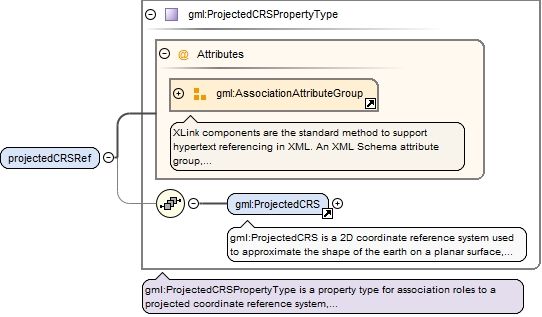

Element gml:projectedCRSRef

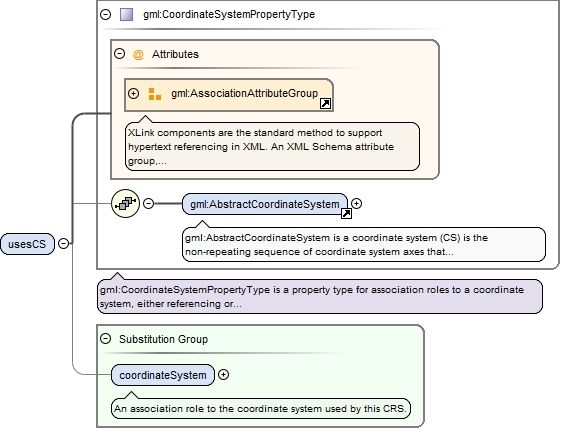

Element gml:usesCS
Element gml:derivedCRSRef

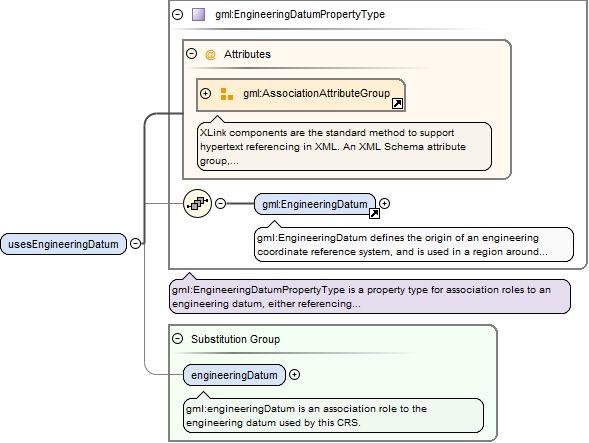

Element gml:usesEngineeringDatum

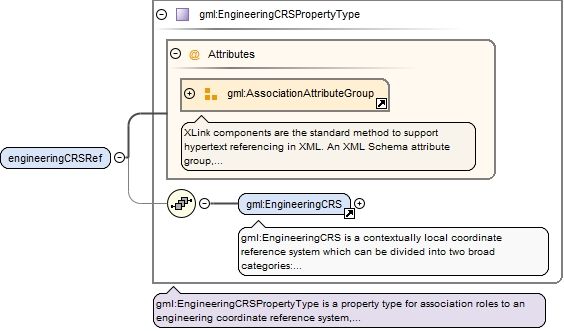

Element gml:engineeringCRSRef
Element gml:usesAffineCS

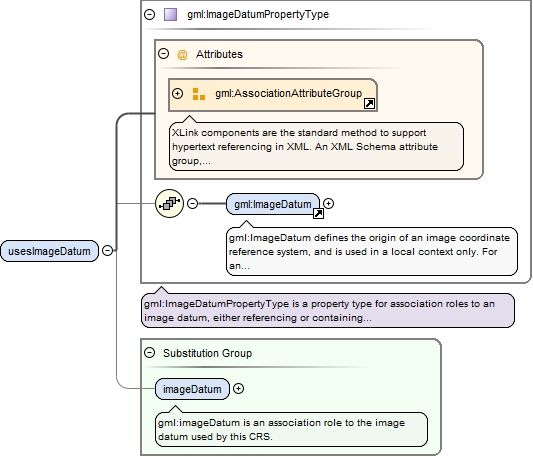

Element gml:usesImageDatum
Element gml:imageCRSRef

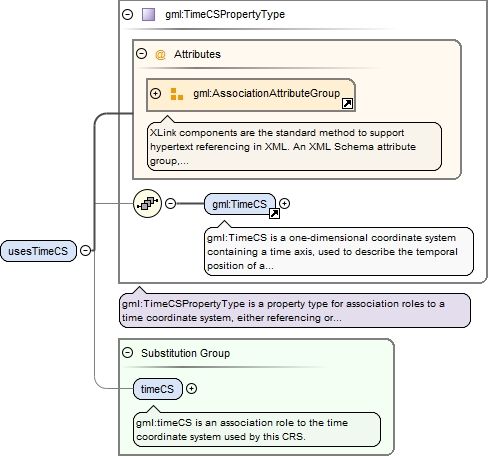

Element gml:usesTimeCS

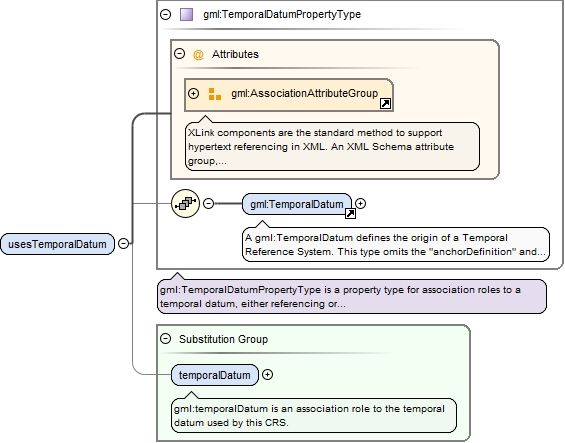

Element gml:usesTemporalDatum

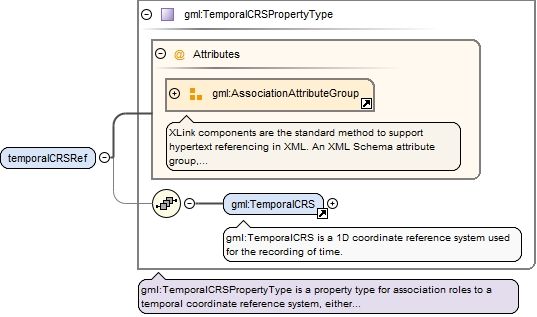

Element gml:temporalCRSRef

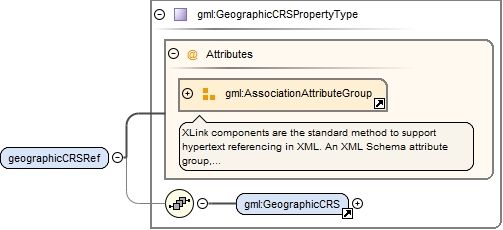

Element gml:geographicCRSRef

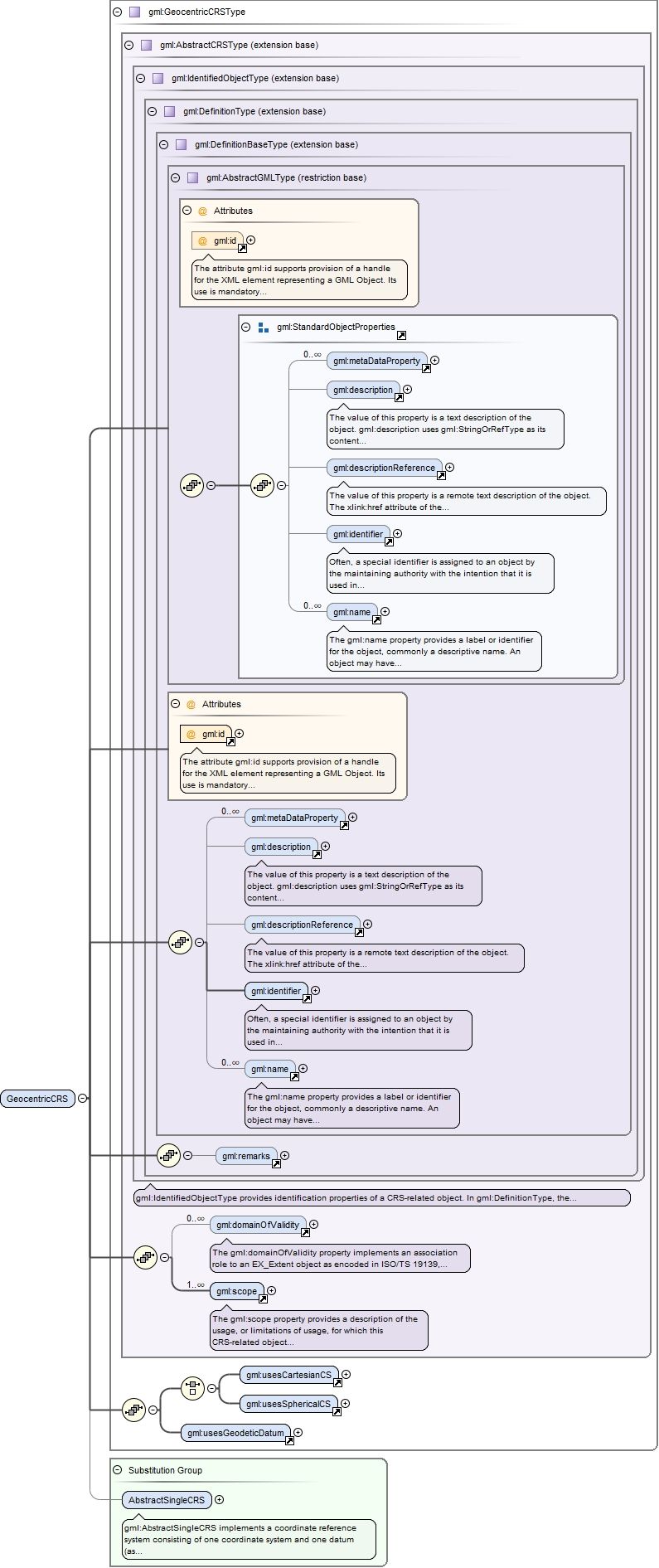

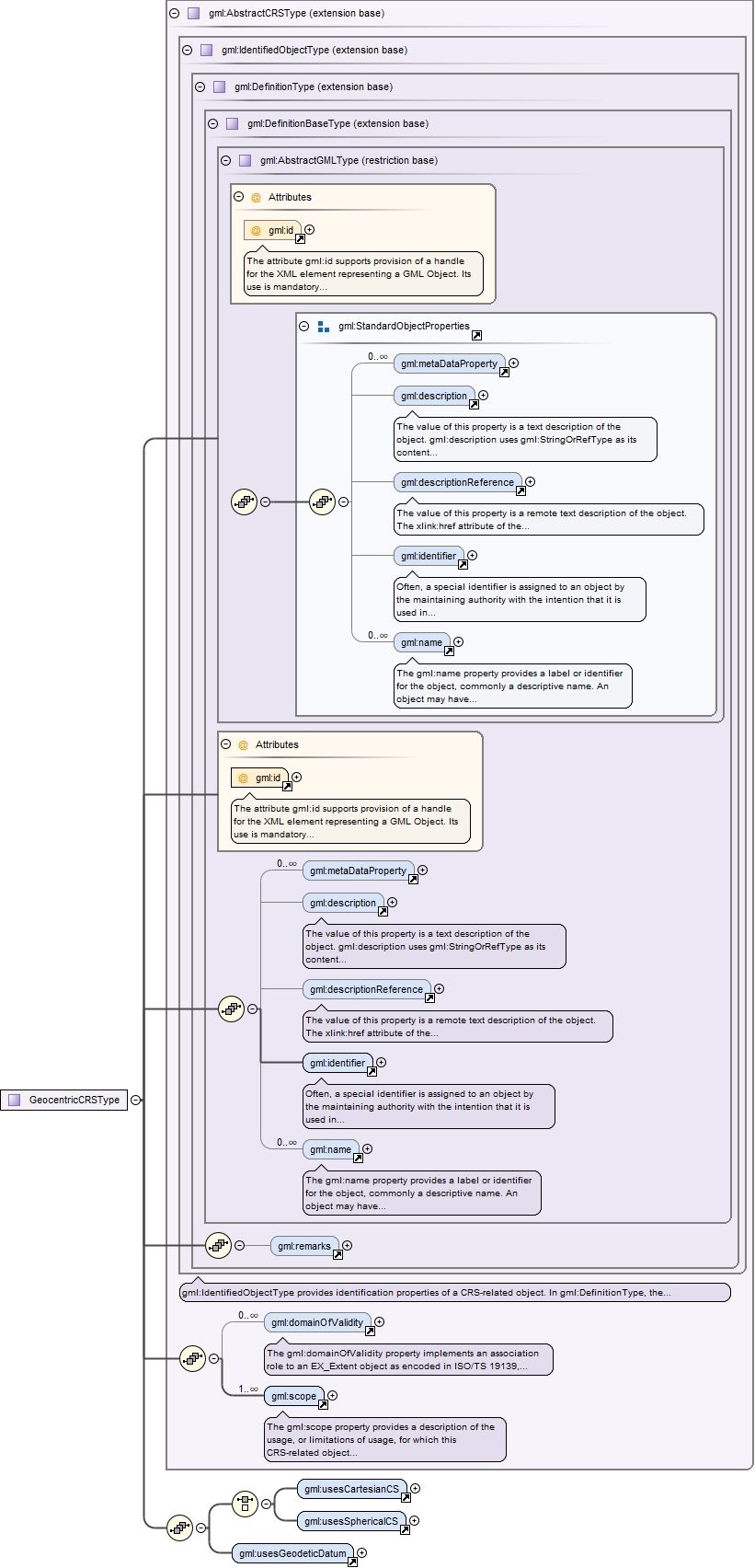

Element gml:GeocentricCRS
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:GeocentricCRSType Type hierarchy Properties
Substitution Group Affiliation Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier ,
gml:name* ,
gml:remarks{0,1} ,
gml:domainOfValidity* ,
gml:scope+ , (
gml:usesCartesianCS |
gml:usesSphericalCS ) ,
gml:usesGeodeticDatum Children gml:description gml:descriptionReference gml:domainOfValidity gml:identifier gml:metaDataProperty gml:name gml:remarks gml:scope gml:usesCartesianCS gml:usesGeodeticDatum gml:usesSphericalCS Instance
<gml:GeocentricCRS gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:domainOfValidity xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:domainOfValidity>
<gml:scope > {1,unbounded} </gml:scope>
<gml:usesCartesianCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:usesCartesianCS>
<gml:usesSphericalCS xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:usesSphericalCS>
<gml:usesGeodeticDatum xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:usesGeodeticDatum>
</gml:GeocentricCRS>
Attributes
QName Type Use Annotation gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "GeocentricCRS" type= "gml:GeocentricCRSType" substitutionGroup= "gml:AbstractSingleCRS" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>
Element gml:geocentricCRSRef

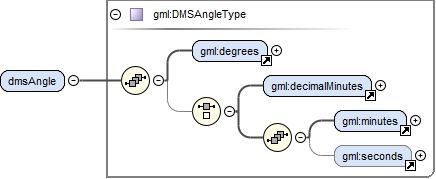

Element gml:dmsAngle

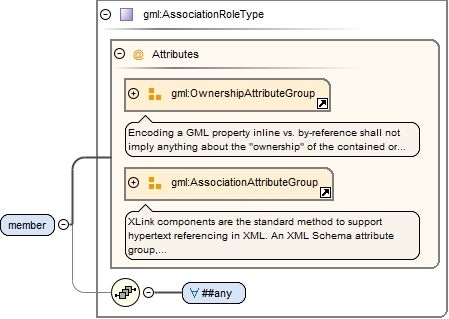

Element gml:member

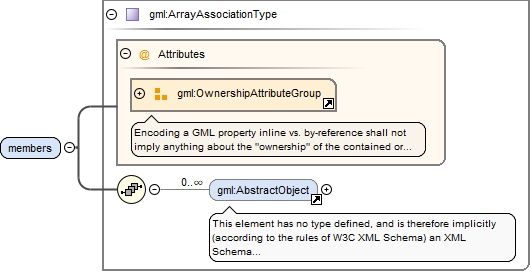

Element gml:members

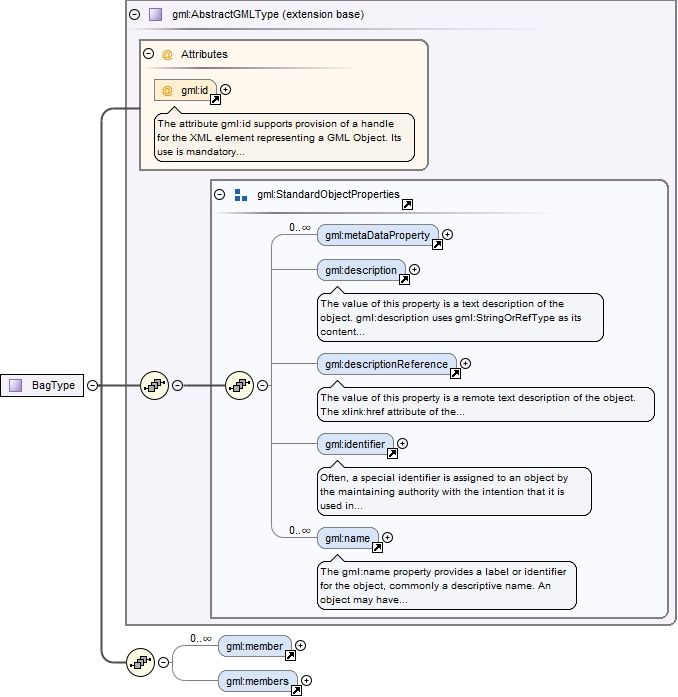

Element gml:Bag
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:BagType Type hierarchy Properties
Substitution Group Affiliation Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:member* ,
gml:members{0,1} Children gml:description gml:descriptionReference gml:identifier gml:member gml:members gml:metaDataProperty gml:name Instance
<gml:Bag gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:member xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:member>
<gml:members owns= "false" > {0,1} </gml:members>
</gml:Bag>
Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "Bag" type= "gml:BagType" substitutionGroup= "gml:AbstractGML" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

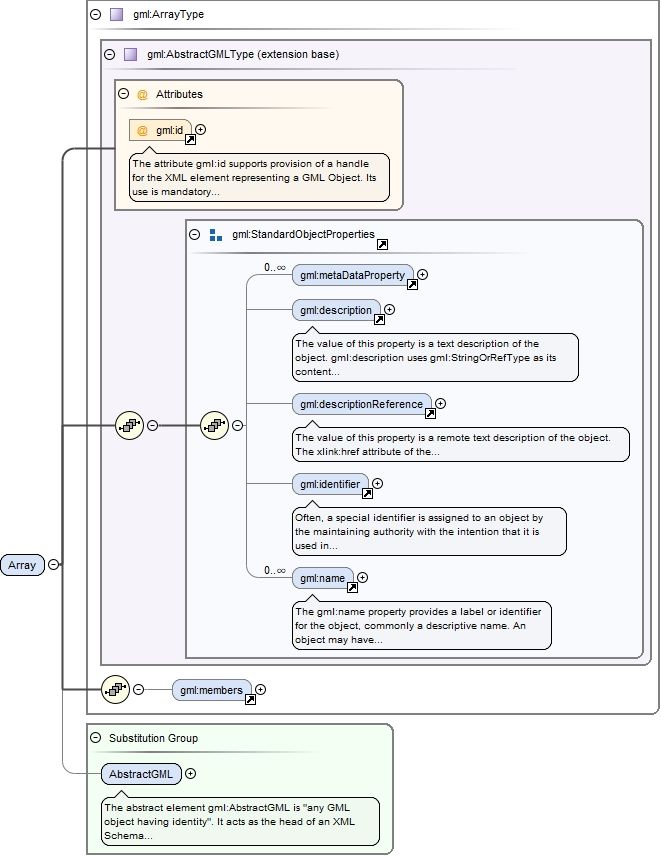

Element gml:Array
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:ArrayType Type hierarchy Properties
Substitution Group Affiliation Model
Children gml:description gml:descriptionReference gml:identifier gml:members gml:metaDataProperty gml:name Instance
<gml:Array gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:members owns= "false" > {0,1} </gml:members>
</gml:Array>
Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "Array" type= "gml:ArrayType" substitutionGroup= "gml:AbstractGML" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

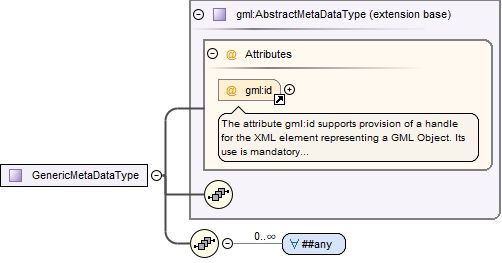

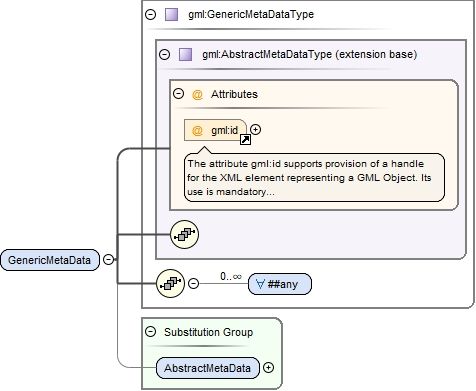

Element gml:GenericMetaData

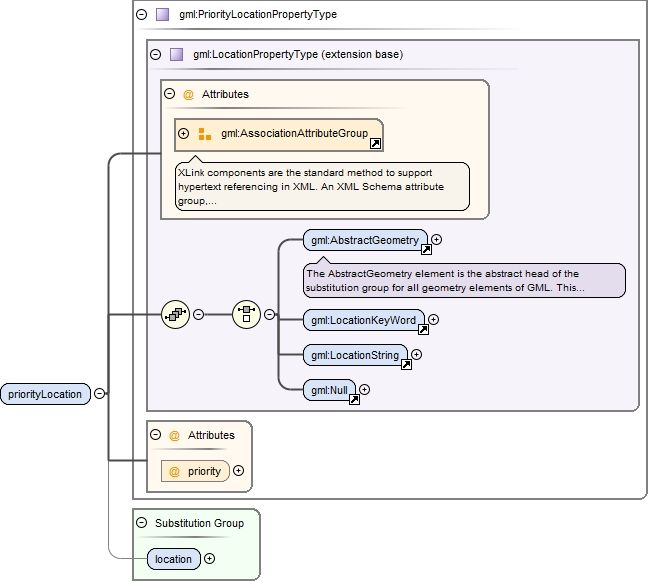

Element gml:priorityLocation

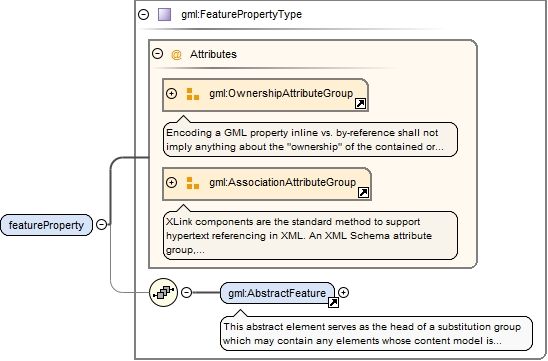

Element gml:featureProperty

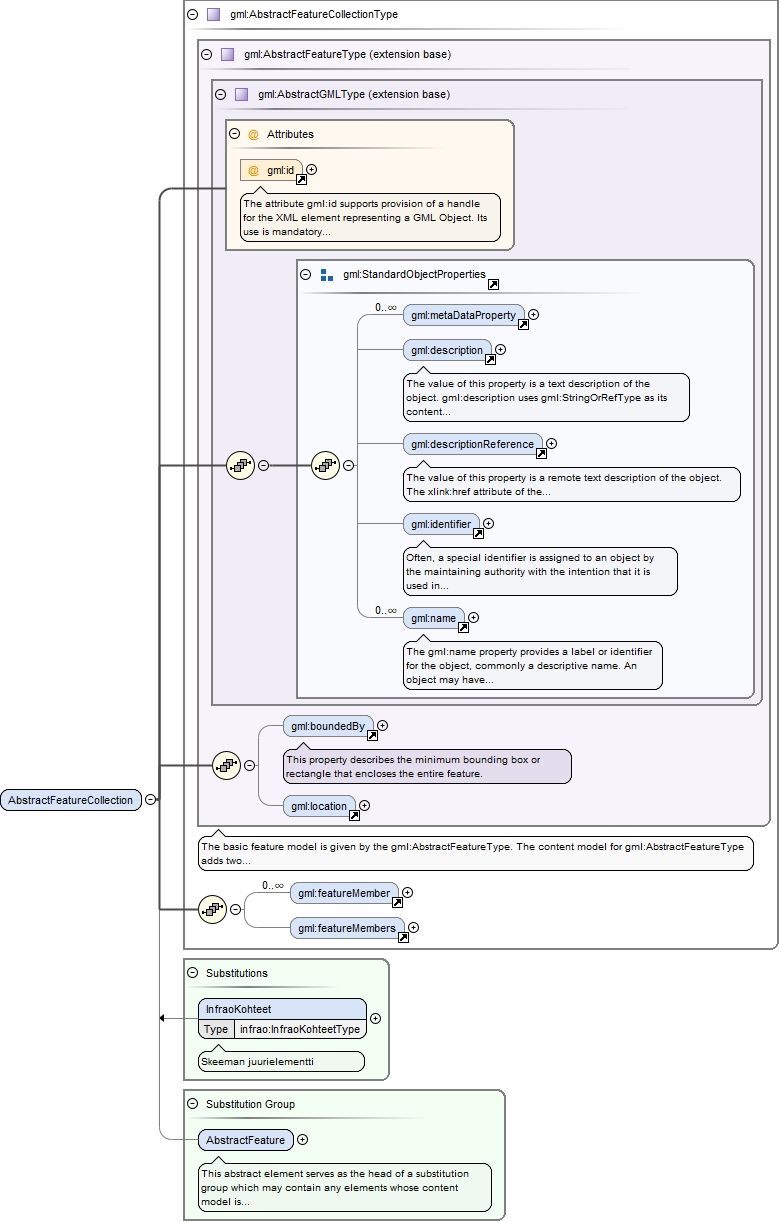

Element gml:AbstractFeatureCollection
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:AbstractFeatureCollectionType Type hierarchy Properties
content complex abstract true
Substitution Group Substitution Group Affiliation Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:boundedBy{0,1} ,
gml:location{0,1} ,
gml:featureMember* ,
gml:featureMembers{0,1} Children gml:boundedBy gml:description gml:descriptionReference gml:featureMember gml:featureMembers gml:identifier gml:location gml:metaDataProperty gml:name Instance
<gml:AbstractFeatureCollection gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:boundedBy nilReason= "" > {0,1} </gml:boundedBy>
<gml:location xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:location>
<gml:featureMember xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:featureMember>
<gml:featureMembers > {0,1} </gml:featureMembers>
</gml:AbstractFeatureCollection>
Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "AbstractFeatureCollection" type= "gml:AbstractFeatureCollectionType" abstract= "true" substitutionGroup= "gml:AbstractFeature" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

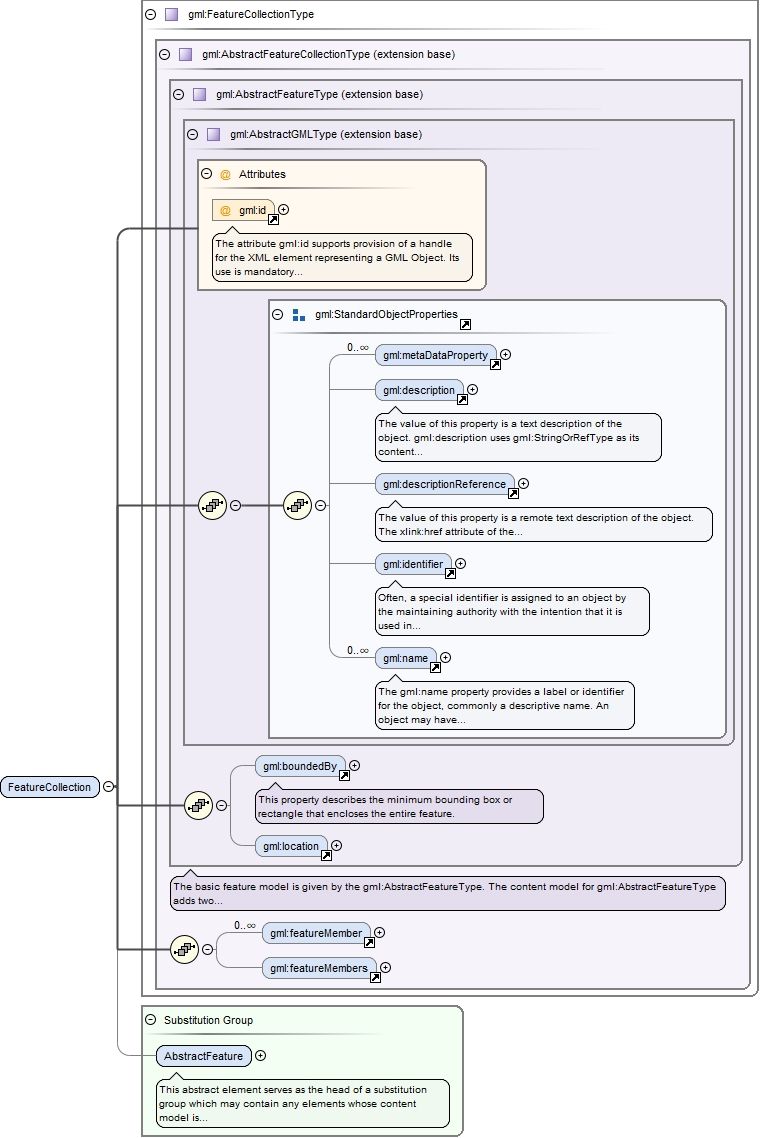

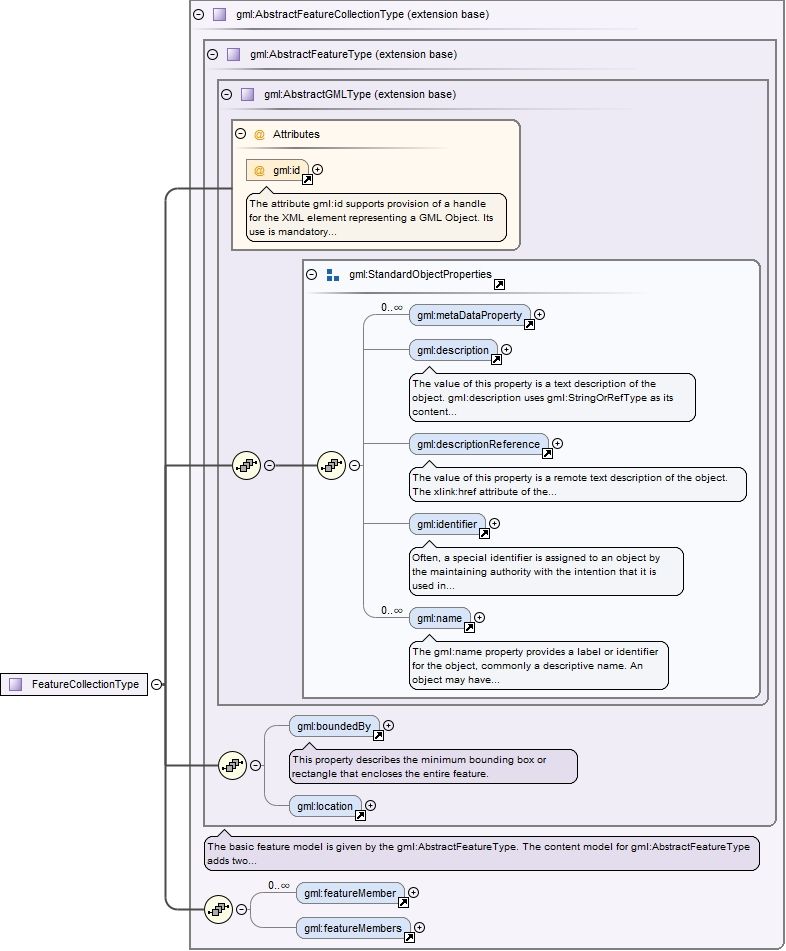

Element gml:FeatureCollection
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:FeatureCollectionType Type hierarchy Properties
Substitution Group Affiliation Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:boundedBy{0,1} ,
gml:location{0,1} ,
gml:featureMember* ,
gml:featureMembers{0,1} Children gml:boundedBy gml:description gml:descriptionReference gml:featureMember gml:featureMembers gml:identifier gml:location gml:metaDataProperty gml:name Instance
<gml:FeatureCollection gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:boundedBy nilReason= "" > {0,1} </gml:boundedBy>
<gml:location xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:location>
<gml:featureMember xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:featureMember>
<gml:featureMembers > {0,1} </gml:featureMembers>
</gml:FeatureCollection>
Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "FeatureCollection" type= "gml:FeatureCollectionType" substitutionGroup= "gml:AbstractFeature" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>
Element gml:track

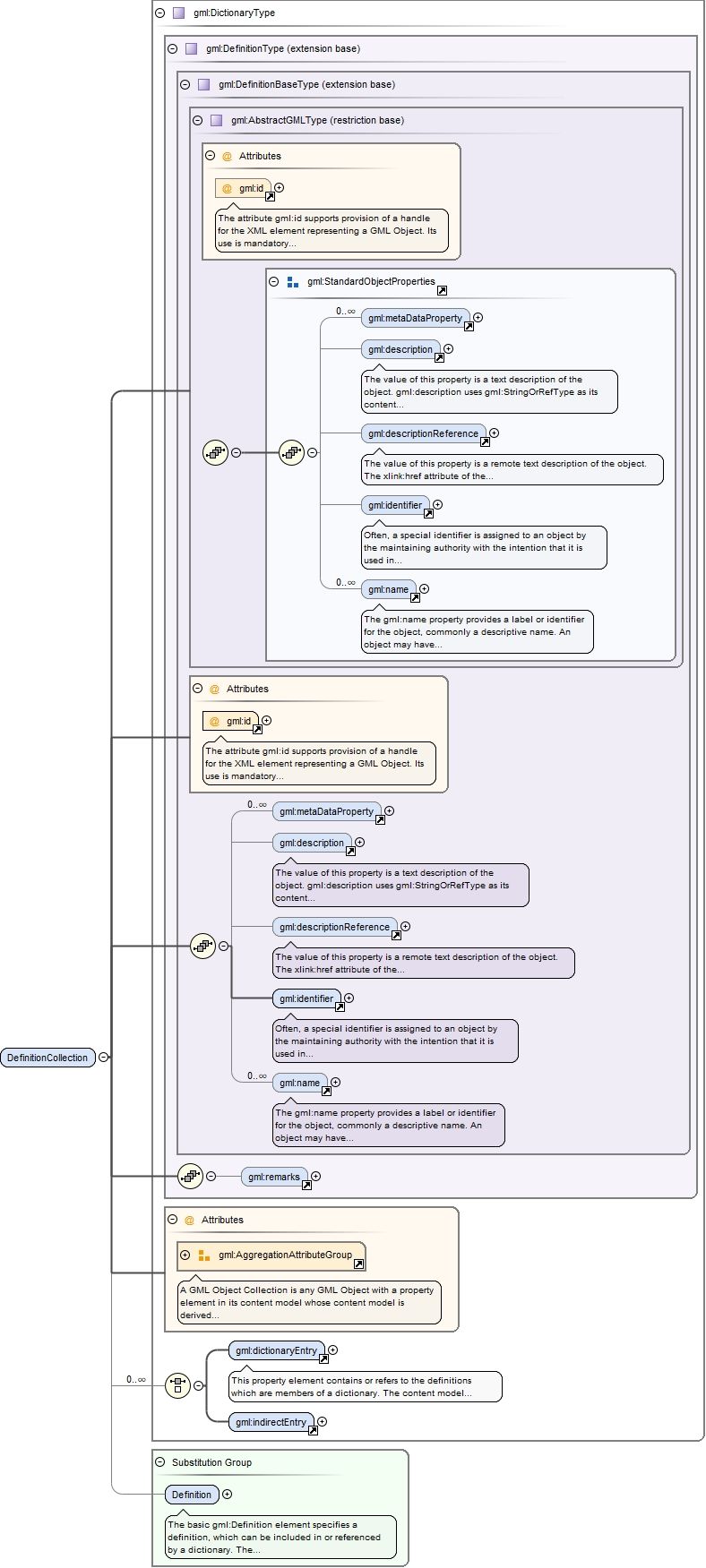

Element gml:DefinitionCollection
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:DictionaryType Type hierarchy Properties
Substitution Group Affiliation Model
Children gml:description gml:descriptionReference gml:dictionaryEntry gml:identifier gml:indirectEntry gml:metaDataProperty gml:name gml:remarks Instance
<gml:DefinitionCollection aggregationType= "" gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {1,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:remarks > {0,1} </gml:remarks>
<gml:dictionaryEntry xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:dictionaryEntry>
<gml:indirectEntry > {1,1} </gml:indirectEntry>
</gml:DefinitionCollection>
Attributes
QName Type Use Annotation aggregationType gml:AggregationType optional
gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "DefinitionCollection" type= "gml:DictionaryType" substitutionGroup= "gml:Definition" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

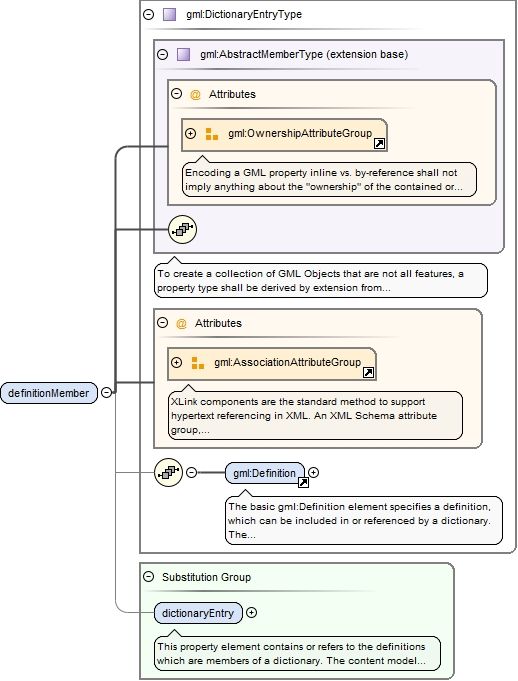

Element gml:definitionMember

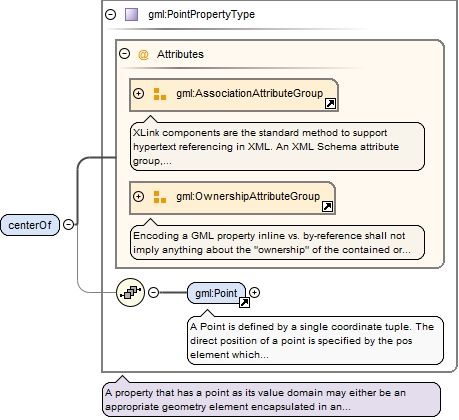

Element gml:centerOf

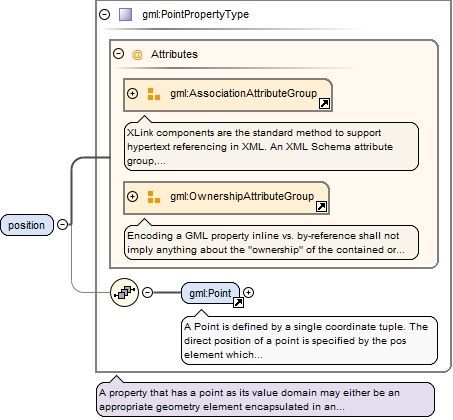

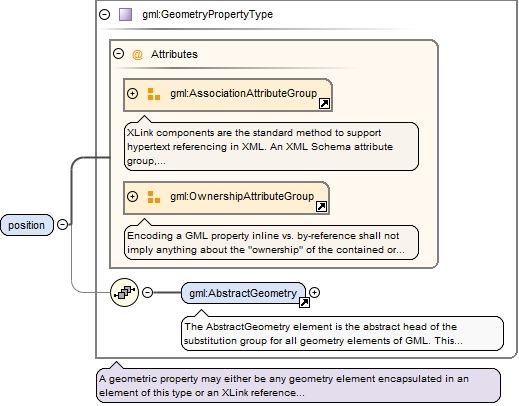

Element gml:position

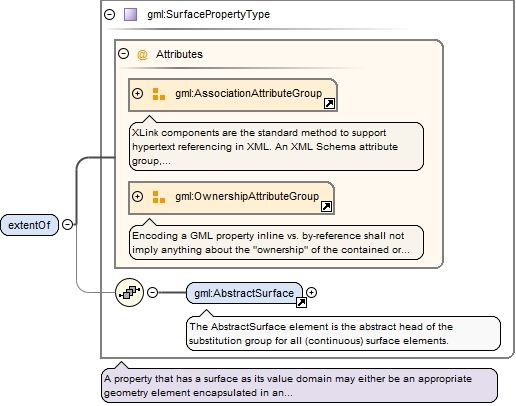

Element gml:extentOf

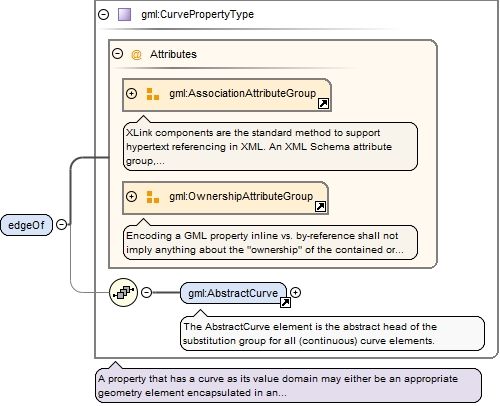

Element gml:edgeOf

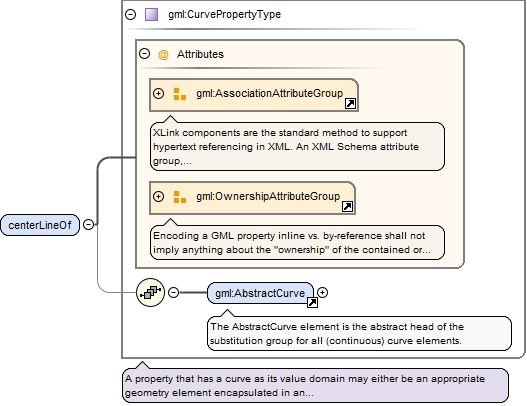

Element gml:centerLineOf
Element gml:multiLocation

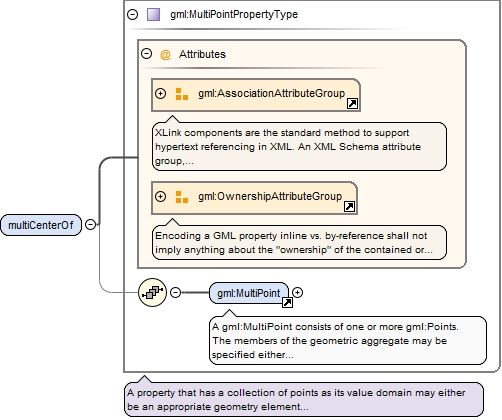

Element gml:multiCenterOf
Element gml:multiPosition

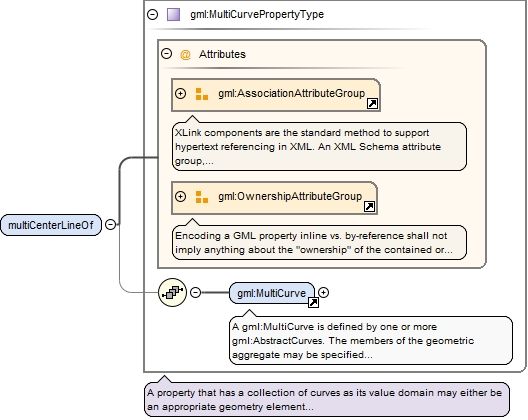

Element gml:multiCenterLineOf

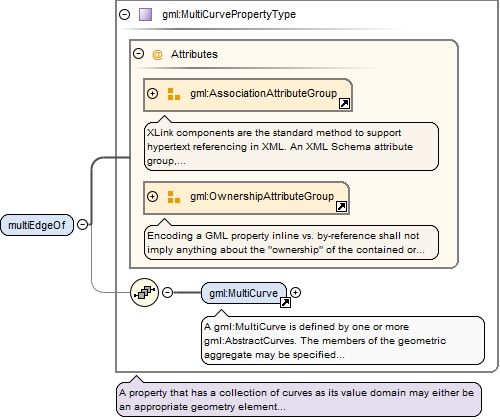

Element gml:multiEdgeOf

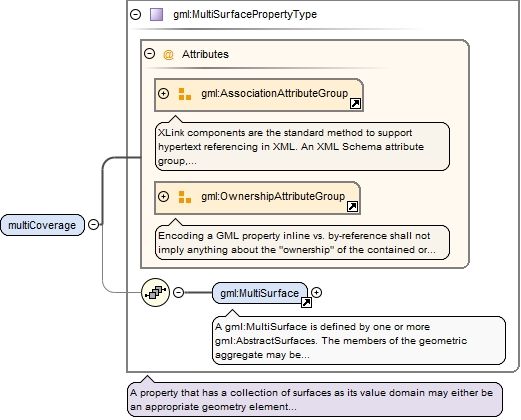

Element gml:multiCoverage

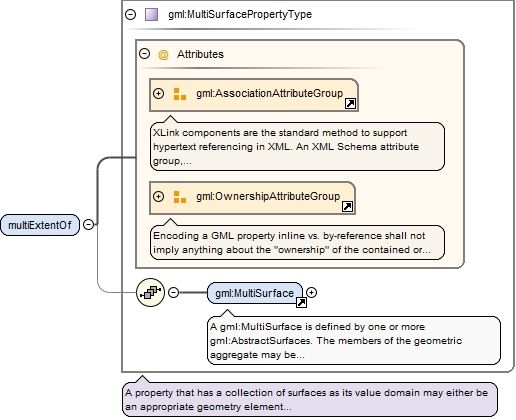

Element gml:multiExtentOf

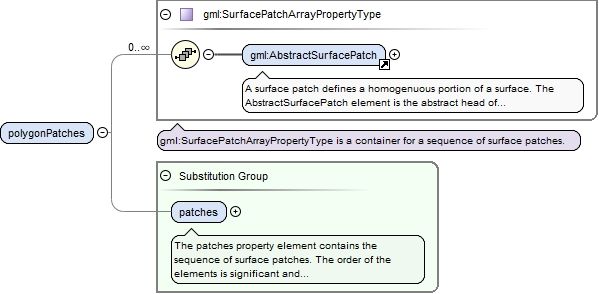

Element gml:polygonPatches

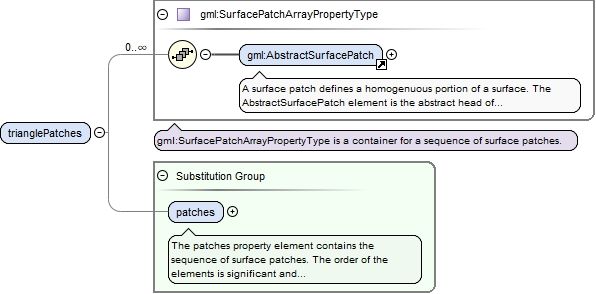

Element gml:trianglePatches
Element gml:multiPointDomain

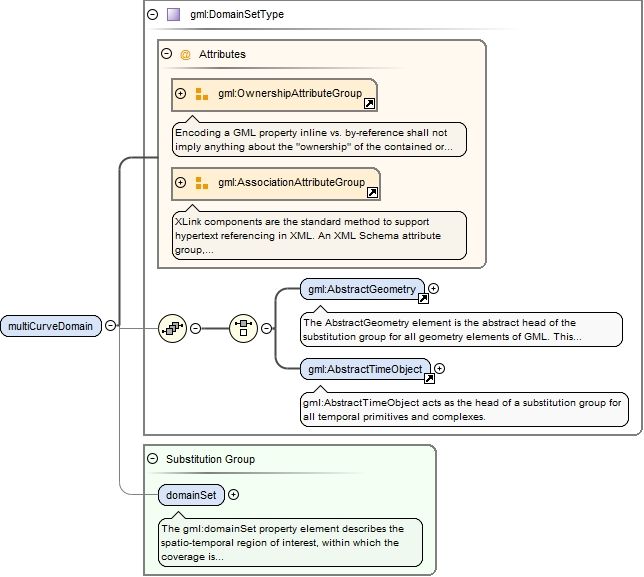

Element gml:multiCurveDomain

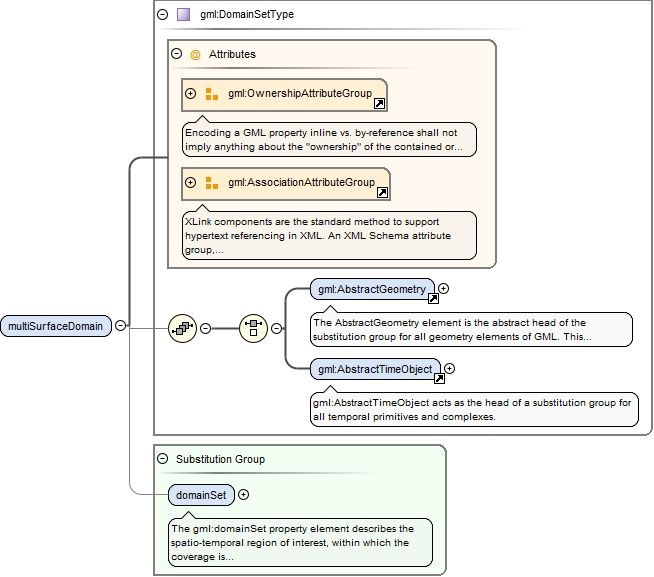

Element gml:multiSurfaceDomain
Element gml:multiSolidDomain

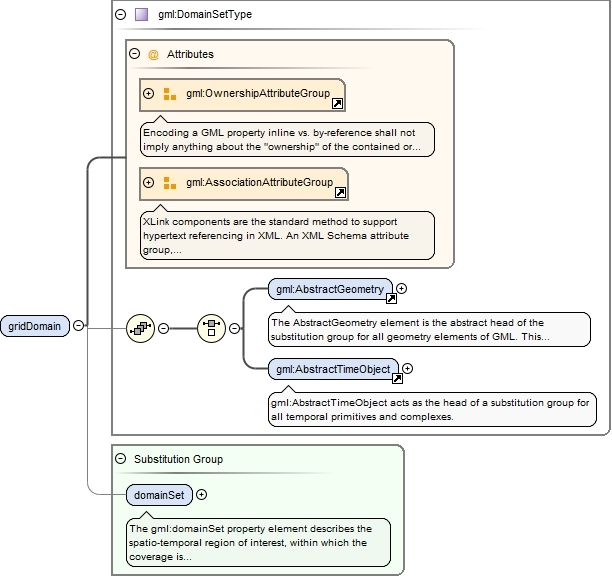

Element gml:gridDomain
Element gml:rectifiedGridDomain

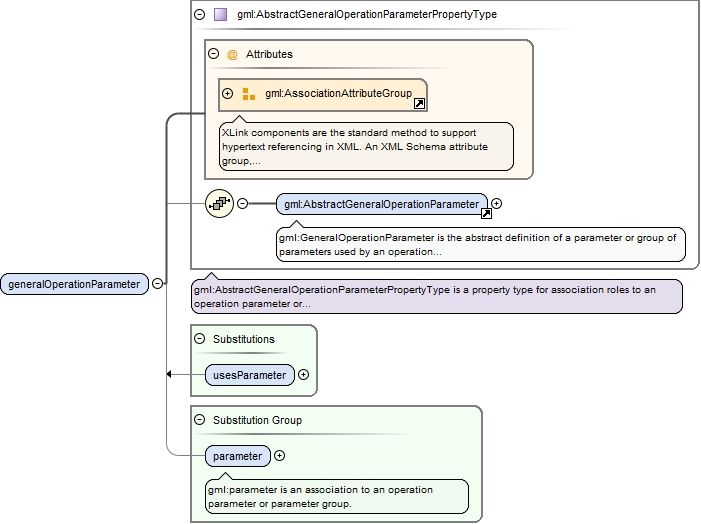

Element gml:generalOperationParameter

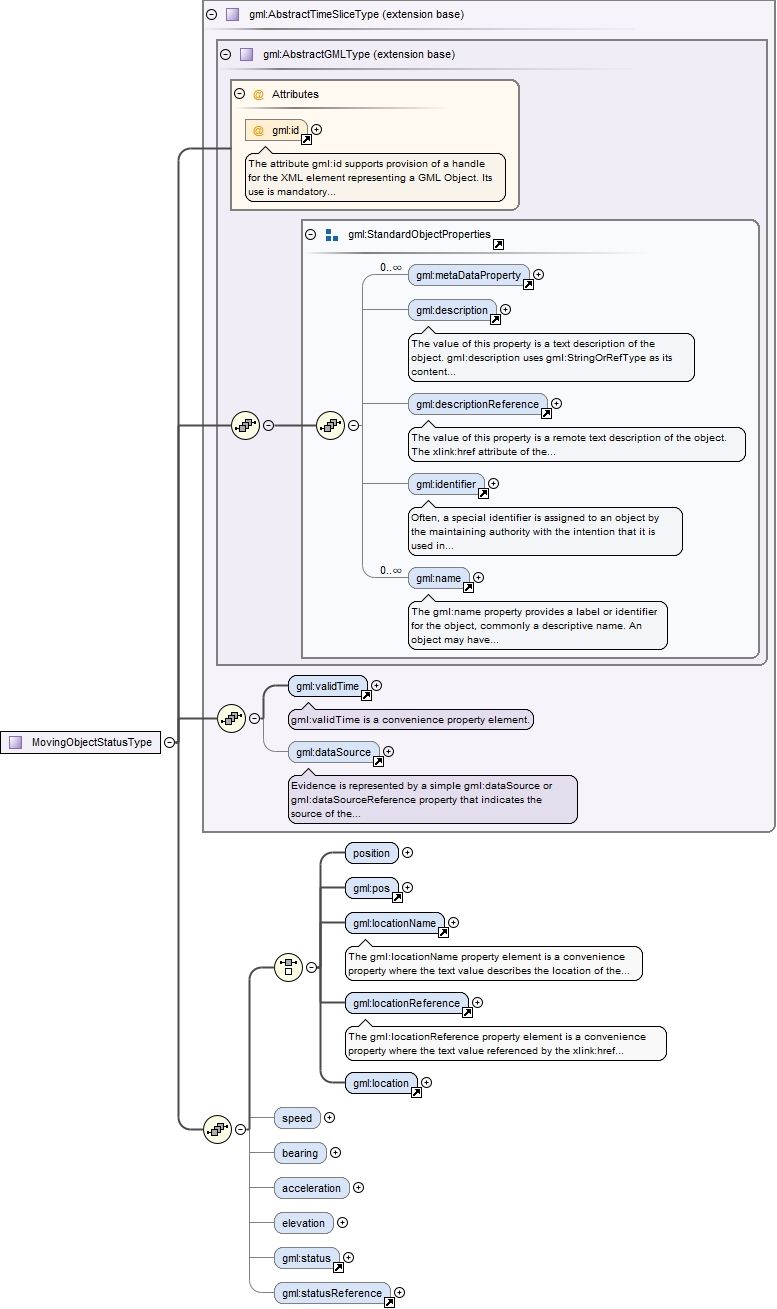

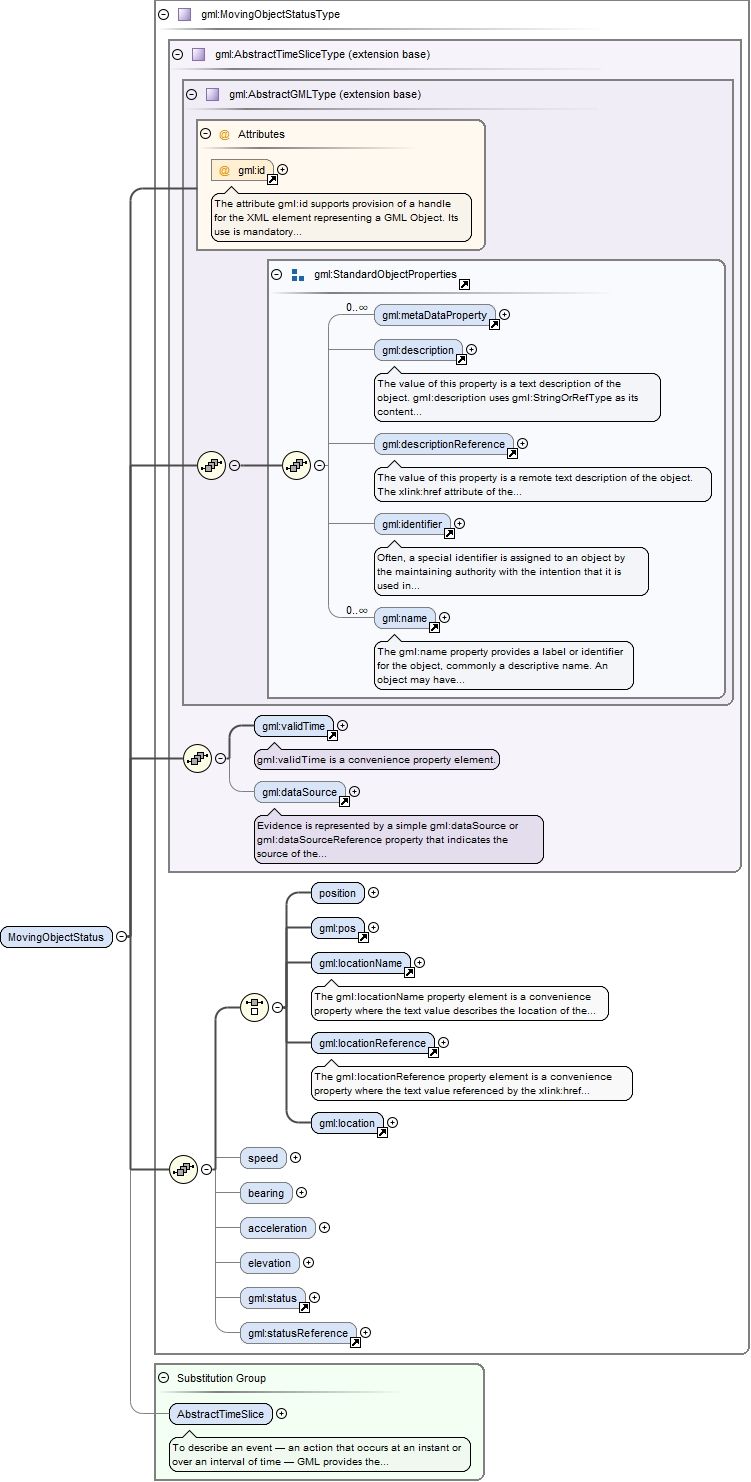

Element gml:MovingObjectStatus
Namespace http://www.opengis.net/gml/3.2 Diagram
Type gml:MovingObjectStatusType Type hierarchy Properties
Substitution Group Affiliation Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:validTime ,
gml:dataSource{0,1} , (
gml:position |
gml:pos |
gml:locationName |
gml:locationReference |
gml:location ) ,
gml:speed{0,1} ,
gml:bearing{0,1} ,
gml:acceleration{0,1} ,
gml:elevation{0,1} ,
gml:status{0,1} ,
gml:statusReference{0,1} Children gml:acceleration gml:bearing gml:dataSource gml:description gml:descriptionReference gml:elevation gml:identifier gml:location gml:locationName gml:locationReference gml:metaDataProperty gml:name gml:pos gml:position gml:speed gml:status gml:statusReference gml:validTime Instance
<gml:MovingObjectStatus gml:id= "" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:metaDataProperty about= "" xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </gml:metaDataProperty>
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:descriptionReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:descriptionReference>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<gml:validTime xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:validTime>
<gml:dataSource xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:dataSource>
<gml:position xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:position>
<gml:pos axisLabels= "" srsDimension= "" srsName= "" uomLabels= "" > {1,1} </gml:pos>
<gml:locationName codeSpace= "" > {1,1} </gml:locationName>
<gml:locationReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:locationReference>
<gml:location xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </gml:location>

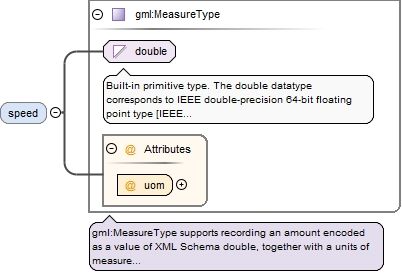

<gml:speed uom= "" > {0,1} </gml:speed>
<gml:bearing xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:bearing>

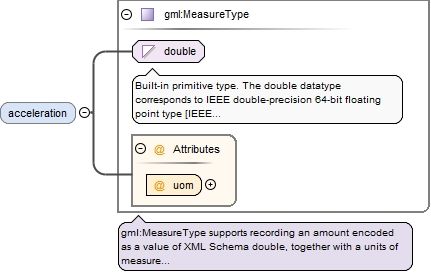

<gml:acceleration uom= "" > {0,1} </gml:acceleration>
<gml:elevation uom= "" > {0,1} </gml:elevation>
<gml:status xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:status>
<gml:statusReference xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" gml:remoteSchema= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:statusReference>
</gml:MovingObjectStatus>
Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name= "MovingObjectStatus" type= "gml:MovingObjectStatusType" substitutionGroup= "gml:AbstractTimeSlice" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
</element>

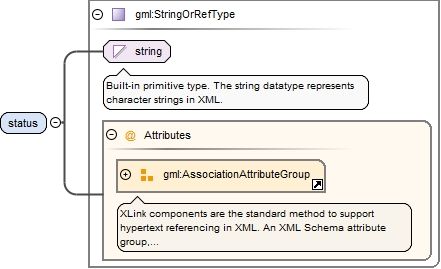

Element gml:status

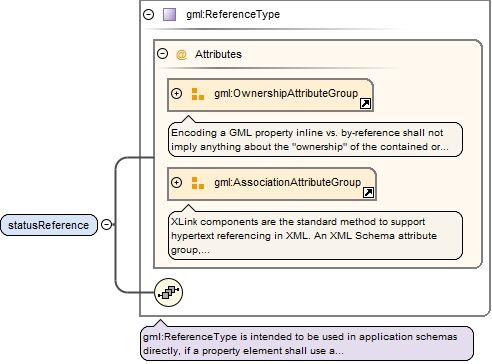

Element gml:statusReference

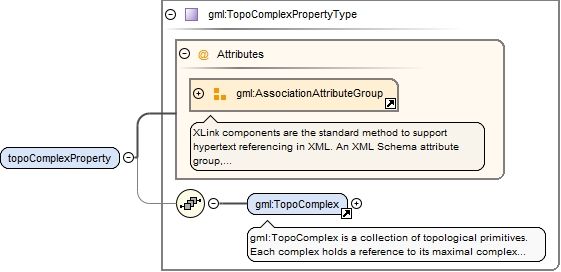

Element gml:topoComplexProperty
Element gml:multiPointProperty

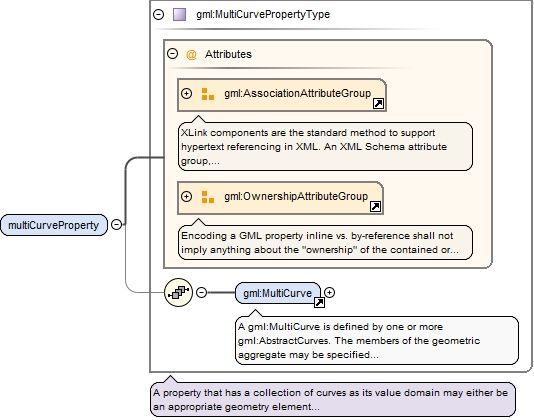

Element gml:multiCurveProperty
Element gml:multiSurfaceProperty

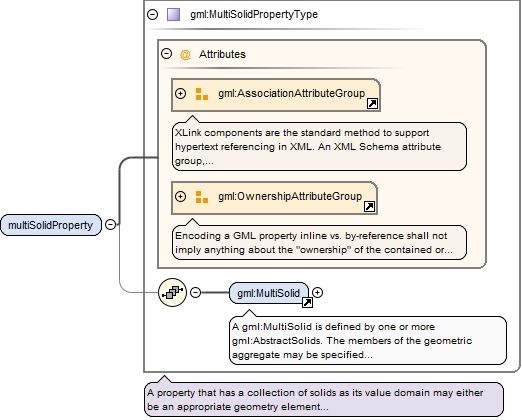

Element gml:multiSolidProperty

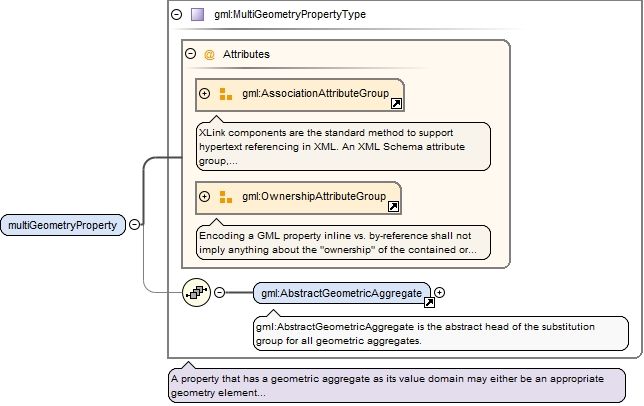

Element gml:multiGeometryProperty

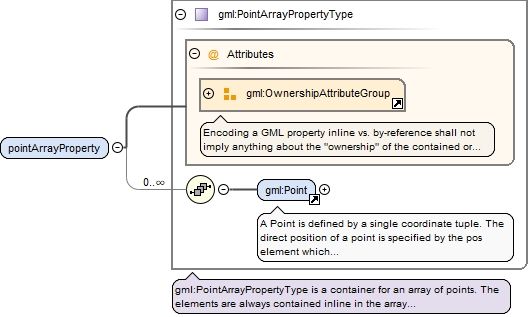

Element gml:pointArrayProperty
Element gml:curveArrayProperty

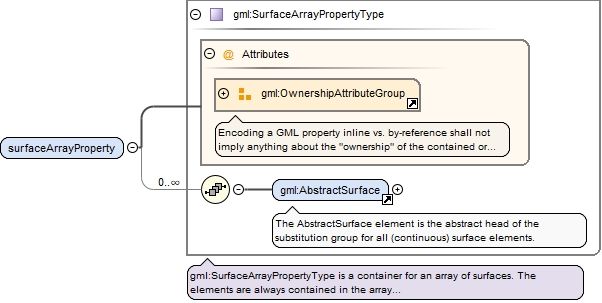

Element gml:surfaceArrayProperty

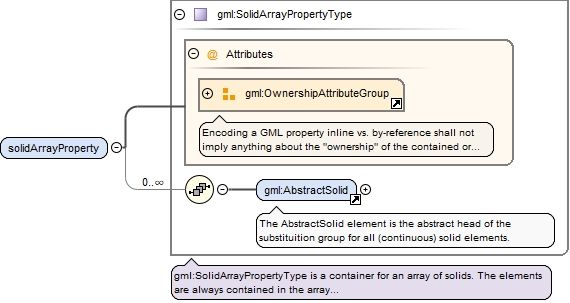

Element gml:solidArrayProperty

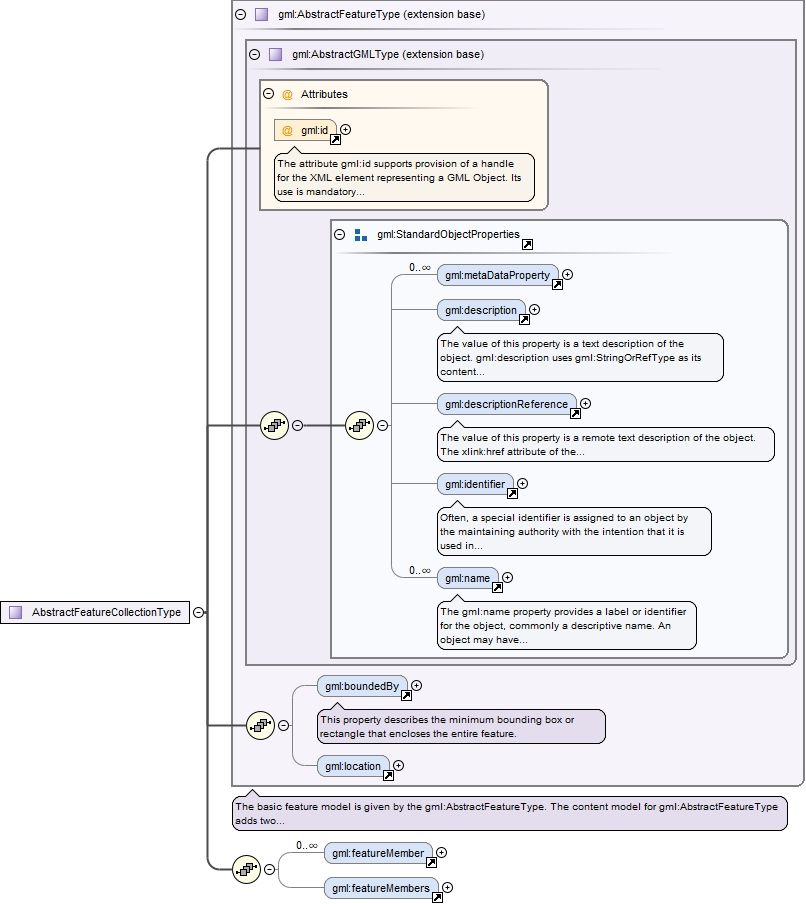

Complex Type gml:AbstractFeatureCollectionType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type extension of gml:AbstractFeatureType Type hierarchy Properties
Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:boundedBy{0,1} ,
gml:location{0,1} ,
gml:featureMember* ,
gml:featureMembers{0,1} Children gml:boundedBy gml:description gml:descriptionReference gml:featureMember gml:featureMembers gml:identifier gml:location gml:metaDataProperty gml:name Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "AbstractFeatureCollectionType" abstract= "true" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<complexContent >
<extension base= "gml:AbstractFeatureType" >
<sequence >
<element ref= "gml:featureMember" minOccurs= "0" maxOccurs= "unbounded" />
<element ref= "gml:featureMembers" minOccurs= "0" />
</sequence>
</extension>
</complexContent>
</complexType>
Complex Type gml:MetaDataPropertyType
Complex Type gml:AbstractMetaDataType

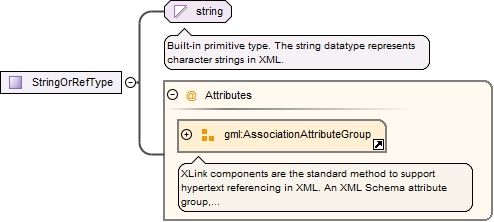

Complex Type gml:StringOrRefType
Complex Type gml:LocationPropertyType
Complex Type gml:FeatureArrayPropertyType
Complex Type gml:IndirectEntryType
Complex Type gml:DefinitionProxyType
Simple Type gml:IncrementOrder
Namespace http://www.opengis.net/gml/3.2 Diagram
Type restriction of string Facets
enumeration +x+y
enumeration +y+x
enumeration +x-y
enumeration -x-y
Used by
Source
<simpleType name= "IncrementOrder" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<restriction base= "string" >
<enumeration value= "+x+y" />
<enumeration value= "+y+x" />
<enumeration value= "+x-y" />
<enumeration value= "-x-y" />
</restriction>
</simpleType>

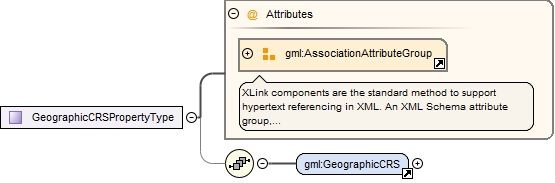

Complex Type gml:GeographicCRSPropertyType
Complex Type gml:GeographicCRSType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type extension of gml:AbstractCRSType Type hierarchy Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier ,
gml:name* ,
gml:remarks{0,1} ,
gml:domainOfValidity* ,
gml:scope+ ,
gml:usesEllipsoidalCS ,
gml:usesGeodeticDatum Children gml:description gml:descriptionReference gml:domainOfValidity gml:identifier gml:metaDataProperty gml:name gml:remarks gml:scope gml:usesEllipsoidalCS gml:usesGeodeticDatum Attributes
QName Type Use Annotation gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "GeographicCRSType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<complexContent >
<extension base= "gml:AbstractCRSType" >
<sequence >
<element ref= "gml:usesEllipsoidalCS" />
<element ref= "gml:usesGeodeticDatum" />
</sequence>
</extension>
</complexContent>
</complexType>

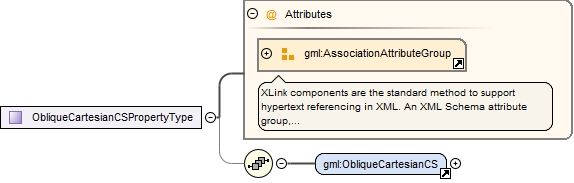

Complex Type gml:ObliqueCartesianCSPropertyType
Complex Type gml:ObliqueCartesianCSType
Complex Type gml:TemporalCSPropertyType
Complex Type gml:TemporalCSType
Complex Type gml:DMSAngleType

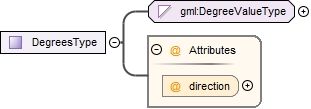

Complex Type gml:DegreesType
Simple Type gml:DegreeValueType
Simple Type gml:DecimalMinutesType
Simple Type gml:ArcMinutesType
Simple Type gml:ArcSecondsType

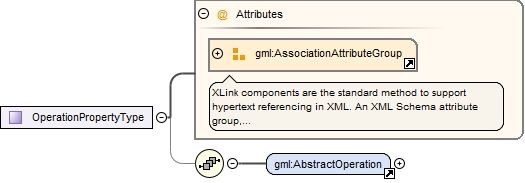

Complex Type gml:OperationPropertyType
Complex Type gml:GeocentricCRSType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type extension of gml:AbstractCRSType Type hierarchy Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier ,
gml:name* ,
gml:remarks{0,1} ,
gml:domainOfValidity* ,
gml:scope+ , (
gml:usesCartesianCS |
gml:usesSphericalCS ) ,
gml:usesGeodeticDatum Children gml:description gml:descriptionReference gml:domainOfValidity gml:identifier gml:metaDataProperty gml:name gml:remarks gml:scope gml:usesCartesianCS gml:usesGeodeticDatum gml:usesSphericalCS Attributes
QName Type Use Annotation gml:id ID required The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "GeocentricCRSType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<complexContent >
<extension base= "gml:AbstractCRSType" >
<sequence >
<choice >
<element ref= "gml:usesCartesianCS" />
<element ref= "gml:usesSphericalCS" />
</choice>
<element ref= "gml:usesGeodeticDatum" />
</sequence>
</extension>
</complexContent>
</complexType>
Complex Type gml:GeocentricCRSPropertyType
Simple Type gml:SuccessionType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type restriction of string Facets
enumeration substitution
enumeration division
enumeration fusion
enumeration initiation
Source
<simpleType name= "SuccessionType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<restriction base= "string" >
<enumeration value= "substitution" />
<enumeration value= "division" />
<enumeration value= "fusion" />
<enumeration value= "initiation" />
</restriction>
</simpleType>

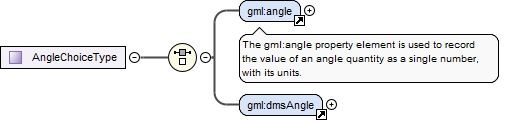

Complex Type gml:AngleChoiceType

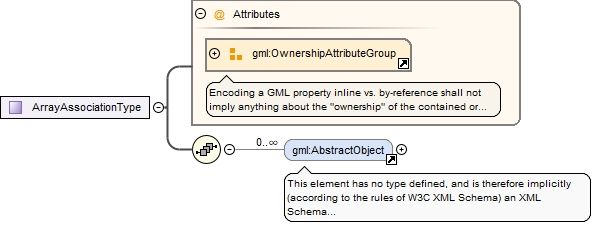

Complex Type gml:ArrayAssociationType
Complex Type gml:BagType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type extension of gml:AbstractGMLType Type hierarchy Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:member* ,
gml:members{0,1} Children gml:description gml:descriptionReference gml:identifier gml:member gml:members gml:metaDataProperty gml:name Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "BagType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<complexContent >
<extension base= "gml:AbstractGMLType" >
<sequence >
<element ref= "gml:member" minOccurs= "0" maxOccurs= "unbounded" />
<element ref= "gml:members" minOccurs= "0" />
</sequence>
</extension>
</complexContent>
</complexType>

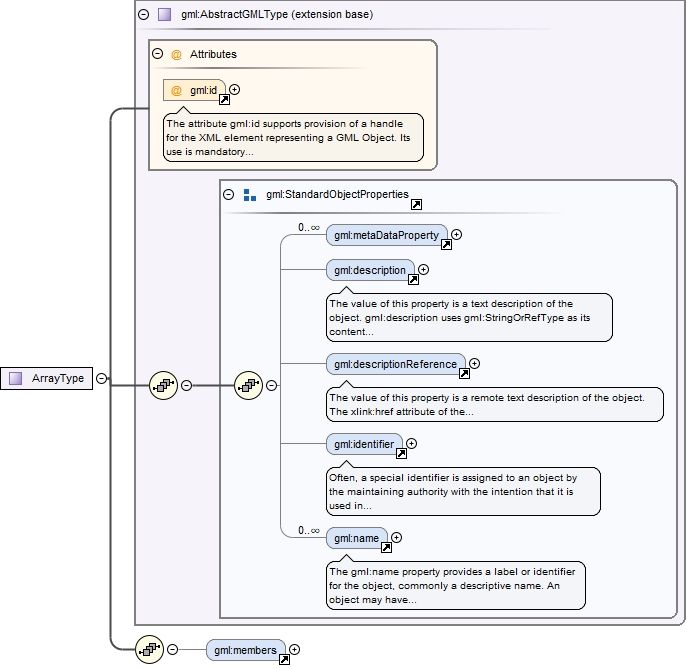

Complex Type gml:ArrayType
Complex Type gml:GenericMetaDataType

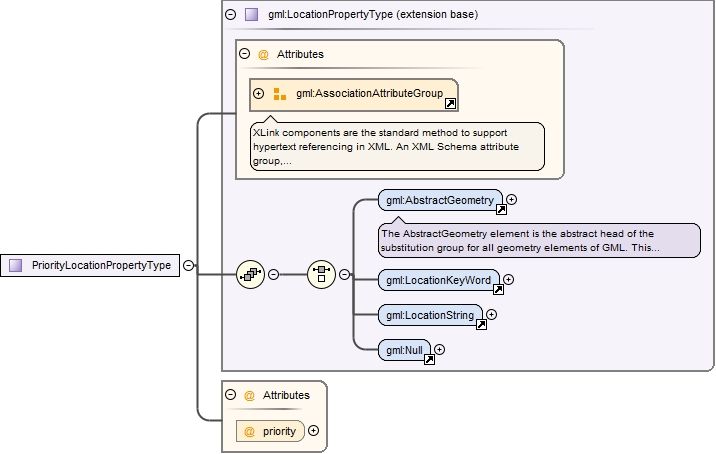

Complex Type gml:PriorityLocationPropertyType

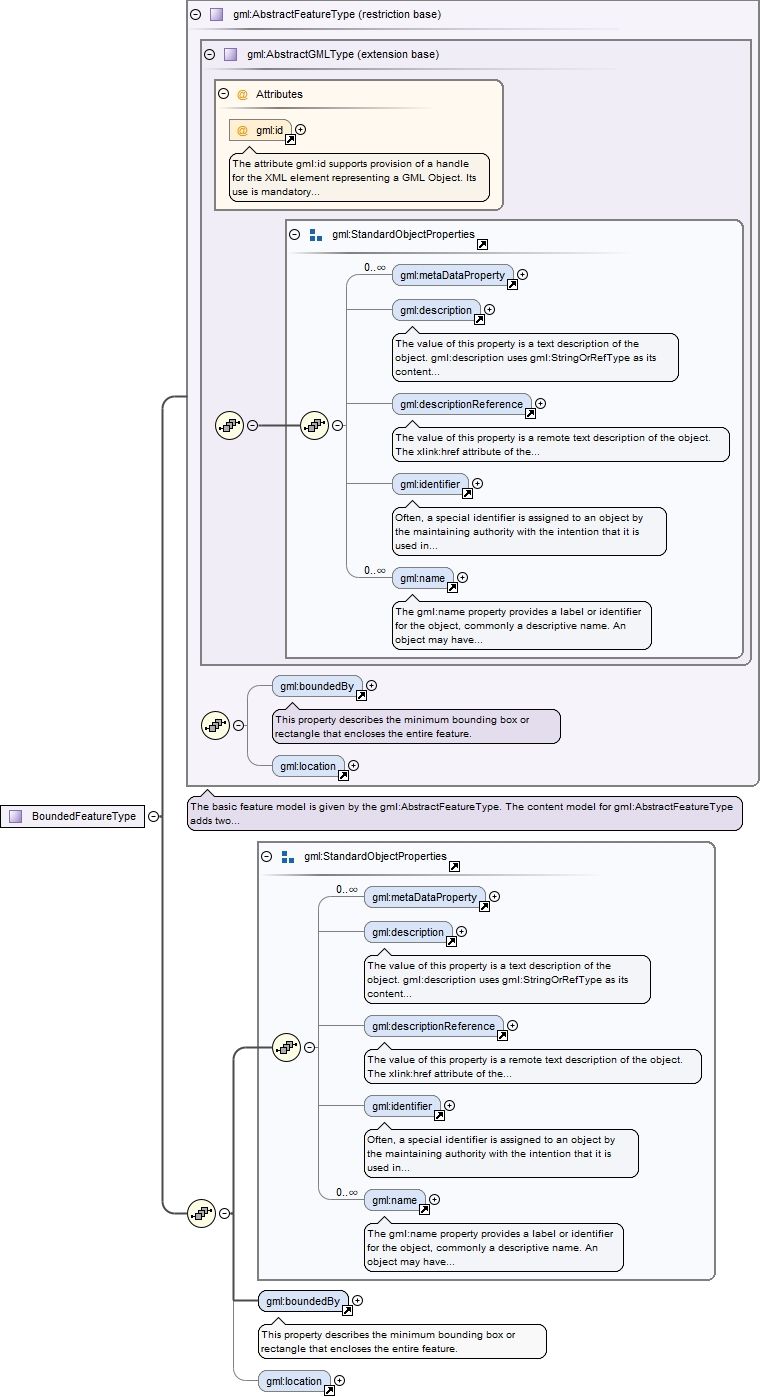

Complex Type gml:BoundedFeatureType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type restriction of gml:AbstractFeatureType Type hierarchy Properties
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:boundedBy ,
gml:location{0,1} Children gml:boundedBy gml:description gml:descriptionReference gml:identifier gml:location gml:metaDataProperty gml:name Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "BoundedFeatureType" abstract= "true" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<complexContent >
<restriction base= "gml:AbstractFeatureType" >
<sequence >
<group ref= "gml:StandardObjectProperties" />
<element ref= "gml:boundedBy" />
<element ref= "gml:location" minOccurs= "0" />
</sequence>
</restriction>
</complexContent>
</complexType>
Complex Type gml:FeatureCollectionType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type extension of gml:AbstractFeatureCollectionType Type hierarchy Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:boundedBy{0,1} ,
gml:location{0,1} ,
gml:featureMember* ,
gml:featureMembers{0,1} Children gml:boundedBy gml:description gml:descriptionReference gml:featureMember gml:featureMembers gml:identifier gml:location gml:metaDataProperty gml:name Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "FeatureCollectionType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<complexContent >
<extension base= "gml:AbstractFeatureCollectionType" />
</complexContent>
</complexType>
Complex Type gml:MovingObjectStatusType
Namespace http://www.opengis.net/gml/3.2 Diagram
Type extension of gml:AbstractTimeSliceType Type hierarchy Used by
Model
gml:metaDataProperty* ,
gml:description{0,1} ,
gml:descriptionReference{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
gml:validTime ,
gml:dataSource{0,1} , (
gml:position |
gml:pos |
gml:locationName |
gml:locationReference |
gml:location ) ,
gml:speed{0,1} ,
gml:bearing{0,1} ,
gml:acceleration{0,1} ,
gml:elevation{0,1} ,
gml:status{0,1} ,
gml:statusReference{0,1} Children gml:acceleration gml:bearing gml:dataSource gml:description gml:descriptionReference gml:elevation gml:identifier gml:location gml:locationName gml:locationReference gml:metaDataProperty gml:name gml:pos gml:position gml:speed gml:status gml:statusReference gml:validTime Attributes
QName Type Use Annotation gml:id ID optional The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name= "MovingObjectStatusType" >
<annotation >
<appinfo > deprecated </appinfo>
</annotation>
<complexContent >
<extension base= "gml:AbstractTimeSliceType" >
<sequence >
<choice >
<element name= "position" type= "gml:GeometryPropertyType" />
<element ref= "gml:pos" />
<element ref= "gml:locationName" />
<element ref= "gml:locationReference" />
<element ref= "gml:location" />
</choice>
<element name= "speed" type= "gml:MeasureType" minOccurs= "0" />

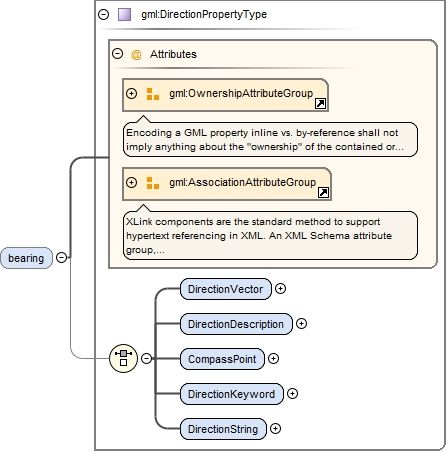

<element name= "bearing" type= "gml:DirectionPropertyType" minOccurs= "0" />
<element name= "acceleration" type= "gml:MeasureType" minOccurs= "0" />

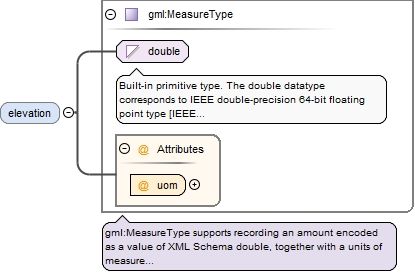

<element name= "elevation" type= "gml:MeasureType" minOccurs= "0" />
<element ref= "gml:status" minOccurs= "0" />
<element ref= "gml:statusReference" minOccurs= "0" />
</sequence>
</extension>
</complexContent>
</complexType>
Attribute @gml:remoteSchema
Namespace No namespace Type restriction of string Properties
Facets
enumeration N
enumeration E
enumeration S
enumeration W
enumeration +
enumeration -
Used by
Source
<attribute name= "direction" >
<simpleType >
<restriction base= "string" >
<enumeration value= "N" />
<enumeration value= "E" />
<enumeration value= "S" />
<enumeration value= "W" />
<enumeration value= "+" />
<enumeration value= "-" />
</restriction>
</simpleType>
</attribute>
Attribute @gml:uom
