Included schema valueObjects.xsd
Namespacehttp://www.opengis.net/gml/3.2
Annotations
See ISO/DIS 19136 17.5.
The elements declared in this Clause build on other GML schema components, in particular gml:AbstractTimeObject, gml:AbstractGeometry, and the following types:  gml:MeasureType, gml:MeasureListType, gml:CodeType, gml:CodeOrNilReasonListType, gml:BooleanOrNilReasonListType, gml:IntegerOrNilReasonList.
Of particular interest are elements that are the heads of substitution groups, and one named choice group. These are the primary reasons for the value objects schema, since they may act as variables in the definition of content models, such as Observations, when it is desired to permit alternative value types to occur some of which may have complex content such as arrays, geometry and time objects, and where it is useful not to prescribe the actual value type in advance. The members of the groups include quantities, category classifications, boolean, count, temporal and spatial values, and aggregates of these.
The value objects are defined in a hierarchy. The following relationships are defined:
-	Concrete elements gml:Quantity, gml:Category, gml:Count and gml:Boolean are substitutable for the abstract element gml:AbstractScalarValue.
-	Concrete elements gml:QuantityList, gml:CategoryList, gml:CountList and gml:BooleanList are substitutable for the abstract element gml:AbstractScalarValueList.
-	Concrete element gml:ValueArray is substitutable for the concrete element gml:CompositeValue.
-	Abstract elements gml:AbstractScalarValue and gml:AbstractScalarValueList, and concrete elements gml:CompositeValue, gml:ValueExtent, gml:CategoryExtent, gml:CountExtent and gml:QuantityExtent are substitutable for abstract element gml:AbstractValue.
-	Abstract elements gml:AbstractValue, gml:AbstractTimeObject and gml:AbstractGeometry are all in a choice group named gml:Value, which is used for compositing in gml:CompositeValue and gml:ValueExtent.
-	Schemas which need values may use the abstract element gml:AbstractValue in a content model in order to permit any of the gml:AbstractScalarValues, gml:AbstractScalarValueLists, gml:CompositeValue or gml:ValueExtent to occur in an instance, or the named group gml:Value to also permit gml:AbstractTimeObjects, gml:AbstractGeometrys.

GML is an OGC Standard.
Copyright (c) 2007, 2010, 2016, 2018 Open Geospatial Consortium.
To obtain additional rights of use, visit http://www.opengeospatial.org/legal/ .
Properties
attribute form defaultunqualified
element form defaultqualified
version3.2.2
Element gml:ValueArray
Namespacehttp://www.opengis.net/gml/3.2
Annotations
A Value Array is used for homogeneous arrays of primitive and aggregate values.
The member values may be scalars, composites, arrays or lists.
ValueArray has the same content model as CompositeValue, but the member values shall be homogeneous.  The element declaration contains a Schematron constraint which expresses this restriction precisely.  Since the members are homogeneous, the gml:referenceSystem (uom, codeSpace) may be specified on the gml:ValueArray itself and inherited by all the members if desired.

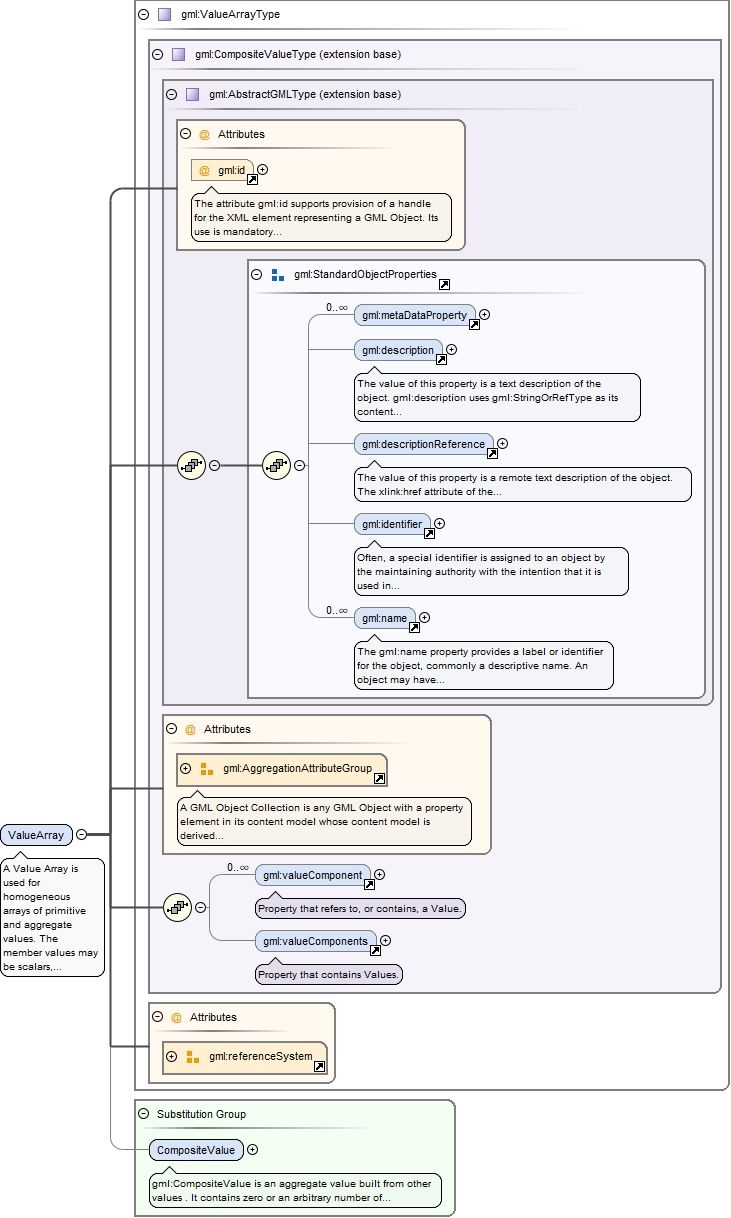

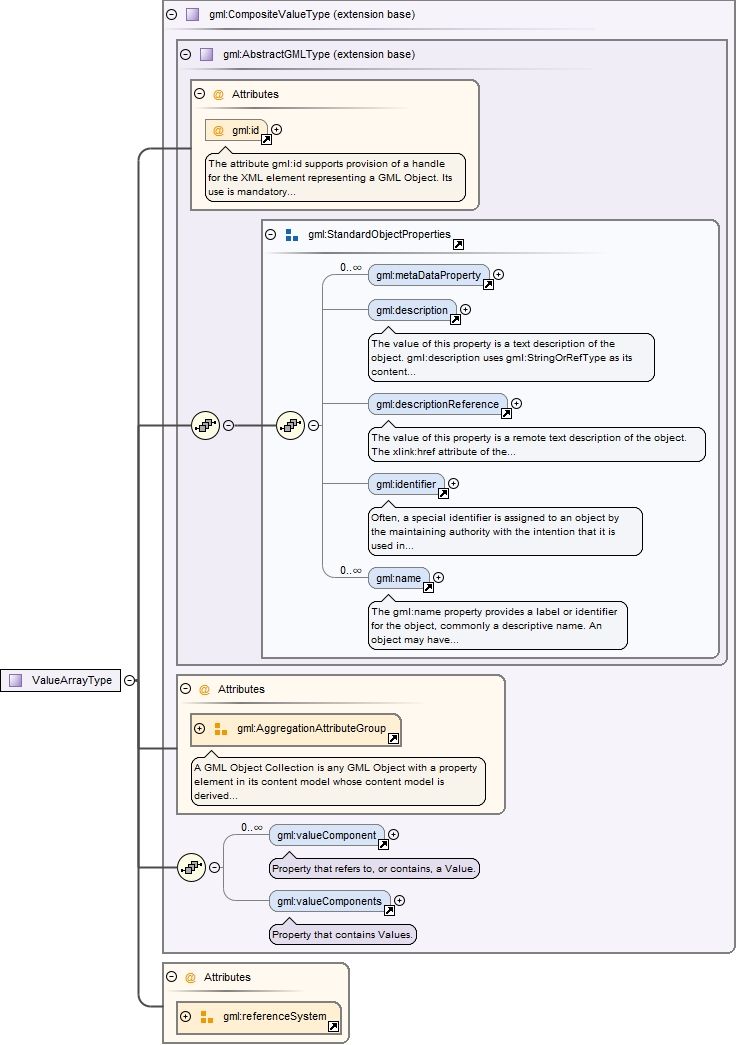

Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegmlBase_xsd.tmp#AggregationAttributeGroupvalueObjects_xsd.tmp#valueComponentvalueObjects_xsd.tmp#valueComponentsvalueObjects_xsd.tmp#CompositeValueTypevalueObjects_xsd.tmp#referenceSystemvalueObjects_xsd.tmp#ValueArrayTypevalueObjects_xsd.tmp#CompositeValue
Typegml:ValueArrayType
Type hierarchy
Properties
contentcomplex
Substitution Group Affiliation
Used by
Complex Typegml:RangeSetType
Model
Childrengml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, gml:valueComponent, gml:valueComponents
Instance
<gml:ValueArray aggregationType="" codeSpace="" gml:id="" uom="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:valueComponent xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:valueComponent>
  <gml:valueComponents owns="false">{0,1}</gml:valueComponents>
</gml:ValueArray>
Attributes
QNameTypeUseAnnotation
aggregationTypegml:AggregationTypeoptional
codeSpaceanyURIoptional
gml:idIDoptional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
uomgml:UomIdentifieroptional
Source
<element name="ValueArray" type="gml:ValueArrayType" substitutionGroup="gml:CompositeValue">
  <annotation>
    <documentation>A Value Array is used for homogeneous arrays of primitive and aggregate values. The member values may be scalars, composites, arrays or lists. ValueArray has the same content model as CompositeValue, but the member values shall be homogeneous. The element declaration contains a Schematron constraint which expresses this restriction precisely. Since the members are homogeneous, the gml:referenceSystem (uom, codeSpace) may be specified on the gml:ValueArray itself and inherited by all the members if desired.</documentation>
  </annotation>
</element>

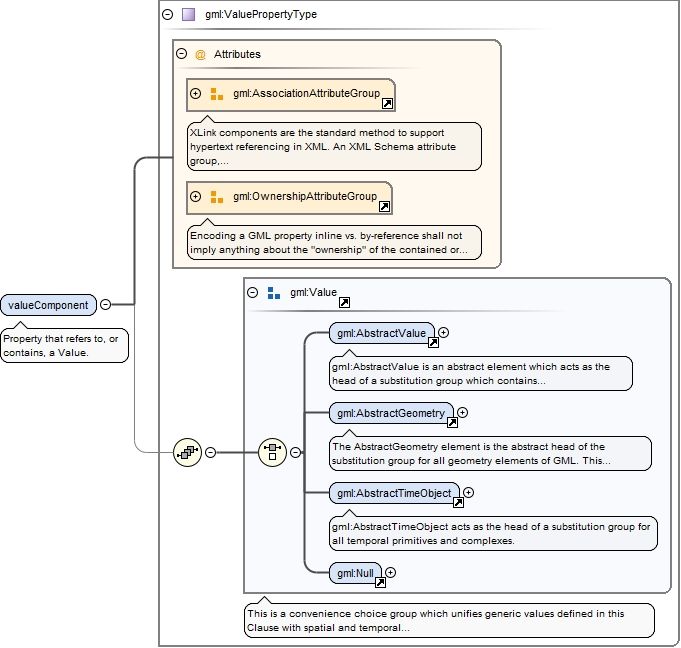

Element gml:valueComponent
Namespacehttp://www.opengis.net/gml/3.2
Annotations
Property that refers to, or contains, a Value.

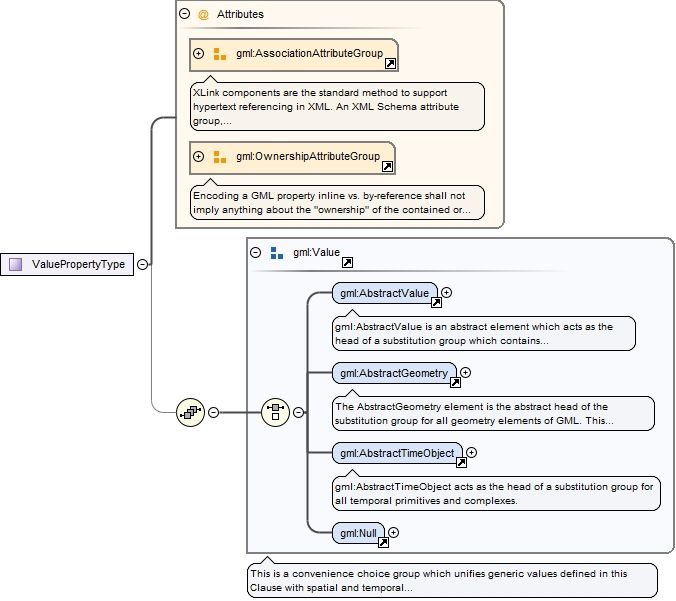

Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#OwnershipAttributeGroupvalueObjects_xsd.tmp#AbstractValuegeometryBasic0d1d_xsd.tmp#AbstractGeometrytemporal_xsd.tmp#AbstractTimeObjectdeprecatedTypes_xsd.tmp#NullvalueObjects_xsd.tmp#ValuevalueObjects_xsd.tmp#ValuePropertyType
Typegml:ValuePropertyType
Properties
contentcomplex
Used by
Model
Childrengml:AbstractGeometry, gml:AbstractTimeObject, gml:AbstractValue, gml:Null
Instance
<gml:valueComponent xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractValue>{1,1}</gml:AbstractValue>
  <gml:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:AbstractGeometry>
  <gml:AbstractTimeObject gml:id="">{1,1}</gml:AbstractTimeObject>
  <gml:Null>{1,1}</gml:Null>
</gml:valueComponent>
Attributes
Source
<element name="valueComponent" type="gml:ValuePropertyType">
  <annotation>
    <documentation>Property that refers to, or contains, a Value.</documentation>
  </annotation>
</element>

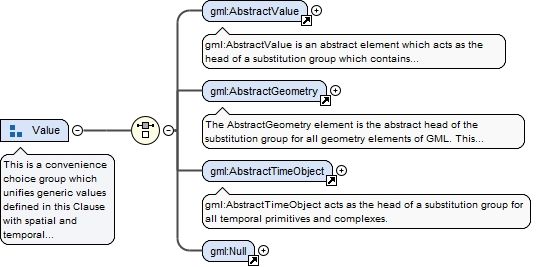

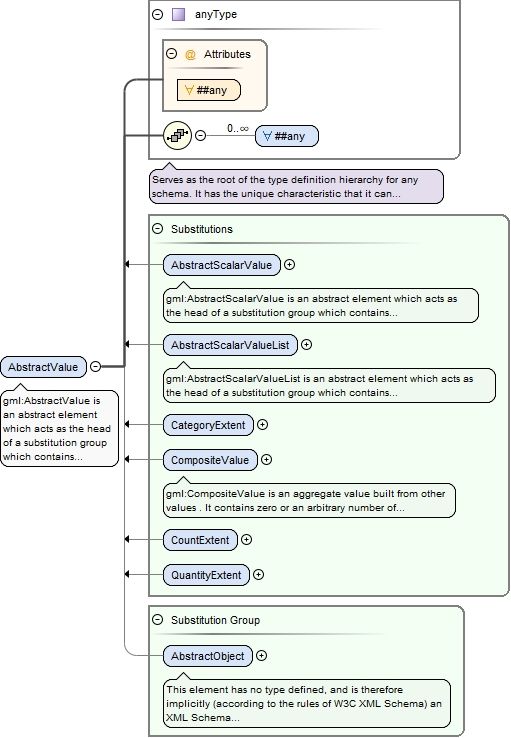

Element gml:AbstractValue
Namespacehttp://www.opengis.net/gml/3.2
Annotations
gml:AbstractValue is an abstract element which acts as the head of a substitution group which contains gml:AbstractScalarValue, gml:AbstractScalarValueList, gml:CompositeValue and gml:ValueExtent, and (transitively) the elements in their substitution groups.
These elements may be used in an application schema as variables, so that in an XML instance document any member of its substitution group may occur.
Diagram
DiagramvalueObjects_xsd.tmp#AbstractScalarValuevalueObjects_xsd.tmp#AbstractScalarValueListvalueObjects_xsd.tmp#CategoryExtentvalueObjects_xsd.tmp#CompositeValuevalueObjects_xsd.tmp#CountExtentvalueObjects_xsd.tmp#QuantityExtentgmlBase_xsd.tmp#AbstractObject
Properties
abstracttrue
Substitution Group
Substitution Group Affiliation
Used by
Element Groupgml:Value
Source
<element name="AbstractValue" type="anyType" abstract="true" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>gml:AbstractValue is an abstract element which acts as the head of a substitution group which contains gml:AbstractScalarValue, gml:AbstractScalarValueList, gml:CompositeValue and gml:ValueExtent, and (transitively) the elements in their substitution groups. These elements may be used in an application schema as variables, so that in an XML instance document any member of its substitution group may occur.</documentation>
  </annotation>
</element>

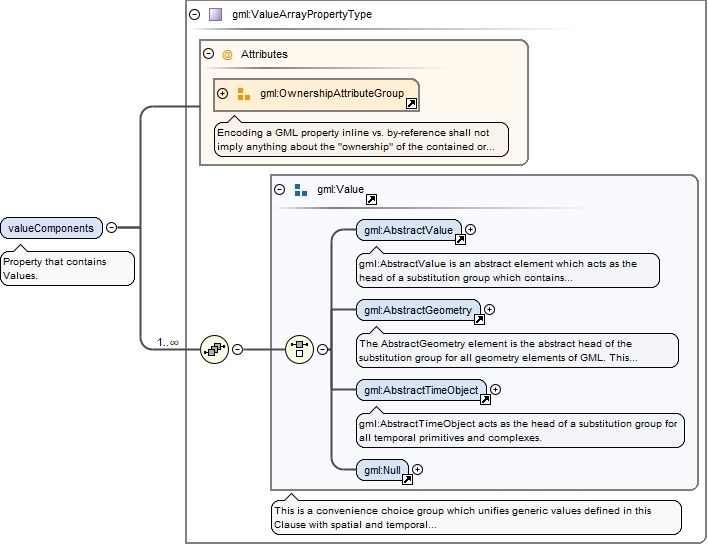

Element gml:valueComponents
Namespacehttp://www.opengis.net/gml/3.2
Annotations
Property that contains Values.

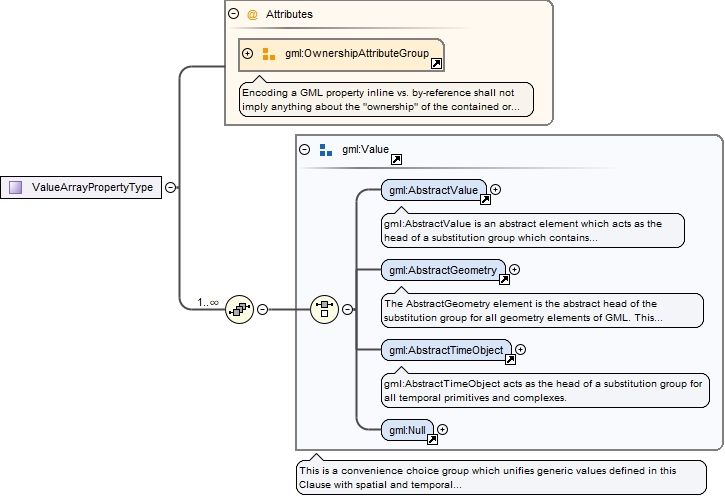

Diagram
DiagramgmlBase_xsd.tmp#OwnershipAttributeGroupvalueObjects_xsd.tmp#AbstractValuegeometryBasic0d1d_xsd.tmp#AbstractGeometrytemporal_xsd.tmp#AbstractTimeObjectdeprecatedTypes_xsd.tmp#NullvalueObjects_xsd.tmp#ValuevalueObjects_xsd.tmp#ValueArrayPropertyType
Typegml:ValueArrayPropertyType
Properties
contentcomplex
Used by
Model
Childrengml:AbstractGeometry, gml:AbstractTimeObject, gml:AbstractValue, gml:Null
Instance
<gml:valueComponents owns="false" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractValue>{1,1}</gml:AbstractValue>
  <gml:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:AbstractGeometry>
  <gml:AbstractTimeObject gml:id="">{1,1}</gml:AbstractTimeObject>
  <gml:Null>{1,1}</gml:Null>
</gml:valueComponents>
Attributes
QNameTypeDefaultUse
ownsbooleanfalseoptional
Source
<element name="valueComponents" type="gml:ValueArrayPropertyType">
  <annotation>
    <documentation>Property that contains Values.</documentation>
  </annotation>
</element>
Element gml:AbstractScalarValueList
Namespacehttp://www.opengis.net/gml/3.2
Annotations
gml:AbstractScalarValueList is an abstract element which acts as the head of a substitution group which contains gml:BooleanList, gml:CategoryList, gml:CountList and gml:QuantityList, and (transitively) the elements in their substitution groups.

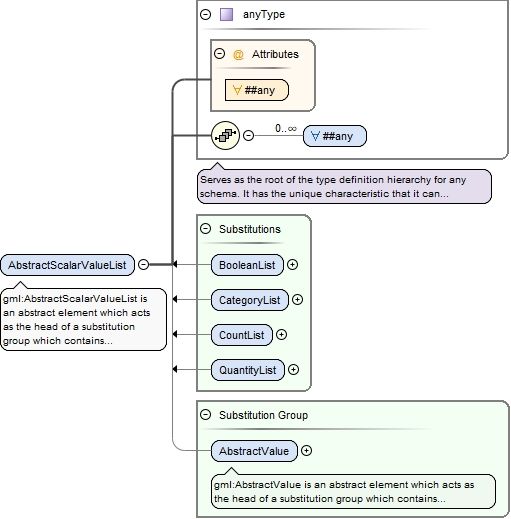

Diagram
DiagramvalueObjects_xsd.tmp#BooleanListvalueObjects_xsd.tmp#CategoryListvalueObjects_xsd.tmp#CountListvalueObjects_xsd.tmp#QuantityListvalueObjects_xsd.tmp#AbstractValue
Properties
abstracttrue
Substitution Group
Substitution Group Affiliation
Used by
Complex Typegml:RangeSetType
Source
<element name="AbstractScalarValueList" type="anyType" abstract="true" substitutionGroup="gml:AbstractValue">
  <annotation>
    <documentation>gml:AbstractScalarValueList is an abstract element which acts as the head of a substitution group which contains gml:BooleanList, gml:CategoryList, gml:CountList and gml:QuantityList, and (transitively) the elements in their substitution groups.</documentation>
  </annotation>
</element>

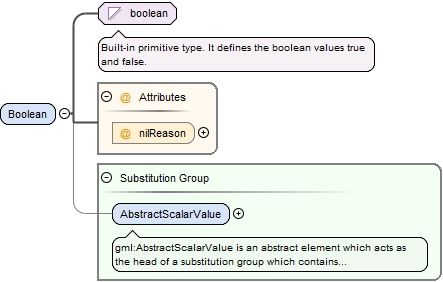

Element gml:Boolean
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramvalueObjects_xsd.tmp#Boolean_nilReasonvalueObjects_xsd.tmp#AbstractScalarValue
Typeextension of boolean
Properties
contentcomplex
nillabletrue
Substitution Group Affiliation
Used by
Attributes
QNameTypeUse
nilReasongml:NilReasonTypeoptional
Source
<element name="Boolean" substitutionGroup="gml:AbstractScalarValue" nillable="true">
  <complexType>
    <simpleContent>
      <extension base="boolean">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>

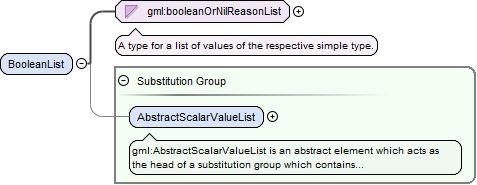

Element gml:BooleanList
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#booleanOrNilReasonListvalueObjects_xsd.tmp#AbstractScalarValueList
Typegml:booleanOrNilReasonList
Properties
contentsimple
Substitution Group Affiliation
Source
<element name="BooleanList" type="gml:booleanOrNilReasonList" substitutionGroup="gml:AbstractScalarValueList"/>
Element gml:Category
Namespacehttp://www.opengis.net/gml/3.2
Annotations
A gml:Category has an optional XML attribute codeSpace, whose value is a URI which identifies a dictionary, codelist or authority for the term.

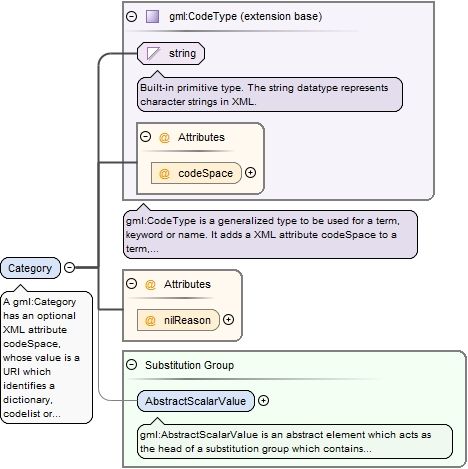

Diagram
DiagrambasicTypes_xsd.tmp#CodeType_codeSpacebasicTypes_xsd.tmp#CodeTypevalueObjects_xsd.tmp#Category_nilReasonvalueObjects_xsd.tmp#AbstractScalarValue
Typeextension of gml:CodeType
Type hierarchy
Properties
contentcomplex
nillabletrue
Substitution Group Affiliation
Used by
Attributes
QNameTypeUse
codeSpaceanyURIoptional
nilReasongml:NilReasonTypeoptional
Source
<element name="Category" substitutionGroup="gml:AbstractScalarValue" nillable="true">
  <annotation>
    <documentation>A gml:Category has an optional XML attribute codeSpace, whose value is a URI which identifies a dictionary, codelist or authority for the term.</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="gml:CodeType">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>
Element gml:CategoryList
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#NameOrNilReasonListbasicTypes_xsd.tmp#CodeOrNilReasonListType_codeSpacebasicTypes_xsd.tmp#CodeOrNilReasonListTypevalueObjects_xsd.tmp#AbstractScalarValueList
Typegml:CodeOrNilReasonListType
Type hierarchy
Properties
contentcomplex
Substitution Group Affiliation
Attributes
QNameTypeUse
codeSpaceanyURIoptional
Source
<element name="CategoryList" type="gml:CodeOrNilReasonListType" substitutionGroup="gml:AbstractScalarValueList"/>

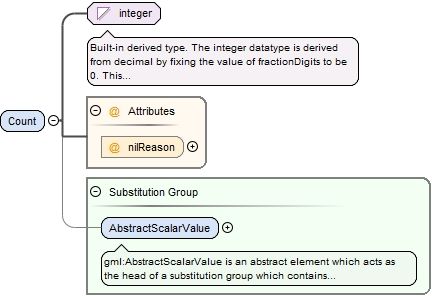

Element gml:Count
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramvalueObjects_xsd.tmp#Count_nilReasonvalueObjects_xsd.tmp#AbstractScalarValue
Typeextension of integer
Properties
contentcomplex
nillabletrue
Substitution Group Affiliation
Used by
Attributes
QNameTypeUse
nilReasongml:NilReasonTypeoptional
Source
<element name="Count" substitutionGroup="gml:AbstractScalarValue" nillable="true">
  <complexType>
    <simpleContent>
      <extension base="integer">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>

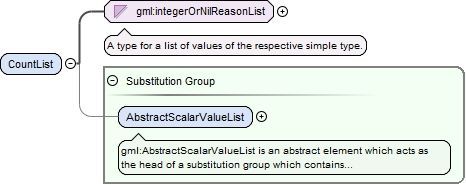

Element gml:CountList
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#integerOrNilReasonListvalueObjects_xsd.tmp#AbstractScalarValueList
Typegml:integerOrNilReasonList
Properties
contentsimple
Substitution Group Affiliation
Source
<element name="CountList" type="gml:integerOrNilReasonList" substitutionGroup="gml:AbstractScalarValueList"/>
Element gml:Quantity
Namespacehttp://www.opengis.net/gml/3.2
Annotations
An XML attribute uom ("unit of measure") is required, whose value is a URI which identifies the definition of a ratio scale or units by which the numeric value shall be multiplied, or an interval or position scale on which the value occurs.
Diagram
DiagrambasicTypes_xsd.tmp#MeasureType_uombasicTypes_xsd.tmp#MeasureTypevalueObjects_xsd.tmp#Quantity_nilReasonvalueObjects_xsd.tmp#AbstractScalarValue
Typeextension of gml:MeasureType
Type hierarchy
Properties
contentcomplex
nillabletrue
Substitution Group Affiliation
Used by
Attributes
Source
<element name="Quantity" substitutionGroup="gml:AbstractScalarValue" nillable="true">
  <annotation>
    <documentation>An XML attribute uom ("unit of measure") is required, whose value is a URI which identifies the definition of a ratio scale or units by which the numeric value shall be multiplied, or an interval or position scale on which the value occurs.</documentation>
  </annotation>
  <complexType>
    <simpleContent>
      <extension base="gml:MeasureType">
        <attribute name="nilReason" type="gml:NilReasonType"/>
      </extension>
    </simpleContent>
  </complexType>
</element>

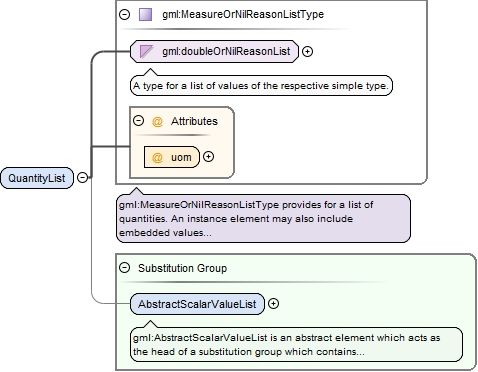

Element gml:QuantityList
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#doubleOrNilReasonListbasicTypes_xsd.tmp#MeasureOrNilReasonListType_uombasicTypes_xsd.tmp#MeasureOrNilReasonListTypevalueObjects_xsd.tmp#AbstractScalarValueList
Typegml:MeasureOrNilReasonListType
Type hierarchy
Properties
contentcomplex
Substitution Group Affiliation
Attributes
QNameTypeUse
uomgml:UomIdentifierrequired
Source
<element name="QuantityList" type="gml:MeasureOrNilReasonListType" substitutionGroup="gml:AbstractScalarValueList"/>

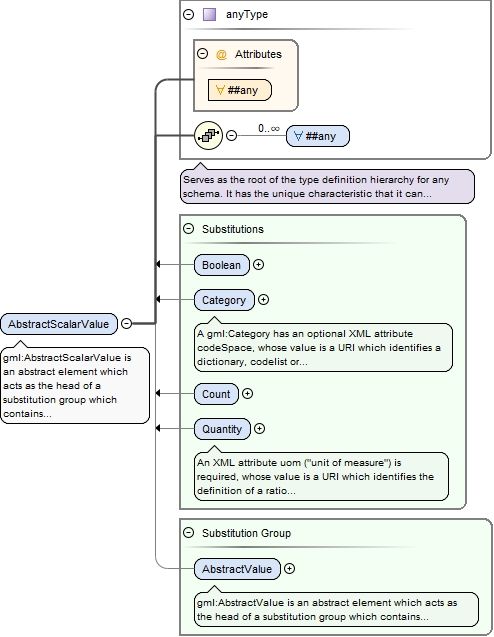

Element gml:AbstractScalarValue
Namespacehttp://www.opengis.net/gml/3.2
Annotations
gml:AbstractScalarValue is an abstract element which acts as the head of a substitution group which contains gml:Boolean, gml:Category, gml:Count and gml:Quantity, and (transitively) the elements in their substitution groups.
Diagram
DiagramvalueObjects_xsd.tmp#BooleanvalueObjects_xsd.tmp#CategoryvalueObjects_xsd.tmp#CountvalueObjects_xsd.tmp#QuantityvalueObjects_xsd.tmp#AbstractValue
Properties
abstracttrue
Substitution Group
Substitution Group Affiliation
Source
<element name="AbstractScalarValue" type="anyType" abstract="true" substitutionGroup="gml:AbstractValue">
  <annotation>
    <documentation>gml:AbstractScalarValue is an abstract element which acts as the head of a substitution group which contains gml:Boolean, gml:Category, gml:Count and gml:Quantity, and (transitively) the elements in their substitution groups.</documentation>
  </annotation>
</element>

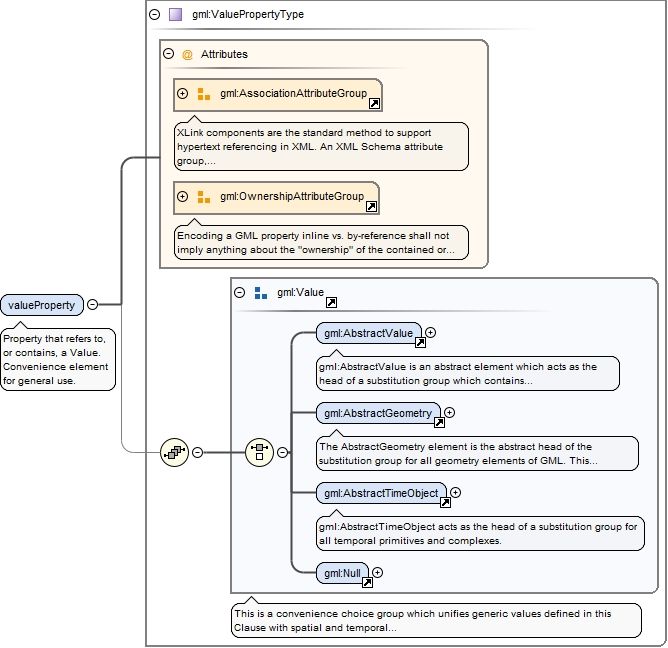

Element gml:valueProperty
Namespacehttp://www.opengis.net/gml/3.2
Annotations
Property that refers to, or contains, a Value. Convenience element for general use.
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#OwnershipAttributeGroupvalueObjects_xsd.tmp#AbstractValuegeometryBasic0d1d_xsd.tmp#AbstractGeometrytemporal_xsd.tmp#AbstractTimeObjectdeprecatedTypes_xsd.tmp#NullvalueObjects_xsd.tmp#ValuevalueObjects_xsd.tmp#ValuePropertyType
Typegml:ValuePropertyType
Properties
contentcomplex
Model
Childrengml:AbstractGeometry, gml:AbstractTimeObject, gml:AbstractValue, gml:Null
Instance
<gml:valueProperty xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractValue>{1,1}</gml:AbstractValue>
  <gml:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:AbstractGeometry>
  <gml:AbstractTimeObject gml:id="">{1,1}</gml:AbstractTimeObject>
  <gml:Null>{1,1}</gml:Null>
</gml:valueProperty>
Attributes
Source
<element name="valueProperty" type="gml:ValuePropertyType">
  <annotation>
    <documentation>Property that refers to, or contains, a Value. Convenience element for general use.</documentation>
  </annotation>
</element>

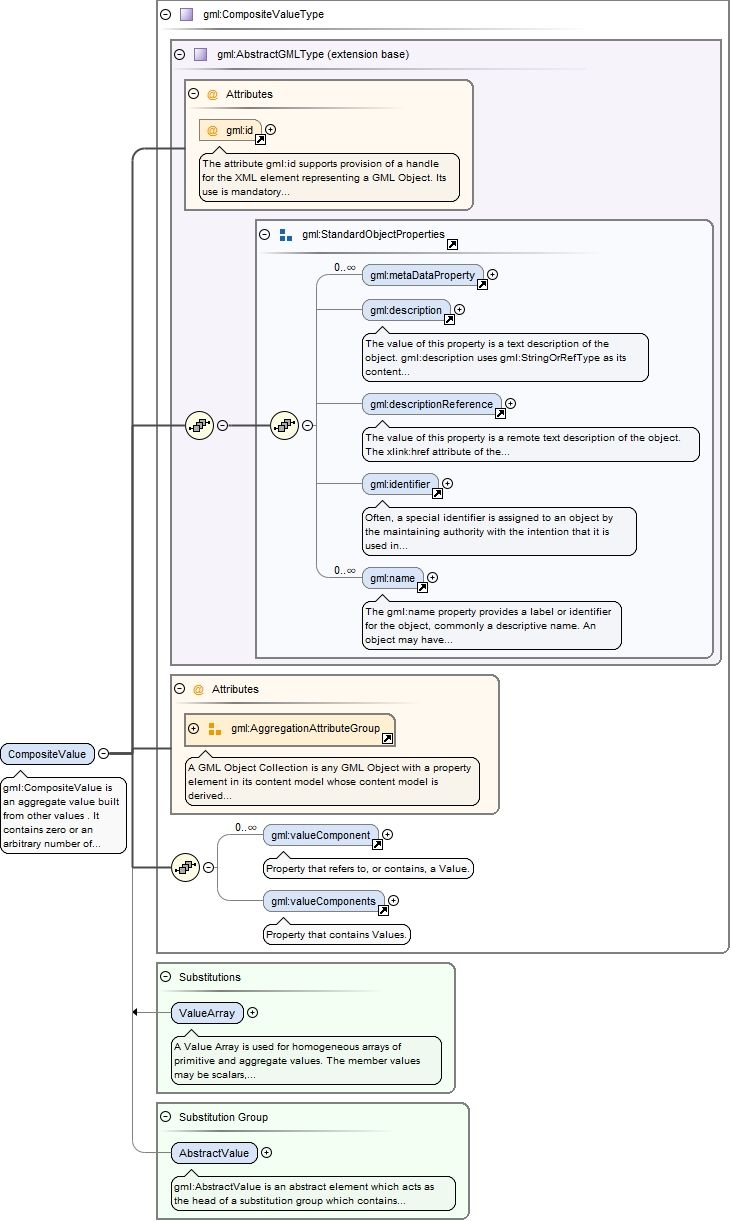

Element gml:CompositeValue
Namespacehttp://www.opengis.net/gml/3.2
Annotations
gml:CompositeValue is an aggregate value built from other values . It contains zero or an arbitrary number of gml:valueComponent elements, and zero or one gml:valueComponents property elements.  It may be used for strongly coupled aggregates (vectors, tensors) or for arbitrary collections of values.
Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegmlBase_xsd.tmp#AggregationAttributeGroupvalueObjects_xsd.tmp#valueComponentvalueObjects_xsd.tmp#valueComponentsvalueObjects_xsd.tmp#CompositeValueTypevalueObjects_xsd.tmp#ValueArrayvalueObjects_xsd.tmp#AbstractValue
Typegml:CompositeValueType
Type hierarchy
Properties
contentcomplex
Substitution Group
Substitution Group Affiliation
Model
Childrengml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, gml:valueComponent, gml:valueComponents
Instance
<gml:CompositeValue aggregationType="" gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:valueComponent xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:valueComponent>
  <gml:valueComponents owns="false">{0,1}</gml:valueComponents>
</gml:CompositeValue>
Attributes
QNameTypeUseAnnotation
aggregationTypegml:AggregationTypeoptional
gml:idIDoptional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<element name="CompositeValue" type="gml:CompositeValueType" substitutionGroup="gml:AbstractValue">
  <annotation>
    <documentation>gml:CompositeValue is an aggregate value built from other values . It contains zero or an arbitrary number of gml:valueComponent elements, and zero or one gml:valueComponents property elements. It may be used for strongly coupled aggregates (vectors, tensors) or for arbitrary collections of values.</documentation>
  </annotation>
</element>

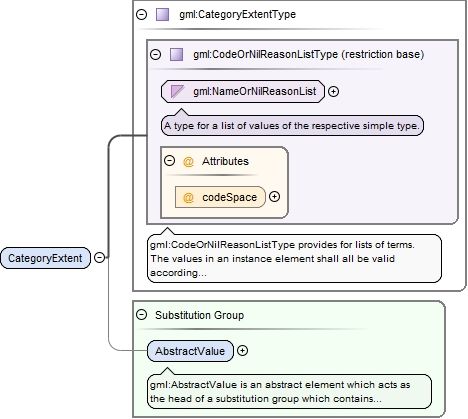

Element gml:CategoryExtent
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#NameOrNilReasonListbasicTypes_xsd.tmp#CodeOrNilReasonListType_codeSpacebasicTypes_xsd.tmp#CodeOrNilReasonListTypevalueObjects_xsd.tmp#CategoryExtentTypevalueObjects_xsd.tmp#AbstractValue
Typegml:CategoryExtentType
Type hierarchy
Properties
contentcomplex
Substitution Group Affiliation
Attributes
QNameTypeUse
codeSpaceanyURIoptional
Source
<element name="CategoryExtent" type="gml:CategoryExtentType" substitutionGroup="gml:AbstractValue"/>

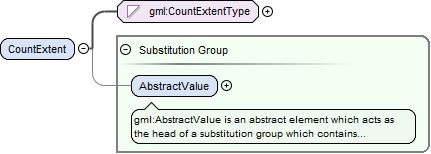

Element gml:CountExtent
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramvalueObjects_xsd.tmp#CountExtentTypevalueObjects_xsd.tmp#AbstractValue
Typegml:CountExtentType
Type hierarchy
Properties
contentsimple
Facets
length2
Substitution Group Affiliation
Source
<element name="CountExtent" type="gml:CountExtentType" substitutionGroup="gml:AbstractValue"/>
Element gml:QuantityExtent
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#doubleOrNilReasonListbasicTypes_xsd.tmp#MeasureOrNilReasonListType_uombasicTypes_xsd.tmp#MeasureOrNilReasonListTypevalueObjects_xsd.tmp#QuantityExtentTypevalueObjects_xsd.tmp#AbstractValue
Typegml:QuantityExtentType
Type hierarchy
Properties
contentcomplex
Substitution Group Affiliation
Attributes
QNameTypeUse
uomgml:UomIdentifierrequired
Source
<element name="QuantityExtent" type="gml:QuantityExtentType" substitutionGroup="gml:AbstractValue"/>
Complex Type gml:ValueArrayType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegmlBase_xsd.tmp#AggregationAttributeGroupvalueObjects_xsd.tmp#valueComponentvalueObjects_xsd.tmp#valueComponentsvalueObjects_xsd.tmp#CompositeValueTypevalueObjects_xsd.tmp#referenceSystem
Typeextension of gml:CompositeValueType
Type hierarchy
Used by
Model
Childrengml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, gml:valueComponent, gml:valueComponents
Attributes
QNameTypeUseAnnotation
aggregationTypegml:AggregationTypeoptional
codeSpaceanyURIoptional
gml:idIDoptional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
uomgml:UomIdentifieroptional
Source
<complexType name="ValueArrayType">
  <complexContent>
    <extension base="gml:CompositeValueType">
      <attributeGroup ref="gml:referenceSystem"/>
    </extension>
  </complexContent>
</complexType>

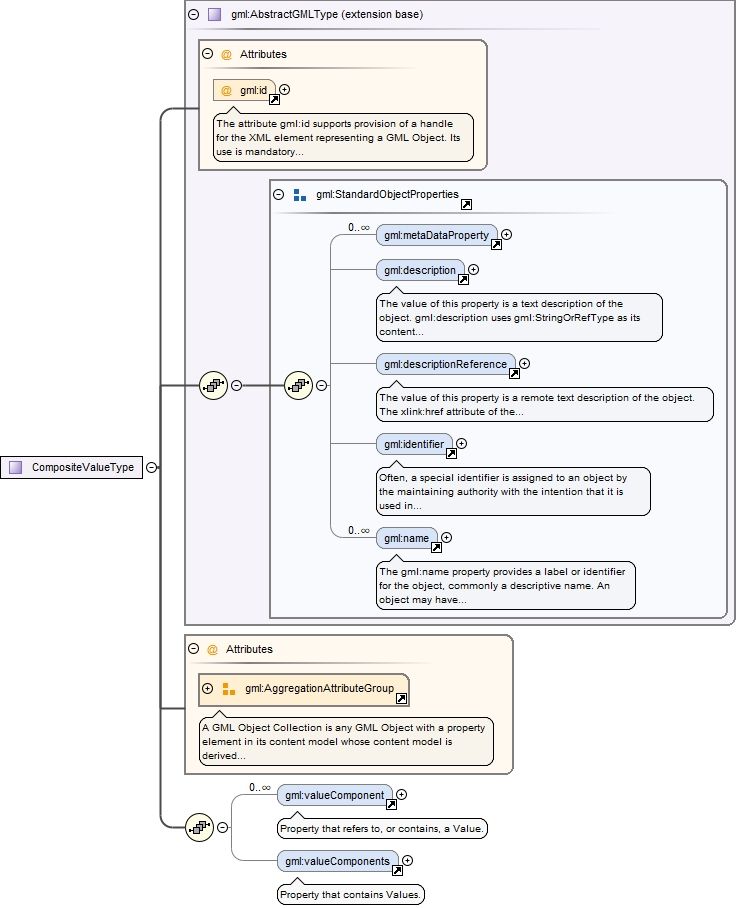

Complex Type gml:CompositeValueType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#iddeprecatedTypes_xsd.tmp#metaDataPropertygmlBase_xsd.tmp#descriptiongmlBase_xsd.tmp#descriptionReferencegmlBase_xsd.tmp#identifiergmlBase_xsd.tmp#namegmlBase_xsd.tmp#StandardObjectPropertiesgmlBase_xsd.tmp#AbstractGMLTypegmlBase_xsd.tmp#AggregationAttributeGroupvalueObjects_xsd.tmp#valueComponentvalueObjects_xsd.tmp#valueComponents
Typeextension of gml:AbstractGMLType
Type hierarchy
Used by
Model
Childrengml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, gml:valueComponent, gml:valueComponents
Attributes
QNameTypeUseAnnotation
aggregationTypegml:AggregationTypeoptional
gml:idIDoptional
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name="CompositeValueType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element ref="gml:valueComponent" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:valueComponents" minOccurs="0"/>
      </sequence>
      <attributeGroup ref="gml:AggregationAttributeGroup"/>
    </extension>
  </complexContent>
</complexType>
Complex Type gml:ValuePropertyType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupgmlBase_xsd.tmp#OwnershipAttributeGroupvalueObjects_xsd.tmp#AbstractValuegeometryBasic0d1d_xsd.tmp#AbstractGeometrytemporal_xsd.tmp#AbstractTimeObjectdeprecatedTypes_xsd.tmp#NullvalueObjects_xsd.tmp#Value
Used by
Model
Childrengml:AbstractGeometry, gml:AbstractTimeObject, gml:AbstractValue, gml:Null
Attributes
Source
<complexType name="ValuePropertyType">
  <sequence minOccurs="0">
    <group ref="gml:Value"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
Complex Type gml:ValueArrayPropertyType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#OwnershipAttributeGroupvalueObjects_xsd.tmp#AbstractValuegeometryBasic0d1d_xsd.tmp#AbstractGeometrytemporal_xsd.tmp#AbstractTimeObjectdeprecatedTypes_xsd.tmp#NullvalueObjects_xsd.tmp#Value
Used by
Model
Childrengml:AbstractGeometry, gml:AbstractTimeObject, gml:AbstractValue, gml:Null
Attributes
QNameTypeDefaultUse
ownsbooleanfalseoptional
Source
<complexType name="ValueArrayPropertyType">
  <sequence maxOccurs="unbounded">
    <group ref="gml:Value"/>
  </sequence>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>

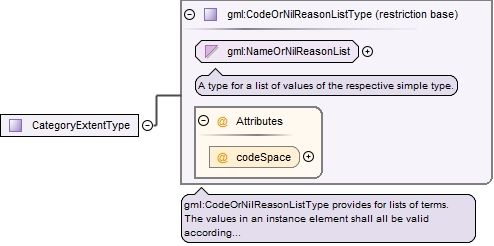

Complex Type gml:CategoryExtentType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#NameOrNilReasonListbasicTypes_xsd.tmp#CodeOrNilReasonListType_codeSpacebasicTypes_xsd.tmp#CodeOrNilReasonListType
Typerestriction of gml:CodeOrNilReasonListType
Type hierarchy
Used by
Attributes
QNameTypeUse
codeSpaceanyURIoptional
Source
<complexType name="CategoryExtentType">
  <simpleContent>
    <restriction base="gml:CodeOrNilReasonListType">
      <length value="2"/>
    </restriction>
  </simpleContent>
</complexType>
Simple Type gml:CountExtentType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#integerOrNilReasonList
Typerestriction of gml:integerOrNilReasonList
Type hierarchy
Facets
length2
Used by
Source
<simpleType name="CountExtentType">
  <restriction base="gml:integerOrNilReasonList">
    <length value="2"/>
  </restriction>
</simpleType>

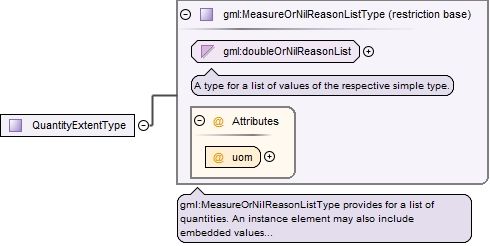

Complex Type gml:QuantityExtentType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagrambasicTypes_xsd.tmp#doubleOrNilReasonListbasicTypes_xsd.tmp#MeasureOrNilReasonListType_uombasicTypes_xsd.tmp#MeasureOrNilReasonListType
Typerestriction of gml:MeasureOrNilReasonListType
Type hierarchy
Used by
Attributes
QNameTypeUse
uomgml:UomIdentifierrequired
Source
<complexType name="QuantityExtentType">
  <simpleContent>
    <restriction base="gml:MeasureOrNilReasonListType">
      <length value="2"/>
    </restriction>
  </simpleContent>
</complexType>

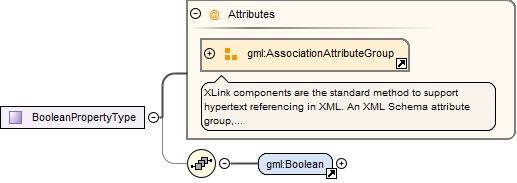

Complex Type gml:BooleanPropertyType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupvalueObjects_xsd.tmp#Boolean
Model
Childrengml:Boolean
Attributes
Source
<complexType name="BooleanPropertyType">
  <sequence minOccurs="0">
    <element ref="gml:Boolean"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

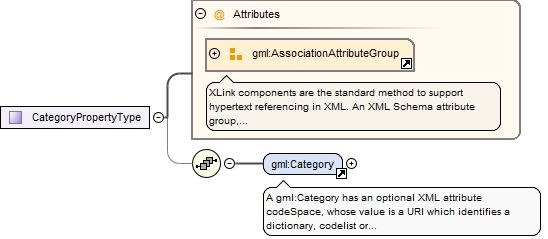

Complex Type gml:CategoryPropertyType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupvalueObjects_xsd.tmp#Category
Model
Childrengml:Category
Attributes
Source
<complexType name="CategoryPropertyType">
  <sequence minOccurs="0">
    <element ref="gml:Category"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

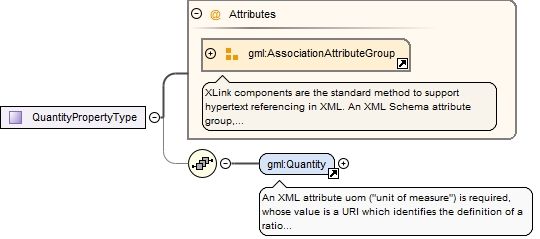

Complex Type gml:QuantityPropertyType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupvalueObjects_xsd.tmp#Quantity
Model
Childrengml:Quantity
Attributes
Source
<complexType name="QuantityPropertyType">
  <sequence minOccurs="0">
    <element ref="gml:Quantity"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

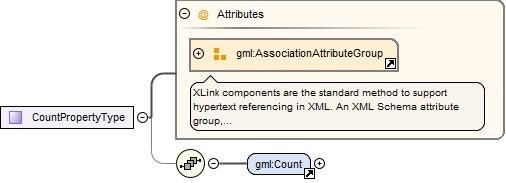

Complex Type gml:CountPropertyType
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramgmlBase_xsd.tmp#AssociationAttributeGroupvalueObjects_xsd.tmp#Count
Model
Childrengml:Count
Attributes
Source
<complexType name="CountPropertyType">
  <sequence minOccurs="0">
    <element ref="gml:Count"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
Attribute gml:referenceSystem / @codeSpace
NamespaceNo namespace
TypeanyURI
Properties
contentsimple
Used by
Attribute Groupgml:referenceSystem
Source
<attribute name="codeSpace" type="anyURI"/>
Attribute gml:referenceSystem / @uom
NamespaceNo namespace
Typegml:UomIdentifier
Properties
contentsimple
Used by
Attribute Groupgml:referenceSystem
Source
<attribute name="uom" type="gml:UomIdentifier"/>
Attribute gml:Boolean / @nilReason
NamespaceNo namespace
Typegml:NilReasonType
Properties
contentsimple
Used by
Source
<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute gml:Category / @nilReason
NamespaceNo namespace
Typegml:NilReasonType
Properties
contentsimple
Used by
Source
<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute gml:Count / @nilReason
NamespaceNo namespace
Typegml:NilReasonType
Properties
contentsimple
Used by
Elementgml:Count
Source
<attribute name="nilReason" type="gml:NilReasonType"/>
Attribute gml:Quantity / @nilReason
NamespaceNo namespace
Typegml:NilReasonType
Properties
contentsimple
Used by
Source
<attribute name="nilReason" type="gml:NilReasonType"/>
Element Group gml:Value
Namespacehttp://www.opengis.net/gml/3.2
Annotations
This is a convenience choice group which unifies generic values defined in this Clause with spatial and temporal objects and the measures described above, so that any of these may be used within aggregate values.
Diagram
DiagramvalueObjects_xsd.tmp#AbstractValuegeometryBasic0d1d_xsd.tmp#AbstractGeometrytemporal_xsd.tmp#AbstractTimeObjectdeprecatedTypes_xsd.tmp#Null
Used by
Model
Childrengml:AbstractGeometry, gml:AbstractTimeObject, gml:AbstractValue, gml:Null
Source
<group name="Value">
  <annotation>
    <documentation>This is a convenience choice group which unifies generic values defined in this Clause with spatial and temporal objects and the measures described above, so that any of these may be used within aggregate values.</documentation>
  </annotation>
  <choice>
    <element ref="gml:AbstractValue"/>
    <element ref="gml:AbstractGeometry"/>
    <element ref="gml:AbstractTimeObject"/>
    <element ref="gml:Null"/>
  </choice>
</group>
Attribute Group gml:referenceSystem
Namespacehttp://www.opengis.net/gml/3.2
Diagram
DiagramvalueObjects_xsd.tmp#referenceSystem_codeSpacevalueObjects_xsd.tmp#referenceSystem_uom
Used by
Complex Typegml:ValueArrayType
Attributes
QNameTypeUse
codeSpaceanyURIoptional
uomgml:UomIdentifieroptional
Source
<attributeGroup name="referenceSystem">
  <attribute name="codeSpace" type="anyURI"/>
  <attribute name="uom" type="gml:UomIdentifier"/>
</attributeGroup>
XML Schema documentation generated by ® XML Developer.
