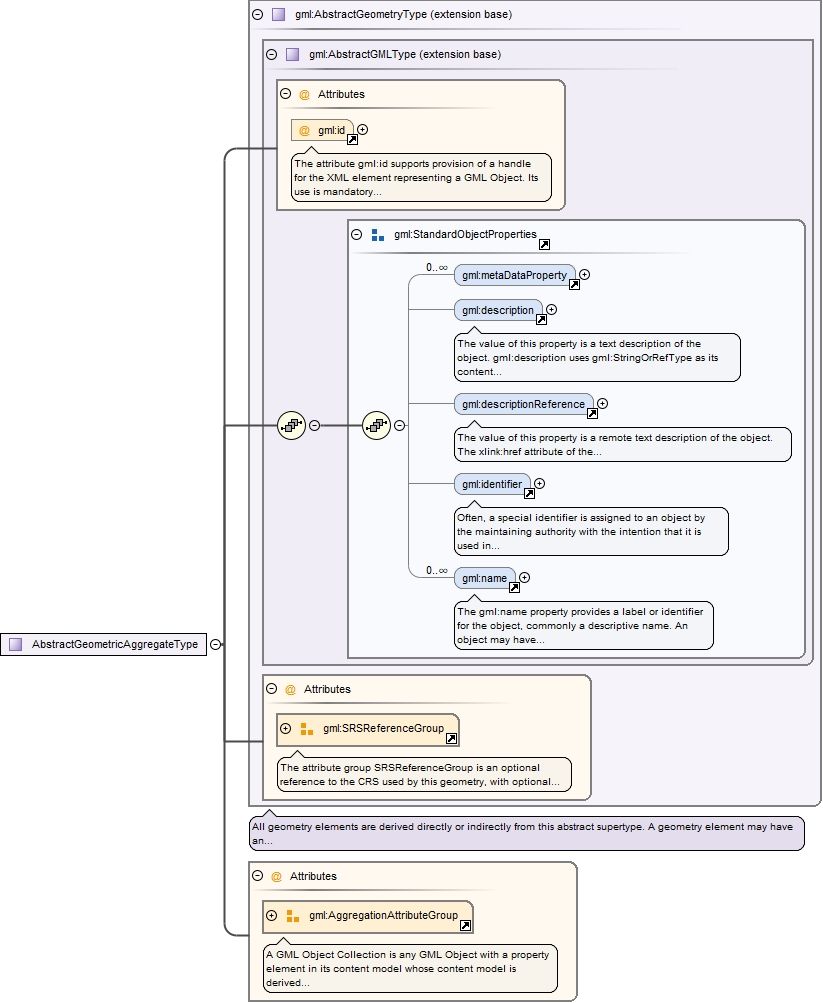

See ISO/DIS 19136 12.3.Geometric aggregates (i.e. instances of a subtype of gml:AbstractGeometricAggregateType) are arbitrary aggregations of geometry elements. They are not assumed to have any additional internal structure and are used to "collect" pieces of geometry of a specified type. Application schemas may use aggregates for features that use multiple geometric objects in their representations.GML is an OGC Standard.Copyright (c) 2007, 2010, 2016, 2018 Open Geospatial Consortium.To obtain additional rights of use, visit http://www.opengeospatial.org/legal/ .
Properties
attribute form default
unqualified
element form default
qualified
version
3.2.2

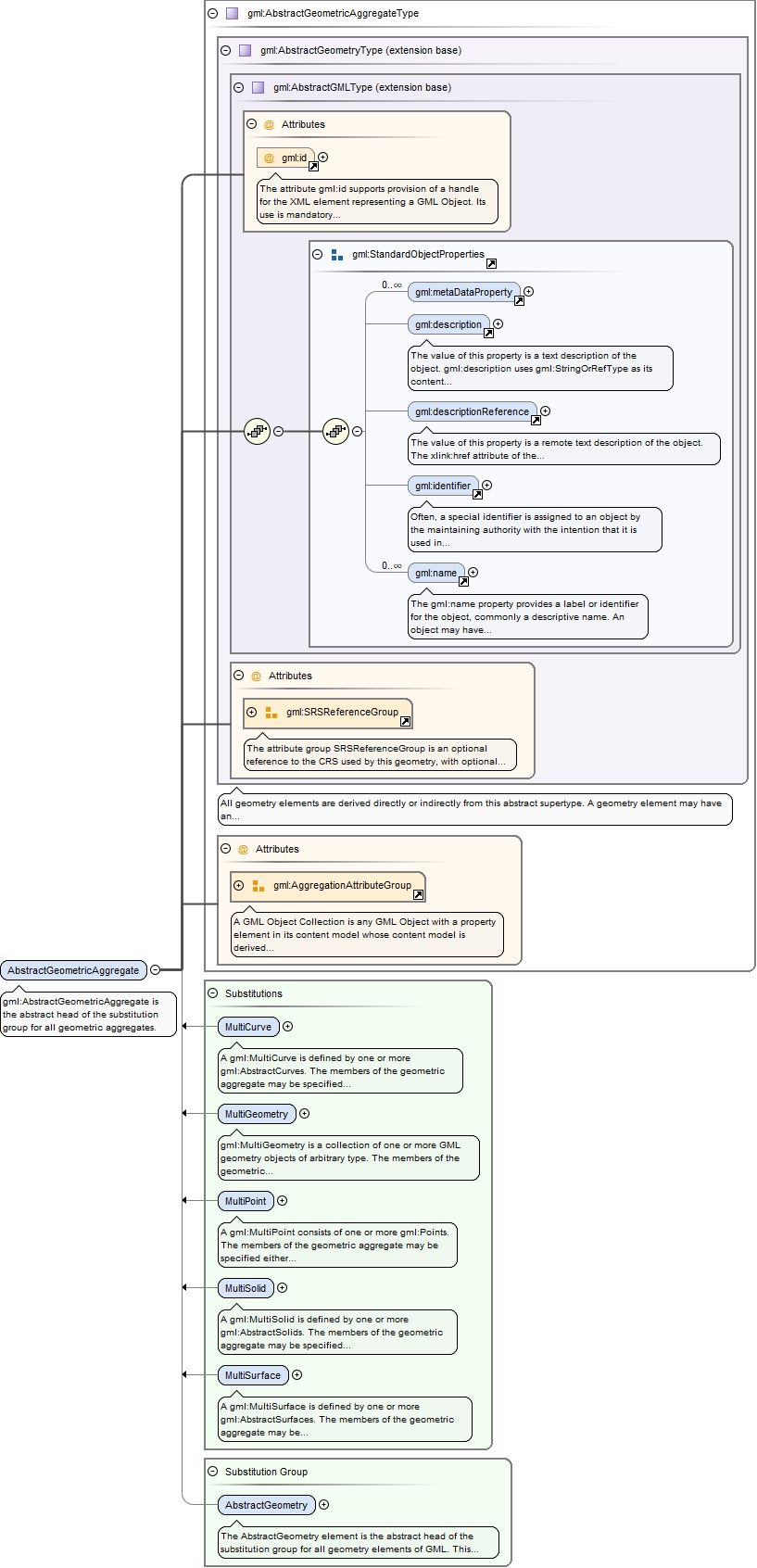

Element gml:AbstractGeometricAggregate
Namespace
http://www.opengis.net/gml/3.2
Annotations
gml:AbstractGeometricAggregate is the abstract head of the substitution group for all geometric aggregates.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
<element name="AbstractGeometricAggregate" type="gml:AbstractGeometricAggregateType" abstract="true" substitutionGroup="gml:AbstractGeometry"><annotation><documentation>gml:AbstractGeometricAggregate is the abstract head of the substitution group for all geometric aggregates.</documentation></annotation></element>

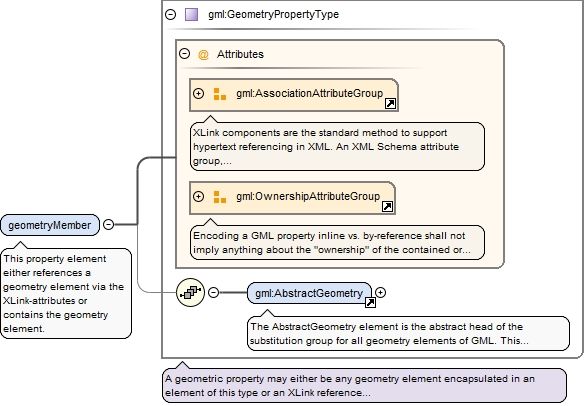

Element gml:geometryMember
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element either references a geometry element via the XLink-attributes or contains the geometry element.
<element name="geometryMember" type="gml:GeometryPropertyType"><annotation><documentation>This property element either references a geometry element via the XLink-attributes or contains the geometry element.</documentation></annotation></element>

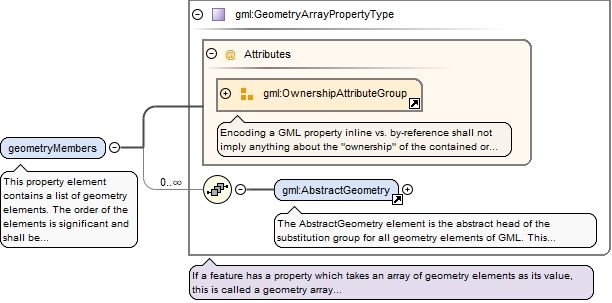

Element gml:geometryMembers
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element contains a list of geometry elements. The order of the elements is significant and shall be preserved when processing the array.
<element name="geometryMembers" type="gml:GeometryArrayPropertyType"><annotation><documentation>This property element contains a list of geometry elements. The order of the elements is significant and shall be preserved when processing the array.</documentation></annotation></element>

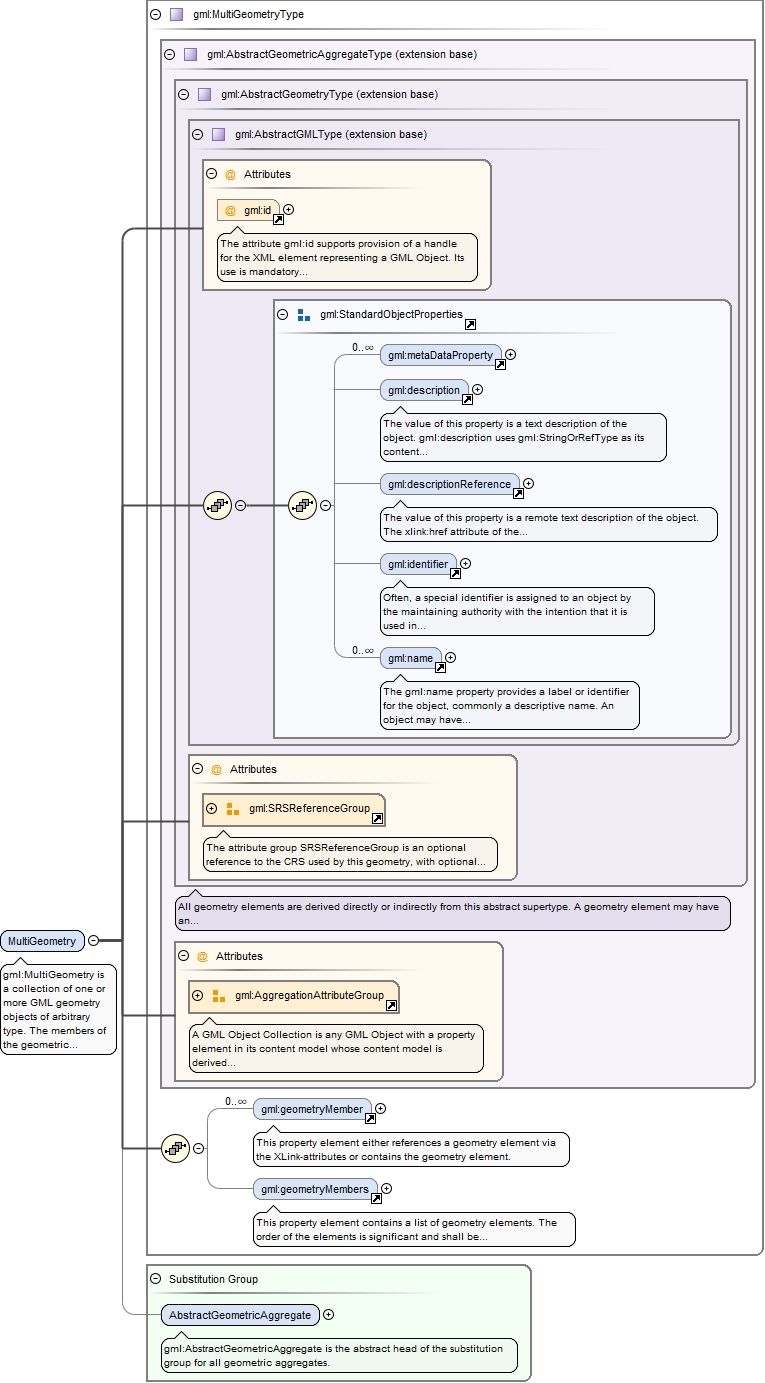

Element gml:MultiGeometry
Namespace
http://www.opengis.net/gml/3.2
Annotations

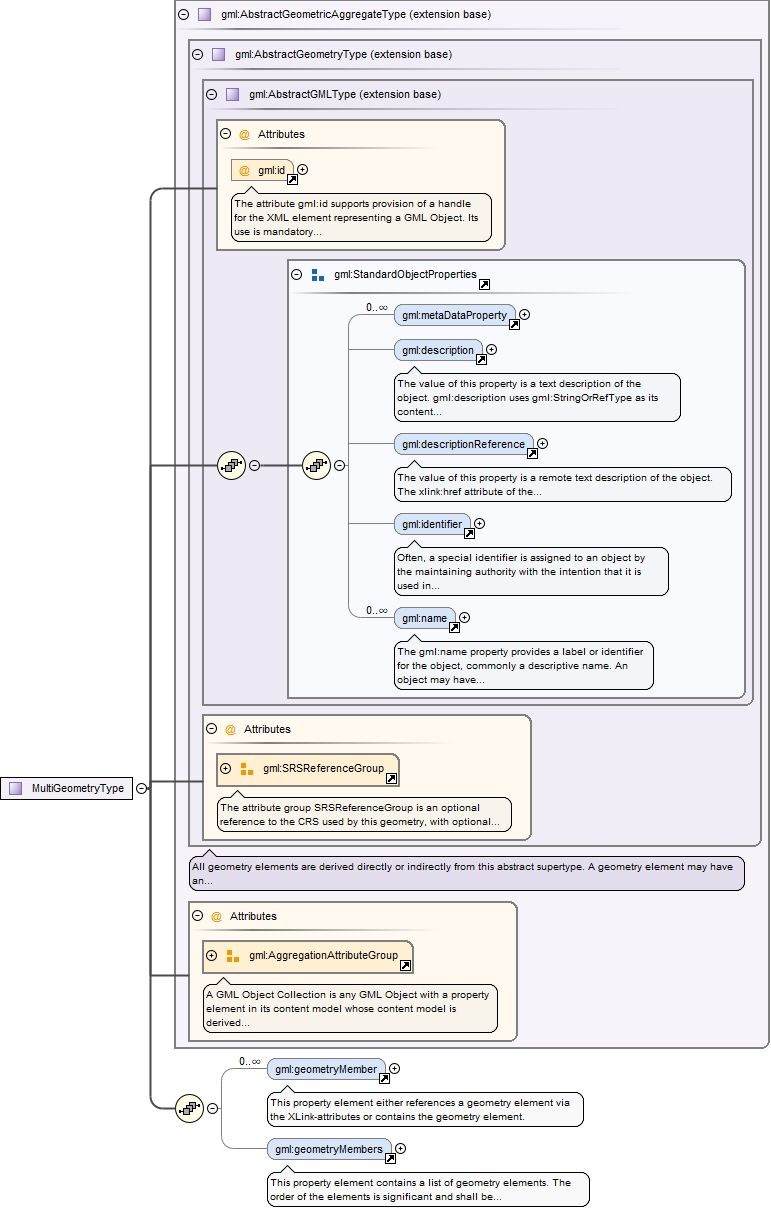

gml:MultiGeometry is a collection of one or more GML geometry objects of arbitrary type. The members of the geometric aggregate may be specified either using the "standard" property (gml:geometryMember) or the array property (gml:geometryMembers). It is also valid to use both the "standard" and the array properties in the same collection.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
<element name="MultiGeometry" type="gml:MultiGeometryType" substitutionGroup="gml:AbstractGeometricAggregate"><annotation><documentation>gml:MultiGeometry is a collection of one or more GML geometry objects of arbitrary type. The members of the geometric aggregate may be specified either using the "standard" property (gml:geometryMember) or the array property (gml:geometryMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation></annotation></element>

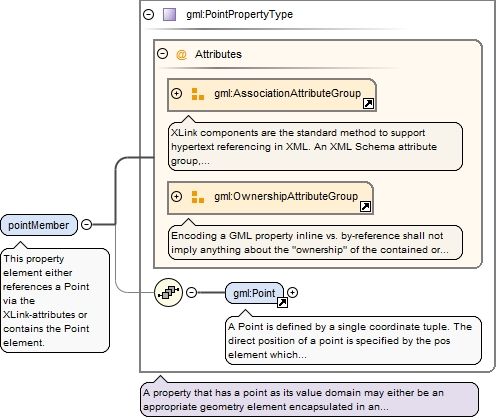

Element gml:pointMember
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element either references a Point via the XLink-attributes or contains the Point element.
<element name="pointMember" type="gml:PointPropertyType"><annotation><documentation>This property element either references a Point via the XLink-attributes or contains the Point element.</documentation></annotation></element>

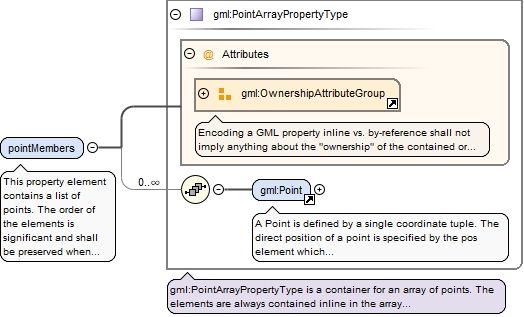

Element gml:pointMembers
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element contains a list of points. The order of the elements is significant and shall be preserved when processing the array.
<element name="pointMembers" type="gml:PointArrayPropertyType"><annotation><documentation>This property element contains a list of points. The order of the elements is significant and shall be preserved when processing the array.</documentation></annotation></element>
Element gml:MultiPoint
Namespace
http://www.opengis.net/gml/3.2
Annotations

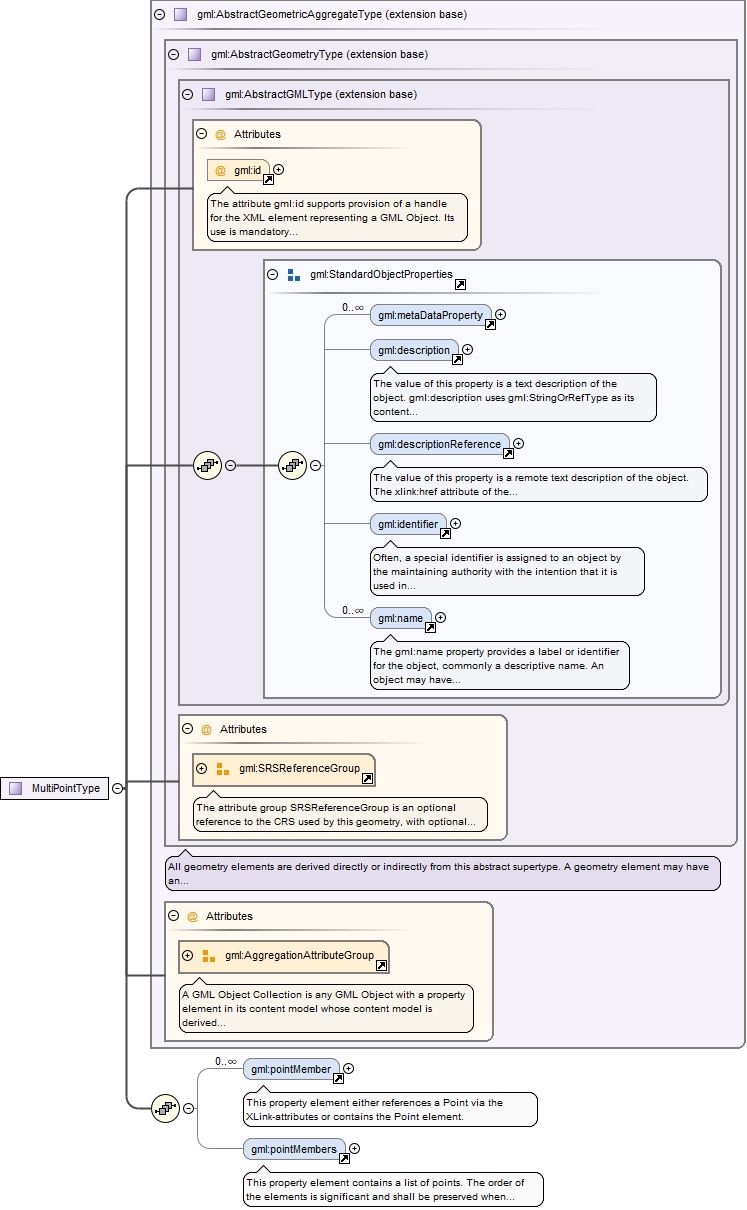

A gml:MultiPoint consists of one or more gml:Points.The members of the geometric aggregate may be specified either using the "standard" property (gml:pointMember) or the array property (gml:pointMembers). It is also valid to use both the "standard" and the array properties in the same collection.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
<element name="MultiPoint" type="gml:MultiPointType" substitutionGroup="gml:AbstractGeometricAggregate"><annotation><documentation>A gml:MultiPoint consists of one or more gml:Points. The members of the geometric aggregate may be specified either using the "standard" property (gml:pointMember) or the array property (gml:pointMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation></annotation></element>

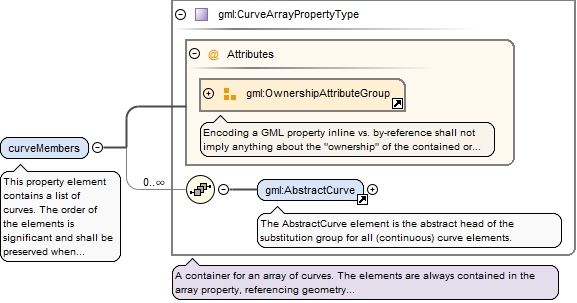

Element gml:curveMembers
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element contains a list of curves. The order of the elements is significant and shall be preserved when processing the array.
<element name="curveMembers" type="gml:CurveArrayPropertyType"><annotation><documentation>This property element contains a list of curves. The order of the elements is significant and shall be preserved when processing the array.</documentation></annotation></element>

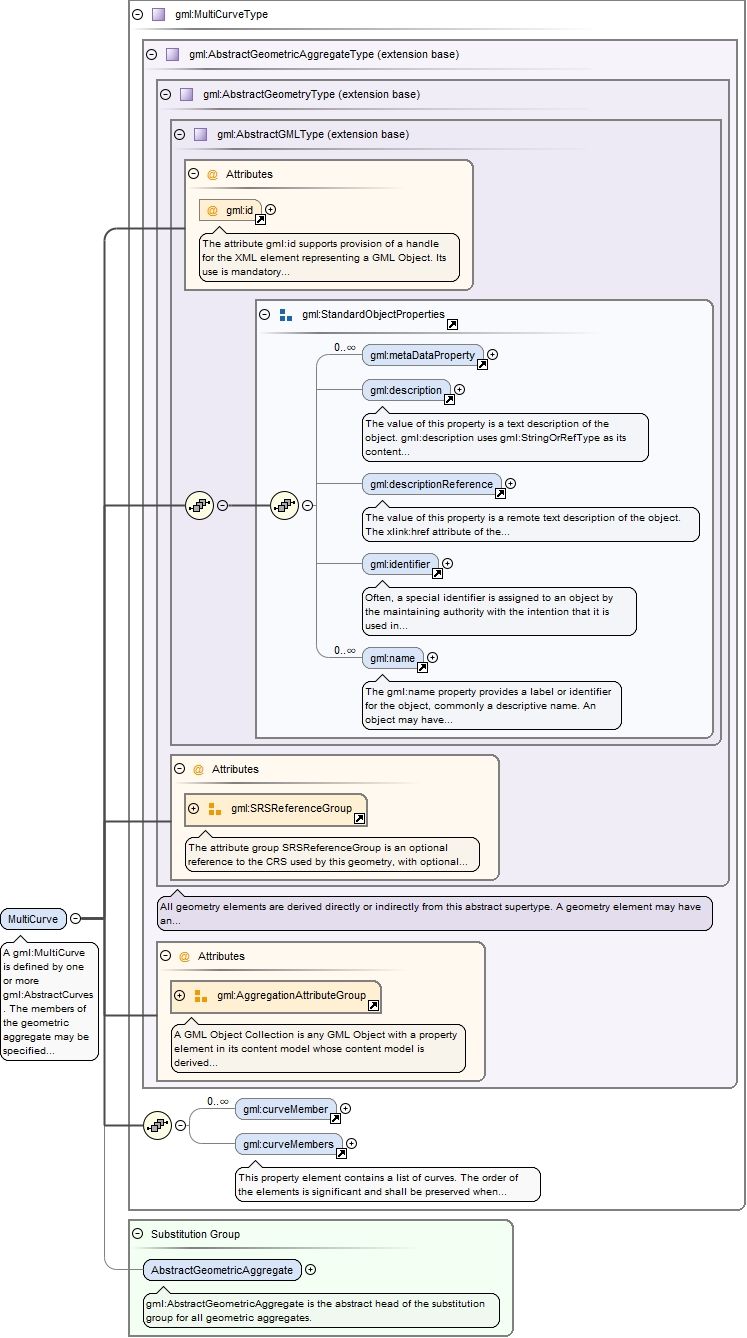

Element gml:MultiCurve
Namespace
http://www.opengis.net/gml/3.2
Annotations
A gml:MultiCurve is defined by one or more gml:AbstractCurves.The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
<element name="MultiCurve" type="gml:MultiCurveType" substitutionGroup="gml:AbstractGeometricAggregate"><annotation><documentation>A gml:MultiCurve is defined by one or more gml:AbstractCurves. The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation></annotation></element>

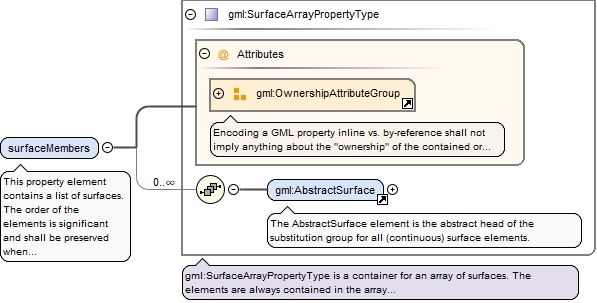

Element gml:surfaceMembers
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element contains a list of surfaces. The order of the elements is significant and shall be preserved when processing the array.
<element name="surfaceMembers" type="gml:SurfaceArrayPropertyType"><annotation><documentation>This property element contains a list of surfaces. The order of the elements is significant and shall be preserved when processing the array.</documentation></annotation></element>

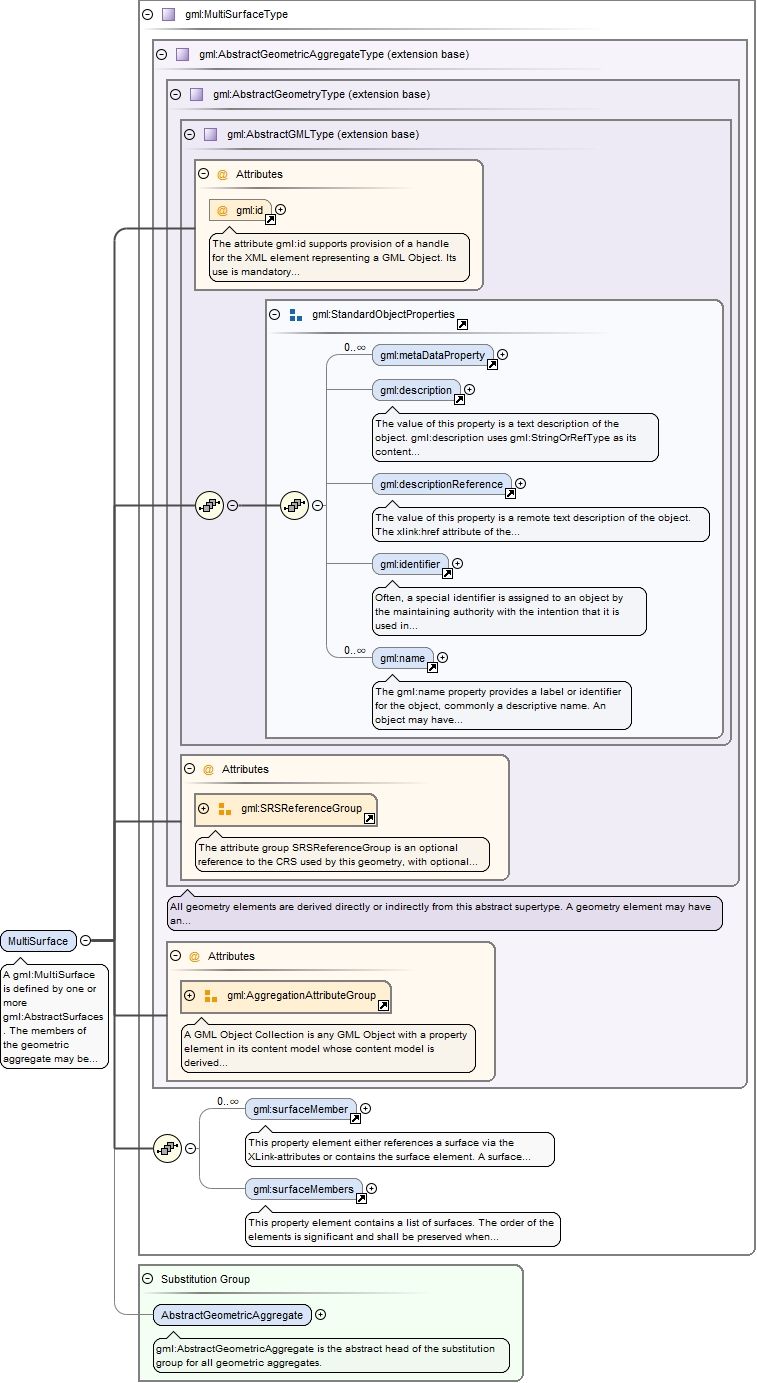

Element gml:MultiSurface
Namespace
http://www.opengis.net/gml/3.2
Annotations
A gml:MultiSurface is defined by one or more gml:AbstractSurfaces.The members of the geometric aggregate may be specified either using the "standard" property (gml:surfaceMember) or the array property (gml:surfaceMembers). It is also valid to use both the "standard" and the array properties in the same collection.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
<element name="MultiSurface" type="gml:MultiSurfaceType" substitutionGroup="gml:AbstractGeometricAggregate"><annotation><documentation>A gml:MultiSurface is defined by one or more gml:AbstractSurfaces. The members of the geometric aggregate may be specified either using the "standard" property (gml:surfaceMember) or the array property (gml:surfaceMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation></annotation></element>

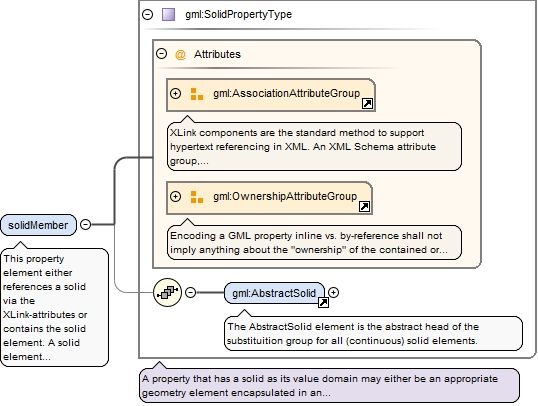

Element gml:solidMember
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element either references a solid via the XLink-attributes or contains the solid element. A solid element is any element, which is substitutable for gml:AbstractSolid.
<element name="solidMember" type="gml:SolidPropertyType"><annotation><documentation>This property element either references a solid via the XLink-attributes or contains the solid element. A solid element is any element, which is substitutable for gml:AbstractSolid.</documentation></annotation></element>
Element gml:solidMembers
Namespace
http://www.opengis.net/gml/3.2
Annotations
This property element contains a list of solids. The order of the elements is significant and shall be preserved when processing the array.
<element name="solidMembers" type="gml:SolidArrayPropertyType"><annotation><documentation>This property element contains a list of solids. The order of the elements is significant and shall be preserved when processing the array.</documentation></annotation></element>

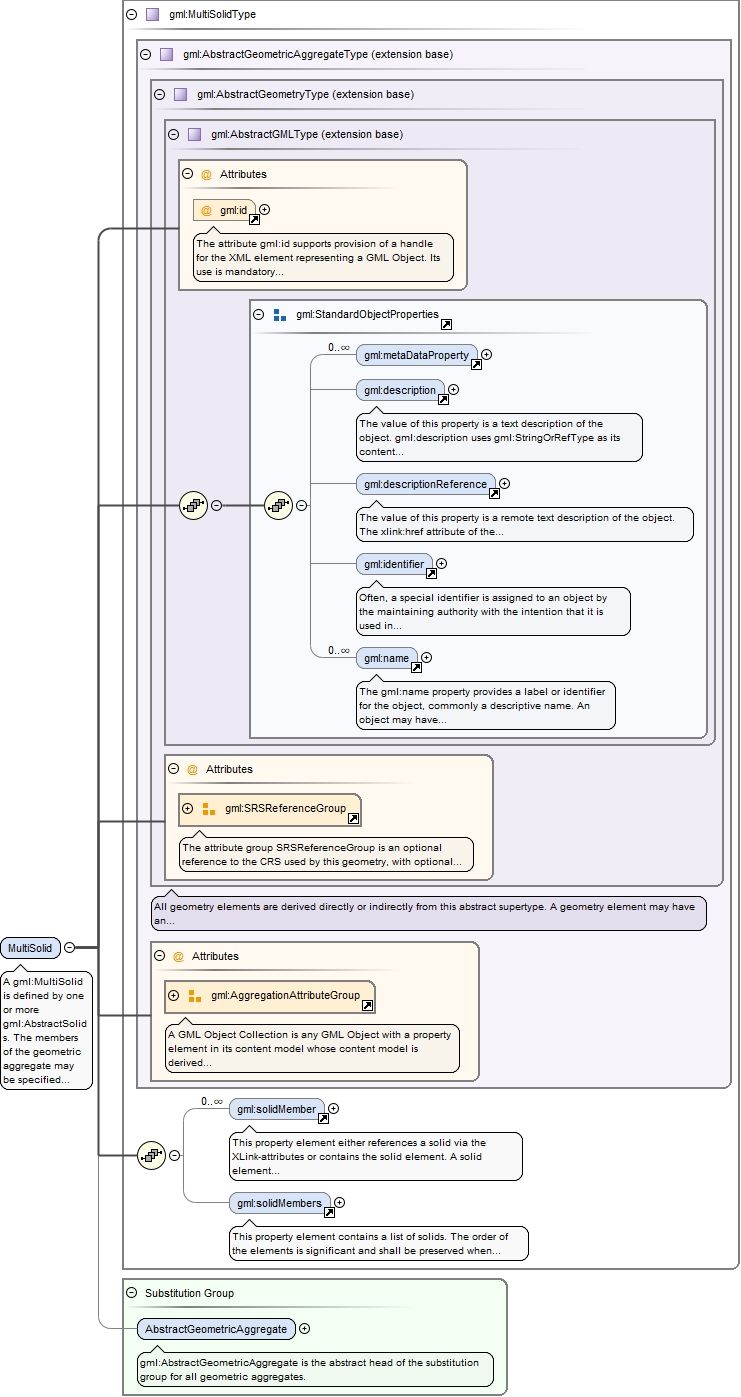

Element gml:MultiSolid
Namespace
http://www.opengis.net/gml/3.2
Annotations

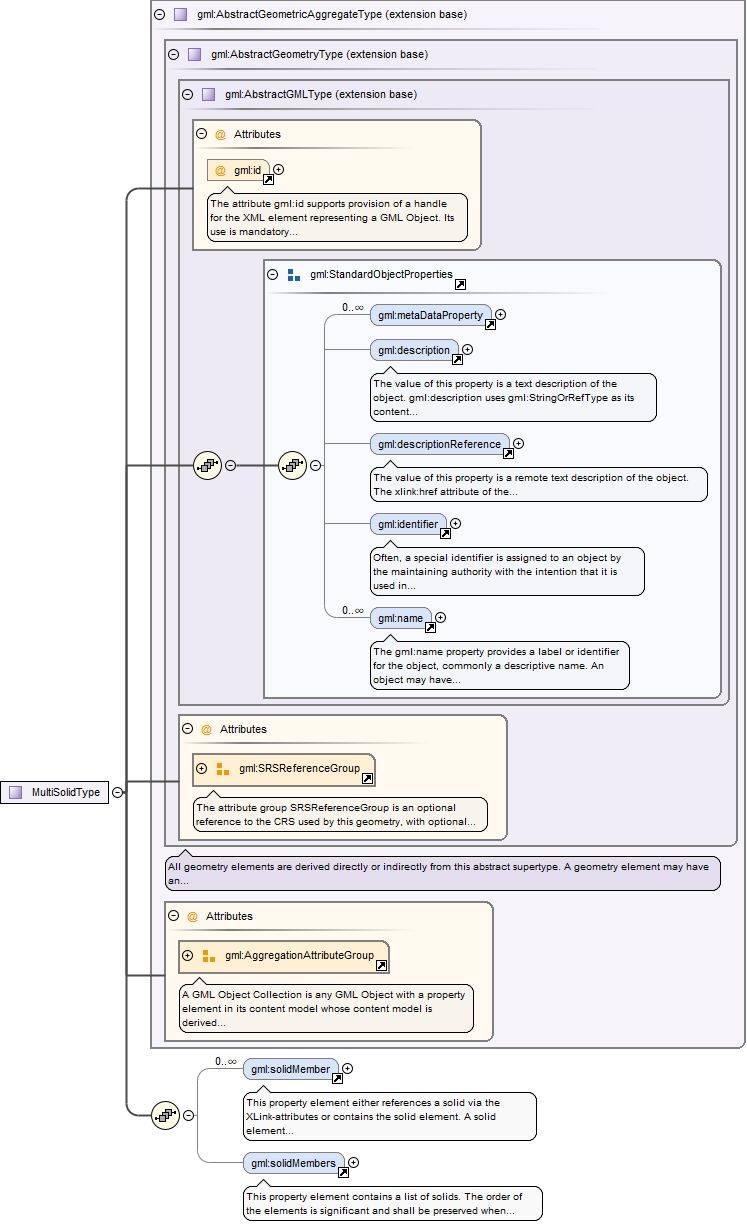

A gml:MultiSolid is defined by one or more gml:AbstractSolids.The members of the geometric aggregate may be specified either using the "standard" property (gml:solidMember) or the array property (gml:solidMembers). It is also valid to use both the "standard" and the array properties in the same collection.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
<element name="MultiSolid" type="gml:MultiSolidType" substitutionGroup="gml:AbstractGeometricAggregate"><annotation><documentation>A gml:MultiSolid is defined by one or more gml:AbstractSolids. The members of the geometric aggregate may be specified either using the "standard" property (gml:solidMember) or the array property (gml:solidMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation></annotation></element>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

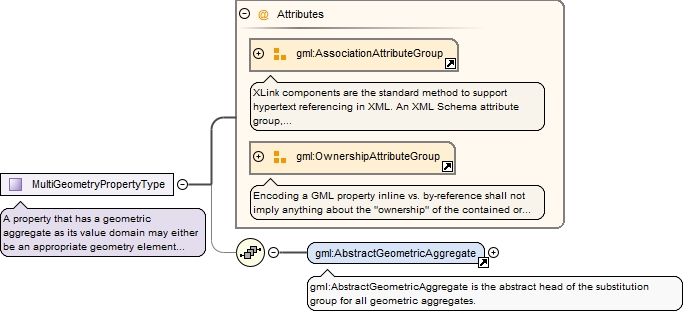

A property that has a geometric aggregate as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.
<complexType name="MultiGeometryPropertyType"><annotation><documentation>A property that has a geometric aggregate as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.</documentation></annotation><sequence minOccurs="0"><element ref="gml:AbstractGeometricAggregate"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

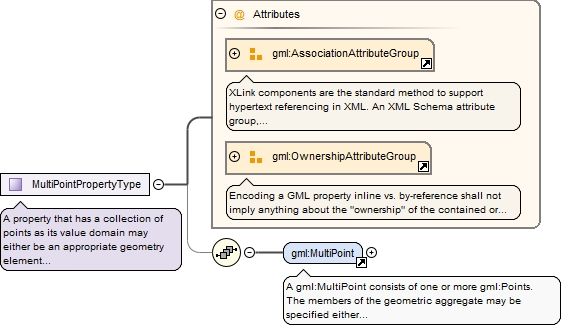

A property that has a collection of points as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.
<complexType name="MultiPointPropertyType"><annotation><documentation>A property that has a collection of points as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.</documentation></annotation><sequence minOccurs="0"><element ref="gml:MultiPoint"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

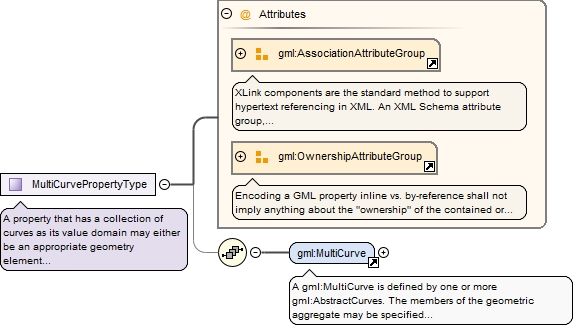

A property that has a collection of curves as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.
<complexType name="MultiCurvePropertyType"><annotation><documentation>A property that has a collection of curves as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.</documentation></annotation><sequence minOccurs="0"><element ref="gml:MultiCurve"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

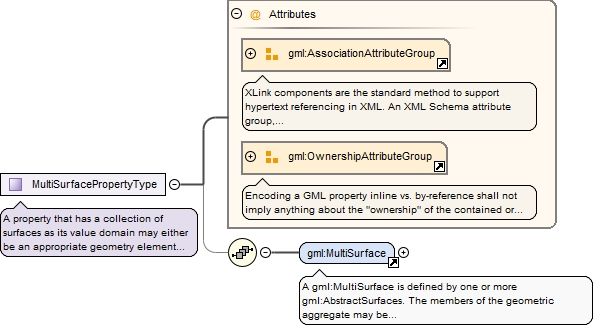

A property that has a collection of surfaces as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.
<complexType name="MultiSurfacePropertyType"><annotation><documentation>A property that has a collection of surfaces as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.</documentation></annotation><sequence minOccurs="0"><element ref="gml:MultiSurface"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType>
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

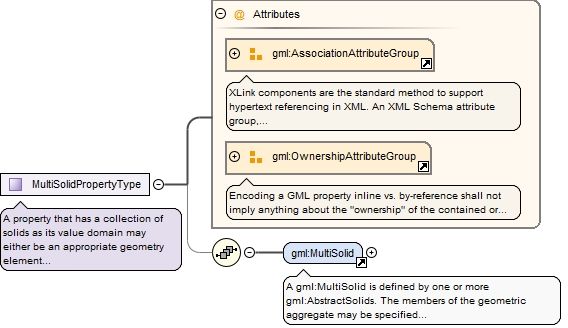

A property that has a collection of solids as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.
<complexType name="MultiSolidPropertyType"><annotation><documentation>A property that has a collection of solids as its value domain may either be an appropriate geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same document). Either the reference or the contained element shall be given, but neither both nor none.</documentation></annotation><sequence minOccurs="0"><element ref="gml:MultiSolid"/></sequence><attributeGroup ref="gml:AssociationAttributeGroup"/><attributeGroup ref="gml:OwnershipAttributeGroup"/></complexType>
