Included schema freeText.xsd
Namespacehttp://www.isotc211.org/2005/gmd
Annotations
Geographic MetaData (GMD) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GMD includes all the definitions of http://www.isotc211.org/2005/gmd namespace. The root document of this namespace is the file gmd.xsd. This freeText.xsd schema implements cultural and linguistic adaptability extensions defined in 7.3 of ISO/TS 19139:2007. This extension essentially formalizes the free text concept described in Annex J of ISO 19115:2003. For this reason, and in order to simplify the organization of overall geographic metadata XML schema, this schema has been included as part of the gmd namespace instead of the gmx namespace.
Properties
attribute form defaultunqualified
element form defaultqualified
version2012-07-13

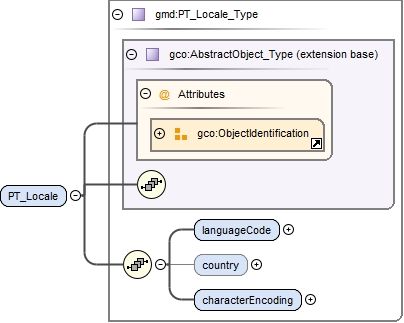

Element gmd:PT_Locale
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypefreeText_xsd.tmp#PT_Locale_Type_languageCodefreeText_xsd.tmp#PT_Locale_Type_countryfreeText_xsd.tmp#PT_Locale_Type_characterEncodingfreeText_xsd.tmp#PT_Locale_Type
Typegmd:PT_Locale_Type
Type hierarchy
Properties
contentcomplex
Used by
Model
Childrengmd:characterEncoding, gmd:country, gmd:languageCode
Instance
<gmd:PT_Locale id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:languageCode gco:nilReason="">{1,1}</gmd:languageCode>
  <gmd:country gco:nilReason="">{0,1}</gmd:country>
  <gmd:characterEncoding gco:nilReason="">{1,1}</gmd:characterEncoding>
</gmd:PT_Locale>
Attributes
QNameTypeUse
idxs:IDoptional
uuidxs:stringoptional
Source
<xs:element name="PT_Locale" type="gmd:PT_Locale_Type"/>

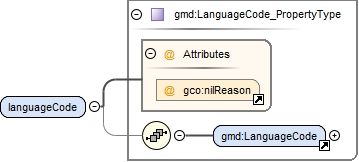

Element gmd:PT_Locale_Type / gmd:languageCode
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#LanguageCodefreeText_xsd.tmp#LanguageCode_PropertyType
Typegmd:LanguageCode_PropertyType
Properties
contentcomplex
Model
Childrengmd:LanguageCode
Instance
<gmd:languageCode gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:LanguageCode codeList="" codeListValue="" codeSpace="">{1,1}</gmd:LanguageCode>
</gmd:languageCode>
Attributes
QNameTypeUse
gco:nilReasongml:NilReasonTypeoptional
Source
<xs:element name="languageCode" type="gmd:LanguageCode_PropertyType"/>

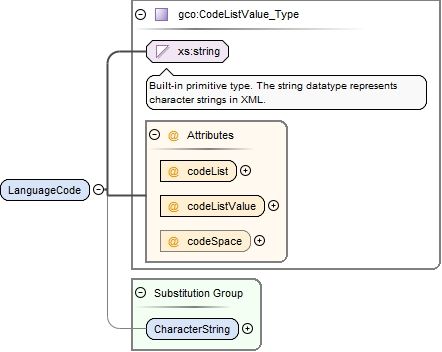

Element gmd:LanguageCode
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#CodeListValue_Type_codeListgcoBase_xsd.tmp#CodeListValue_Type_codeListValuegcoBase_xsd.tmp#CodeListValue_Type_codeSpacegcoBase_xsd.tmp#CodeListValue_TypebasicTypes_xsd_1.tmp#CharacterString
Typegco:CodeListValue_Type
Properties
contentcomplex
Substitution Group Affiliation
Used by
Attributes
QNameTypeUse
codeListxs:anyURIrequired
codeListValuexs:anyURIrequired
codeSpacexs:anyURIoptional
Source
<xs:element name="LanguageCode" type="gco:CodeListValue_Type" substitutionGroup="gco:CharacterString"/>
Element gmd:PT_Locale_Type / gmd:country
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#CountryfreeText_xsd.tmp#Country_PropertyType
Typegmd:Country_PropertyType
Properties
contentcomplex
minOccurs0
Model
Childrengmd:Country
Instance
<gmd:country gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:Country codeList="" codeListValue="" codeSpace="">{1,1}</gmd:Country>
</gmd:country>
Attributes
QNameTypeUse
gco:nilReasongml:NilReasonTypeoptional
Source
<xs:element name="country" type="gmd:Country_PropertyType" minOccurs="0"/>

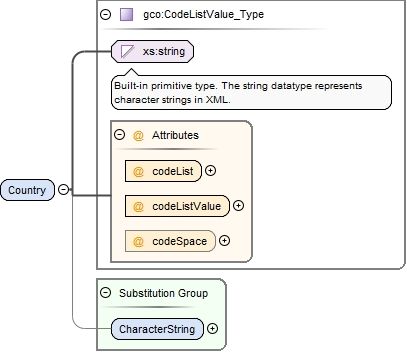

Element gmd:Country
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#CodeListValue_Type_codeListgcoBase_xsd.tmp#CodeListValue_Type_codeListValuegcoBase_xsd.tmp#CodeListValue_Type_codeSpacegcoBase_xsd.tmp#CodeListValue_TypebasicTypes_xsd_1.tmp#CharacterString
Typegco:CodeListValue_Type
Properties
contentcomplex
Substitution Group Affiliation
Used by
Attributes
QNameTypeUse
codeListxs:anyURIrequired
codeListValuexs:anyURIrequired
codeSpacexs:anyURIoptional
Source
<xs:element name="Country" type="gco:CodeListValue_Type" substitutionGroup="gco:CharacterString"/>

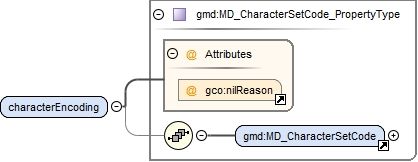

Element gmd:PT_Locale_Type / gmd:characterEncoding
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonidentification_xsd.tmp#MD_CharacterSetCodeidentification_xsd.tmp#MD_CharacterSetCode_PropertyType
Typegmd:MD_CharacterSetCode_PropertyType
Properties
contentcomplex
Model
Childrengmd:MD_CharacterSetCode
Instance
<gmd:characterEncoding gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:MD_CharacterSetCode codeList="" codeListValue="" codeSpace="">{1,1}</gmd:MD_CharacterSetCode>
</gmd:characterEncoding>
Attributes
QNameTypeUse
gco:nilReasongml:NilReasonTypeoptional
Source
<xs:element name="characterEncoding" type="gmd:MD_CharacterSetCode_PropertyType"/>

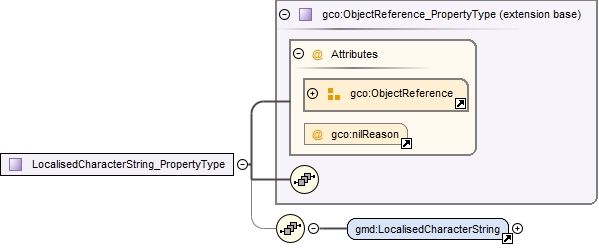

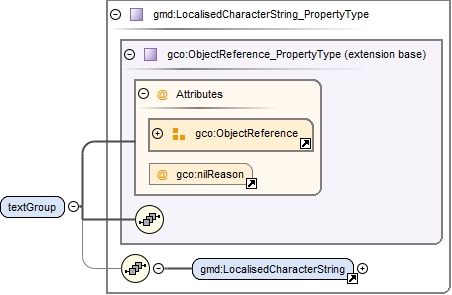

Element gmd:PT_FreeText_Type / gmd:textGroup
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasongcoBase_xsd.tmp#ObjectReference_PropertyTypefreeText_xsd.tmp#LocalisedCharacterStringfreeText_xsd.tmp#LocalisedCharacterString_PropertyType
Typegmd:LocalisedCharacterString_PropertyType
Type hierarchy
Properties
contentcomplex
maxOccursunbounded
Model
Childrengmd:LocalisedCharacterString
Instance
<gmd:textGroup xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:LocalisedCharacterString id="" locale="">{1,1}</gmd:LocalisedCharacterString>
</gmd:textGroup>
Attributes
Source
<xs:element name="textGroup" type="gmd:LocalisedCharacterString_PropertyType" maxOccurs="unbounded"/>

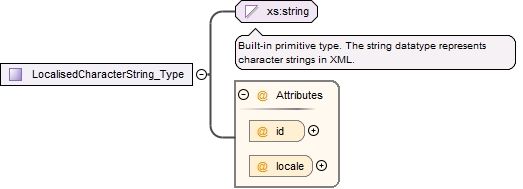

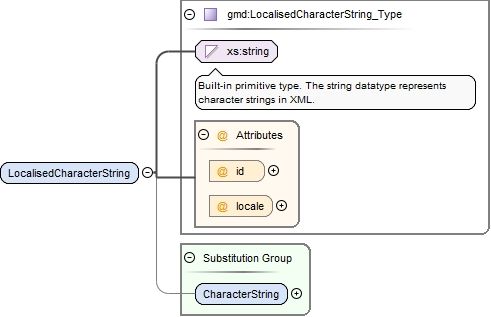

Element gmd:LocalisedCharacterString
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramfreeText_xsd.tmp#LocalisedCharacterString_Type_idfreeText_xsd.tmp#LocalisedCharacterString_Type_localefreeText_xsd.tmp#LocalisedCharacterString_TypebasicTypes_xsd_1.tmp#CharacterString
Typegmd:LocalisedCharacterString_Type
Properties
contentcomplex
Substitution Group Affiliation
Used by
Attributes
QNameTypeUse
idxs:IDoptional
localexs:anyURIoptional
Source
<xs:element name="LocalisedCharacterString" type="gmd:LocalisedCharacterString_Type" substitutionGroup="gco:CharacterString"/>

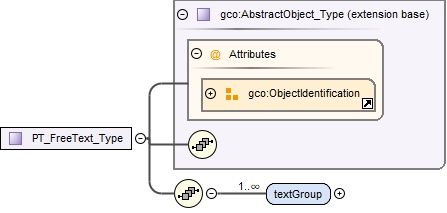

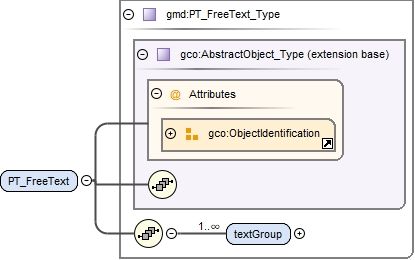

Element gmd:PT_FreeText
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypefreeText_xsd.tmp#PT_FreeText_Type_textGroupfreeText_xsd.tmp#PT_FreeText_Type
Typegmd:PT_FreeText_Type
Type hierarchy
Properties
contentcomplex
Used by
Model
Childrengmd:textGroup
Instance
<gmd:PT_FreeText id="" uuid="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:textGroup xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:textGroup>
</gmd:PT_FreeText>
Attributes
QNameTypeUse
idxs:IDoptional
uuidxs:stringoptional
Source
<xs:element name="PT_FreeText" type="gmd:PT_FreeText_Type"/>

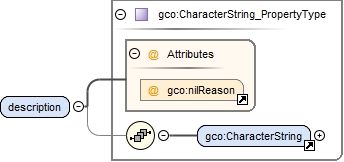

Element gmd:PT_LocaleContainer_Type / gmd:description
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyType
Typegco:CharacterString_PropertyType
Properties
contentcomplex
Model
Childrengco:CharacterString
Instance
<gmd:description gco:nilReason="" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:gco="http://www.isotc211.org/2005/gco">
  <gco:CharacterString>{1,1}</gco:CharacterString>
</gmd:description>
Attributes
QNameTypeUse
gco:nilReasongml:NilReasonTypeoptional
Source
<xs:element name="description" type="gco:CharacterString_PropertyType"/>
Element gmd:PT_LocaleContainer_Type / gmd:locale
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#PT_LocalefreeText_xsd.tmp#PT_Locale_PropertyType
Typegmd:PT_Locale_PropertyType
Properties
contentcomplex
Model
Childrengmd:PT_Locale
Instance
<gmd:locale xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:PT_Locale id="" uuid="">{1,1}</gmd:PT_Locale>
</gmd:locale>
Attributes
Source
<xs:element name="locale" type="gmd:PT_Locale_PropertyType"/>
Element gmd:PT_LocaleContainer_Type / gmd:date
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasoncitation_xsd.tmp#CI_Datecitation_xsd.tmp#CI_Date_PropertyType
Typegmd:CI_Date_PropertyType
Properties
contentcomplex
maxOccursunbounded
Model
Childrengmd:CI_Date
Instance
<gmd:date xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:CI_Date id="" uuid="">{1,1}</gmd:CI_Date>
</gmd:date>
Attributes
Source
<xs:element name="date" type="gmd:CI_Date_PropertyType" maxOccurs="unbounded"/>

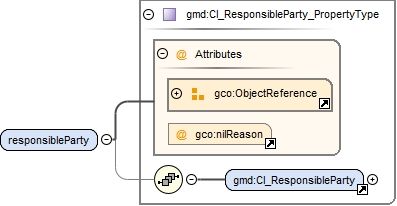

Element gmd:PT_LocaleContainer_Type / gmd:responsibleParty
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasoncitation_xsd.tmp#CI_ResponsiblePartycitation_xsd.tmp#CI_ResponsibleParty_PropertyType
Typegmd:CI_ResponsibleParty_PropertyType
Properties
contentcomplex
maxOccursunbounded
Model
Childrengmd:CI_ResponsibleParty
Instance
<gmd:responsibleParty xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:CI_ResponsibleParty id="" uuid="">{1,1}</gmd:CI_ResponsibleParty>
</gmd:responsibleParty>
Attributes
Source
<xs:element name="responsibleParty" type="gmd:CI_ResponsibleParty_PropertyType" maxOccurs="unbounded"/>

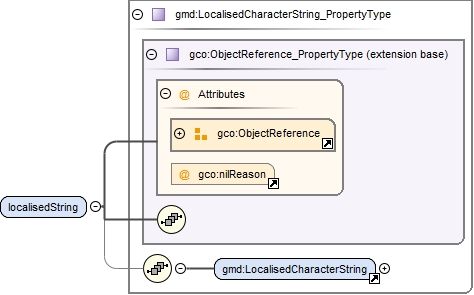

Element gmd:PT_LocaleContainer_Type / gmd:localisedString
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasongcoBase_xsd.tmp#ObjectReference_PropertyTypefreeText_xsd.tmp#LocalisedCharacterStringfreeText_xsd.tmp#LocalisedCharacterString_PropertyType
Typegmd:LocalisedCharacterString_PropertyType
Type hierarchy
Properties
contentcomplex
maxOccursunbounded
Model
Childrengmd:LocalisedCharacterString
Instance
<gmd:localisedString xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="" xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:LocalisedCharacterString id="" locale="">{1,1}</gmd:LocalisedCharacterString>
</gmd:localisedString>
Attributes
Source
<xs:element name="localisedString" type="gmd:LocalisedCharacterString_PropertyType" maxOccurs="unbounded"/>

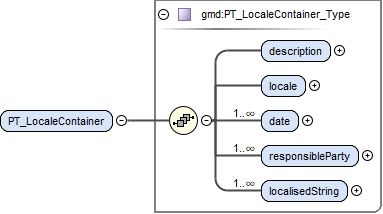

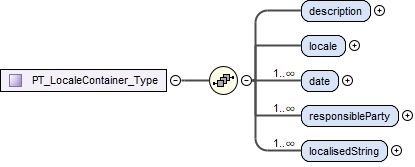

Element gmd:PT_LocaleContainer
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramfreeText_xsd.tmp#PT_LocaleContainer_Type_descriptionfreeText_xsd.tmp#PT_LocaleContainer_Type_localefreeText_xsd.tmp#PT_LocaleContainer_Type_datefreeText_xsd.tmp#PT_LocaleContainer_Type_responsiblePartyfreeText_xsd.tmp#PT_LocaleContainer_Type_localisedStringfreeText_xsd.tmp#PT_LocaleContainer_Type
Typegmd:PT_LocaleContainer_Type
Properties
contentcomplex
Used by
Model
Childrengmd:date, gmd:description, gmd:locale, gmd:localisedString, gmd:responsibleParty
Instance
<gmd:PT_LocaleContainer xmlns:gmd="http://www.isotc211.org/2005/gmd">
  <gmd:description gco:nilReason="">{1,1}</gmd:description>
  <gmd:locale xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,1}</gmd:locale>
  <gmd:date xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:date>
  <gmd:responsibleParty xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:responsibleParty>
  <gmd:localisedString xlink:actuate="" xlink:arcrole="" xlink:href="" gco:nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" uuidref="">{1,unbounded}</gmd:localisedString>
</gmd:PT_LocaleContainer>
Source
<xs:element name="PT_LocaleContainer" type="gmd:PT_LocaleContainer_Type"/>

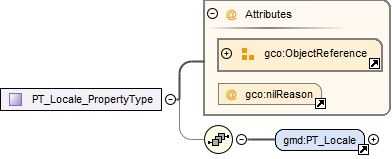

Complex Type gmd:PT_Locale_PropertyType
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#PT_Locale
Used by
Model
Childrengmd:PT_Locale
Attributes
Source
<xs:complexType name="PT_Locale_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:PT_Locale"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>

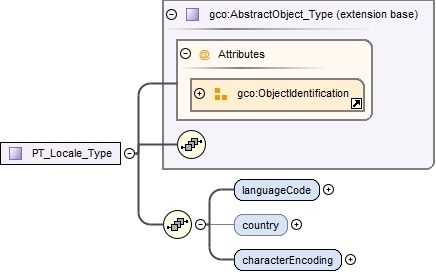

Complex Type gmd:PT_Locale_Type
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypefreeText_xsd.tmp#PT_Locale_Type_languageCodefreeText_xsd.tmp#PT_Locale_Type_countryfreeText_xsd.tmp#PT_Locale_Type_characterEncoding
Typeextension of gco:AbstractObject_Type
Type hierarchy
Used by
Model
Childrengmd:characterEncoding, gmd:country, gmd:languageCode
Attributes
QNameTypeUse
idxs:IDoptional
uuidxs:stringoptional
Source
<xs:complexType name="PT_Locale_Type">
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="languageCode" type="gmd:LanguageCode_PropertyType"/>
        <xs:element name="country" type="gmd:Country_PropertyType" minOccurs="0"/>
        <xs:element name="characterEncoding" type="gmd:MD_CharacterSetCode_PropertyType"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

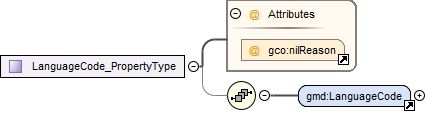

Complex Type gmd:LanguageCode_PropertyType
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#LanguageCode
Used by
Model
Childrengmd:LanguageCode
Attributes
QNameTypeUse
gco:nilReasongml:NilReasonTypeoptional
Source
<xs:complexType name="LanguageCode_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:LanguageCode"/>
  </xs:sequence>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>

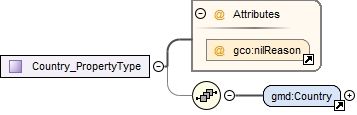

Complex Type gmd:Country_PropertyType
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#Country
Used by
Model
Childrengmd:Country
Attributes
QNameTypeUse
gco:nilReasongml:NilReasonTypeoptional
Source
<xs:complexType name="Country_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:Country"/>
  </xs:sequence>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Complex Type gmd:PT_FreeText_Type
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectIdentificationgcoBase_xsd.tmp#AbstractObject_TypefreeText_xsd.tmp#PT_FreeText_Type_textGroup
Typeextension of gco:AbstractObject_Type
Type hierarchy
Used by
Model
Childrengmd:textGroup
Attributes
QNameTypeUse
idxs:IDoptional
uuidxs:stringoptional
Source
<xs:complexType name="PT_FreeText_Type">
  <xs:complexContent>
    <xs:extension base="gco:AbstractObject_Type">
      <xs:sequence>
        <xs:element name="textGroup" type="gmd:LocalisedCharacterString_PropertyType" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:LocalisedCharacterString_PropertyType
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasongcoBase_xsd.tmp#ObjectReference_PropertyTypefreeText_xsd.tmp#LocalisedCharacterString
Typeextension of gco:ObjectReference_PropertyType
Type hierarchy
Used by
Model
Childrengmd:LocalisedCharacterString
Attributes
Source
<xs:complexType name="LocalisedCharacterString_PropertyType">
  <xs:complexContent>
    <xs:extension base="gco:ObjectReference_PropertyType">
      <xs:sequence minOccurs="0">
        <xs:element ref="gmd:LocalisedCharacterString"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:LocalisedCharacterString_Type
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramfreeText_xsd.tmp#LocalisedCharacterString_Type_idfreeText_xsd.tmp#LocalisedCharacterString_Type_locale
Typeextension of xs:string
Used by
Attributes
QNameTypeUse
idxs:IDoptional
localexs:anyURIoptional
Source
<xs:complexType name="LocalisedCharacterString_Type">
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attribute name="id" type="xs:ID"/>
      <xs:attribute name="locale" type="xs:anyURI"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

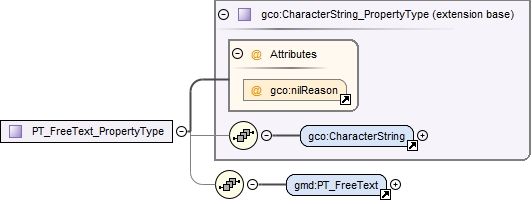

Complex Type gmd:PT_FreeText_PropertyType
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#nilReasonbasicTypes_xsd_1.tmp#CharacterStringbasicTypes_xsd_1.tmp#CharacterString_PropertyTypefreeText_xsd.tmp#PT_FreeText
Typeextension of gco:CharacterString_PropertyType
Type hierarchy
Model
Childrengco:CharacterString, gmd:PT_FreeText
Attributes
QNameTypeUse
gco:nilReasongml:NilReasonTypeoptional
Source
<xs:complexType name="PT_FreeText_PropertyType">
  <xs:complexContent>
    <xs:extension base="gco:CharacterString_PropertyType">
      <xs:sequence minOccurs="0">
        <xs:element ref="gmd:PT_FreeText"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type gmd:PT_LocaleContainer_Type
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramfreeText_xsd.tmp#PT_LocaleContainer_Type_descriptionfreeText_xsd.tmp#PT_LocaleContainer_Type_localefreeText_xsd.tmp#PT_LocaleContainer_Type_datefreeText_xsd.tmp#PT_LocaleContainer_Type_responsiblePartyfreeText_xsd.tmp#PT_LocaleContainer_Type_localisedString
Used by
Model
Childrengmd:date, gmd:description, gmd:locale, gmd:localisedString, gmd:responsibleParty
Source
<xs:complexType name="PT_LocaleContainer_Type">
  <xs:sequence>
    <xs:element name="description" type="gco:CharacterString_PropertyType"/>
    <xs:element name="locale" type="gmd:PT_Locale_PropertyType"/>
    <xs:element name="date" type="gmd:CI_Date_PropertyType" maxOccurs="unbounded"/>
    <xs:element name="responsibleParty" type="gmd:CI_ResponsibleParty_PropertyType" maxOccurs="unbounded"/>
    <xs:element name="localisedString" type="gmd:LocalisedCharacterString_PropertyType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

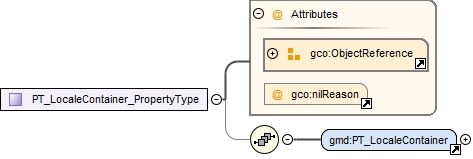

Complex Type gmd:PT_LocaleContainer_PropertyType
Namespacehttp://www.isotc211.org/2005/gmd
Diagram
DiagramgcoBase_xsd.tmp#ObjectReferencegcoBase_xsd.tmp#nilReasonfreeText_xsd.tmp#PT_LocaleContainer
Model
Childrengmd:PT_LocaleContainer
Attributes
Source
<xs:complexType name="PT_LocaleContainer_PropertyType">
  <xs:sequence minOccurs="0">
    <xs:element ref="gmd:PT_LocaleContainer"/>
  </xs:sequence>
  <xs:attributeGroup ref="gco:ObjectReference"/>
  <xs:attribute ref="gco:nilReason"/>
</xs:complexType>
Attribute gmd:LocalisedCharacterString_Type / @id
NamespaceNo namespace
Typexs:ID
Properties
contentsimple
Used by
Source
<xs:attribute name="id" type="xs:ID"/>
Attribute gmd:LocalisedCharacterString_Type / @locale
NamespaceNo namespace
Typexs:anyURI
Properties
contentsimple
Used by
Source
<xs:attribute name="locale" type="xs:anyURI"/>
XML Schema documentation generated by ® XML Developer.
