Included schema identification.xsd
Namespace http://www.isotc211.org/2005/gmd Annotations
Geographic MetaData (GMD) extensible markup language is a component of the XML Schema Implementation of Geographic Information Metadata documented in ISO/TS 19139:2007. GMD includes all the definitions of http://www.isotc211.org/2005/gmd namespace. The root document of this namespace is the file gmd.xsd. This identification.xsd schema implements the UML conceptual schema defined in A.2.2 of ISO 19115:2003. It contains the implementation of the following classes: MD_Identification, MD_BrowseGraphic, MD_DataIdentification, MD_ServiceIdentification, MD_RepresentativeFraction, MD_Usage, MD_Keywords, DS_Association, MD_AggregateInformation, MD_CharacterSetCode, MD_SpatialRepresentationTypeCode, MD_TopicCategoryCode, MD_ProgressCode, MD_KeywordTypeCode, DS_AssociationTypeCode, DS_InitiativeTypeCode, MD_ResolutionType.
Properties
attribute form default unqualified element form default qualified version 2012-07-13

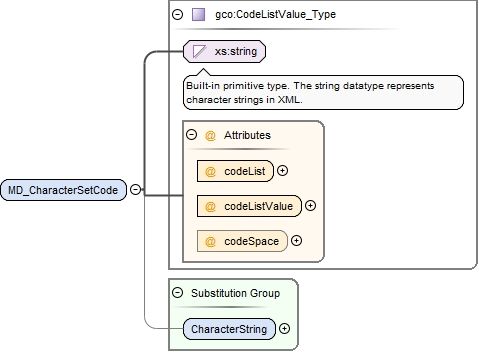

Element gmd:MD_CharacterSetCode

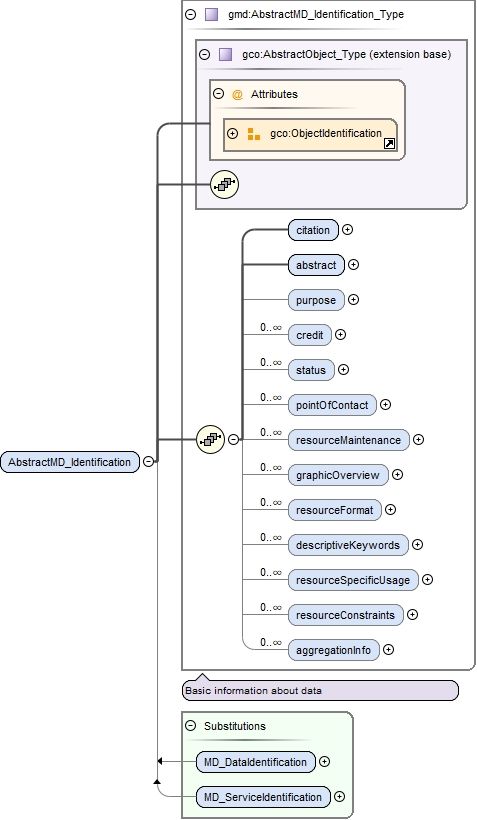

Element gmd:AbstractMD_Identification
Namespace http://www.isotc211.org/2005/gmd Diagram
Type gmd:AbstractMD_Identification_Type Type hierarchy Properties
content complex abstract true
Substitution Group Used by
Model
gmd:citation ,
gmd:abstract ,
gmd:purpose{0,1} ,

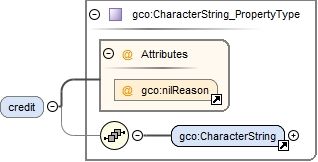

gmd:credit* ,
gmd:status* ,

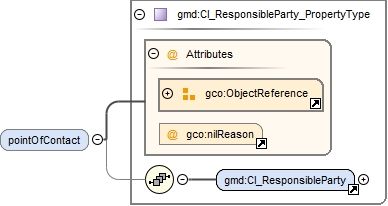

gmd:pointOfContact* ,
gmd:resourceMaintenance* ,
gmd:graphicOverview* ,
gmd:resourceFormat* ,
gmd:descriptiveKeywords* ,
gmd:resourceSpecificUsage* ,
gmd:resourceConstraints* ,
gmd:aggregationInfo* Children gmd:abstract gmd:aggregationInfo gmd:citation gmd:credit gmd:descriptiveKeywords gmd:graphicOverview gmd:pointOfContact gmd:purpose gmd:resourceConstraints gmd:resourceFormat gmd:resourceMaintenance gmd:resourceSpecificUsage gmd:status Instance
<gmd:AbstractMD_Identification id= "" uuid= "" xmlns:gmd= "http://www.isotc211.org/2005/gmd" >
<gmd:citation xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {1,1} </gmd:citation>
<gmd:abstract gco:nilReason= "" > {1,1} </gmd:abstract>
<gmd:purpose gco:nilReason= "" > {0,1} </gmd:purpose>
<gmd:credit gco:nilReason= "" > {0,unbounded} </gmd:credit>
<gmd:status gco:nilReason= "" > {0,unbounded} </gmd:status>
<gmd:pointOfContact xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:pointOfContact>
<gmd:resourceMaintenance xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceMaintenance>
<gmd:graphicOverview xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:graphicOverview>
<gmd:resourceFormat xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceFormat>
<gmd:descriptiveKeywords xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:descriptiveKeywords>
<gmd:resourceSpecificUsage xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceSpecificUsage>
<gmd:resourceConstraints xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceConstraints>
<gmd:aggregationInfo xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:aggregationInfo>
</gmd:AbstractMD_Identification>
Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:element name= "AbstractMD_Identification" type= "gmd:AbstractMD_Identification_Type" abstract= "true" />

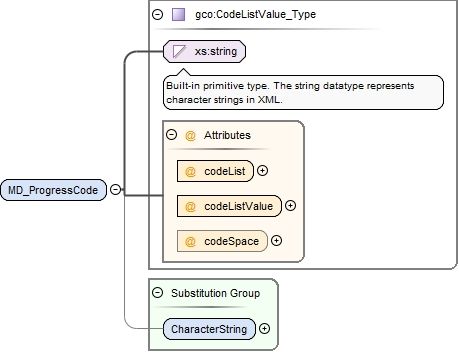

Element gmd:MD_ProgressCode

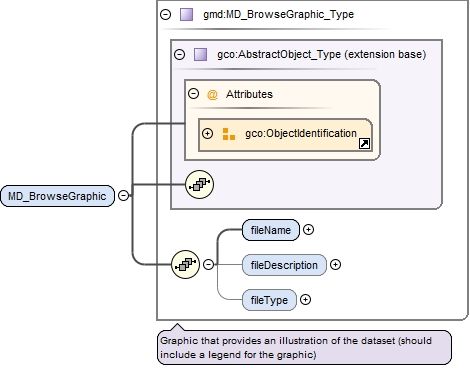

Element gmd:MD_BrowseGraphic

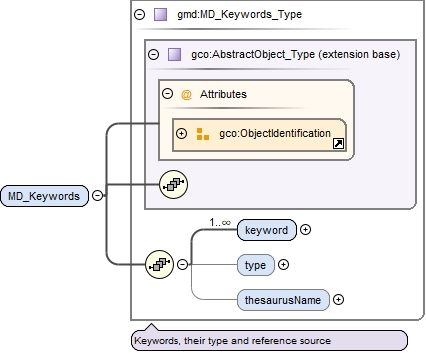

Element gmd:MD_Keywords

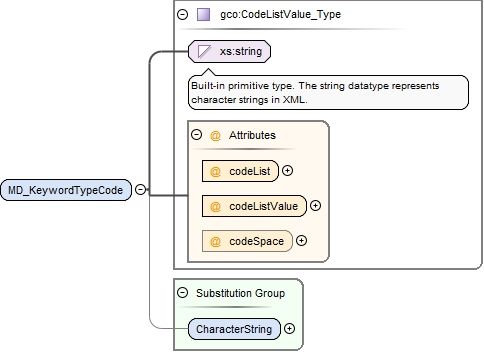

Element gmd:MD_KeywordTypeCode

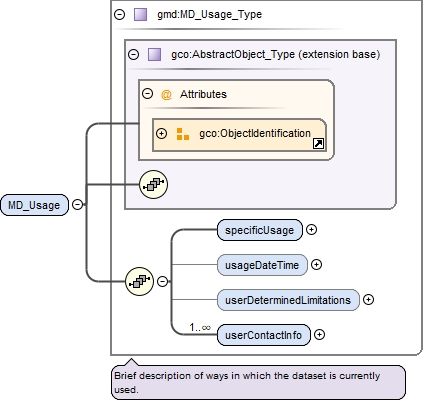

Element gmd:MD_Usage

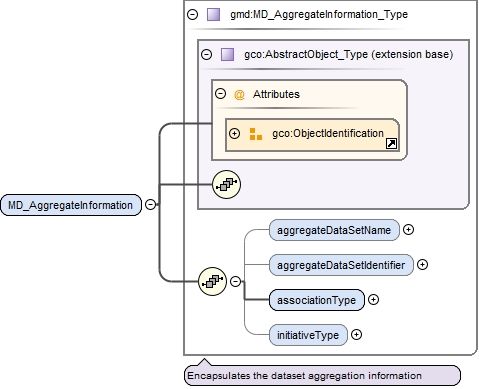

Element gmd:MD_AggregateInformation

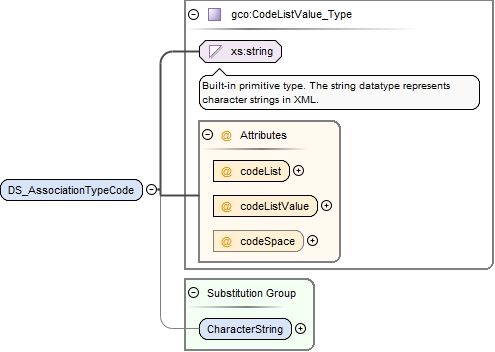

Element gmd:DS_AssociationTypeCode

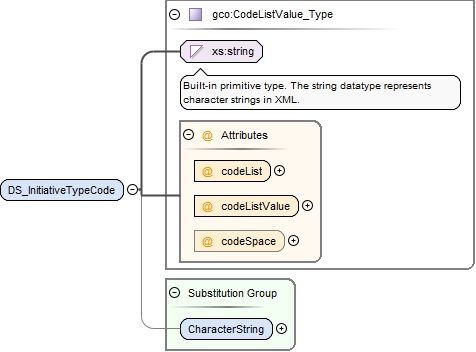

Element gmd:DS_InitiativeTypeCode

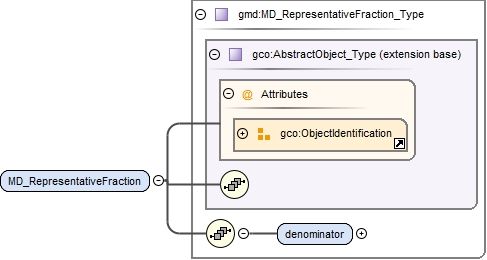

Element gmd:MD_RepresentativeFraction

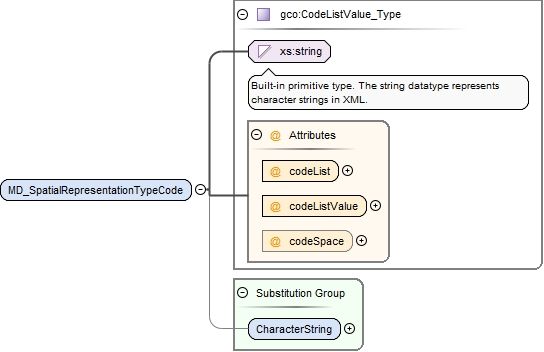

Element gmd:MD_SpatialRepresentationTypeCode

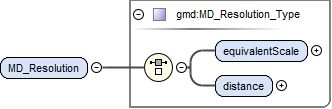

Element gmd:MD_Resolution

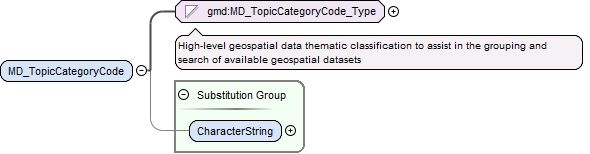

Element gmd:MD_TopicCategoryCode
Namespace http://www.isotc211.org/2005/gmd Diagram
Type gmd:MD_TopicCategoryCode_Type Properties
Facets
enumeration farming
enumeration biota
enumeration boundaries
enumeration climatologyMeteorologyAtmosphere
enumeration economy
enumeration elevation
enumeration environment
enumeration geoscientificInformation
enumeration health
enumeration imageryBaseMapsEarthCover
enumeration intelligenceMilitary
enumeration inlandWaters
enumeration location
enumeration oceans
enumeration planningCadastre
enumeration society
enumeration structure
enumeration transportation
enumeration utilitiesCommunication
Substitution Group Affiliation Used by
Source
<xs:element name= "MD_TopicCategoryCode" type= "gmd:MD_TopicCategoryCode_Type" substitutionGroup= "gco:CharacterString" />

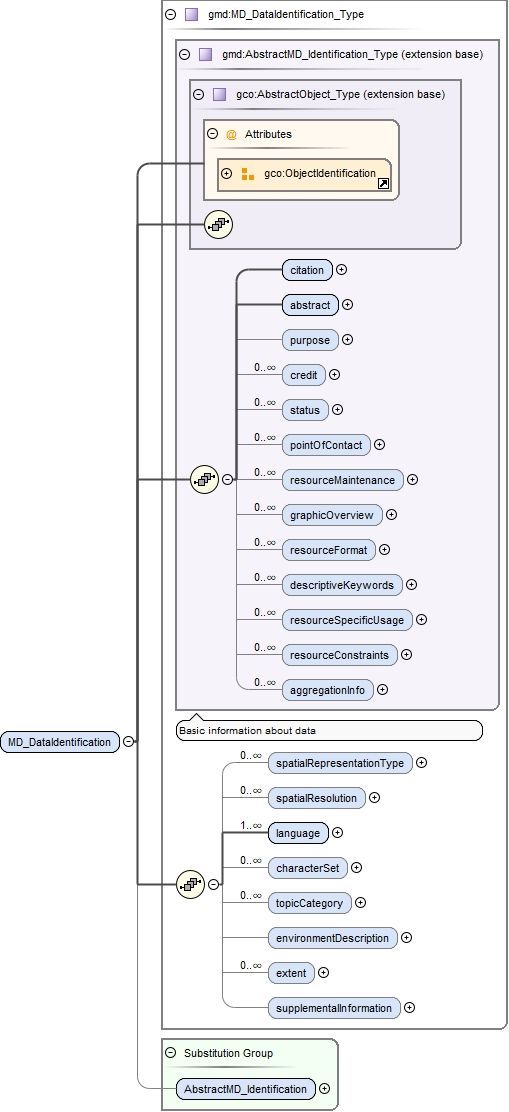

Element gmd:MD_DataIdentification
Namespace http://www.isotc211.org/2005/gmd Diagram
Type gmd:MD_DataIdentification_Type Type hierarchy Properties
Substitution Group Affiliation Used by
Model
gmd:citation ,
gmd:abstract ,
gmd:purpose{0,1} ,
gmd:credit* ,
gmd:status* ,
gmd:pointOfContact* ,
gmd:resourceMaintenance* ,
gmd:graphicOverview* ,
gmd:resourceFormat* ,
gmd:descriptiveKeywords* ,
gmd:resourceSpecificUsage* ,
gmd:resourceConstraints* ,
gmd:aggregationInfo* ,
gmd:spatialRepresentationType* ,
gmd:spatialResolution* ,
gmd:language+ ,
gmd:characterSet* ,
gmd:topicCategory* ,
gmd:environmentDescription{0,1} ,
gmd:extent* ,
gmd:supplementalInformation{0,1} Children gmd:abstract gmd:aggregationInfo gmd:characterSet gmd:citation gmd:credit gmd:descriptiveKeywords gmd:environmentDescription gmd:extent gmd:graphicOverview gmd:language gmd:pointOfContact gmd:purpose gmd:resourceConstraints gmd:resourceFormat gmd:resourceMaintenance gmd:resourceSpecificUsage gmd:spatialRepresentationType gmd:spatialResolution gmd:status gmd:supplementalInformation gmd:topicCategory Instance
<gmd:MD_DataIdentification id= "" uuid= "" xmlns:gmd= "http://www.isotc211.org/2005/gmd" >
<gmd:citation xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {1,1} </gmd:citation>
<gmd:abstract gco:nilReason= "" > {1,1} </gmd:abstract>
<gmd:purpose gco:nilReason= "" > {0,1} </gmd:purpose>
<gmd:credit gco:nilReason= "" > {0,unbounded} </gmd:credit>
<gmd:status gco:nilReason= "" > {0,unbounded} </gmd:status>
<gmd:pointOfContact xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:pointOfContact>
<gmd:resourceMaintenance xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceMaintenance>
<gmd:graphicOverview xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:graphicOverview>
<gmd:resourceFormat xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceFormat>
<gmd:descriptiveKeywords xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:descriptiveKeywords>
<gmd:resourceSpecificUsage xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceSpecificUsage>
<gmd:resourceConstraints xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceConstraints>
<gmd:aggregationInfo xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:aggregationInfo>
<gmd:spatialRepresentationType gco:nilReason= "" > {0,unbounded} </gmd:spatialRepresentationType>
<gmd:spatialResolution gco:nilReason= "" > {0,unbounded} </gmd:spatialResolution>

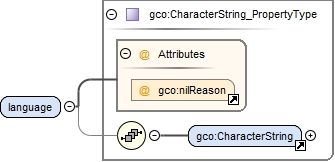

<gmd:language gco:nilReason= "" > {1,unbounded} </gmd:language>

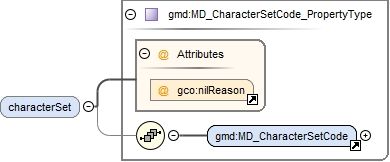

<gmd:characterSet gco:nilReason= "" > {0,unbounded} </gmd:characterSet>
<gmd:topicCategory gco:nilReason= "" > {0,unbounded} </gmd:topicCategory>
<gmd:environmentDescription gco:nilReason= "" > {0,1} </gmd:environmentDescription>
<gmd:extent xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:extent>
<gmd:supplementalInformation gco:nilReason= "" > {0,1} </gmd:supplementalInformation>
</gmd:MD_DataIdentification>
Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:element name= "MD_DataIdentification" type= "gmd:MD_DataIdentification_Type" substitutionGroup= "gmd:AbstractMD_Identification" />

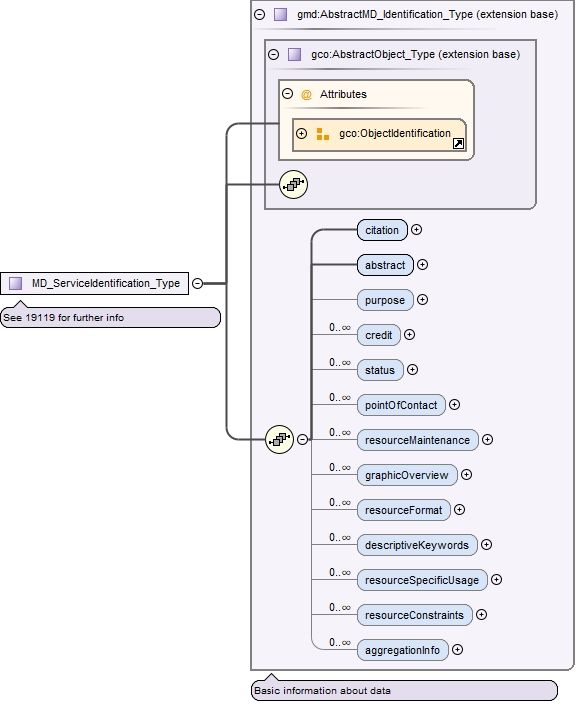

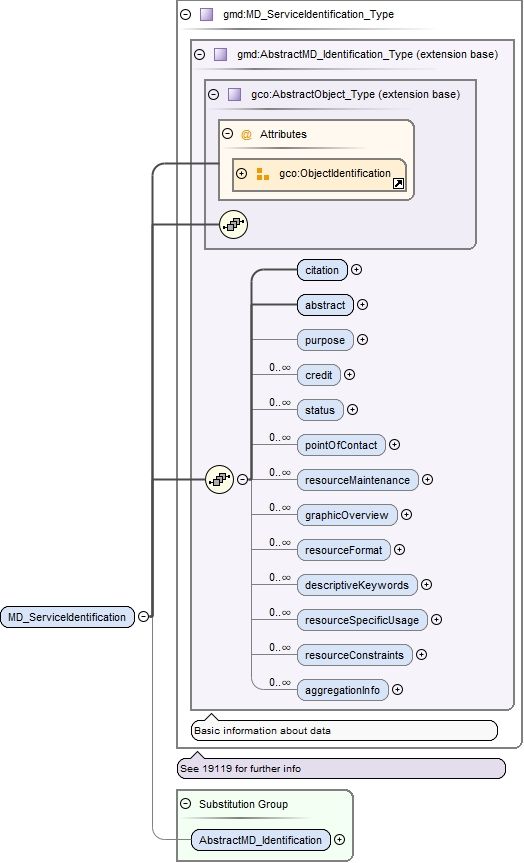

Element gmd:MD_ServiceIdentification
Namespace http://www.isotc211.org/2005/gmd Diagram
Type gmd:MD_ServiceIdentification_Type Type hierarchy Properties
Substitution Group Affiliation Used by
Model
gmd:citation ,
gmd:abstract ,
gmd:purpose{0,1} ,
gmd:credit* ,
gmd:status* ,
gmd:pointOfContact* ,
gmd:resourceMaintenance* ,
gmd:graphicOverview* ,
gmd:resourceFormat* ,
gmd:descriptiveKeywords* ,
gmd:resourceSpecificUsage* ,
gmd:resourceConstraints* ,
gmd:aggregationInfo* Children gmd:abstract gmd:aggregationInfo gmd:citation gmd:credit gmd:descriptiveKeywords gmd:graphicOverview gmd:pointOfContact gmd:purpose gmd:resourceConstraints gmd:resourceFormat gmd:resourceMaintenance gmd:resourceSpecificUsage gmd:status Instance
<gmd:MD_ServiceIdentification id= "" uuid= "" xmlns:gmd= "http://www.isotc211.org/2005/gmd" >
<gmd:citation xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {1,1} </gmd:citation>
<gmd:abstract gco:nilReason= "" > {1,1} </gmd:abstract>
<gmd:purpose gco:nilReason= "" > {0,1} </gmd:purpose>
<gmd:credit gco:nilReason= "" > {0,unbounded} </gmd:credit>
<gmd:status gco:nilReason= "" > {0,unbounded} </gmd:status>
<gmd:pointOfContact xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:pointOfContact>
<gmd:resourceMaintenance xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceMaintenance>
<gmd:graphicOverview xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:graphicOverview>
<gmd:resourceFormat xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceFormat>
<gmd:descriptiveKeywords xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:descriptiveKeywords>
<gmd:resourceSpecificUsage xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceSpecificUsage>
<gmd:resourceConstraints xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:resourceConstraints>
<gmd:aggregationInfo xlink:actuate= "" xlink:arcrole= "" xlink:href= "" gco:nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" uuidref= "" > {0,unbounded} </gmd:aggregationInfo>
</gmd:MD_ServiceIdentification>
Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:element name= "MD_ServiceIdentification" type= "gmd:MD_ServiceIdentification_Type" substitutionGroup= "gmd:AbstractMD_Identification" />

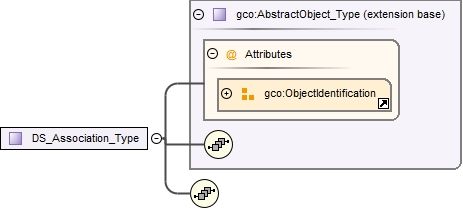

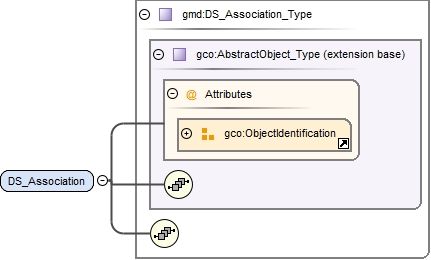

Element gmd:DS_Association

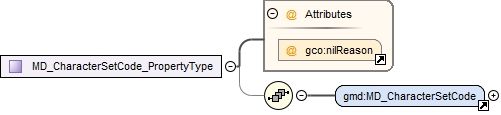

Complex Type gmd:MD_CharacterSetCode_PropertyType

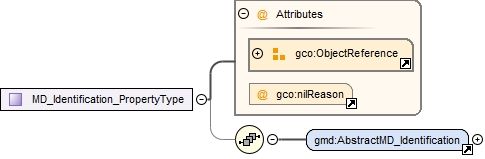

Complex Type gmd:MD_Identification_PropertyType

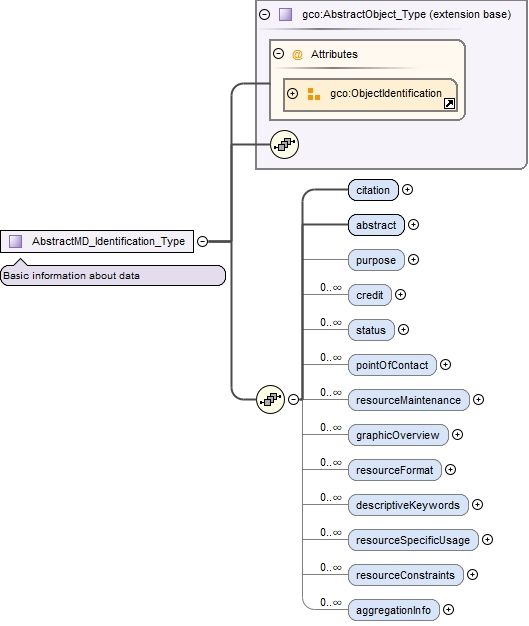

Complex Type gmd:AbstractMD_Identification_Type
Namespace http://www.isotc211.org/2005/gmd Annotations
Basic information about data
Diagram
Type extension of gco:AbstractObject_Type Type hierarchy Properties
Used by
Model
gmd:citation ,
gmd:abstract ,
gmd:purpose{0,1} ,
gmd:credit* ,
gmd:status* ,
gmd:pointOfContact* ,
gmd:resourceMaintenance* ,
gmd:graphicOverview* ,
gmd:resourceFormat* ,
gmd:descriptiveKeywords* ,
gmd:resourceSpecificUsage* ,
gmd:resourceConstraints* ,
gmd:aggregationInfo* Children gmd:abstract gmd:aggregationInfo gmd:citation gmd:credit gmd:descriptiveKeywords gmd:graphicOverview gmd:pointOfContact gmd:purpose gmd:resourceConstraints gmd:resourceFormat gmd:resourceMaintenance gmd:resourceSpecificUsage gmd:status Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:complexType name= "AbstractMD_Identification_Type" abstract= "true" >
<xs:annotation >
<xs:documentation > Basic information about data </xs:documentation>
</xs:annotation>
<xs:complexContent >
<xs:extension base= "gco:AbstractObject_Type" >
<xs:sequence >

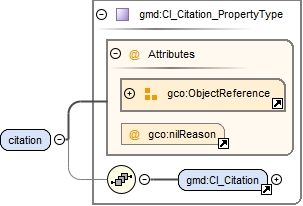

<xs:element name= "citation" type= "gmd:CI_Citation_PropertyType" />
<xs:element name= "abstract" type= "gco:CharacterString_PropertyType" />

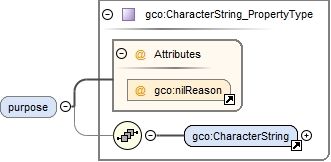

<xs:element name= "purpose" type= "gco:CharacterString_PropertyType" minOccurs= "0" />
<xs:element name= "credit" type= "gco:CharacterString_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

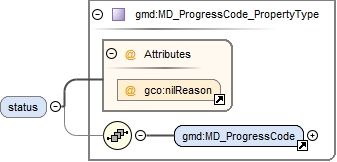

<xs:element name= "status" type= "gmd:MD_ProgressCode_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
<xs:element name= "pointOfContact" type= "gmd:CI_ResponsibleParty_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

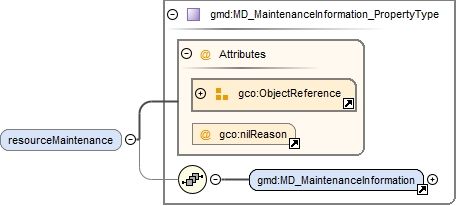

<xs:element name= "resourceMaintenance" type= "gmd:MD_MaintenanceInformation_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
<xs:element name= "graphicOverview" type= "gmd:MD_BrowseGraphic_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

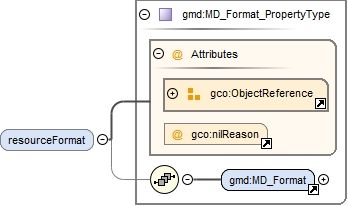

<xs:element name= "resourceFormat" type= "gmd:MD_Format_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

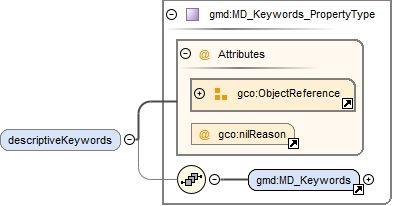

<xs:element name= "descriptiveKeywords" type= "gmd:MD_Keywords_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
<xs:element name= "resourceSpecificUsage" type= "gmd:MD_Usage_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

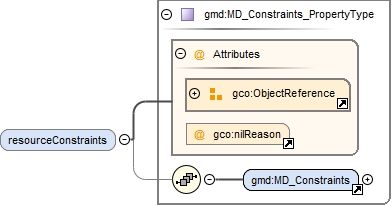

<xs:element name= "resourceConstraints" type= "gmd:MD_Constraints_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
<xs:element name= "aggregationInfo" type= "gmd:MD_AggregateInformation_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>

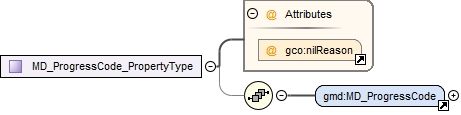

Complex Type gmd:MD_ProgressCode_PropertyType

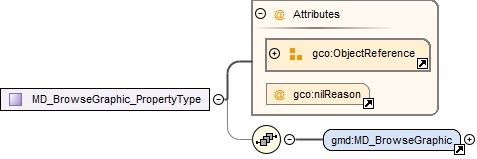

Complex Type gmd:MD_BrowseGraphic_PropertyType

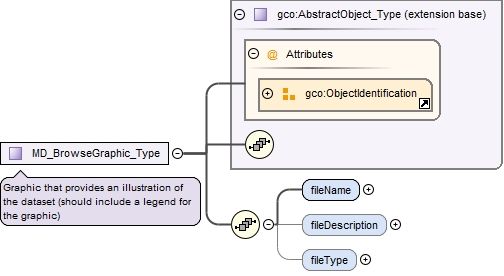

Complex Type gmd:MD_BrowseGraphic_Type

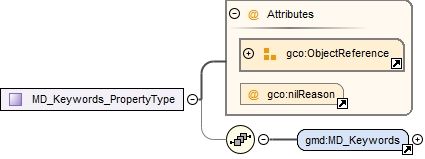

Complex Type gmd:MD_Keywords_PropertyType

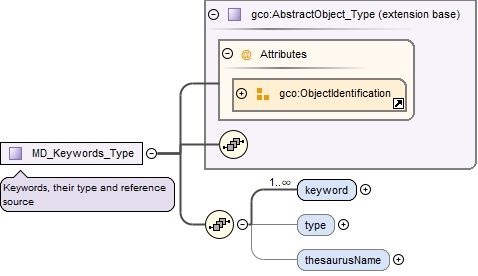

Complex Type gmd:MD_Keywords_Type

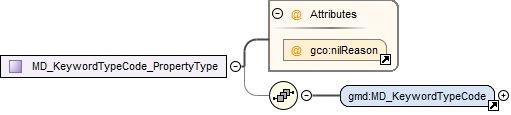

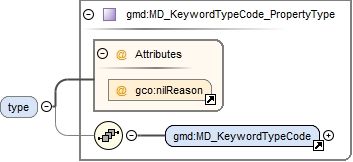

Complex Type gmd:MD_KeywordTypeCode_PropertyType

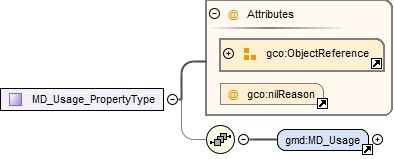

Complex Type gmd:MD_Usage_PropertyType

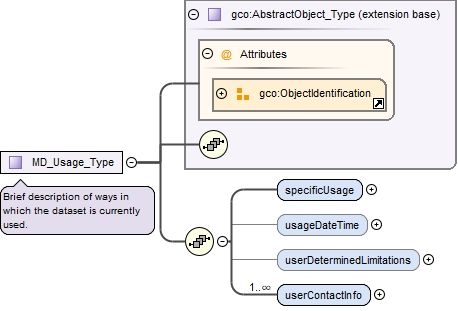

Complex Type gmd:MD_Usage_Type

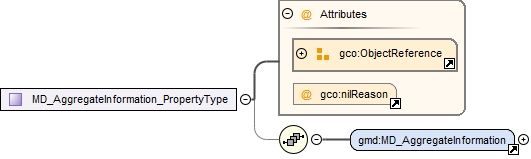

Complex Type gmd:MD_AggregateInformation_PropertyType

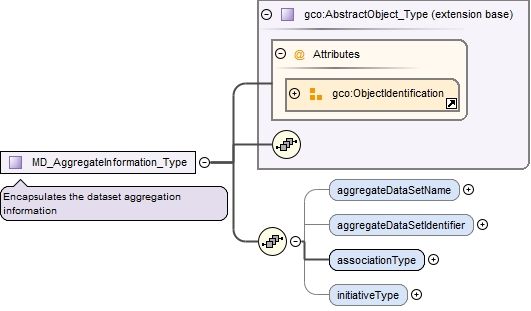

Complex Type gmd:MD_AggregateInformation_Type

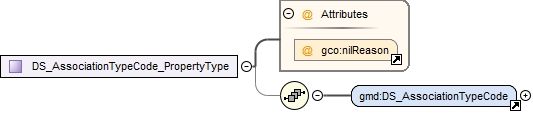

Complex Type gmd:DS_AssociationTypeCode_PropertyType

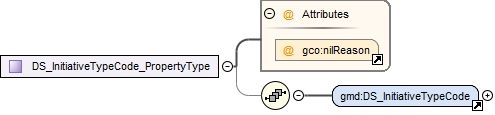

Complex Type gmd:DS_InitiativeTypeCode_PropertyType
Complex Type gmd:MD_RepresentativeFraction_PropertyType

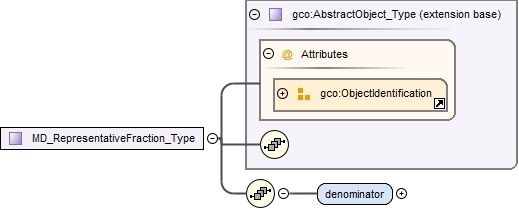

Complex Type gmd:MD_RepresentativeFraction_Type

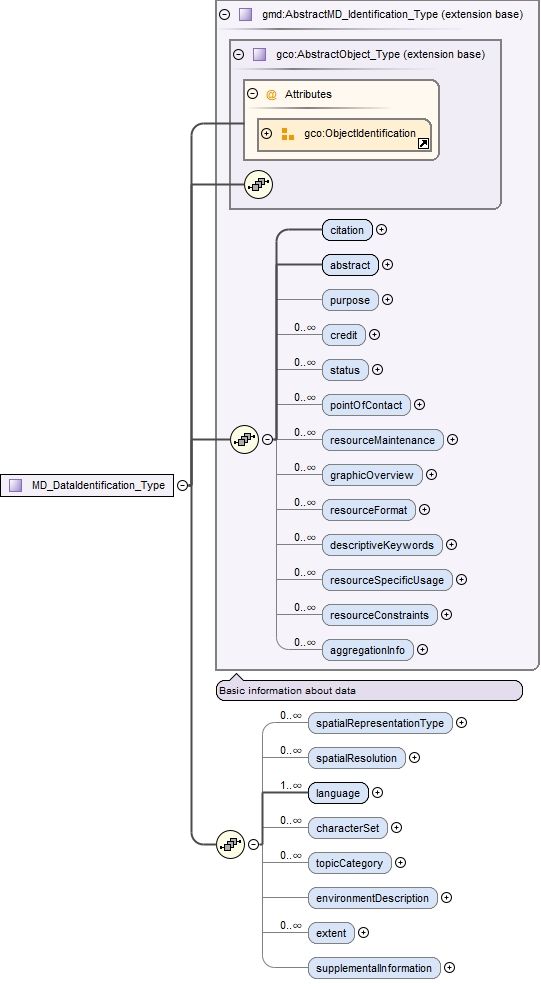

Complex Type gmd:MD_DataIdentification_Type
Namespace http://www.isotc211.org/2005/gmd Diagram
Type extension of gmd:AbstractMD_Identification_Type Type hierarchy Used by
Model
gmd:citation ,
gmd:abstract ,
gmd:purpose{0,1} ,
gmd:credit* ,
gmd:status* ,
gmd:pointOfContact* ,
gmd:resourceMaintenance* ,
gmd:graphicOverview* ,
gmd:resourceFormat* ,
gmd:descriptiveKeywords* ,
gmd:resourceSpecificUsage* ,
gmd:resourceConstraints* ,
gmd:aggregationInfo* ,
gmd:spatialRepresentationType* ,
gmd:spatialResolution* ,
gmd:language+ ,
gmd:characterSet* ,
gmd:topicCategory* ,
gmd:environmentDescription{0,1} ,
gmd:extent* ,
gmd:supplementalInformation{0,1} Children gmd:abstract gmd:aggregationInfo gmd:characterSet gmd:citation gmd:credit gmd:descriptiveKeywords gmd:environmentDescription gmd:extent gmd:graphicOverview gmd:language gmd:pointOfContact gmd:purpose gmd:resourceConstraints gmd:resourceFormat gmd:resourceMaintenance gmd:resourceSpecificUsage gmd:spatialRepresentationType gmd:spatialResolution gmd:status gmd:supplementalInformation gmd:topicCategory Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:complexType name= "MD_DataIdentification_Type" >
<xs:complexContent >
<xs:extension base= "gmd:AbstractMD_Identification_Type" >
<xs:sequence >

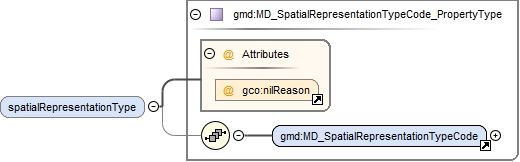

<xs:element name= "spatialRepresentationType" type= "gmd:MD_SpatialRepresentationTypeCode_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

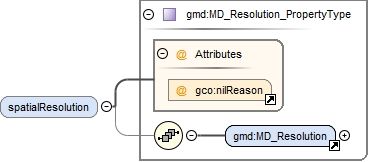

<xs:element name= "spatialResolution" type= "gmd:MD_Resolution_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
<xs:element name= "language" type= "gco:CharacterString_PropertyType" maxOccurs= "unbounded" />
<xs:element name= "characterSet" type= "gmd:MD_CharacterSetCode_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

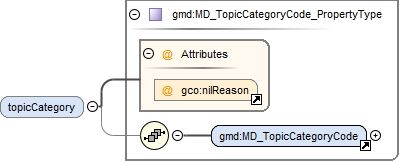

<xs:element name= "topicCategory" type= "gmd:MD_TopicCategoryCode_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />
<xs:element name= "environmentDescription" type= "gco:CharacterString_PropertyType" minOccurs= "0" />
<xs:element name= "extent" type= "gmd:EX_Extent_PropertyType" minOccurs= "0" maxOccurs= "unbounded" />

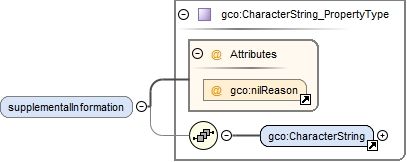

<xs:element name= "supplementalInformation" type= "gco:CharacterString_PropertyType" minOccurs= "0" />
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>

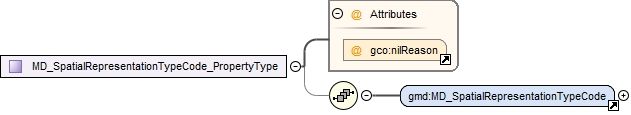

Complex Type gmd:MD_SpatialRepresentationTypeCode_PropertyType

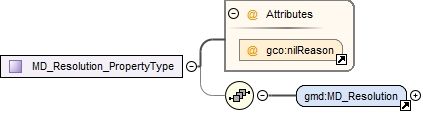

Complex Type gmd:MD_Resolution_PropertyType
Complex Type gmd:MD_Resolution_Type

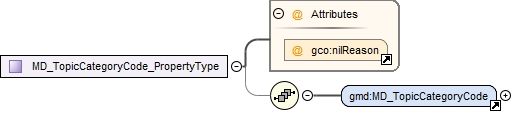

Complex Type gmd:MD_TopicCategoryCode_PropertyType
Simple Type gmd:MD_TopicCategoryCode_Type
Namespace http://www.isotc211.org/2005/gmd Annotations
High-level geospatial data thematic classification to assist in the grouping and search of available geospatial datasets
Diagram
Type restriction of xs:string Facets
enumeration farming
enumeration biota
enumeration boundaries
enumeration climatologyMeteorologyAtmosphere
enumeration economy
enumeration elevation
enumeration environment
enumeration geoscientificInformation
enumeration health
enumeration imageryBaseMapsEarthCover
enumeration intelligenceMilitary
enumeration inlandWaters
enumeration location
enumeration oceans
enumeration planningCadastre
enumeration society
enumeration structure
enumeration transportation
enumeration utilitiesCommunication
Used by
Source
<xs:simpleType name= "MD_TopicCategoryCode_Type" >
<xs:annotation >
<xs:documentation > High-level geospatial data thematic classification to assist in the grouping and search of available geospatial datasets </xs:documentation>
</xs:annotation>
<xs:restriction base= "xs:string" >
<xs:enumeration value= "farming" />
<xs:enumeration value= "biota" />
<xs:enumeration value= "boundaries" />
<xs:enumeration value= "climatologyMeteorologyAtmosphere" />
<xs:enumeration value= "economy" />
<xs:enumeration value= "elevation" />
<xs:enumeration value= "environment" />
<xs:enumeration value= "geoscientificInformation" />
<xs:enumeration value= "health" />
<xs:enumeration value= "imageryBaseMapsEarthCover" />
<xs:enumeration value= "intelligenceMilitary" />
<xs:enumeration value= "inlandWaters" />
<xs:enumeration value= "location" />
<xs:enumeration value= "oceans" />
<xs:enumeration value= "planningCadastre" />
<xs:enumeration value= "society" />
<xs:enumeration value= "structure" />
<xs:enumeration value= "transportation" />
<xs:enumeration value= "utilitiesCommunication" />
</xs:restriction>
</xs:simpleType>

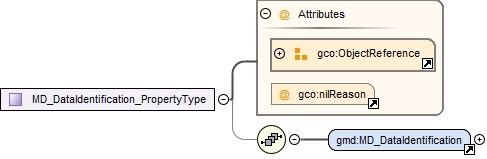

Complex Type gmd:MD_DataIdentification_PropertyType
Complex Type gmd:MD_ServiceIdentification_Type
Namespace http://www.isotc211.org/2005/gmd Annotations
See 19119 for further info
Diagram
Type extension of gmd:AbstractMD_Identification_Type Type hierarchy Used by
Model
gmd:citation ,
gmd:abstract ,
gmd:purpose{0,1} ,
gmd:credit* ,
gmd:status* ,
gmd:pointOfContact* ,
gmd:resourceMaintenance* ,
gmd:graphicOverview* ,
gmd:resourceFormat* ,
gmd:descriptiveKeywords* ,

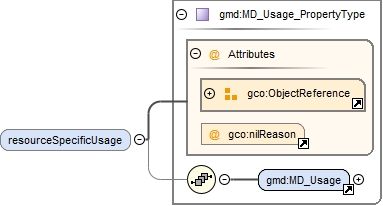

gmd:resourceSpecificUsage* ,
gmd:resourceConstraints* ,
gmd:aggregationInfo* Children gmd:abstract gmd:aggregationInfo gmd:citation gmd:credit gmd:descriptiveKeywords gmd:graphicOverview gmd:pointOfContact gmd:purpose gmd:resourceConstraints gmd:resourceFormat gmd:resourceMaintenance gmd:resourceSpecificUsage gmd:status Attributes
QName Type Use id xs:ID optional
uuid xs:string optional
Source
<xs:complexType name= "MD_ServiceIdentification_Type" >
<xs:annotation >
<xs:documentation > See 19119 for further info </xs:documentation>
</xs:annotation>
<xs:complexContent >
<xs:extension base= "gmd:AbstractMD_Identification_Type" />
</xs:complexContent>
</xs:complexType>

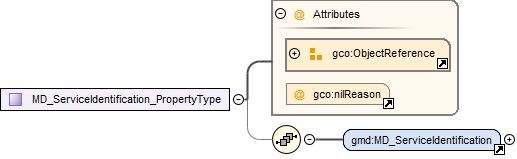

Complex Type gmd:MD_ServiceIdentification_PropertyType
Complex Type gmd:DS_Association_Type

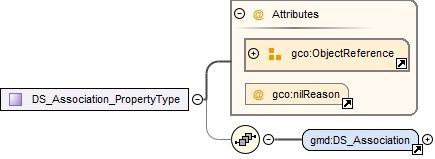

Complex Type gmd:DS_Association_PropertyType
